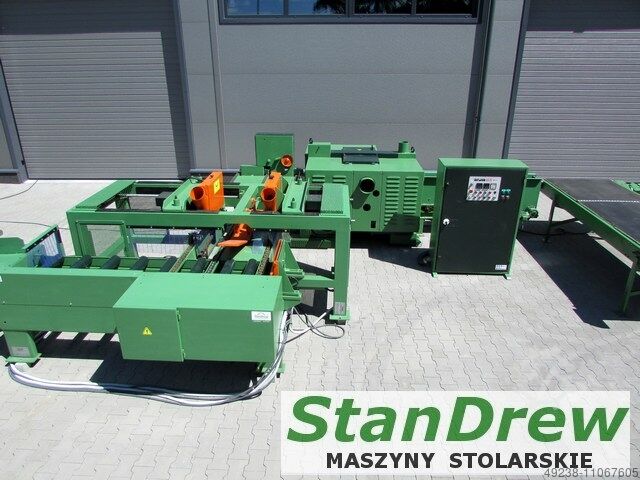

Storti wood cutting line

Storti RM 400 S TP2 Multibi R16

Storti wood cutting line

- Italian production
- edger with a central disc with a pneumatic jump RM 400 S
- crosscut saw TP2
- multisaw Multibi R16
- minimum material length 700 mm
- maximum element width 500 mm
- maximum element height 140 mm
- line feed speed 30 m/min
- total power 110 kW
- space requirement 26 x 5.5 m

TECHNICAL PARAMETERS:
1 Strorti RM400 S edger
- cutting width max 330 mm
- cutting height max 140 mm
- element width max 500 mm
- maximum element length 5000 mm
- engine power 3 x 11 kW
- seven steel toothed bottom pulling rollers
- two upper toothed pulling rollers
- pneumatic material pressure
- the jump of the central disc is pneumatic
- feed table 5000 mm roll width 500 mm diameter 80 mm
- receiving table with edging 5200 mm roll width 500 mm roll diameter 140 mm

2 Storti TP2 crosscut saw
- width of the finished element max 1600 mm
- width of the finished element min 700 mm
- cutting height min / max - 20/140 mm
- disc diameter 600 mm
- spindle diameter 30 mm
- engine power 2 x 7.5 kW
- feed roller table 2570 mm width of rollers 500 mm diameter 100 mm
- diameter of connections 2 x 160 mm

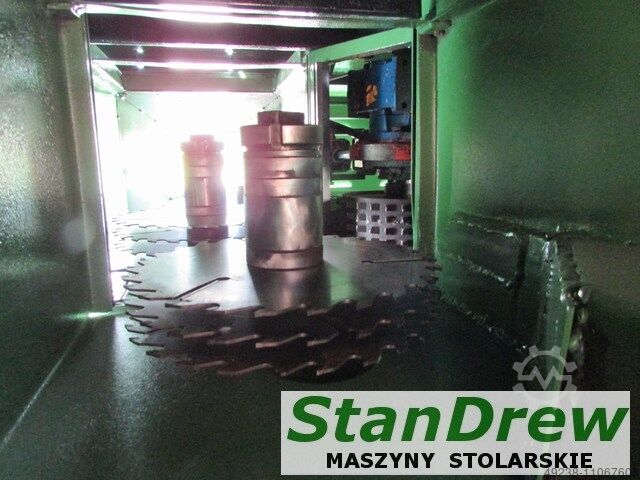

3 Multisaw Storti Multibi R 16
- material width max 150 mm
- material height max 140 mm
Hedpfjmv Ehzex Ahueng
- engine power 2 x 22 kW
- disc diameter max 300 mm
- spindle diameter 50 mm
- spindle height 160 mm
- hydraulically adjustable feed
- hydraulic side material pressure
- two upper pneumatic clamps
- connector diameters 2 x 220 1 x 160 mm
- receiving conveyor 2000 mm
- cross conveyor table 3200 x 1100 mm
