Cylindrical grinder cnc

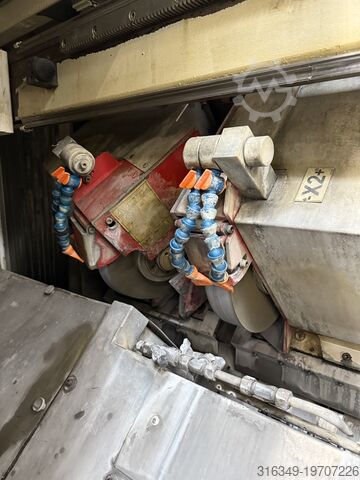

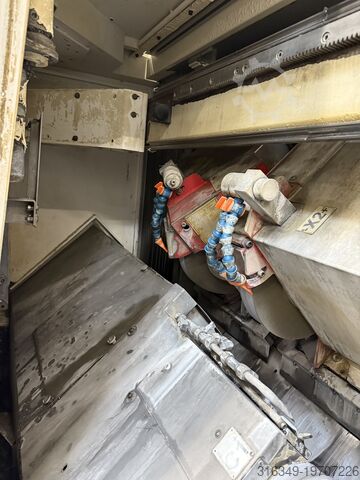

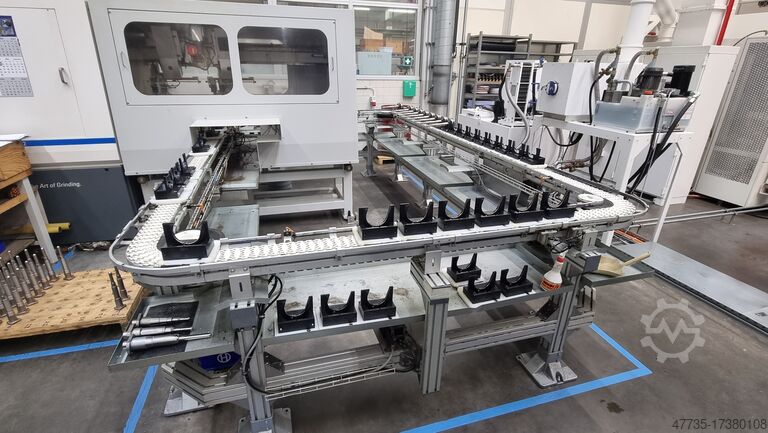

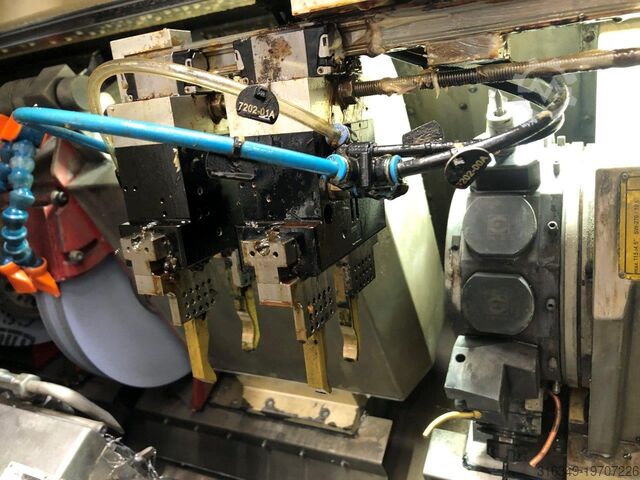

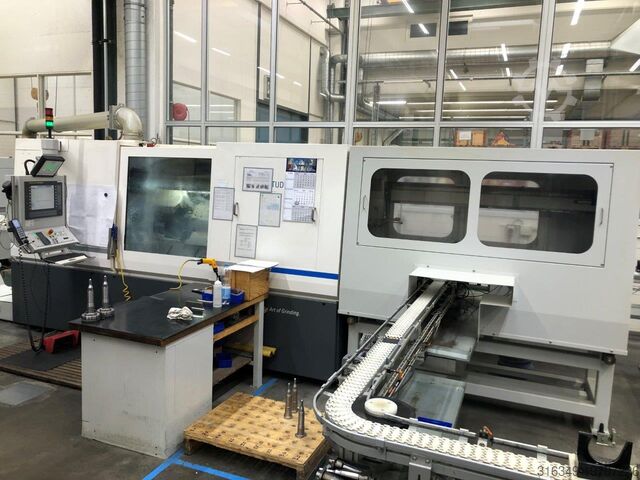

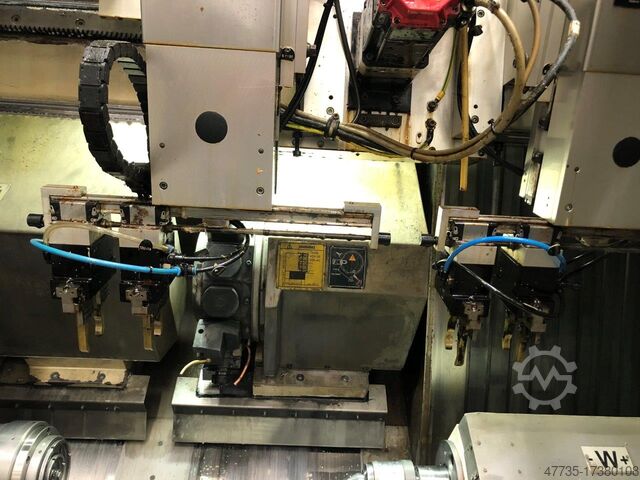

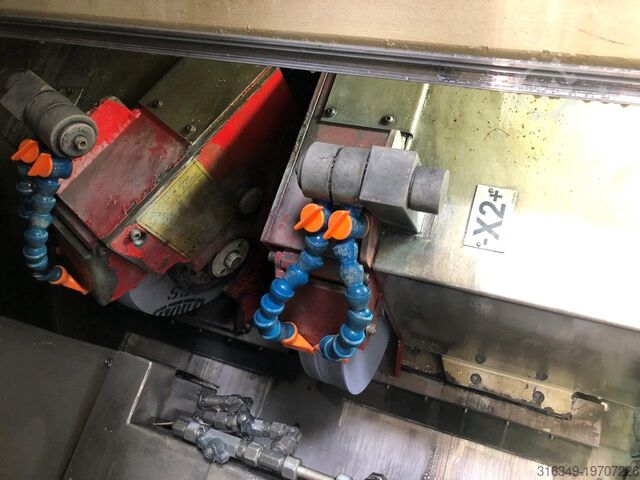

STUDER S242

Condition: used, Year of construction: 1995, grinding diameter 350 mm grinding length 1000 mm centre height 175 mm Teilüberholte Maschine mit Messprotokoll nach Neumaschinentoleranz NEUE Steuerung Eckelmann ENC mit BEMA Schleifsoftware Hfjdpfxsyatx So Ac Njh KEL-ASSIST für Kelco 90 numerisch gesteuerte B-Achse Innnschleifrinrichtung Dia 80mm Schleifscheibe links Durchmesser 400mm Schleifscheibe rechts Durchmesser 300mm Innenschleifspindel HJN 828 hydraulischer Reitstock Mikroverstellung KEL SET Messsystem

Condition: used, total height: 1,780 mm, total length: 2,720 mm, total width: 1,910 mm, Empty weight: 2.500 kg Price: On request - Documentation available: No - CE certificate present: No - X-axis travel [mm]: 750 - Z-axis travel [mm]: 340 - Table width [mm]: 600 - Table depth [mm]: 300 - Max. grinding wheel diameter [mm]: 355 - Max. spindle speed [rpm]: 1500 - Options: Digital readout - Transport dimensions: 2725mm x 1910mm x 1780mm (l x w x h) - Transport weight [kg]: 2500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Hfodpswniacefx Ac Njh Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 1995, functionality: fully functional, machine/vehicle number: 4304, rotary table diameter: 600 mm, grinding height: 450 mm, overall weight: 14,500 kg, Machine is equipped with 3 spindles, surface grinding, external grinding, bore grinding Hsdpovt A Rtefx Ac Njfh Turret head B-axis with 1° division Belt filter system included

Condition: good (used), Year of construction: 1984, Grinding wheelhead: - motor power : 2,2 kW - spindle speeds : 1 000 - 8 000 rpm - spindle inclination (A-axis): -10° up to +27° - setting accuracy 1 min - height adjustment (Y axis) : 130 mm - stroke range (X axis) : 220 mm - oscillation stroke, steplessly adjustable during oscillation : 0-30 mm - oscillation frequency : 30/60 1/min Workhead: - radius setting (Z axis) : 0.01-50 mm - setting accuracy: 0,01 mm - retraction of slide from the grinding to the measuring position : max. 49 mm - cross table, clamping surface : 155 x 205 mm - travel X - Y : each 60 mm - maximum swivelling angle (B axis): 260° - supply voltage : 380 V - weight : 1200 kg Accessories/options: - grinding pressure variable - projector fixed in measuring position - 1 cabinet with accessories - different grinding wheels, flanges - coolant tank - documentation Hodpfxovmpabj Ac Nsfh Under power in our warehouse.

Condition: used, Year of construction: 2000, grinding diameter 450 mm grinding length 1000 mm centre height 225 mm Photo outside of the machine of an already delivered one in similar scope. Other fotos from the origin machine. -major maintenance -New table geometry -partial painting of the interior grinding wheel equipment LEFT 400x63x127mm (standard) grinding wheel equipment RIGHT 300x40x127mm Internal grinding unit Ø120mm for HF spindles CNC control KELCO 120 Hsdpfsxzk Nijx Ac Nsfh C-axis for non-circular grinding. Kel-Poly B-AXIS: CNC-controlled B-axis KELCO 120: v constant 35m/s or 45m/s High-frequency internal grinding spindle Operating unit for MFV and MFZ spindles Hydraulic quill retraction for the tailstock NO micro-adjustment on the tailstock Spring-loaded quill insert Top table cooling Standard workpiece headstock MK 5 DIN 55026 size 5" Micro-adjustment for the standard workhead Dressing device on the lower table Active longitudinal positioning KELPOS, MARPOSS, mounted on the grinding head Tool measuring system KELSET, MARPOSS MARPOSS gate sensor Measuring control MARPOSS Minialsar prepared Paper belt filter

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle power : 24 [kW] - Spindle speeds : 5000 [rpm] Hfedpsv Ig Avefx Ac Nsh - Max. bar diameter : 65 [mm] - C axis indexing precision : 0.001 [°] - Travel : 390 / 600 [mm] TURNING-MILLING SPINDLE - X stroke : 350 [mm] - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 LOWER TURNING-MILLING SPINDLE - Y stroke : ± 80 [mm] - B Axis stroke : 270 [°] - B axis indexing precision : 0.001 [°] - Tool type : HSK-T40 - Spindle speeds : 18000 [rpm] - Spindle power : 11 [kW] - Fixed tools on milling electrospindle : 6 x VDI25 TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 80 - Tool exchange time : 4.5 [sec] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 68 [kW] WEIGHT & DIMENSIONS - Machine height : 2500 [mm] - Machine weight : 11000 [kg] MACHINE HOURS - Spindle hours : 19781 [h] - Number of turning-milling spindle hours : 9713 [h] EQUIPMENT - CNC : Siemens Sinumerik 840D SL - Coolant tank * with high-pressure pump * with paper filtering unit * Coolant through spindle - Chips conveyor - Spindle cooling unit - Parts catcher

Condition: used, STAR SW 20 is a CNC automatic (Swiss-type) lathe offering high precision, strong accuracy and reliable performance. Capacities: 11 axes, 2 spindles, max machining Ø 20 mm, back spindle up to 10,000 t/min. Specs: spindle 3.7 kW, driven tools 1.2 kW (8,000 t/min), carriages with 7 and 5 positions, counter-operation 8 tools (6 driven), rapid traverse 35 m/min, 50 Hz 3x380 V, ~3400 kg, L2600×W1150×H1765 mm. Accessories: bar loader, lamp, 150 l coolant system, ELBARON oil-mist extractor, interface for bar loader. Achieves tight tolerances; typical uses: automotive, watchmaking, tooling, aerospace, medical. Hedpfxsyxnwns Ac Njfh

Condition: used, Year of construction: 2005, functionality: fully functional, machine/vehicle number: 2808, total height: 2,400 mm, total length: 3,300 mm, total width: 2,200 mm, feed length X-axis: 450 mm, feed length Y-axis: 250 mm, feed length Z-axis: 350 mm, overall weight: 7,000 kg, travel distance X-axis: 450 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 350 mm, CNC grinding center for external, internal, and profile grinding with three linear axes and a swiveling grinding head. Modularly configurable for various grinding tasks, featuring automated dressing cycles, modern control system, tool management, and options for measurement systems as well as peripherals such as coolant treatment and extraction. Hfjdpfsxuichjx Ac Nsh

Condition: ready for operation (used), Year of construction: 1989, total width: 4,000 mm, overall weight: 5,000 kg, workpiece diameter (max.): 140 mm, product length (max.): 2,000 mm, number of axes: 2, This Schaudt Mikrosa SASL 125 was manufactured in 1989. A centerless external grinding machine, it features NC-controlled operations and hydrodynamic axis bearing. Both wheels can be dressed via a controlled axis. Refurbished by UHLMAN Werkzeugmaschinen-Service in 2021/22, it has been regularly maintained. Consider the opportunity to buy this Schaudt Mikrosa SASL 125 centerless grinding machine. Contact us for more information. Working range: • Maximum workpiece diameter • that can be ground • with a grinding wheel Ø 500 mm: 140 mm • Maximum workpiece diameter • that can be ground • with a grinding wheel Ø 630 mm: 80 mm • Minimum workpiece diameter that can be ground: 3.5 mm • Maximum workpiece length for through-feed grinding: 200 mm • Maximum workpiece length in plunge grinding 245 mm • Maximum grindable profile depth on the workpiece 25 mm Grinding wheel: • Maximum outer diameter 500 or 630 mm • Minimum outer diameter 380 mm • Maximum grinding wheel width 250 mm • Grinding wheel bore 305 mm • Guide wheel: • Maximum guide wheel outer diameter 315 mm • Maximum guide wheel width 250 mm • Bore diameter 127 mm Power requirements: • Power consumption approx. 33 kW Additional equipment • Optional: Additional equipment available Machine Benefits Technical Machine Benefits Hodpfsx Enapsx Ac Nefh • Hydrodynamic axis bearing • Regular maintenance during series production • Retroffited by uhlman werkzeugmaschinen-service in 2021/22

Condition: used, O F F E R We can offer you ex stock, subject to prior sale and errors: TSCHUDIN (CH) Centerless cylindrical grinding machine Model TC-300 Year of manufacture 2001 Grinding range – Ø 0.5 – 25 mm (30) Max. workpiece length for plunge grinding 125 mm (140) Max. workpiece length for through-feed grinding 300 mm Grinding wheel dimensions: Ø x width Ø 300 x 125 mm (140) Hfodpfx Aowftt Ujc Nsh Regulating wheel dimensions: Ø x width Ø 225 x 125 mm (140) Grinding wheel peripheral speed 35 m/sec Grinding wheel infeed 3 mm Regulating wheel speeds, steplessly adjustable 0 – 444 rpm Regulating wheel inclination Degrees Grinding wheel drive approx. 7.5 kW Total connected load approx. 13 kW – 380 V – 50 Hz Weight 2,500 kg Accessories / Special equipment: • The machine operates with a fixed workpiece position, allowing both the grinding spindle and the regulating spindle units to be adjustable. This simplifies machine setup as well as automatic workpiece loading and unloading. • SIEMENS PLC control for automatic operation with SIEMENS touchscreen. Complete electrics and PLC control renewed in 2016! • Electromechanical profile dressing device for the regulating wheel • Regulating and grinding wheel speeds are steplessly adjustable. • Adjustable plunge guide bridge with mounted plunge workpiece rest • Electromechanically controlled workpiece pusher & automatic pneumatic workpiece ejector • Additional outfeed cylinder for automatic tilting of workpieces after plunge grinding (adjustable 4–30 mm) • Machine is prepared for use with a HELP-TEC bar loader MSHL08/400P, which is currently not present. • Complete enclosure of working area with monitoring technology • Separate control cabinet, operating and electrical manuals for the retrofit Condition: Very good! Fitted with new electronics in 2016! Click here for a video of the machine: Delivery: ex stock, immediately available, FCA Metzingen Payment: strictly net – after receipt of invoice Always a large selection of grinding machines in stock – please inquire for your requirements!
