Cylindrical grinding machine

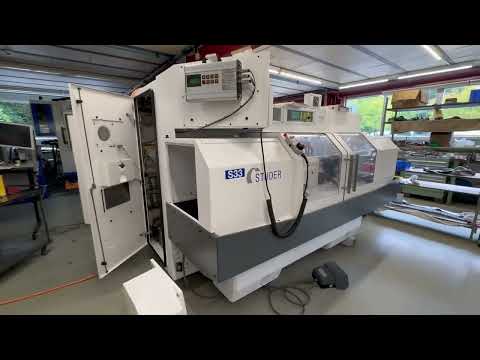

Studer S33

Condition: ready for operation (used), Year of construction: 2008, operating hours: 32,110 h, functionality: fully functional, machine/vehicle number: 027.0500, workpiece weight (max.): 80 kg, total width: 2,200 mm, total length: 2,700 mm, total height: 1,800 mm, distance between centers: 600 mm, type of input current: three-phase, workpiece diameter between centers: 300 mm, workpiece length between centers: 600 mm, input frequency: 50 Hz, input voltage: 380 V, space requirement height: 170 mm, tailstock quill stroke: 70 mm, Equipment: CE marking, Universal CNC Grinding Machine for Sale - Type: STUDER S33, Series 75 - Year of manufacture: 2008 TECHNICAL SPECIFICATIONS: - Table tilt: +8.5° - X-axis travel: 285 mm - B-axis travel: 800 mm - Grinding angle adjustment: -15° to +195° (1° increments) - Grinding wheel: 500x63 mm, 50 m/s - Distance between centers: 600 mm (max. load 80 kg) - Collets: B32 Ksdpfx Ahoz Iybfeijnc - Tailstock quill travel: 63 mm - Tailstock fine adjustment: 0.04 mm - Control unit: FANUC 21-TB, 10.4" - Memory: 64 KB - Coolant tank: 375 L with automatic paper filter feed ADDITIONAL EQUIPMENT: - Steady rest: ARBOTECH – GR – 055V - MARPOSS device: UNIMAR S30 - MARPOSS device: P4 - Grinding wheel balancing system: MPM The S33 grinding machine is equipped with a MARPOSS device for fast and precise workpiece measurement, an ARBOTECH auxiliary device for grinding workpieces in a single setup, and a grinding wheel balancing system. The machine has undergone regular annual servicing by the manufacturer, STUDER. It is highly precise and in excellent condition. It was used for toolmaking production runs of up to 50 pieces. It is connected to the power supply and ready for operation.

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min Ksdpfxsw Rrb Hs Ahionc - Z-axis 1 to 4000 mm/min Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: excellent (used), FANUC 21i-T Control Center Height 175 mm Distance between centers 1000 mm Grinding head B-axis 1° Grinding wheel 500 x 63 x 203 mm Grinding wheel speeds -1'500 rpm Internal grinding attachement 60'000 rpm Work piece spindle head C-axis 0.001 ° Measuring probe Automatic balancing attachement Wheel dresser Misc. accessories MARCELS MASCHINEN AG Knsdpfx Ajyabt Dohisc

Condition: refurbished (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 027.0149, CNC internal and external cylindrical grinding machine S33 CNC – undergoing refurbishment. Delivery time: approximately 14 weeks. Knsdpfx Ahszcuwboijc Technical data and accessories as per the attached PDF. Photo = sample photo only.

Condition: used, Year of construction: 2012, Technical details: max. wheel diameter: 260 mm Knjdpjy Amlljfx Ahiec gear width: 320 mm max. module: 5 weight of the machine ca.: 21 t dimensions of the machine ca.: 8,71 x 5,97 x 3,49 m no. of teeth: 1...999 max. helix angle: +45/-45 ° pitch min.: 0,1 mm pitch max.: 1000 mm X-axis: 345 mm y-axis: 250 mm Z-axis: 320 mm b-axis: 360 ° c-axis: 360 °

Year of construction: 2005, condition: ready for operation (used), travel distance X-axis: 285 mm, travel distance Z-axis: 1,150 mm, controller manufacturer: FANUC, controller model: 21i-TB, spindle motor power: 7,500 W, spindle speed (max.): 3,200 rpm, number of axes: 3, This 3-axis STUDER S33 CNC cylindrical grinding machine was manufactured in 2005 and completely overhauled in 2026, with 0 operating hours post-overhaul. It features a center height of 175 mm and a center distance of 1000 mm. The machine is equipped with a powerful 7.5 kW motor spindle and a control system with a 10.4" color touch screen. If you are looking to get high-quality grinding capabilities, consider the STUDER S33 CNC machine we have for sale. Contact us for further details. - completely overhauled in 2026- Operating Hours: 0h after overhaul- Center Height: 175 mm- Center Distance: 1000 mm- Machine Base: Mineral cast Granitan S103- Strokes: 285 mm (X-axis) x 1150 mm (Z-axis)- X-axis Drive: AC Servomotor and ball screw, 0° angle, feed rate 0.001–5.000 mm/min- Z-axis Drive: AC Servomotor and ball screw, feed rate 0.001–10.000 mm/min- Measuring System: Incremental scale for X and Z axes, resolution 0.0001 mm- Grinding Headstock: Universal for external and internal grinding, Hirth serration 1° (-15° to +195°)- Motor Spindle (Pos. 2): 7.5 kW, 1400 to 3200 rpm, programmable cutting speed max. 50 m/s- External Grinding Guard: Wheel size D. 500x63mm F1 (80mm F5) with automatic contact protection- Internal Grinding Spindle (Pos. 3): Studer belt-driven internal grinding spindle (180°) with frequency inverter- Workhead Stock: Universal, roller bearing mounted, taper MK5, cylindrical outer nose D. 70mm, spindle bore D. 28mm, manual spindle lock- Workhead Drive: 1.8 kW AC Servomotor, speed range 1–1500 rpm, jog speed 1–50 rpm- Workpiece Weight: Max. 80 kg between centers- Tailstock: Taper MK4, 35 mm stroke, quill diameter 50 mm, hydraulic quill retraction with monitoring, manual fine adjustment +/- 0.04 mm- Pneumatic Lifters: Pneumatic lift-off for easy shifting of workhead and tailstock- Control System: Fanuc 21i-TB with 10.4" color touch screen, integrated PLC, 32KB user memory, 400 program storage slots- Power Supply: 400V +/- 10%, 50 Hz +/- 1Hz, 24V DC control voltage Optional Equipment: Knodpfozwd Hgex Ahioc - Dittel Sensitron 6 contact detection with magnetic sensor (1 pc)- Movomatic C25 LP active probe- 3 pcs levelling elements- Air conditioning unit for electrical cabinet- Euchner hand-held control unit- Swiveling dresser for internal grinding- Park position for tailstock- 3 pcs Studer belt-driven internal grinding spindles (24,000 rpm / 40,000 rpm / 60,000 rpm)- Foot pedal for C-axis override with open doors- Foot pedal for clamping device actuation (tailstock)- Electrical interface for rotary dressing (spindle optional)- Movomatic in-process gauge control ES 124 control (measuring head optional)- 8 pcs used grinding wheel flanges for external grinding- Various new MK4 centers- Various dressers Additional Capabilities: - Capable of thread and form grinding (software must be requested directly from Fritz Studer AG)

Condition: used, TECHNICAL DETAILS - Distance between centers : 1000 [mm] - center height : 175 [mm] - X/Z stroke : 285/1150 [mm] - Axis X programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] - Axis Z programmable feed speed : [mm/min] - Resolution : 0.0001 [mm] GRINDING WHEEL HOLDER HEADSTOCK - Orientation : 0/30 [°] * Grinding wheel dimensions : 500x63 [mm] PART-HOLDER HEADSTOCK - Type of cone : ISO50 - TAILSTOCK POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of hours under power : 30064 [h] EQUIPMENT - CNC : FANUC Oi-TD Ksdpfx Ahext U Rhsienc - Electronic handwheel - Automatic diamond device - Coolant tank * with paper filtering unit

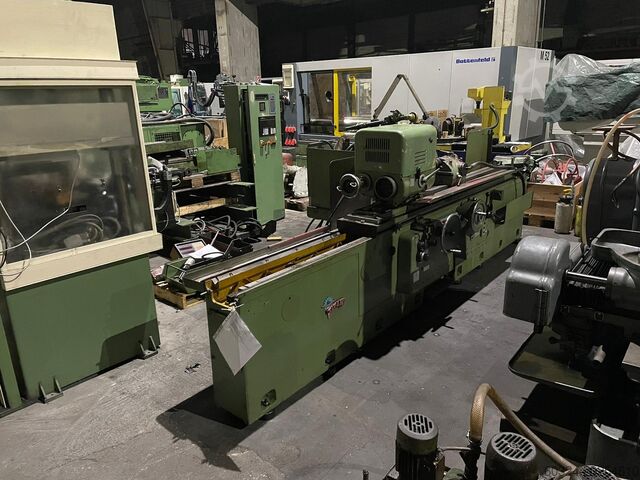

Condition: used, Year of construction: 2017, functionality: fully functional, center height: 180 mm, total width: 1,650 mm, total length: 4,900 mm, total height: 1,800 mm, overall weight: 3,900 kg, grinding length 1500 mm centre height 180 mm weight of the machine ca. 3,9 t Ksdswm Rqgspfx Ahijnc dimensions of the machine ca. L: 4900 x 1650x 1800 m

Condition: used, Year of construction: 2013, max. wheel diameter 260 mm gear width 320 mm max. module 4,5 Knjdpfx Aox R U Hgjhijc min. module 0,5 Control SIN 840D max.helical angle +/- 45 ° total power requirement 68 kW weight of the machine ca. 15,50 t dimensions of the machine ca. 3,25 x 3,25 x 3,30 m Fire extinguishing system Siemens Sinorix TM Knoll Filtering system VL1500/8000 year 2017 Wekal loading cell

Condition: used, Year of construction: 2001, overall weight: 10,000 kg, total length: 3,000 mm, total width: 2,300 mm, total height: 2,500 mm, REISHAUER RZ 362 A – CNC Gear Grinding Machine Year of Manufacture: 2001 Serial No.: 75523 Max. Workpiece Diameter: approx. 360 mm Max. Module: 7 Max. Gear Width: approx. 175 mm Max. Workpiece Weight: depending on configuration, approx. 60 kg Grinding Worm Diameter: approx. 270–350 mm Helix Angle: up to approx. ±45° CNC Control: Reishauer Kjdpszy Tkmjfx Ahisnc Connected Load according to Nameplate: 26 kVA Weight approx.: 10,000 kg Dimensions (LxWxH) approx.: 3000 x 2300 x 2500 mm Year of construction: 2,001 Condition: in working order Terms of payment: 100% prepayment before pick-up Terms of delivery: Loaded on truck under power: No
