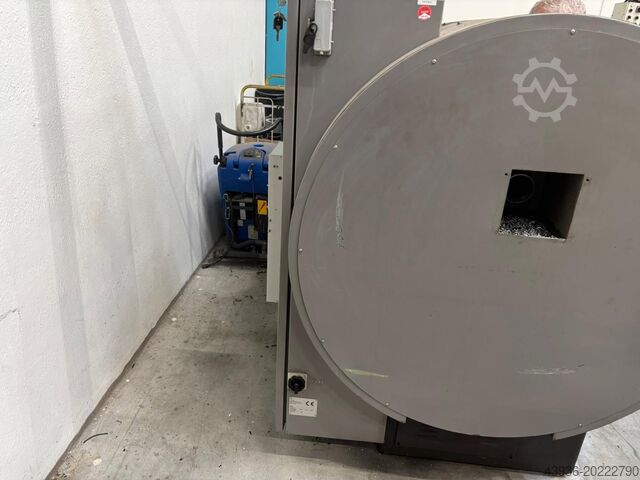

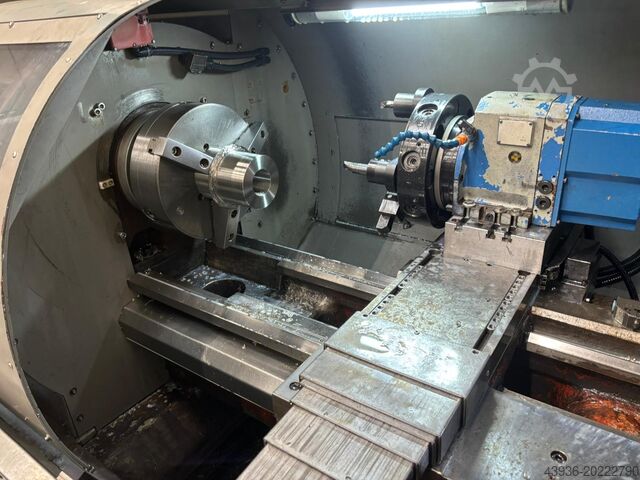

CNC lathe STYLE - 510 x 1500

STYLE 510 x 1500

Condition: used, Year of construction: 1968, faceplate diameter 1000 mm turning diameter over slide rest 1200 mm Nledpfx Aswhqzzeh Dei centre distance 1500 mm bed indentation . weight of the machine ca. 6 t

Condition: used, Year of construction: 1975, workpiece diameter 8-125 mm grinding depth 130 mm clamping length 50-1100 mm max. workpiece diameter 0 mm min. workpiece diameter 0 mm workpiece length mm total power requirement 1 kW weight of the machine ca. 500 kg dimensions of the machine ca. m T E C H N I C A (Switzerland) Centre Hole Grinding Machine Model ZSM 1000 Year approx. 1975 Serial No. J 1400 _____ Distance between centres 50 – 1,100 mm Height of centres 145 mm Workpiece Ø 8 – 125 mm Max. centre hole taper Ø 2 – 50 mm Max. centre hole taper angle 60 ° Clamping range of vice 4 – 150 mm Stroke of grinding head 130 mm Stroke of grinding tool on workpiece 0.75 – 5 mm Grinding tool Ø 15 – 60 mm Grinding spindle speeds 13,000 – 45,000 rpm Workpiece drive 0 rpm Total electrical load, approx. 0.5 kW - 380 V - 50 Hz Weight, approx. 500 kg Accessories / Special Features: * A cone shaped grinding wheel is employed, but it is only in line contact with the centrehole surface, in addition it is reciprocating simultaneously along this line. * The workpiece remains stationary, enabling the procuction of perfect centre holes. * To clamp cylindrical Workpieces one uses a height adjustable 2 jaw chuck which gives three point contact and always coincides with the center of the grinding spindle. * Height-adjustable workpiece centering tool with carbide inserts. Manual adjustment of appropriate workpiece diameter with a rachet coupling. * Manual dressing device, mounted on the side of the grinding spindle, stroke approx. 40 mm, for producing a geometrically exact conical form. * Pre-centering device for Workpiece only partially available. * Height-adjustable tailstock and bore in machine base allow longer workpieces. Nlodpfjt Hwuvjx Ah Dsi Condition : average to good/should be reconditioned. Machine can be inspected under power. Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract

Condition: excellent (used), Dugard Eagle BNC2680X CNC Lathe Nledpjwwlakefx Ah Dji CNC Fagor 8055 Control Year 2007 Swing in gap 870mm Between centres 2000mm With Steady and boring attachment 15" Chuck 3.5" Spindle bore
