Center latheSunmaster
ERL-1330V
Center lathe
Sunmaster
ERL-1330V
Fixed price plus VAT
€24,265
Year of construction
2025
Condition
New
Location
Schijndel

Show images
Show map
Machine data
- Machine type:
- Center lathe
- Manufacturer:
- Sunmaster
- Model:
- ERL-1330V
- Year of construction:
- 2025
- Condition:
- new
Price & Location
Fixed price plus VAT
€24,265
- Location:
- Industrieweg 11, 5482 TD Schijndel, NL
Call
Technical details
- Spindle bore:
- 40 mm
- Turning diameter over bed slide:
- 340 mm
- Turning length:
- 760 mm
Details about the offer
- Listing ID:
- A199-32970
- Update:
- 05.09.2025
Description
ERL-V Series Variable Speed Lathe
Model: ERL-1330 V
Turning Capacity: Ø 340 x 760 mm
Spindle Bore: Ø 40 mm
Hfsdpfx Afexal Hmjpsn
Variable Speed Drive
Sino Digital Readout
Fixed Steady Rest
Travelling Steady Rest
Multifix Quick-Change Tool Post
Coolant System
LED Work Light
Spindle Brake
Chuck Diameter: Ø 178 mm

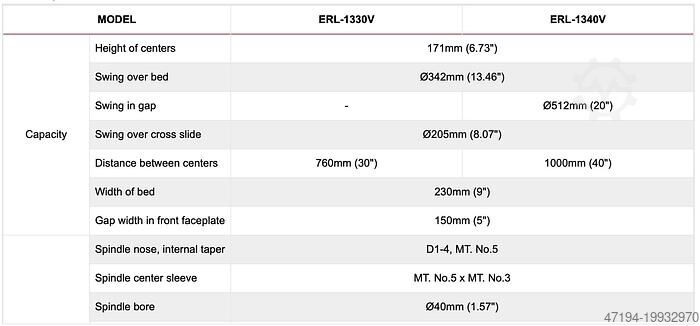

Technical Specifications:
- Height of centers: 171 mm
- Swing over bed: Ø 342 mm
- Swing in gap: Ø 512 mm
- Swing over cross slide: Ø 205 mm
- Distance between centers: 760 mm
- Bed width: 230 mm
- Gap width in front of faceplate: 150 mm
Headstock and Main Spindle
- Spindle nose / internal taper: D1-4, MT No.5
- Spindle centre sleeve: MT No.5 x MT No.3
- Spindle bore: Ø 40 mm
- Spindle speeds: Low 100–500 RPM / High 500–3000 RPM, infinitely variable
Carriage
- Bed length / carriage width: 400 mm / 384 mm
- Cross slide travel: 180 mm
- Top slide travel: 95 mm
Threads and Feeds
- Whitworth threads: 45 types / 2–72 TPI
- Metric threads: 39 types / 0.2–14 mm
- D.P. threads: 21 types / 8–44
- M.P. threads: 18 types / 0.3–3.5 M.P.
- Longitudinal feeds: 0.05–1.7 mm/rev
- Cross feeds: 0.025–0.85 mm/rev
Tailstock
- Quill diameter: Ø 50 mm
- Quill travel: 112 mm
- Centre taper: MT No.3
Motors
- Main spindle: AC 2.2 kW (3 HP)
- Inverter/Coolant pump: 1/8 HP
Weight (Net / Gross): Approx. 850 / 950 kg
Shipping Dimensions: 2000 x 965 x 1900 mm (L x W x H)
Crated Dimensions: 2270 x 1000 x 1120 mm (L x W x H)
Presented in a format suitable for Machinery classifieds such as Machineseeker and TruckScout24.
The listing was translated automatically. Translation errors are possible.
Model: ERL-1330 V
Turning Capacity: Ø 340 x 760 mm
Spindle Bore: Ø 40 mm
Hfsdpfx Afexal Hmjpsn
Variable Speed Drive
Sino Digital Readout
Fixed Steady Rest
Travelling Steady Rest
Multifix Quick-Change Tool Post
Coolant System
LED Work Light
Spindle Brake
Chuck Diameter: Ø 178 mm
Technical Specifications:
- Height of centers: 171 mm
- Swing over bed: Ø 342 mm
- Swing in gap: Ø 512 mm
- Swing over cross slide: Ø 205 mm
- Distance between centers: 760 mm
- Bed width: 230 mm
- Gap width in front of faceplate: 150 mm
Headstock and Main Spindle
- Spindle nose / internal taper: D1-4, MT No.5
- Spindle centre sleeve: MT No.5 x MT No.3
- Spindle bore: Ø 40 mm
- Spindle speeds: Low 100–500 RPM / High 500–3000 RPM, infinitely variable
Carriage
- Bed length / carriage width: 400 mm / 384 mm
- Cross slide travel: 180 mm
- Top slide travel: 95 mm
Threads and Feeds
- Whitworth threads: 45 types / 2–72 TPI
- Metric threads: 39 types / 0.2–14 mm
- D.P. threads: 21 types / 8–44
- M.P. threads: 18 types / 0.3–3.5 M.P.
- Longitudinal feeds: 0.05–1.7 mm/rev
- Cross feeds: 0.025–0.85 mm/rev
Tailstock
- Quill diameter: Ø 50 mm
- Quill travel: 112 mm
- Centre taper: MT No.3
Motors
- Main spindle: AC 2.2 kW (3 HP)
- Inverter/Coolant pump: 1/8 HP
Weight (Net / Gross): Approx. 850 / 950 kg
Shipping Dimensions: 2000 x 965 x 1900 mm (L x W x H)
Crated Dimensions: 2270 x 1000 x 1120 mm (L x W x H)
Presented in a format suitable for Machinery classifieds such as Machineseeker and TruckScout24.
The listing was translated automatically. Translation errors are possible.
