Horizontal machining center

SW Schwäbische Werkzeugmaschinen BA W08-22

Condition: used, Year of construction: 2020, operating hours: 23,000 h, functionality: fully functional, machine/vehicle number: 2630079, travel distance X-axis: 800 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 650 mm, rapid traverse Y-axis: 120 m/min, rapid traverse Z-axis: 120 m/min, controller manufacturer: Siemens, controller model: 840D sl, workpiece diameter (max.): 1,830 mm, workpiece weight (max.): 800 kg, rotational speed (max.): 40 rpm, overall weight: 28,000 kg, spindle speed (min.): 1 rpm, spindle speed (max.): 17,500 rpm, operating hours of spindle: 11,000 h, distance between spindles: 800 mm, number of spindles: 2, number of slots in tool magazine: 84, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, This high-precision twin-spindle machining center from the SW series is designed for maximum productivity in mass production, especially in the automotive and supplier industries. The machine features two symmetrically arranged motor spindles, a twin NC rotary carrier, and two direct drive rotary tables, enabling simultaneous 5-axis machining and parallel metal cutting operations. Equipped with a Siemens 840D sl CNC control, minimum quantity lubrication, high-dynamic feed drives, and an 84-position tool magazine, the system provides dynamic, precise, and energy-efficient machining processes. The compact design and pick-up capable tool system ensure short chip-to-chip times and high machine availability. This machine is ideal for demanding precision machining tasks such as housings, structural components, gear parts, and components made from aluminum, cast iron, and steel in high-volume production. CNC Control SIEMENS 840D SL Electrical connection Supply voltage: 3 × 400 V / 50 Hz (grounded) Network type: TN-S or TN-C network Total connected load: 152 kVA Power factor: 0.6 Protection: 250 A gG (5 s) Weight Machine operating weight: 28,000 kg Transport weight: 24,500 kg Tool Magazine Tool change: Pick-up system Tool management: Fixed coded tool positions Capacity: 84 tools (2 × 42) Max. total tool weight: 400 kg Feed Drives Drive type: Three-phase synchronous motors Travel measurement system X/Y/Z: Direct, absolute Fgsdpfjxt D D Rex Aa Nsi X1- and X2-Axis Rapid traverse: 120 m/min Max. acceleration: 10 m/s² Kv factor: 6 Peak force: 2 × 6,000 N Continuous force: 2 × 3,000 N Positioning accuracy: Tp = 0.008 mm Y-Axis Rapid traverse: 120 m/min Max. acceleration: 11 m/s² Kv factor: 6 Peak force: 20,000 N Continuous force: 10,000 N Positioning accuracy: Tp = 0.008 mm Z1- and Z2-Axis Rapid traverse: 120 m/min Max. acceleration: 20 m/s² Kv factor: 6 Peak force: 2 × 6,000 N Continuous force: 2 × 3,000 N Positioning accuracy: Tp = 0.008 mm Main Spindles Spindle arrangement: Horizontal, twin spindles side by side Spindle diameter: 40 mm Tool interface: HSK-A63 Cooling: Liquid-cooled motor spindles Lubrication: Minimum quantity lubrication (oil) Mechanical clamping force: > 18 kN Wear limit: 16 kN Speed range: 1 – 17,500 rpm Acceleration time: 0.7 s Power: 2 × 35 kW at 4,200 rpm (40% duty cycle) Rated power: 2 × 26 kW at 4,200 rpm Torque: 2 × 80 Nm (40% duty cycle) / 2 × 60 Nm (nominal torque) Machining Area Spindle distance: 800 mm Traverse paths: - X-axis: 800 mm - Y-axis: 900 mm (optional 1,200 mm) - Z-axis: 650 mm Difference coupled Z axes: < 1.0 mm Difference coupled X axes: < 1.0 mm Workpiece Clamping / Table System Twin rotary carrier (Q axis) with two direct drive NC rotary tables (A/U axes) Swivel time 0–180°: 5.0 s Max. asymmetric load: 1,600 Nm Rotary table Ø 800 mm, repeatability: < 0.008 mm Max. workpiece weight: 800 kg Peak torque: 1,900 Nm Nominal torque: 1,300 Nm Max. table rotation speed: 40 rpm Tool Change Times: Chip-to-chip with n < 10,000 rpm: > 3.0 s Chip-to-chip with n < 17,500 rpm: > 3.15 s Note The system is supplied without product-specific tools, clamping devices or robot grippers.

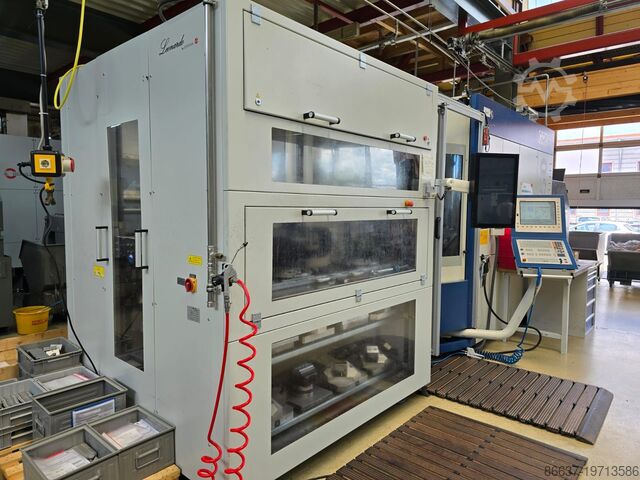

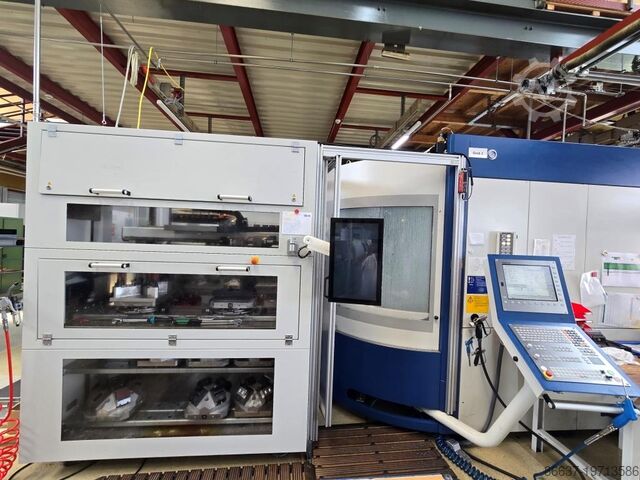

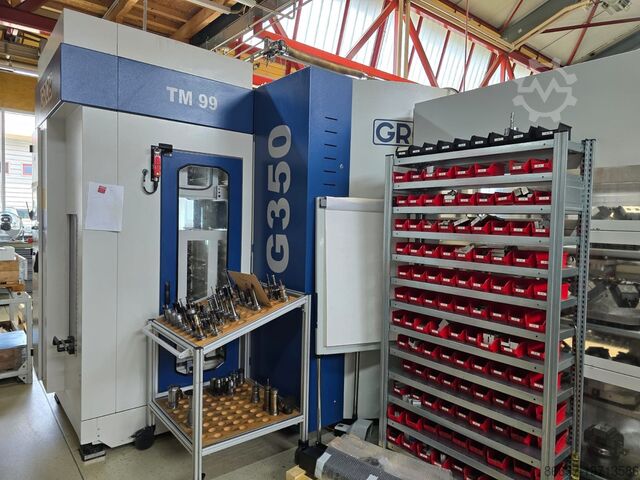

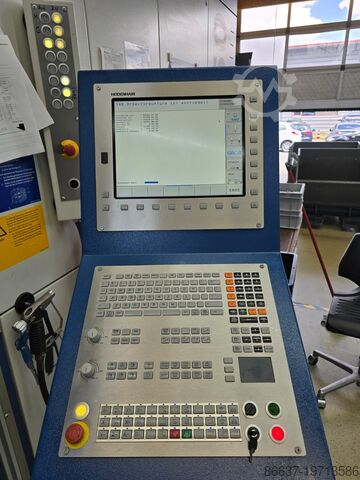

Condition: used, Year of construction: 2016, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 855 mm, travel distance Z-axis: 805 mm, overall weight: 12,500 kg, GROB G351 with EROWA Robot Multi Leonardo for 30 pallets UPC 320x320 and master computer EROWA Manufacturing Control V3 Heidenhain iTNC 530 control, used machine, year of manufacture 2016, commissioning 2017, Rotary swivel table, 4th/5th axis, 32 kW, 16,000 rpm, 206 Nm, HSK 63 tool holder, Tool changer with 34 stations plus 99 in the TM = total 130 tools, Fodpfx Aasw Hxvwe Njgi Equipment: safety cabin/scratch-resistant glass – through-spindle air – grey/blue paintwork – machine light – rinsing pistol / blow-off pistol – chip conveyor – coolant system – high-pressure coolant 38 bar – tool cleaning system – 3D measuring probe – work area extraction – Blum laser – remote machine diagnostics – rotary distributor in the B axis – preparation for workpiece clamping system – oil skimmer – GSC swivel axis calibration – DCM collision monitoring – automatic work area door – automation interface The machine can be inspected under power!

Condition: good (used), Year of construction: 2014, operating hours: 48,000 h, functionality: fully functional, machine/vehicle number: 2080233, travel distance X-axis: 600 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Control SIEMENS 840D Electrical Connection Connection voltage: 3 × 400 V / 50 Hz (grounded) Network type: TN-S or TN-C system Total connected load: 133 kVA Power factor: 0.6 Fuse rating: 190 A gG (5 s) Weight Operating weight of machine: 20,000 kg Transport weight: 16,000 kg Tool Magazine Tool change system: Pick-up system Tool management: Fixed-coded tool positions Capacity: 84 tools (2 × 42) Maximum total tool weight: 350 kg Feed Drives Drive type: Three-phase synchronous motors Linear measuring system X/Y/Z: Direct, absolute X-Axis Rapid traverse: 100 m/min Max. acceleration: 12 m/s² Kv factor: 7 Peak force: 10,000 N Continuous force: 5,000 N Positioning accuracy: Tp = 0.008 mm Y-Axis Rapid traverse: 100 m/min Max. acceleration: 10 m/s² Kv factor: 7 Peak force: 10,000 N Continuous force: 5,000 N Positioning accuracy: Tp = 0.008 mm Z Axes (Z1, Z2) Rapid traverse: 100 m/min Max. acceleration: 20 m/s² Kv factor: 7 Peak force: 2 × 5,000 N Continuous force: 2 × 2,500 N Positioning accuracy: Tp = 0.008 mm Main Spindles Spindle arrangement: Horizontal, twin spindles side by side Motor spindles, liquid-cooled, synchronous technology Spindle diameter: 40 mm Tool interface: HSK-A63 Lubrication: Minimum quantity lubrication (oil) Fjdpfx Asxt D Eboa Nogi Mechanical clamping force: > 18 kN Wear limit: 16 kN Speed range: 1 – 17,500 rpm Acceleration time: 0.7 s Power: 2 × 35 kW at 4,200 rpm (40% duty cycle) Rated power: 2 × 26 kW at 4,200 rpm Torque: 2 × 80 Nm (40% duty cycle) / 2 × 60 Nm (rated torque) Machining Area Spindle distance: 600 mm Travel paths: X-Axis: 600 mm Y-Axis: 600 mm (optional 875 mm) Z-Axis: 500 mm Workpiece Clamping / Table System OP1: Tilting support with two separate tilting tables for fixture bridges OP2: Double tilting carrier (Q-axis) with two direct-drive NC rotary tables (A-/U-axes) Double-sided gearing on the tilting carrier Swivel time 0–180°: 3.5 s Max. asymmetric load: 800 Nm Repeatability Ø 800 mm: < 0.008 mm Max. clamping device and workpiece diameter: Ø 675 mm × 1,430 mm Max. workpiece weight: 600 kg Peak torque: 981 Nm Rated torque: 698 Nm Max. table speed: 50 rpm Angular acceleration: 2.5 – 10 rev/s² Indexing accuracy: ±5" Tangential moment: 4,500 Nm Max. load moment: 500 Nm Tool Change Times Chip-to-chip at n < 10,000 rpm: > 2.75 s Chip-to-chip at n < 17,500 rpm: > 3.15 s
