Cnc lathe

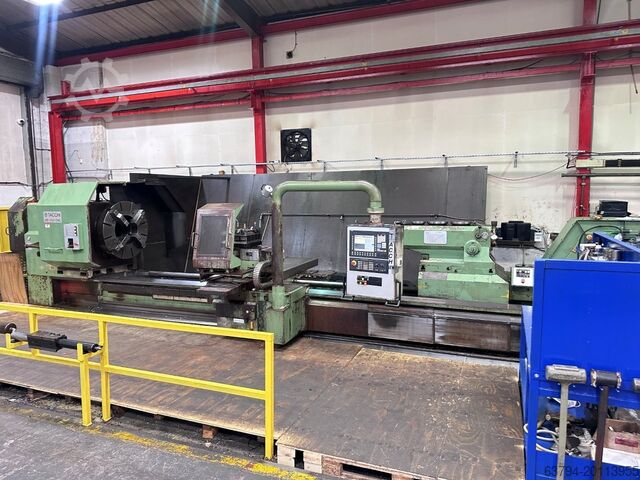

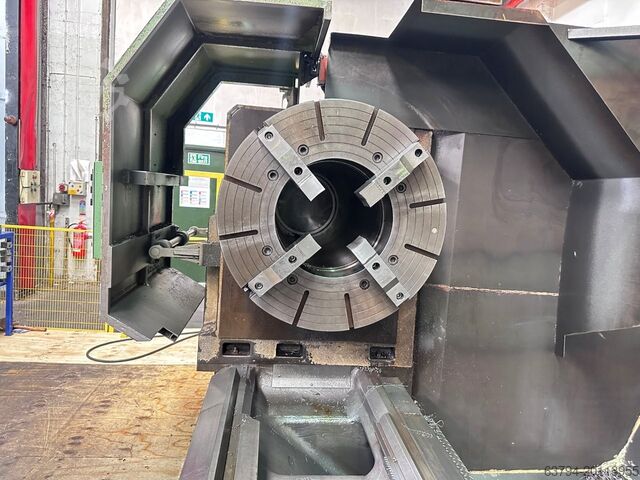

Tacchi HD/1450 X 4M Large Spindle Bore

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC Fanuc Series Max. turning diameter on the machine bed: 780 mm Max. turning diameter on the carriage: 630 mm Max. turning diameter: 406 mm Max. turning length: 520 mm Bar passage: 65 mm Spindle nose: ASA A2-6 Spindle bore: 52 mm Spindle speed: 5000 rpm Spindle motor power: 18.5 kW Tailstock bore: 45 mm Tailstock nose: ASA A2-5 Bellegrandi tool holders on the spindle and tailstock + 2 self-centering chucks X-axis travel: 260 mm Z-axis travel: 590 mm Y-axis travel: +102 - 51 mm B-axis travel: 590 mm Rapid traverse rate for X/Z/B axes: 30 m/min Rapid traverse rate for Y-axis: 10 m/min Turret type: BMT Number of turret stations: 12 Ljdpfx Aoyiu Dnemveag Rotation speed of powered tools: 5000 rpm Dimensions: 3530x1863 mm, H=2163 mm Weight: 5900 kg No. 10 tool holders for powered tools.

Condition: used, Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,800 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,000 mm, table load: 5,000 kg, spindle diameter: 110 mm, total height: 3,800 mm, total length: 5,000 mm, total width: 3,000 mm, table length: 1,520 mm, table width: 1,225 mm, feed length X-axis: 1,800 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 2,000 mm, Tool holder SK50, Heidenhain control, machine is ready for collection and immediately operational. Laedpfxoxga Tns Amvjg

Condition: used, Year of construction: 2004, Technical details: Laodpeu Nc Rijfx Amvjg x-travel: 1500 mm y-travel: 1000 mm z-travel: 1000 mm control for program: TNC 530 spindle hours: noch nicht bekannt h milling head speed: 1: 30 bis 930 und 2: 930 bis 4000 / steples U/min tool taper: horiz./vertical: SK 50 (DIN 69871/Din 69872 Form A) max. torque on the spindle: 1000 Nm spindle head swivable left - right: 90 ° feed: 1 - 6000 mm/min feed power: 30 kN kN rapid traverse: 15 m/min Number of tools: 1 St. table clamping surface LxW: 1600 x 800 mm table load: 40 kN kN voltage: 400 V / 50 HZ V total power requirement: 42 kW Weight approx.: 15,2 t compressed air: 6,3 bar dimension machine xH: 3,1 x 4,7 x 2,6 m dimensions: Kühlfilter: 1,9 x 1,6 x 1,4 mm space requirements approx. LxWxH: ca. 38,5 m² m² Applications: Milling, drilling; tapping, boring. with direct coded length measuring systems the guideways of the 3 axes are on flat guideways CTS and external cooling Milling head position controlled +/-90° milling spindle nominal drive power 22 kW with integrated hydraulic power unit up to 100bar operating pressure with coolant unit with filtration, with high pressure pump 60 bar (internal cooling), nominal delivery 20 l/min. and low pressure pump 4 bar (external cooling) as well as spray gun Hinged belt chip conveyor DGS, type SSF 600 P50 Accessories: Measuring probe SK40 Reference tool SK40 Milling head SEMPUCO *

Condition: excellent (used), Year of construction: 1983, Faceplate diameter: 1250 mm Max. swing diameter: 1400 mm Max. swing height: 1160 mm Max. ram stroke, vertical / horizontal: 755 / 840 mm Table load capacity: unlimited Faceplate speed range: 5.6 - 300 rpm Vertical slide angular adjustment: 45° Feed rate range: 0.044-8 mm/rev Rapid traverse rate: 2 m/min Drive power: 55 kW Footprint L x W x H: 2660 x 2710 x 3360 mm Total weight: 16,500 kg Accessories / Special features: • 2-axis digital display, manufacturer: ACU-Rite • Faceplate, Ø 1250 mm, with 4 chuck jaws • 5-position turret • Taper turning • Profile turning Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 Lsdpsy Ex Epsfx Amveag DE - 44143 Dortmund - Wambel / Germany

Condition: excellent (used), Year of construction: 2020, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,500 mm, rapid traverse X-axis: 35,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, total width: 5,800 mm, total height: 4,500 mm, total length: 13,500 mm, table length: 10,000 mm, table width: 1,250 mm, Travelling Column High performance, precision and machining power Linear guiding of RAM combined with Hydrostatic Guiding HDS ACD2 Milling head with 5000 Rpm and 1400 Nm torq Aitek ATC chain 60 position with L=400 and 250 diameter x 35 Kg Filtration with IKZ 15 Bar Chip conveyor BLUM 3D Measuring probe Wide bed linear guided in X-Travel W=930 mm Rotary table driver prepared in E-Cabinet X-Axis: 8000mm Lajdjyr Dmdjpfx Amvsg Y-Axis: 1300mm Z-Axis: 2500mm Table Length: 10000mm Table Width: 1250mm Power on spindle: 40kW Spindle speeds: 5000Rpm Spindle Taper: 40ISO/Bt/Mk Feed rate X-Axis: 35000mm/min. Feed rate Y-Axis: 40000mm/min. Feed rate Z-Axis: 40000mm/min. Millinghead auto-index:0.001 x 0.001 Gr° Working hours: 3800H Length: 13500mm Width: 5800mm Height: 4500mm Weight: 45000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, WEBSTER & BENNETT EV 36” HIGH SPEED VERTICAL BORER MAKE WEBSTER & BENNETT, MADE IN ENGLAND Lodpfx Amsxp Na Njvoag MODEL EV 36” TABLE DIA 915 mm SWING 1168 mm HEIGHT UNDER RAIL 533 - 1016 mm SPEED 13.5 - 300 rpm FEED RATE 0.005-0.250 inch/min MAIN SPEED 40 HP PLUS HIGH SPEED TAABLE EV SERIES MACHINE ELEVATING RAIL SAFETY GAURDING SET OF JAWS FULLY FUNCTIONAL GOOD SLIDES

Condition: good (used), Manufacturer: WMW Zeulenroda Type: PYE 160 SS Year of manufacture: 1980 C-frame construction Die height 850 mm Thickness bolster plate 100 mm Throat C side 360 mm Specifications Metric US Standard Capacity 160,000 Table length 1,250 mm Table width 600 mm Ram stroke 500 mm Starting speed 100 mm/min Working speed 10 mm/min Return speed 125 mm/min Power Lajdpowp Nv Hsfx Amvog 22.5 kW Dimensions (Estimate) Length: 2,150 mm Width: 1,250 mm Height: 3,600 mm Weight: 7,500 kg Please note: The information on this page has been provided to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not represent a warranty or contract terms. We recommend you check all important details.

Condition: excellent (used), Year of construction: 2009, turning height: 1,280 mm, total height: 5,600 mm, total width: 3,850 mm, total length: 4,260 mm, rotary table diameter: 1,400 mm, workpiece diameter (max.): 1,600 mm, overall weight: 21,500 kg, CNC Vertical lathe Fremtas - 16FR3 MACH-ID 9467 Make: Fremtas Type: 16FR3 Laedpfx Aoy Htiljmvsg Control: FAGOR 8055 TC Year: 2009 Work load 6300 Kg Cross rail adjustment 660 mm Feed rate cross rail 0 - 400 mm/Min Feed rate 0 - 3000 mm/Min Rapid feed 0 - 8000 mm/Min Central lubrication Chip conveyor RAM with Sandvik COROMONT C8 Tooling C8 with double connector Ca 10 units CAPTO Tool system 4 extra heavy duty jaws Max. turning Ø: 1600mm Table Ø: 1400mm Horizontal movement support:1000mm Speeds / ranges: 1 - 200Rpm Power: 75kW Maximum turning height: 1280mm Vertical movement support: 700mm Length: 4260mm Width: 3850mm Height: 5600mm Weight: 21500kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Technical details: spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets Lajdpsxt El Ajfx Amvjg coolant attachment *

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 1,700 h, functionality: fully functional, machine/vehicle number: MP7/5/P, travel distance X-axis: 730 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 400 mm, feed length X-axis: 585 mm, feed length Y-axis: 250 mm, feed length Z-axis: 400 mm, feed rate X-axis: 50 m/min, feed rate Y-axis: 50 m/min, feed rate Z-axis: 50 m/min, spindle speed (min.): 1 rpm, spindle speed (max.): 42,000 rpm, rapid traverse X-axis: 80 m/min, rapid traverse Y-axis: 80 m/min, rapid traverse Z-axis: 80 m/min, type of input current: three-phase, table load: 60 kg, workpiece weight (max.): 60 kg, overall weight: 8,000 kg, MP7-5 Axis with integrated pallet changer 5-axis with rotary/swivel axis Travel range X/Y/Z 585x250x400 mm Travel range B +/- 105 degrees Travel range C continuous Workpiece weight 60 kg Distance machine table to spindle nose 450 mm Machine dimensions (W x D x H) 2845 x 2370 x 3000 mm Machine weight 8000 kg Spindle speed 42,000 rpm Equipment: Control: Heidenhain TNC640 Main spindle: HVC140 HSK-E40 with rotary union for internal media supply - Max. speed 42,000 rpm - Milling power S1/S6 10 kW / 13 kW - For internal coolant supply, air and emulsion Oil mist extraction for oil/emulsion Dust extraction: L-CUT Ljdpfx Amsxlctbeveag Machine-integrated workpiece changer for 36x EROWA ITS50 or 18x EROWA ITS115 Hand-held control unit with electronic handwheel and enabling switch Measuring probe system: Renishaw OMP400 Aerosol DRY LUBRICATION (ADL) - Precise dosage of media externally and through the tool Rotary table chuck: EROWA PowerChuck P on 5-axis Blum laser: LC50 Media distributor: MHT Tool changer 90 positions, HSK E40 Warranty: 12 months Transport Initial commissioning on site Training
