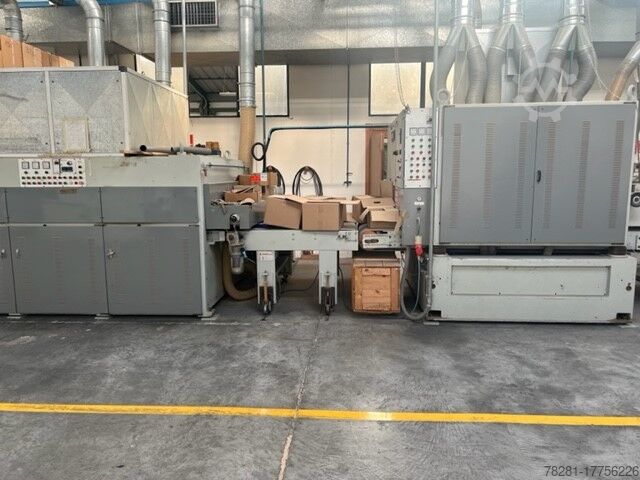

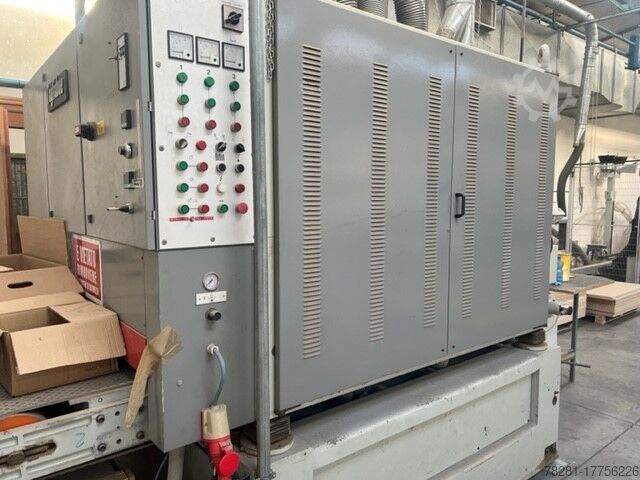

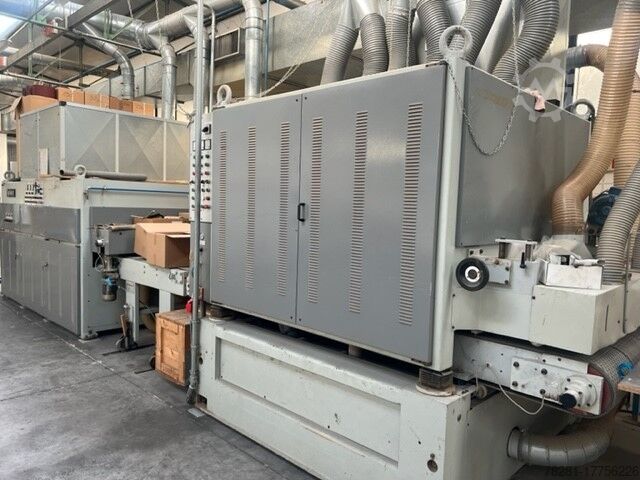

Tagliabue calibration line

Tagliabue

Condition: good (used), Code: 0312 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TAG 11 - Norme CE Automatic calibrating sanding machine with 2 belts and movable head for furniture, carpentry, custom-made furnishings, panels, solid wood, tables, composite materials and various - CE Standard Steel enblock Nodpsynk Dnefx Afcjwc Conveyor plane provided with a thick rectified steel structure Sanding belt motors placed inside the base Rubber conveyor belts structured in 3 cloths and sectionated in rings for constant centering on the plane Base with thickness sheet up to 30 mm Movable head using big lifting columns Technical data: Working width 1350 mm Working thickness 3-130 mm Fixed working surface height 900 mm Feed speed from 5 to 30 mt/min Belt dimensions 1400 x 2620 mm Working thickness display Composition: 1° Group Steel Calibrating Roller diameter 280 2° Group Rubber Sanding Roller diameter 300 Cleaning brush - Motor 2 Hp - Suction inlet diameter 160 Total power 57 kW Compressed air 7-8 bar Overall dimensions mm 2100 x 2300 x 2400 h Weight kg 5500

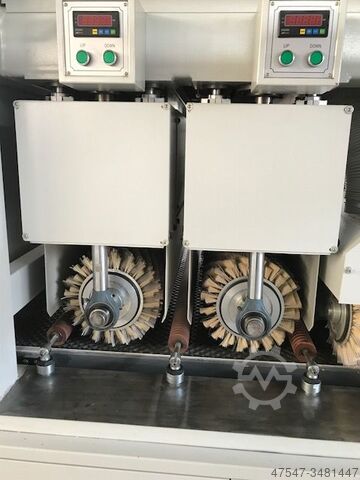

Condition: new, Type SK-1000-P6 Nwedpfxjdmi Nio Afcec Working width 1000 mm Min.working length 500 mm Working thickness 2-150mm Polishing roller speed - Frequency control Feeding speed 3-12,5 m/min Total motor power 13.87 kW Disc motor 1.5 kW*1 Cross motor 1.5 kW *1 Screw roller motor 2.2 kW *2 Feeding power 2.2 kW Up and down motor 0.37kW*4 Swing motor 0.37kW *2 Working table up and down 0.55 kW Transport dimensions 3650x1850x2100mm Weight 4200 kg

Year of construction: 2005, condition: good (used), machine/vehicle number: C9 15840, Profile brushing machine Tagliabue LB 2 Nedpjg Rn Iajfx Afcewc Model: LB 2 TECHNICAL DATA: Year of manufacture: 2005 Tagliabue edge sander with 4 oscillanting sanding units. Two vertical rollers and 2 inner transversal rollers, for transversal brushing.

Condition: good (used), Code: 0749 Brand: TAGLIABUE - COSTA LEVIGATRICI Model: TT 3 1300 Automatic sanding machine for worktops, furniture, panels, tables Technical data: Working width mm 1300 Max working thickness mm 130 Min working thickness mm 1 Composition: Nwjdpfx Ash T Dzqjfcec 1° Transversal belt - Motor Hp 15 - Electronic speed variator with display 2° Transversal belt - Motor Hp 15 - Electronic speed variator with display Transversal sanding belt size mm 1350 x 150 Chevron belt size mm 5510 x 140 Belt blowers Belt feed speed mt/min 5/25 Fixed table and mobile head for on-line set-up Panel cleaning rotary blowers Vacuum table Belt cleaning brush Infeed roller conveyor Installed power Kw 32 Compressed air 7 Atm Suction inlets: n° 2 diameter mm 200 - n° 2 diameter mm 150 - n° 2 diameter mm 100 Overall dimensions mmm 4400 x 2500 x 1600 h Weight kg 5000

Condition: used, Year of construction: 2006, functionality: unexamined, SANDING LINE COMPOSED OF 3 MACHINES: LOWER WITH TWO PAD BELTS; UPPER WITH TWO PAD BELTS; LATERAL WITH ONE BELT AND TWO EDGE SANDING BELTS. FOR BEAMS UP TO 800x300 mm. INCLUDING INFEED AND OUTFEED ROLLER CONVEYORS. TOTAL POWER 34 kW. Nedpfx Afjw E Eu Rjcewc
