High-pressure fume and dust extraction

TEKA

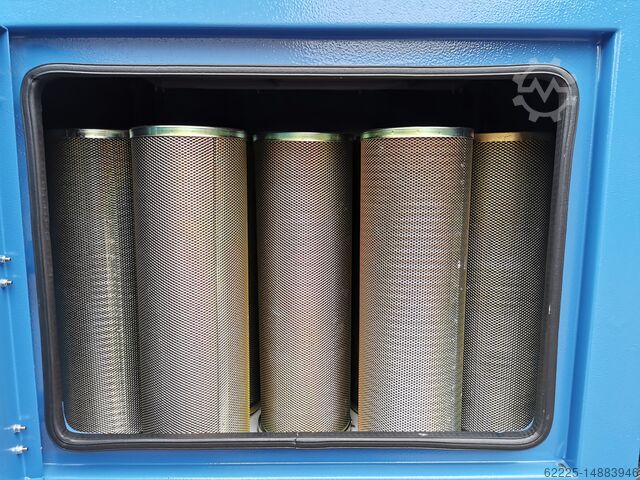

Condition: good (used), Year of construction: 2009, Dust extraction,filtration,welding fume extraction,self-cleaning cartridge filter,pneumatic,vacuum TEKA AIRTECH P24 The main areas of application for the systems are industrial plants/welding shops where it is where it is not possible to realize spot extraction point extraction or where point extraction is not sufficient to maintain clean air on the shop floor. Side-mounted ducts with point capture point sucks in contaminated air air and lead it to the filter section. Here, contaminants in the form of fine particles cover the surface of the filter patron filter. An administered pulse of compressed air cleans the cartridge filters, automatically at the required intervals. After the impact of the compressed air, the particles collected on the surface of the filters break off off and fall into the dust tank. The cleaned air is returned to the work room through individually adjusted long-range nozzles. At the same time ejection of the purified air directs the contaminated air of the hall towards the toward the extraction channels. Filter cleaned by microprocessor controller with compressed air pulses during operation, thus high efficiency of the device. Low demand for compressed air thanks to the system "Power-Spray" Kodjl Dw U Djpfx Agdelp The AIRTECH unit series is certified by IFA in accordance with EN ISO 15012- 1 or DIN EN ISO 21904-1/-2 and approved for welding fume class W3 as a permanent local extraction device of welding fumes. Parameters: Capacity - 24 000 m3/h Motor power - 15 Kw Fan in sound-absorbing housing Control cabinet with electrical documentation Year of production - 2009 Dimensions: Height - 6.80 m Base width - 1.95 m x 1.90 m Total width - 3.60 m x 2.00 m We have several pieces on offer. The price given in the ad for 1 piece.

Condition: good (used), Year of construction: 2010, Dust extraction,filtering,welding fume extraction,self-cleaning patron filter,pneumatic,vacuum TEKA AIRTECH P18. The main areas of application for the systems are industrial plants/welding shops where it is where it is not possible to realize spot extraction point extraction or where point extraction is not sufficient to maintain clean air on the shop floor. Side-mounted ducts with point capture point sucks in contaminated air air and lead it to the filter section. Here, contaminants in the form of fine particles cover the surface of the filter patron filter. An administered pulse of compressed air cleans the cartridge filters, automatically at the required intervals. After the impact of the compressed air, the particles collected on the surface of the filters break off off and fall into the dust tank. The cleaned air is returned to the work room through individually adjusted long-range nozzles. At the same time ejection of the purified air directs the contaminated air of the hall towards the toward the extraction channels. Filter cleaned by microprocessor controller with compressed air pulses during operation, thus high efficiency of the device. Low demand for compressed air thanks to the system "Power-Spray" The AIRTECH unit series is certified by IFA in accordance with EN ISO 15012- 1 or DIN EN ISO 21904-1/-2 and approved for welding fume class W3 as a permanent local extraction device of welding fumes. Parameters: Capacity - 18 000 m3/h motor power - 11Kw vacuum - 2250 Pa Filtration area - 324 m2 ( 9 filter cartridges 36m2 each) Fan in sound-absorbing housing Control cabinet with electrical documentation Noise level - 72 dB Year of production - 2010 Dimensions: Height - 5.00m Base width - 1.44m x 1.44m Width with outlet channels - 8.5m Ksdpfx Ageib Dadodolp Total weight about 2400 kg

Condition: reconditioned (used), Year of construction: 2019, functionality: fully functional, type of input current: three-phase, filter area: 100 m², input voltage: 400 V, volume flow: 3,000 m³/h, total width: 1,000 mm, total length: 1,000 mm, total height: 3,250 mm, compressed air connection: 5 bar, operating temperature: 20 °C, overall weight: 500 kg, negative pressure: 2,500 Pa, control voltage: 24 V, power: 5.5 kW (7.48 HP), input frequency: 50 Hz, noise level: 75 dB, Equipment: documentation/manual, Year of manufacture: 2019. 5.5 KW / 11.5A - Equipped with Softstarter and Siemens PLC control. - Includes 4x 25m2 NEW filter cartridge mounted in the unit. - Fitted with compressed air cleaning system, Delta P controlled. - Ex works Soerendonk (NL), loaded on truck free of charge. Tested & operational in our workshop. - Supplied with Softstarter option included. - Including 4x 25m2 NEW filter cartridge, installed in the machine. - With compressed air dust discharge system, Delta P controlled. - Ex works Soerendonk (NL), loaded on truck free of cost. - Sold as is, no warranty. Kljdjymglxopfx Agdep - Tested on site and in our workshop, in proper working condition. - Testing and inspection possible.

Year of construction: 2014, condition: used, Grinding dust extraction for metallic dusts Kedsyl Aqnepfx Agdjlp

Condition: used, Year of construction: 2010, type of input current: three-phase, filter area: 50 m², suction capacity: 5,000 m³/h, negative pressure: 3,000 Pa, Dust extractor, welding fume extractor, self-cleaning cartridge filter, pneumatic and vacuum-type, suitable for plasma, laser, sandblasting, soda blasting, shot blasting, and all types of dry dust. Brand: TEKA Model: Filtercube 2H Year of manufacture: 2010 The filter is cleaned during operation by compressed air pulses controlled by a microprocessor, ensuring high system efficiency. Low compressed air consumption due to the "Power-Spray" system. The Filtercube central extraction and ventilation unit, equipped with cartridge filters, is the ideal solution for almost any problem involving smoke and dust filtration. The fan is positioned on the clean-air side, reducing explosion risk to a minimum. Applications: - Central extraction system for multiple welding stations - Extraction system for welding robots - Extraction system for thermal cutting and grinding tables - General hall ventilation system (push-pull or displacement system) - Extraction system in combination with extraction tables - Extraction system for grinding non-explosive materials Specifications: - Soundproofed fan housing, power: 4 kW - Capacity: 5,000 m³/h - Negative pressure: 3,000 Pa - Inlet diameter: 315 mm Kodjw Aw Nnepfx Agdolp - Filtration surface: 50 m² New filter cartridges tailored to customer specifications available on request. Stock no.: 1047

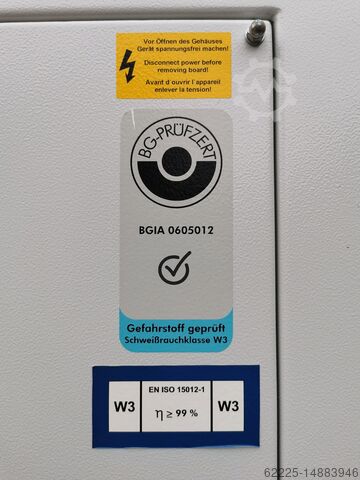

Condition: good (used), Year of construction: 2019, machine/vehicle number: 978002, Offer 25412 Technical Data: - Mobile extraction system with articulated extraction arm - Suitable for the extraction of welding fumes when welding steel, stainless steel, aluminum, unalloyed or galvanized steels - Welding fume class: W3 - Articulated extraction arm: 360°, 4000 mm - Max. fan airflow: approx. 1600 m³/h - Max. static pressure: 1800 Pa - Particle separator: coarse filter, pre-filter - Main particle separator: main filter - Gas separator: activated carbon filter - Drive – fan: 220 V / 1.10 kW - Required installation space: approx. W 600 x H 900 / 2450 x D 600 mm - Weight: approx. 80 kg - Recorded operating hours: 240 h Kedpfxoyf A Uys Agdslp

Condition: used, Year of construction: 2015, volume capacity 2500 m3/h 0 3000 mm total power requirement 1,1 kW Ksdpfjyfwy Djx Agdelp weight of the machine ca. 0,08 t dimensions of the machine ca. 0,58x0,58x0,58 m Mobile extraction system for one workplace, IFA-tested

Year of construction: 2000, condition: good (used), Stock number: 2739 Manufacturer: TEKA Kodpomf Uzxefx Agdolp Year of manufacture: 2000 Type: PP-DC Number: 201320 Volume flow: 320 m³/h Max. Negative pressure: 22.000 Pa Connection diameter: 50 mm Equipment: mobile, portable Accessories: hose 3.000 mm Connection: 1.2 kW 230 V Weight: approx. 40 kg Dimensions: 300 x 300 x 850 mm without hose

Condition: good (used), Year of construction: 2011, functionality: fully functional, TEKA Filtercube 4H dry extraction system airflow: 6000 m³/h max. static pressure: 3000 Pa motor power: 7.5 kW 400 V 50 Hz 15.5 A IP54 Kodpfx Agex Taqiedjlp weight: 380 kg year of manufacture: 2011

Condition: excellent (used), functionality: fully functional, Year of construction: 2009, Two used TEKA scrapers are offered. 1. THS 4020, built in 2009, scraper arm: 16.00 m, 2. THS 6022, built in 1993, scraper arm: 16.00 m. Fully functional. Kljdpfx Agev Tb A Isdjp For further information, see the rating plate.
