2002 Theisen & Bonitz TB ECO A 308 FP + TB Sprint QSM 303

Theisen & Bonitz TB ECO A 308 FP + TB Sprint QSM 303

Gathering machine / booklet making

Theisen & Bonitz TB ECO A 308 FP + TB Sprint QSM 303

Bodpjzicw Uofx Ambedd

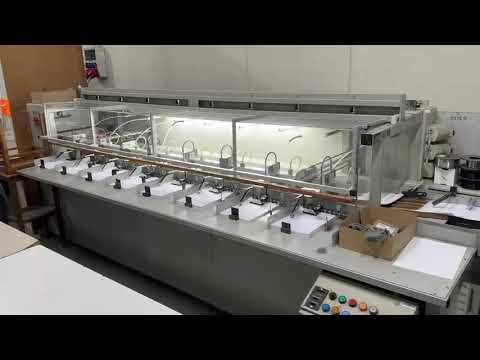

8 stations, manual feeder

TB ECO 308 FP

Performance: up to approx. 3,100 cycles per hour

Maximum book block thickness: 50 mm

Stack height per station: 50 mm (5 cm)

Paper and format range

Maximum sheet size: 310 × 430 mm

Minimum sheet size: 105 × 148 mm (DIN A6)

Paper weight: 20 to 1,000 g/m²

TB B304 QSM Stitch-fold-cutting unit

Formats open max.: 35 x 50 cm

Open formats min.: 6.5 x 15.5 cm

Smallest brochure: 6.5 cm spine length x 4 cm

with head-foot trimming: 10.5 cm spine length x 4 cm

largest brochure: 35 cm spine length x 25 cm

with head-foot trimming: 34.6 cm spine length x 4 cm

Output: up to 3100 work cycles/h, depending on format and paper

Front cutting device with upper/lower blade for cutting to 4 cm and sections larger than 1.5 cm, infinitely variable motorized format adjustment of the front cut with additional handwheel for fine adjustment, head and foot trimming of 3 - 20 mm each for approx. 120 pages of standard 80 g/m² paper
