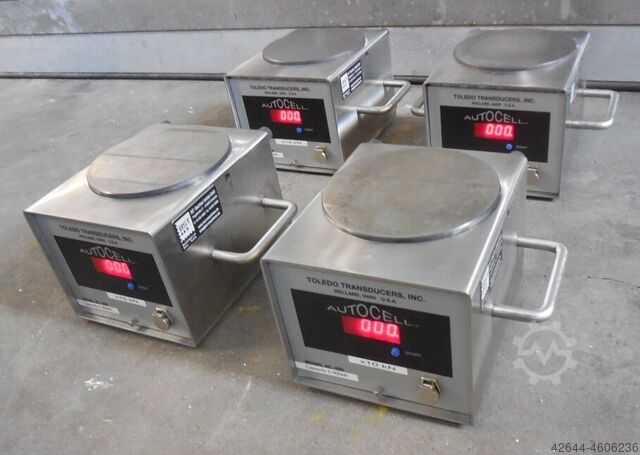

Load cell

Toledo AC 500

Condition: like new (used), Year of construction: 2024, Capacity: 2.500 kN Iaedpfx Ajfpwmpehusl Specification: Threshold setting: Reading begins at 1% of capacity (75 kN) Resolution: 10 kN Inaccuracy: +/-0.5 % of Full Scale (F.S.) Non-linearity: +/-0.3% F.S. Non-repeatability: +/-0.l% F.S. Temperature Range: 0° C. to 70° C Temperature Effect on F.S. output: +/-0.001% F.S./DEG. F. on no-load output: No effect (has auto- zero balance circuit) Overload: 150% of capacity (3.750 kN) Sampling rate: Three measurements per second Operation mode: Peak or Track Strokes per minute: Single stroke device, automatic reset on each stroke Power: Standard 9V alkaline battery Approx. 30 hours of continuous use Has low battery indicator Tons Display: 3 1/2 digit LED (0.56" high) Dimensions: app. 185 L x 200 W mm, height app. 127mm Height sets to 5.0000" +/- 0.0005" Weight: app. 13 kg inckuding carrying box

Condition: refurbished (used), Year of construction: 2025, Drive: servo motor Belt width max. 300 mm Belt thickness 0.5 - 4.0 mm Cross-section max. 1,200 mm² Feed length 0 - 9,999.9 mm Isder H Dwiopfx Ahuoal Accuracy + / - 0.05 mm Roller diameter 80 mm The feed rollers are hardened and ground. The top roller is lifted to feed in the strip via a pneumatic cylinder and valve. pneumatic cylinder and valve. The contact pressure of the top roller is applied pneumatically via short-stroke cylinders. The top roller is mounted in a torsion-resistant manner to prevent one-sided roller pressure. roller pressure is prevented. Off-center belt transport is permitted. An infeed roller basket, an adjustable lateral belt guide and a belt end belt end control on the infeed side are included in the standard version. included. Protective covers on the feed rollers and the drive elements. The intermediate lifting can be closed and switched off

Condition: new, functionality: fully functional, Year of construction: 2025, coil width: 200 mm, product width (max.): 200 mm, overall weight: 80 kg, warranty duration: 12 months, working width: 200 mm, product height (max.): 3 mm, roll width: 64 mm, Silicon+ SFS 200 Servo Roll Feeder Compatible with all kind of presses, primarily used on Bruderer, Schaal and Mabu machines. Feeding length – min 0.10 mm to max. 9999.99 mm Feeding width – max. 100 mm, 200 mm or 300 mm. Depending of model required. Iaodpfx Aovptz Iehuol Material thickness – 0.20 – 3.20 mm Feeding angle – 180° Die line height – ± 50 mm Max. feeding speed – 20 m/minute Strip release – Festo pneumatics Control – NC Touch screen Servo brushless motor – 0.75 KW, 1.8 KW or 2.3 KW. Weight approx. feeder: 80-150 kg. Feeder dimensions: 780 X 730 X 680 mm – The unit is driven by the brushless servo motor, with direct drive transmission, eliminate the gear clearance, abrasion, no noise, no lubrication, safely to a synchronized pair of roller segments. – Rolls can be made upon request with PU surface for delicate raw material feeding. – Synchronization of the feeder and punching machine is done easy through cam signal from PLC of a punching machine. – Programmable feeding can be done for up to 10 groups of feeding pitches and saved as recipes. The feed length can be steplessly adjusted during operation EUR 1 certificate of European origin and CE compliance. This information is subject to change without notice, we can make personalized feeders for your needs with prior agreement.
