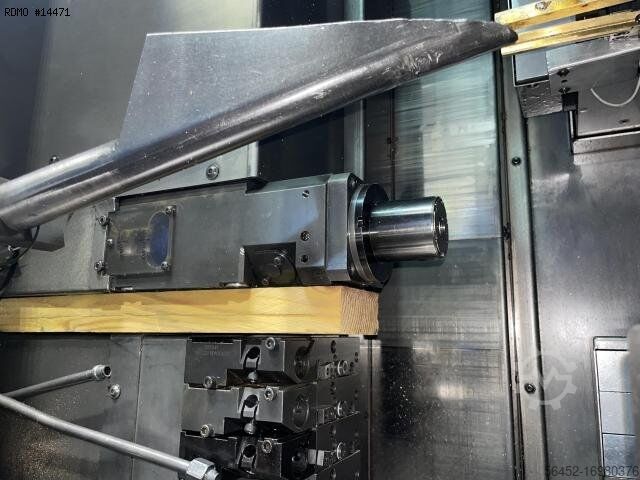

Swiss-type cnc lathe

TORNOS DECO 13A

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, machine/vehicle number: 7213, Country of manufacture: Switzerland Net weight: approx. 2550 kg Customs tariff number: 8458.11 20 Dimensions: 2000 x 1260 x 1950 mm TECHNICAL CHARACTERISTICS 10-axis machine – standard version 10 axes, 6 spindles: Axes and spindle designation: - 1 sliding headstock: Z1, S1 - 2 independent vertical gangs: X1Y1, S6 – X2Y2, S2 - 1 unit with 4 rotating spindles: X3Z3, S3 - 1 independent sub-spindle: Y4Z4, S4 - 1 independent rotating sub-operation axis: X4, S5 Bar feeder position: right of the operator Machine axis height: 1100 mm Main spindle travel: max. 255 mm Credpsw T Tcwofx Agmoh Bar capacity: 1 to 16 mm Spindle speed: 12,000 rpm Spindle feed rate: max. 20 m/min Bar capacity, min./max.: 13 mm / 16 mm Max. workpiece length: Guide bush machining: 180 mm Collet machining: 30 mm Sub-spindle speed: 12,000 rpm Main spindle drive power: 2.2 kW (continuous) / 3.7 kW (intermittent) Sub-spindle drive power: 1.5 kW (continuous) / 2.2 kW (intermittent) Clamping collet, type: F20 (no. 76-201) Guide bush: fixed / rotating Collet for guide bush, type: Meister 605 Number of lateral tool stations, combined: Fixed: 2 x 5 Rotating: 3 + 3 Number of frontal tool stations, combined: Fixed: 4 Rotating: 3 Number of rear tool stations, combined: Fixed: 3 + 3 Rotating: 3 + 3 Tool section: 12 x 12 mm Standard revolving toolholder: ESX 20 Bar feeder: yes Part catcher: yes All technical details are provided without guarantee and subject to errors or omissions.

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 16 [mm] - Max. machining length : 184 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 16 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0.1 [°] GUIDE BUSH HOLDER 1 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8.000 [rpm] SECONDARY OPERATION - Number of positions : 6 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kVA] MACHINE HOURS - Number of working hours : 54.035 [h] EQUIPMENT - CNC : Fanuc PNC DECO - Rotating tool motor on : S2, S3, S5,S6 - Rotating guide bush Credpjuhhp Ssfx Agmoh - Parts catcher - Coolant tank * with high-pressure pump - Bar loader : IEMCA GENIUS 118 / 32LL - Cooling unit : MARKSA CSW 200 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Number of turning tool holders : 3

Condition: used, TECHNICAL DETAILS - Number of axes : 10 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 16 [mm] - Max. machining length : 184 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0.1 [°] COUNTER-SPINDLE - Max. bar diameter : 16 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0.1 [°] GUIDE BUSH HOLDER 1 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] GUIDE BUSH HOLDER 2 - Number of positions : 5 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] END ATTACHMENT - Number of positions : 4 - Number of motorized positions : 4 - Live tools speed : 8.000 [rpm] SECONDARY OPERATION - Number of positions : 6 - Number of motorized positions : 3 - Live tools speed : 8.000 [rpm] Cjdpouha D Uefx Agmjrh POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 14 [kVA] MACHINE HOURS - Number of working hours : 42762 [h] EQUIPMENT - CNC : Fanuc PNC DECO - Rotating tool motor on : S2, S3, S5,S6 - Rotating guide bush - Parts catcher - Coolant tank * with high-pressure pump - Bar loader : Iemca Genius 118 / 32 LL - Cooling unit
