Automatic lathe

TORNOS deco 2000

Condition: ready for operation (used), Year of construction: 1999, bar diameter (max.): 10 mm, number of axes: 9, This TORNOS DECO 2000-10 was manufactured in 1999. It features a loading magazine with drum, integrated hydraulic unit, and supports both front and rear with a center height of 1100 mm. It includes a movable headstock, directional spindle stop, and cross slide with tool holders. Ideal for precision turning, it operates on AC drive motors with an absolute measuring system. Contact us for more information about this machine. Ffodpfex D D Iksx Aamew 2017 overhauled and two further similar machines available (both overhauled 2018)Overhaul of 2017 machine:Standard overhaul package: Maintenance of Block III, cleaning, and recommissioning. Overhaul of the guide bushing and spindle overhaul of S1, S2, and S4. Replacement of all ball screws including bearings and the guides of all axes. Replacement of the cooling lubricant pump, all cooling lubricant lines, and the cooling lubricant sensor. Replacement of the scraper blades on the cross slides. Replacement of all pneumatic lines and valves. Replacement of the machine room light, transparent panels, external fan, fan cable, and keyboard. Additional options (special services): The guide bushing was completely replaced (not just overhauled). Installation of a new central lubrication system. Replacement of the bellows coupling, external encoders, and screen. Replacement of the control and amplifier fans. During commissioning, the “Spindle Positioning S4” option was also activated and the loading magazine was set up. Additional information • Maximum bar length: 3040 mm • Electrical control box • AC drive motors • Motor voltage: 3 x 380 V 50/60 Hz • Control voltage: 1 x 24 V DC • Movable headstock • Cross slide with 4 tool holders T11-T14 with vertical and horizontal movement • Absolute measuring system • 9 axes with C1 and C4 • Loading magazine with drum "HYBRIDE 10+5" • 14 guide tubes for 1-4 mm bars • 14 guide tubes for 4.1-10 mm bars without bar preparation up to 8 mm • Collet for Tryton • 2 different hybrid drums • Directional spindle stop S1 • Equipment to be equipped with Robobar SSF 3 m loading magazine Technical Specification Counter Spindle Yes

Condition: used, Year of construction: 1998, operating hours: 75,336 h, functionality: fully functional, machine/vehicle number: T62204, Equipment: documentation/manual, TECHNICAL DETAILS - Number of axes: 10 - Number of spindles: 2 MAIN SPINDLE - Max. bar diameter: 25.4 mm - Max. machining length: 200 mm - Spindle speeds: 10,000 rpm - C axis indexing precision: 0.1° COUNTER SPINDLE - Max. bar diameter: 20 mm - Spindle speeds: 10,000 rpm - Spindle power: 3.7 kW - C axis indexing precision: 0.1° - Number of guide bush holders: 2 GUIDE BUSH HOLDER 1 - Number of positions: 5 GUIDE BUSH HOLDER 2 - Number of positions: 5 - Number of driven positions: 4 - Live tooling speed: 8,000 rpm END ATTACHMENT - Number of positions: 4 - Number of driven positions: 4 - Live tooling speed: 6,000 rpm SECONDARY OPERATION - Number of positions: 7 - Number of driven positions: 3 - Live tooling speed: 8,000 rpm POWER SUPPLY - Supply voltage: 400 V - Total installed power: 14 kW WEIGHT & DIMENSIONS - Machine footprint: 2,270 x 1,650 mm Fsdpfsw Stndjx Aamofw - Machine height: 2,200 mm - Machine weight: 3,500 kg EQUIPMENT - CNC: Fanuc - Driven tool motor at: S2, S3, S5 vertical/horizontal - Rotating guide bush - Parts catcher - Workpiece ejection - Coolant tank - Bar loader: ROBOBAR SSF

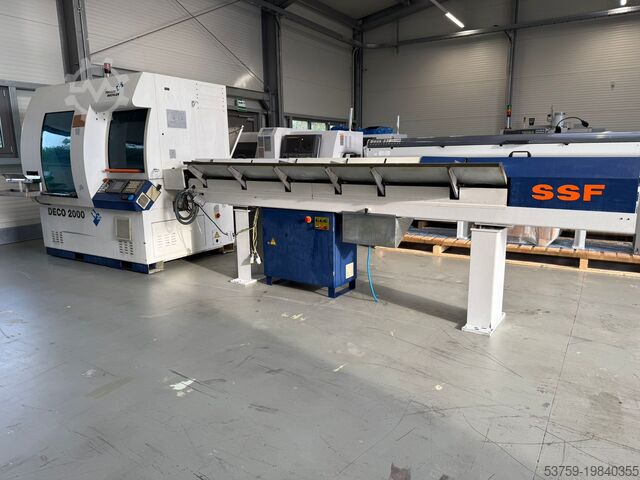

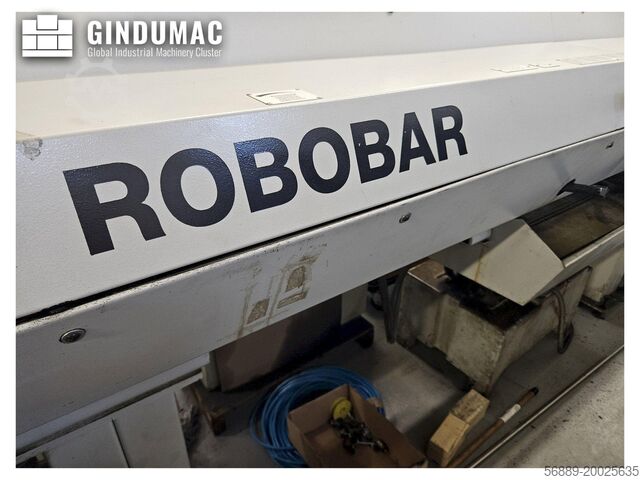

Condition: used, Year of construction: 2001, Technical details: spindle passage: 25 mm Article: CNC sliding headstock automatic lathe Manufacturer: Tornos Type: Deco 2000/20 Year of construction: 2001 Control: Fanuc spindle diameter: D25 mm max. speed: 7000 rpm comb: 2 (X,Z,Y-axis) Front attachment: 1 (X,Z,S-axis) Loading magazine: Tornos Robobar SSF Chip conveyor: Hinged belt conveyor other: various accessories such as polygonal impact device, HF spindle Please, contact us for getting more information and pictures on mail(at) or Fjdpfx Aotwglaoamjfw *

Condition: used, TORNOS DECO 2000/20 is a CNC automatic lathe delivering high precision, excellent accuracy and reliable performance. It features 10 axes, an internal spindle bore Ø20 mm, two independent carriages (X1‑Y1, X2‑Y2) with 5 positions each, 4 driven tools and a back spindle (3) up to 10,000 rpm for compact, flexible machining. Key specs: spindle stepless up to 10,000 rpm, spindle motor 2.2 kW, C‑axis resolution 0.1°, voltage 50 Hz 3x380‑420 V, total power 11 kVA, machine weight ≈3000 kg, overall L2950×W1100×H2300 mm. Accessories: SBF bar feeder Type 535, parts catcher and tool pre‑setting device. Capable of achieving tight tolerances; suited to automotive, watchmaking, tooling, aerospace and medical sectors. Ffedpfx Aajxx U I Romjw

Year of construction: 2000, condition: excellent (used), TORNOS DECO 2000 CNC automatic lathe TECHNICAL DATA Dimensions and weights Dimensions: length: 2000 mm width: 1260 mm Height: 1950 mm Weight: Empty: 2550 kg Specific floor load: Approximately: 8 daN/cm2 Axles 1 movable headstock: Z1, S1 2 independent linear Tooling system on the vertical: Fodpfjmdn Imox Aamefw X1 / Y1 (S6) - X2 / Y2, S2 1 front attachment, 4 spindles: X3 / Z3 1 independent pick-up spindle: Y4 / Z4, S4 1 independent tooling system in backworking: X4 (S5) General data Bar capacity: For min. remnant: 13 mm For max. remnant: 16 mm Max. Workpiece length: With rotating guide bush: 180 mm Work in clamp: 30 mm Main spindle speed: 12000 rpm Spindle rotation direction: Preferably: To the right Motorization main spindle: Continuous operation: 2,2 kW Intermittent duty: 3,7 kW Motorization tapping spindle: Continuous operation: 1,5 kW / Intermittent operation: 2,2 kW Headstock clamp type: F20 Guide bushes: rotating, fixed Type of F'bushing tongs: Master: 605 Number of tools in main operation: Fixed: 2 x 5 / Rotating: 3 + 3 Number of front tools: Fixed: 4 / Rotating: 3 Cross section of tools: 12 x 12 Tool tongs: Rotating Standard: ESX 20 Number of tools in backworking: Fixed: 3 + 3 / Rotating possible: 3 + 3 Bar feeder: Yes Parts removal: Basic version Machine type: Moving headstock Machine axis height: 1100 mm Headstock travel: 255 mm Bar guide position: To the right of the user Bar passage: 1-16 mm Telescopic tube passage: Bore: 6-17 mm Speed: Left / right: -12000 to 12000 rpm Headstock feed speed: Max. 20 m/min We do not take any responsibility for the correctness, completeness and up-to-dateness of the information.
