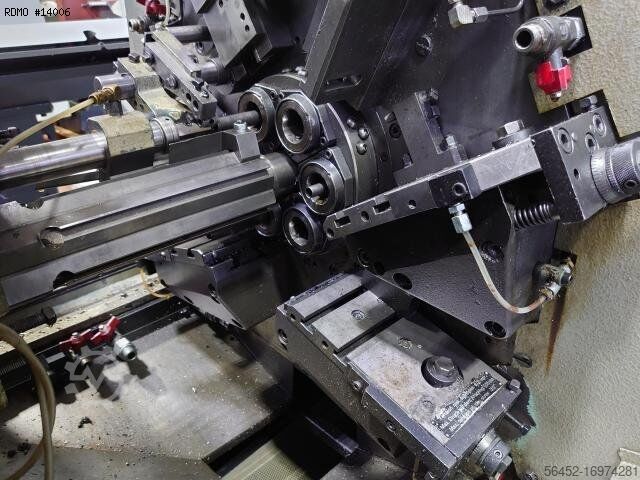

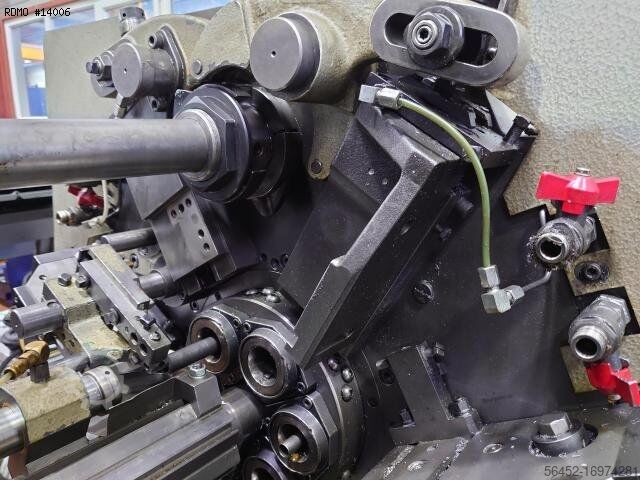

Multispindle lathe

TORNOS SAS16.6

Condition: used, TECHNICAL DETAILS - Number of spindles : 6 - Max. machining length : 60 [mm] - Number of cross slides : 6 - Max. production : 75 [parts/min] - Number of independent feeds available : 4 - Normal travel of independent feeds : 45 [mm] - Hirth teeth SPINDLES Gedpfx Aoxma Rmsa Ijbg - Max. bar diameter : 16 [mm] - Spindle speeds : 800 - 8000 [rpm] - Spindle power : 7.5 [kW] - Number of spindle speeds : 16 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 15 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5049 x 1100 [mm] - Machine height : 1615 [mm] - Machine weight : 2700 [kg] EQUIPMENT - CNC : Fanuc - Parts catcher - Parts conveying strip - Chips conveyor - Coolant tank - Bar loader : IEMCA PRA 40/33/F - Bar holder - Electric transformer

Condition: excellent (used), New 2008 Swing over bed - 600 (Ø 23.62) Diameter × length - Ø 300 × 600 (Ø 11.81 × 23.62) Max. diameter - Ø 380 (Ø 14.96) Max. travel range of Z/X axis - 600 / 240 (23.62 / 9.44); Z-axis: FANUC 2.8 kW (4 HP) /3000 rpm; X-axis: FANUC 2.8 kW (4 HP) /3000 rpm Diameter of spindle bore/Draw bar bore - STD: Ø 77 / Ø 52 (Ø 3.03 / Ø 2.04); OPT: Ø 86 / Ø 77 (Ø 3.38 / Ø 3.03) Spindle speed - STD: 8” chuck 3500 rpm; OPT: 8” chuck 4500 rpm, 10” chuck 3500 rpm Gbsdjrfx Tnopfx Aa Isg Chuck diameter - STD: Ø 8” ; OPT: Ø 10” Hydraulic Tailstock – travel 465 (18.3) MT. No.4 VDI Tool stations - OPT: 8 STD: 10 Coolant Chip conveyor Power requirement - 208-220 volts / 100 Amps / 3 Phases / 60 Cycles Floor area (L × W × H) - 4080 ×1675 × 1842 (160.62 × 65.94 × 72.51) Gross weight (approx.) - 5200 kg (11440 Ibs)

Condition: used, Year of construction: 1999, Technical details: number of spindles: 6 Gbodpfxjw Dqmpj Aa Iog spindle passage: 16 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: SAS16.6 Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=16mm incl. barloader IEMCA PRA 40/33F  Please, contact us for getting more information and pictures on mail(at) or *

Condition: good (used), Tornos SAS 16 6.6 Multi-Spindle Automatic Lathe Gbsdpfxewh Snvs Aa Ieg Condition: Very Good Machine Name: Automatic Lathe with Sliding Headstock Manufacturer: Tornos Model: SAS 16 6.6 Condition: Good (Used) 2 Tornos SAS 16 6.6 Automatic Lathes 1 of which has an NC slide

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Gsdpfxsd Tm D Ee Aa Iebg Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: used, TECHNICAL DETAILS - Number of spindles : 6 - Max. machining length : 60 [mm] - Number of cross slides : 6 - Max. production : 75 [parts/min] - Number of independent feeds available : 4 - Normal travel of independent feeds : 45 [mm] - Hirth teeth SPINDLES - Max. bar diameter : 16 [mm] - Spindle speeds : 800 - 8000 [rpm] - Spindle power : 7.5 [kW] - Number of spindle speeds : 16 POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 15 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5049 x 1100 [mm] - Machine height : 1615 [mm] - Machine weight : 2700 [kg] EQUIPMENT Gedoxma Rgopfx Aa Ijbg - CNC : Fanuc - Parts catcher - Parts conveying strip - Chips conveyor - Coolant tank - Bar loader : IEMCA PRA 40/33/F - Bar holder - Electric transformer

Condition: used, Multispindle lathe TORNOS SAS 16.6 Gbedswvmflepfx Aa Ieg

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Gbodpfohrihyox Aa Isg

Condition: used, Multispindle lathe TORNOS SAS 16.6 Godpfx Aaswvmfrs Iebg

Condition: used, Multispindle lathe TORNOS SAS 16.6 Gbsdpfx Ajww Nrwja Isg

Year of construction: 1998, condition: good (used), CHIRON FZ 18L 1998year Sinumerik 810 with 4 Axis Nikken Gbsdpfxjhpq U Uj Aa Isg Travels X 2000 mm Y 400 mm Z 425 mm table2280 x 450 mm spindle max 8000 Toolchanger ATC: 20 pos tools SK 40 weight 6,70 T manual books dimensions lenght 3,9m width 2,45m height 2,8m free loaded on truck EXW 01360 LOYETTES

Condition: used, Multispindle lathe TORNOS SAS 16.6 Gbsdpewvmfxefx Aa Iog
