Bench drilling machine

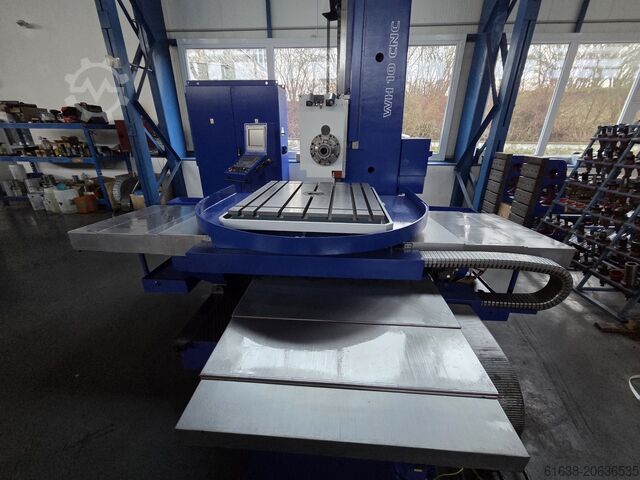

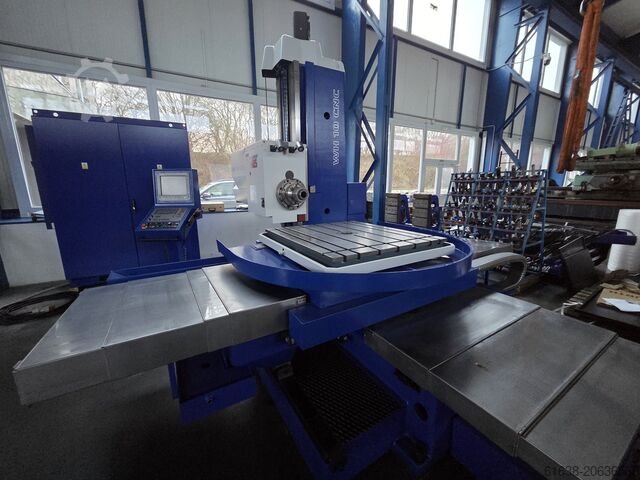

TOS VARNSDORF WH 10 CNC

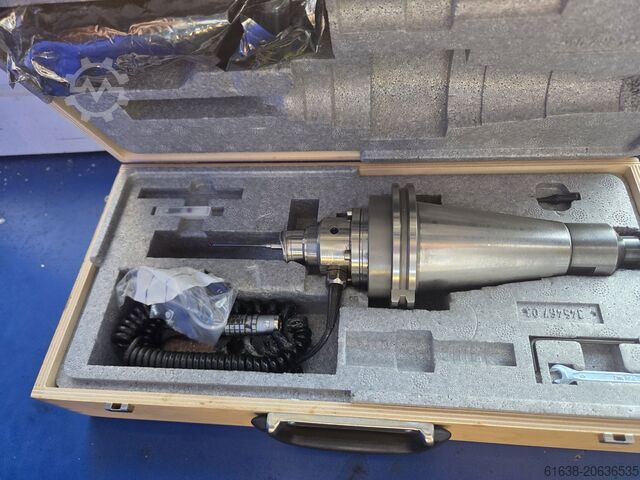

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 1,200 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 950 mm, table load: 3,000 kg, spindle diameter: 100 mm, spindle speed (max.): 2,500 rpm, total width: 1,000 mm, table length: 1,120 mm, travel distance W-axis: 710 mm, quill diameter: 100 mm, year of last overhaul: 2025, The machine is in very good technical condition after modernization in 2025, connected and available for testing. Heidenhain iTNC 530 control system. Accessories: tools, clamping angles, workpiece probe. Gedpfx Asxz E N Djh Ijuk

Condition: as good as new (ex-display), Year of construction: 2025, TOS Varnsdorf WH 10 CNC Heidenhain TNC620 / Sinumerik ONE Work spindle diameter 100 / 105 mm Clamping taper ISO 50 Tool shank 69871 DIN Clamping adapter - screw TOS 4100793 Main motor power (S1/S6-40%) 22/34 kW Max. spindle speed 2500 / 3000 rev/min Max. torque of the spindle (S1/S6-40%) 2173/3250 Nm Table transverse travel X 1250 / 1800 mm Headstock vertical travel Y 1100 / 1250 mm Table longitudinal travel Z 1000 mm Spindle stroke W 630 mm Table clamping surface 1000x1100 / 1200x1400 mm Workpiece weight max. 3,000 / 4000 kg Feed range 4 – 6000 mm/min Total power consumption 50 kVA Machine weight 13 000 kg Features mechanical side - hardened guide surfaces on all axes - Biplast-V lining for the guide ways counter surfaces - Geometric accuracy according to the accuracy protocol TOS Varnsdorf WH 10 - Sliding working spindle with diameter of 100 mm, spindle bearings - FAG, SKF - hydraulic tool clamping set 22kN - Ott-Jakob - Headstock with cooling circuit - reTOS Varnsdorf - Ball screws on the X, Y, Z and W axes - KSK Kurim - Rim and pinion for precise rotary table positioning - reTOS Varnsdorf - Hydraulic system (unit, pumps, hoses, fittings) - Baseco - Rotary table reinforcement controlled by CNC system - Central lubrication system controlled by CNC system - Tribotec - Telescopic covers (X and Z axes) Features electrical side - CNC control system iTNC 620 Heidenhain Gen3 - Servo-motors Siemens 1FKZ 100…(5 pcs.) - Spindle motor 1PH8135... - 22kW - Converter Heidenhain UM114D - Linear scales Heidenhain for X, Y and Z axes - Encoder Heidenhain ROD 480 for rotary table - Encoder Heidenhain TTR ERM for spindle - Oriental stop - Control cabinet from Ritall with cooling unit - Wiring and modern electrical components - End-limit switches Balluff - Rotational control panel - Workplace lighting Other - Electrical inspection report, technical documentation - Certificate of geometric accuracy WH 10 Tos Varnsdorf - spindle ball-bar test protocol, linear scales accuracy protocol - cooling of work space placed on spindle forehead (tank, pump, hoses) - working spindle support with brass bushings SP200 Tos Varnsdorf Guodpfopdrzzox Ah Isk - Heidenhain Options nr. 8, 19 and 20 - Heidenhain HR510 handwheel - Heidenhain Linear scales upgrade to LC115 series for X, Y and Z axis
