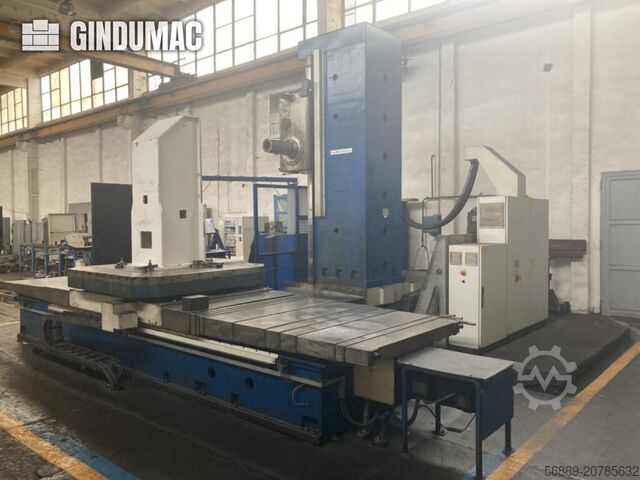

Table boring mill

TOS VARNSDORF WHN 130

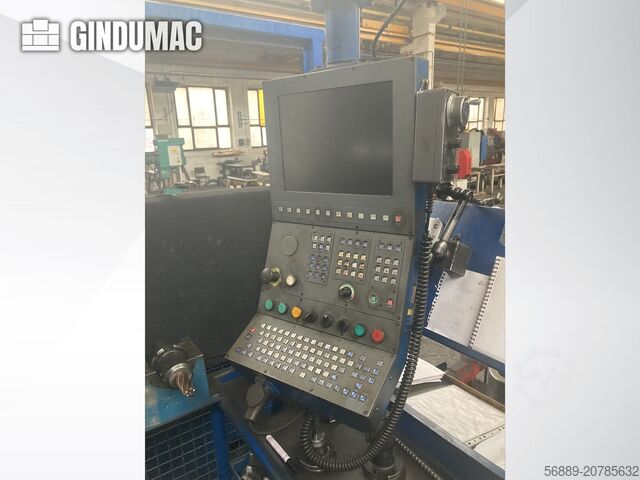

Year of construction: 2007, condition: ready for operation (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,220 mm, number of axes: 5, This 5-axis TOS Varnsdorf WHN130 was manufactured in 2007. It features a horizontal boring and milling machine with a table size of 1600 × 1800 mm and a spindle diameter of 130 mm. The machine includes a rotary table and is controlled by an NCT-104 system. Consider the opportunity to buy this TOS Varnsdorf WHN130 boring machine. Contact us for more information. • Control system: NCT-104 Spindle • Spindle diameter: 130 mm • Taper: ISO 50 (7:24) • Spindle speed range: 10 – 1500 rpm • Max spindle torque: approx. 2350 Nm • Main motor power: 37 kW Podpfx Anox Imtaoysrb Axis Travels • X-axis travel: 3500 mm • Y-axis travel: 2000 mm • Z-axis travel: 1220 mm • W-axis (spindle quill travel): 570 mm Table • Rotary table size: 1600 x 1800 mm • Max workpiece weight: 12,000 kg • T-slots: 22 x 9 x 160 mm • B-axis table feed: 0.03 – 1.5 rpm Feed Rates • Rapid traverse (X / Y / Z / W): 2000 mm/min Power • Total power requirement: approx. 80 – 83 kVA

Condition: used, Year of construction: 2007, functionality: fully functional, Controller NCT104 (Made in Hungary) Table dimensions 1800 x 1800 mm X-axis travel 3500 mm Y-axis travel 1200 mm Z-axis travel 1500 mm W-axis travel 570 mm Prodsyvuh Iopfx Anysb Spindle diameter 130 mm Table rotates via CNC program Spindle taper SK50 Weight 32 000 kgs Dimensions L x W x H = 6700 x 6000 x 4420 mm
