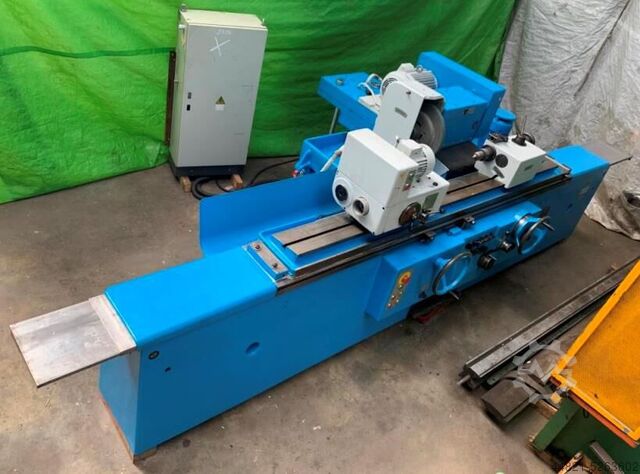

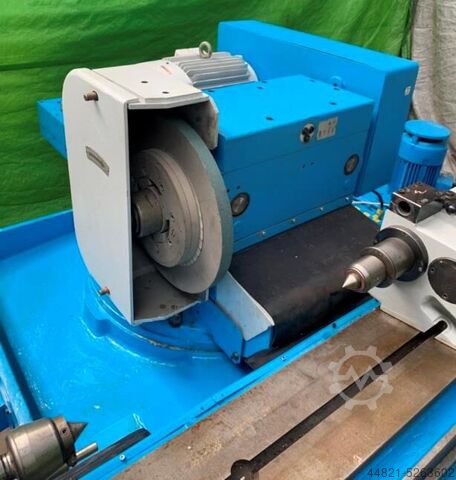

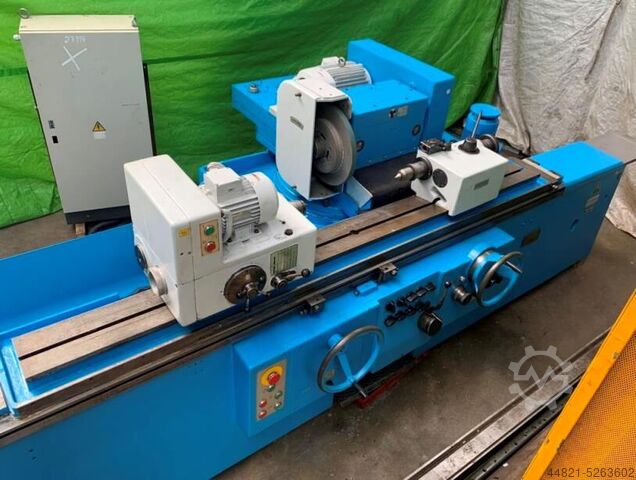

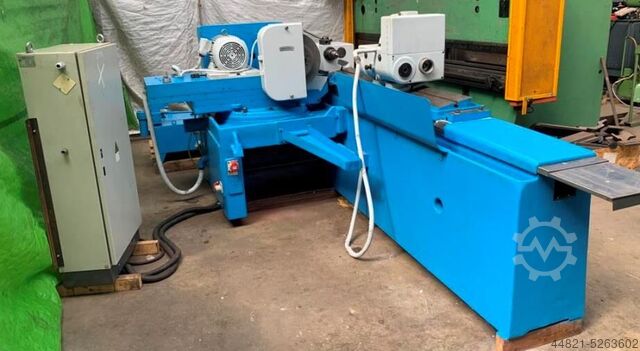

Cylindrical grinding machine

TOS BHU 40/1500

Condition: used, Column Drilling Machine INFRATIREA - ORADEA Type PH - 031 Serial No. Year of manufacture 1975 Drilling capacity 40 mm Spindle taper MK 4 - short quill Throat depth 320 mm Fjdpfx Agstrpifsmspb Quill stroke 250 mm Table size 400 x 400 mm Column diameter 160 mm Spindle speed 85 - 1500 rpm, 6-speed gearbox Motor power 2.2 kW Power supply 400 Volt, 50 Hz - Spindle speed adjustable over 6 gear steps - Right and left-hand rotation - Automatic feed 0.10 - 0.16 - 0.25 - 0.4 mm/rev - Swivel drill table - Table height adjustment via hand crank - Clamping surface on machine base - Coolant pump integrated in base Required space L x W x H 1000 x 600 x 2450 mm Weight 700 kg

Condition: used, Year of construction: 1991, Technical details: x-travel: 1050 mm y-travel: 600 mm z-travel: 650 mm range of revolution per miute: 40 - 1720 / 12 step U/min spindle taper: SK 50 spindle head swivable left - right: 90° re/li und 45° = 360° ° distance spindle nose and table: 0 - 600 mm table surface area: 1700 x 470 mm feed continuous: X/Y= 15 - 625 + Z= 7,5 - 312 mm rapid traverse Z-axis: 1250 mm/min. rapid traverse:: X/Y: 2500 mm/min. total power requirement: 11,1 kW weight of the machine ca.: 2500 kg machine dimensions LxWxH: ca. 2,45 x 2,0 x 2,85 m Equipment: with Huron universal milling head coolant system control panel machine feet Accessories Fsdpfeva Hd Rox Agmjpb Machine vice (jaw width 120mm) *

Condition: used, Year of construction: 1970, Technical details: x-travel: 1000 mm y-travel: 320 mm z-travel: 350 mm spindle taper ISO: MK4 / SK50 spindle head swivable left - right: 90 ° Distance rear edge of table to column guideway: min.: 45 / max.: 365 mm throat: 270 mm distance spindle center to table: min. 50 / max. 400 mm range of revolution per miute: 31,5 - 1.600 / 18 step U/min feed:: 25 - 1120 horizontal und 8,3 - 416 vertical mm/min rapid traverse : 3000 horizontal / 1000 vertikal m/min clamping surface area: 1340 x 320 mm machine weight approx.: 3000 kg Fpedpfju Ndgfox Agmjb dimension machine xH: 2,2 x 2,8 x 1,7 m Coolant system 2x counter bearing arbor holder Ø 18 / Ø 60 mm and other accessories in the tool cabinet. Optional accessories i.D. *

Condition: used, Year of construction: 1988, functionality: fully functional, The machine is completely overhauled with new electrics, new cabling, incl. new SIEMENS Sinumerik 840D control system Technical data: Fedou R H I Uspfx Agmspb Working range - max. circulation and turning diameter 2,000 mm - Max. turning height 1,500 mm - Face plate diameter 1,600 mm - max. face plate load 11,200 kg - Chisel slide travel (vertical) 1,000 mm Smallest plunge diameter of the chisel slide 325 mm Chisel slide cross-section 250 x 210 mm - Drive power of the main motor 71 kW - Crossbeam adjustment 1,170 mm - Crossbeam support from center of face plate to the right 1,170 mm - From the center of the faceplate to the left 25 mm - Magazine positions 12 pcs. - Tool changer Speed: - Speeds - faceplate - ram and support hydrostatically guided 2.5-250 min-1 Page -2- Feed rate - X and Z 0.1 1000 mm/min - Rapid traverse X and Z 6 m/min - Weight approx. 22,000 kg - Voltage 400 V 50 Hz - Connected load 175 kW - Space requirement L = 10,000 mm W = 6,000 mm H = 5,850 mm Accessories: - Chip conveyor - Housing - 2 hinged front doors - Cooling system incl. tank and pump Dimensions: - Weight of the machine 22 to. - Machine dimensions L/W/H 10,000 x 6,000 x 5,800 mm
