Curved belt conveyor 90° right bendTransnorm
90°-885-700 IR400
Curved belt conveyor 90° right bend
Transnorm
90°-885-700 IR400
EXW Fixed price plus VAT
€2,475
Year of construction
2023
Condition
Used
Location
Würzburg

Show images
Show map
Machine data
- Machine type:
- Curved belt conveyor 90° right bend
- Manufacturer:
- Transnorm
- Model:
- 90°-885-700 IR400
- Year of construction:
- 2023
- Condition:
- used
PRICE & LOCATION
EXW Fixed price plus VAT
€2,475
- Location:
- Gattingerstr. 11 B&C, 97076 Würzburg, Deutschland
Call
LISTING DETAILS
- Listing ID:
- A143-16706
- Reference number:
- RA1830
- Update:
- 18.02.2025
DESCRIPTION

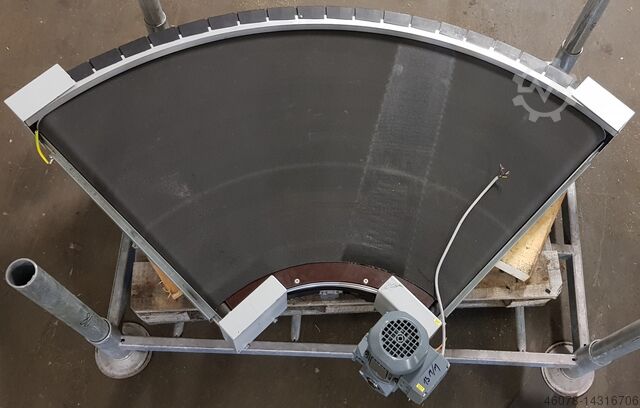

Transnorm belt curve conveyor right 90°-885-700-IR400
RA1830
The Transnorm belt curve is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.
Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.

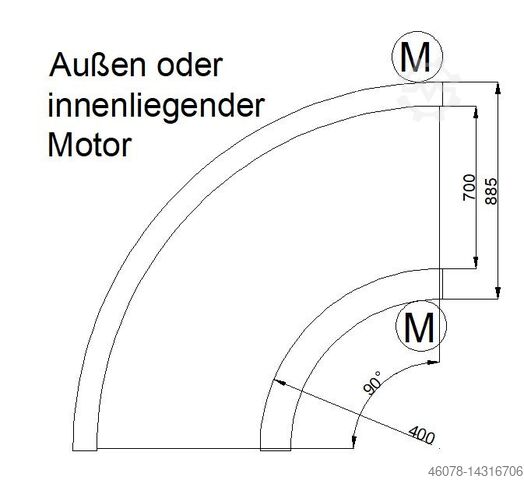

Technical data:
Conveying length middle radius (NL): 1178 mm
3Zxr2Ovvc
Frame width (NB): 885 mm
belt width (GuB): 700 mm
height (BH): 170 mm
height including motor (MH): 370 mm
Inner radius (IR): 400 mm
Conveying angle: 90° degrees
Conveying speed (v m/s): 0,217m/s

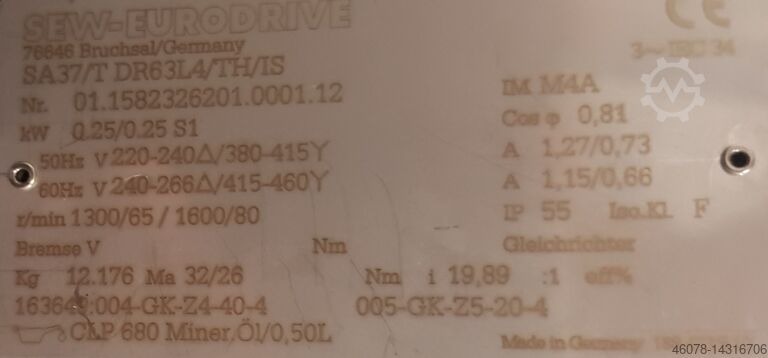

Drive: SEW gear motor
Electrical data: 50Hz V230/400, kW 0.25 / S1
Belt:(wear see pictures)
Year of construction: 2012
Optionally available:
Supports
Side guide one and both sides
frequency inverter
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
RA1830
The Transnorm belt curve is in good condition (used) and fully functional. It has a gear motor of the brand SEW. Supports and are not included in the scope of delivery. They are optionally available on request.
Belt curves are often used in intralogistics for the internal transport of unit loads and are indispensable in modern distribution centers.
Transnorm belt curves convince with performance and reliability. Thanks to a low-tension drive over the entire belt width, long operating times are no problem. Conical drums and a specially developed belt guide system ensure the highest possible running smoothness.
Technical data:
Conveying length middle radius (NL): 1178 mm
3Zxr2Ovvc
Frame width (NB): 885 mm
belt width (GuB): 700 mm
height (BH): 170 mm
height including motor (MH): 370 mm
Inner radius (IR): 400 mm
Conveying angle: 90° degrees
Conveying speed (v m/s): 0,217m/s
Drive: SEW gear motor
Electrical data: 50Hz V230/400, kW 0.25 / S1
Belt:(wear see pictures)
Year of construction: 2012
Optionally available:
Supports
Side guide one and both sides
frequency inverter
Prices net plus VAT from central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg
For individual, professional advice, simply contact us.
Simply contact us by phone or e-mail.
We will be happy to help you with the planning and implementation of your projects.
We look forward to hearing from you.
With kind regards
Your team at Dr. Sonntag GmbH & Co. KG
Your specialist and contact for intralogistics
