Light metal / aluminum circular saw

TRONZADORAS GAA-350-90°

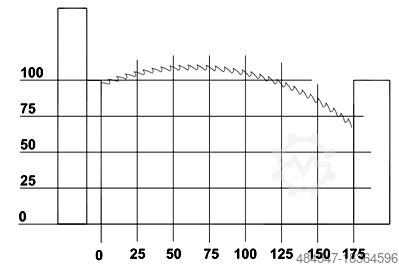

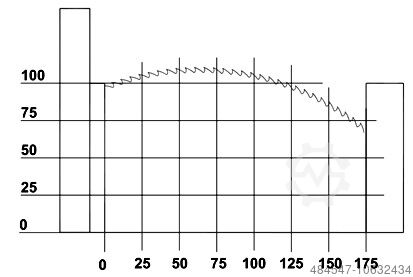

Condition: new, Year of construction: 2023, IN STOCK -- Fully automatic aluminium circular saw with 90° cutting capability and drilling unit TR 12 (up to ø10 mm) or TR 20 (up to ø20 mm), featuring simple and safe operation with excellent cutting performance. This machine is capable of only making 90° cuts, allowing workpieces to be drilled and cut in a single workflow. Technical Specifications: ● Cutting range: 90°: round 100 mm / square 100 x 100 mm / rectangle 170 x 60 mm ● Drive power: 1,9 kW / 400 V / 50 Hz ● Speed: 3000 RPM ● Feed: Single feed 300 mm (double stroke up to 600 mm) ● Max. Cutting Height: 100 mm ● Blade Dimension: 350 x 32 mm Standard Equipment: ● Machine with 90° cutting capability, powered by a high-performance motor ● Clear and large-sized control panel ● Length adjustment from 5 to 300 mm via handwheel and counter ● Main clamping unit with 3 pneumatic clamping cylinders (1 horizontal, 2 vertical) ● Feed clamping unit with horizontal and vertical pneumatic clamping cylinder ● Large protective cover, covering the entire working area, pneumatically raised ● Adjustable cutting and feed speed ● Air gun for cleaning the machine ● Connections for dust extraction system Crjdpfxemftiwj Agmeh ● Minimal lubrication system ● TR 12 or TR 20, fixed automatic drilling unit with one tool holder; spindle speed adjustment, drilling depth, etc. are manually adjusted; drilling cycle occurs automatically --> Also availabe with CNC control or in various sizes!

Condition: like new (used), Year of construction: 2023, functionality: fully functional, machine/vehicle number: G90230201, saw blade diameter: 350 mm, total length: 1,500 mm, total width: 970 mm, total height: 1,400 mm, cutting height (max.): 100 mm, overall weight: 350 kg, saw blade speed: 3,000 rpm, input voltage: 400 V, Automatic CNC controlled circular saw for cutting and drilling / tapping aluminium. Tronzadoras MG - GAA-350-90+CNC+TR12 • Automatic cycle. Codpjvl Eahefx Agmjrh • 700 mm ballscrew feeder. • OMRON controller. • 10 programs with 30 lines. • 20 parts in memory. • Emergency stop. • Adjustable feeding and cutting speeds. • Automatic adjusted cutting length with multiple advances. • Cut to 90º. • Automatic air-oil cooling. • Semi-automatic or fully automatic operation. The machine is inspected, serviced and ready for work.
