Punch Press

Trumpf 500R

Condition: ready for operation (used), Year of construction: 1996, Immediately available from site: CNC Punching – Nibbling Machine Trumpf Codpexld Tpjfx Abwohc Model: TC 500 R SM 1306 Year of manufacture: 1996 Operating hours: 81,000 CNC control: Sinumerik 840 D TrumagraphCC 220 S Working area: 2535 x 1280 mm Punching force: 22 tons Sheet thickness up to 8 mm Workpiece weight up to 150 kg Max. positioning speed (simultaneous X – Y axis): 108 m/min Continuous C-axis rotation: 360 degrees Maximum stroke rate: 900 strokes/min Max. number of tools: 18 Automation components: Standard configuration CheetMaster 1306 Sheet Master Grip Master Cassette with multitool for numbers 0 – 9 Cassette with multitool for diameters 1.0/2.0/3.0/4.0/5.0/6.0 mm Each 1 cassette with thread former M3, M4, M5, M6 Truma Grip Truma Sort L Chip conveyor with container Equipment: Multitool actuation Thread forming function Marking function Slitting function 3 clamps Scratch arm machining Small part sensor with part chute Part blowing device Pneumatic follow-up cylinders Softpunch Memory expansion to 256 KB Vibration-damped installation Supplied tools: Multitool 6-station Multitool 12-station Price: €8,000.00 ex site, plus VAT Alternatively, price: €12,000.00 plus VAT, including dismantling, removal, and loading

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, punching force: 22 t, sheet thickness (max.): 6 mm, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,250 mm, punching diameter: 76 mm, TECHNICAL DETAILS Sheet thickness - max.: 6.4 mm Pressing force: 220 kN Workpiece weight: 150 kg Punching diameter: 76.2 mm X-axis travel: 2,000 mm Y-axis travel: 1,250 mm Positioning speeds Positioning speed X-axis: 90 m/min Chjdewur Dqspfx Abwoc Positioning speed Y-axis: 60 m/min Simulation positioning speed: 108 m/min Positioning speed rotary axis: 360 °/s Smallest programmable path dimension: 0.01 mm or 0.01° Tools Tool stations: 15 tools Tool change time: 1.5 - 6.5 s MACHINE DETAILS Machine dimensions: 6,400 x 5,800 x 2,100 mm Machine weight: approx. 11,050 kg

Year of construction: 1997, condition: good (used), Used fully serviced and good condition Trumpf 500r cnc punch press for sale TRUMPF TRUMATIC T500R Large format rotation cnc punch press for sale Fully serviced Machine capable of taking multi tool Complete with tool holders and tools including multi tools Complete with Retractable clamps 3metre x 1.5metre sheet without reposition. Additional extras with the machine: Csdpshtfp Tjfx Abwjhc Cabinet full of tooling Multitool Multiset – tool setter Quickload Quick sharp tool grinder Trumpf TC 500R Turret Punch 3000 X 1500mm large format machine 1600 throat x 3metre rail. TRUMPF TRUMATIC 500 CNC PUNCH WITH CONTROL & AIR TABLE CAPACITY: 220KN SERIAL YEAR: 1997

Year of construction: 2000, condition: good (used), Spare part for Sheetmaster and Gripp Trumpf medium format TC 600L / TC 500R, suction plate complete , with suckers, suction plate, valves, controllers, gearboxes, motors Y / X axis with gearbox and rotator, light barriers, claws,air cylinders etc. see pictures Chjdpfx Aoh Dixgjbwoc

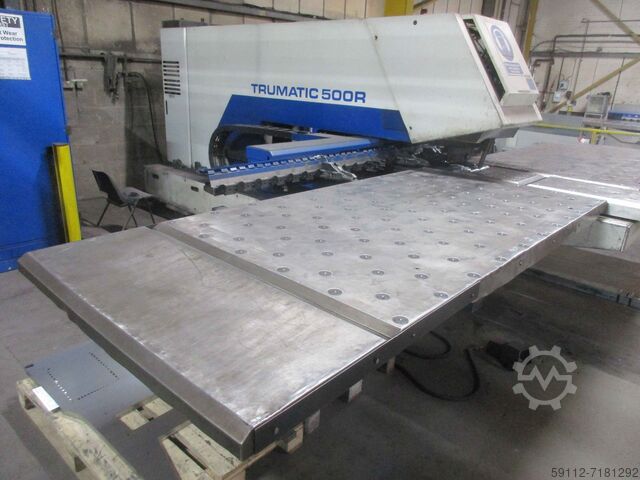

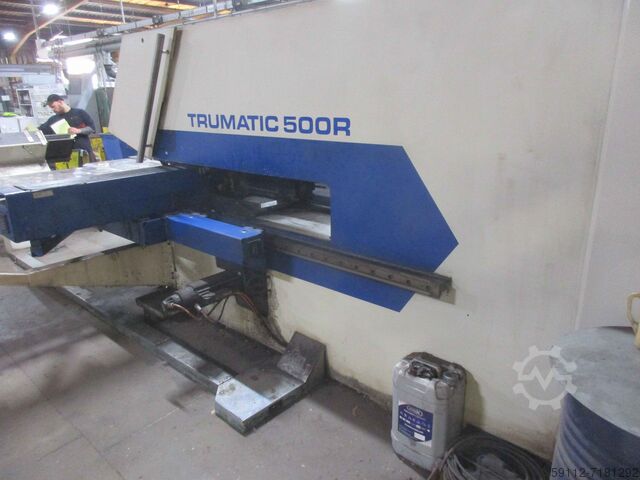

Year of construction: 2000, condition: excellent (used), very clean / low hours used Trumpf Trumatic 500R CNC Punch Press for sale 2.5metre x 1250mm sheet metal before reposition 1300mm throat New / Year 2000 Fully serviced With manuals Cjdpong Al Aofx Abwjhc Good condition and can be seen working in production Complete with:

Condition: excellent (used), Year of construction: 1999, Used Large Format Trumpf 500r 1600 throat Cnc Punch Press For Sale TRUMPF TRUMATIC T500R Large format rotation cnc punch press for sale This machine will process 3metre x 1.5metre sheet without a reposition. Trumpf uk specification: Brand: TRUMPF Model: TRUMATIC 500R Type: CNC Punching Machine Csdpetltl Hsfx Abwshc Control: Bosch CC220 Punching force (ton)22 Capable of taking multi tool Trumpf TC 500R Turret Punch 3000 X 1500mm large format machine 1600 throat x 3metre rail. TRUMPF TRUMATIC 500 CNC PUNCH WITH CONTROL & AIR TABLE CAPACITY: 220KN SERIAL YEAR: 1999
