Hand-held cutting tool

TRUMPF PN 200

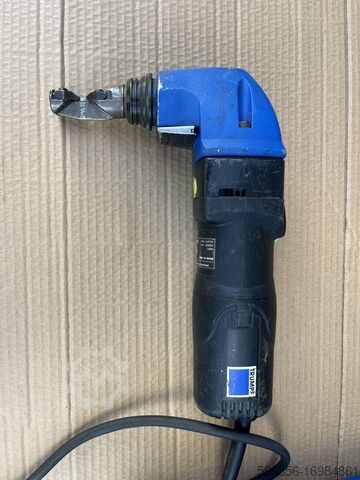

TruTool PN 200 electric hand cutting machine

Product features

The new TruTool PN 200 vibrating shear is mainly used for cutting C-L-U sections, trapezoidal sheet metal, etc. components.

The device with a short tool for processing sheet metal with a profile depth of up to 85 mm and for C-L-U sections. Also for corrugated sheet metal.

Ideal for hard-to-reach places. The working direction can be adjusted 360° easily and without tools in 45-degree steps.
Cjdpfx Aouhm E Sjbwohc

Minimized set-up time Replacement of punch and yoke without interruption and without tools.

Unmatched speed Fast and efficient, 2.1 meters per minute at 400 N/mm2 structural steel.

Application:

Trapezoidal sheet metal

For cutting profiles up to 86 mm deep and 132.5 / 40 mm wide. For straight and diagonal cuts.

Profiles

For cutting C-L-U profiles.

Corrugated sheet

For cutting and slitting. For bevel cuts and internal and radial cuts.

- MAXIMUM SHEET THICKNESSES:

- MAXIMUM THICKNESS OF 400 N/MM² STEEL SHEET: 2 mm.

- MAXIMUM THICKNESS OF STEEL 600 N/MM²: 1.5 mm

- MAXIMUM THICKNESS OF STEEL SHEET 800 N/MM²: 1 mm

- MAXIMUM THICKNESS OF SHEET METAL MADE OF ALUMINUM UP TO 250 N/MM²: 3 mm

- RADIANCES:

- LOWEST RADIUS: 50 mm

- GENERAL INFORMATION:

- OPERATING SPEED: 2.1 m/min.

- NUMBER OF SHAKES AT NOMINAL LOAD: 1500 1/min.

- INITIAL HOLE DIAMETER: 24 mm

- RATED POWER CONSUMPTION: 550 W
