Laser Cutting Machines - Fiber laser cutting

TRUMPF TRULASER 5040

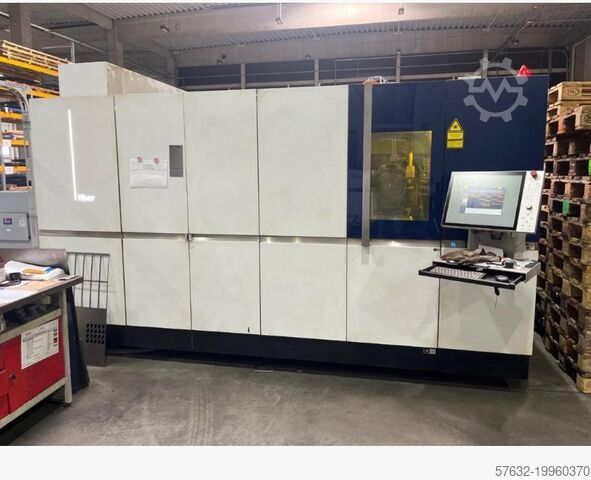

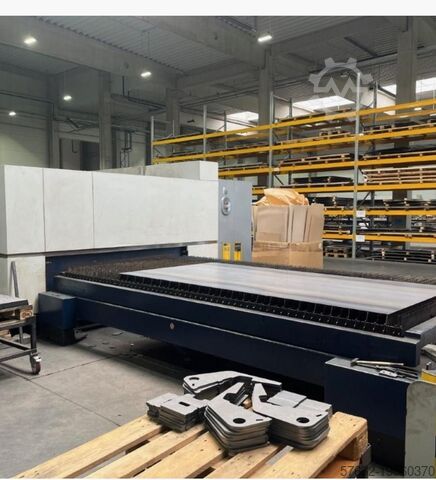

Year of construction: 2016, condition: ready for operation (used), A Trumpf CNC laser cutting machine is offered for the precise cutting of mild steel, stainless steel and aluminum sheets. Working range X/Y: 4000mm/2000mm, Z-axis travel: 115mm, laser power: 5000W, max. sheet thickness mild steel/stainless steel/aluminum: 25mm/20mm/12mm. Including various peripheral equipment and accessories. Overall dimensions X/Y/Z: approx. 11500mm/5500mm/2300mm, weight: approx. 18t. Documentation available. An on-site inspection is possible. Tjdozpa Siopfx Aklsa

Condition: used, Year of construction: 2018, controller model: , _____ Description: Year of manuf. : 2018 Control : Technical data Year of manufacture:2018 Pressing force approx.:3200 kN Folding length approx.:4420 mm Control system:TASC 6000 Projection:420 mm Free upright clearance approx.:3680 mm Usable installation height approx.:615 mm Machine weight approx.:23400 kg Equipment :- Sturdy machine frame :- Press beam, stress relieved with high bending strength :- Spherical bearing of the press beam (inclined position) :- Electro-hydraulic top drive with 4-cylinder technology :- Optical set-up and positioning aid :- Generous edge clearance :- Flat front covers :- Block hydraulics :- Electronic pressure compensator :- Measuring system with glass scale and deflection compensation :- Hydraulic oil in the machine (lifetime lubrication) :- Oil cooler Todeyy Hgqjpfx Aklja :- Control cabinet cooling via air-to-air heat exchanger :- Modern machine design Extended equipment :- 6-axis backgauge system :- Hydraulic upper tool clamping :- CNC crowning :- Work area lighting front and rear BendMaster (150) :- Sturdy base body and manipulator in cast aluminium construction :- Load capacity 150 kg, plate plus gripper :- Low floor track in welded construction :- Sheet sensor for contour detection :- Rotary feed-through for easy gripper change :- Gripper coupling on BendMaster :- Sensors for 4-axis backgauge system :- Electric drives :- Double sheet detection :- Regripping station NC :- Vacuum generation for suction gripper :- Platform (300 mm) for the bending press Extended BendMaster equipment :Extended BendMaster equipment - Track extension to 12 m :- Sensor system for 6-axis back gauge :- Gripper changing console :- Vacuum gripper, undefined :- Modular vacuum gripper with separation (material for 3 grippers) :- Gripper coupling :- Tong gripper :- Sheet removal station with linear axis :- Side door on right for safety fence

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2007, machine/vehicle number: A0250A0472, laser power: 5,000 W, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, TECHNICAL DETAILS Travel range, X-axis: 4,000 mm Travel range, Y-axis: 2,000 mm Laser power: 5,000 W MACHINE DETAILS Mains voltage: 400 V / 50 Hz Connected load: 105 kVA Control voltage: 24 V DC Required fuse rating: 3 x 160 A Compressed air connection: 7 to 10 bar Todpfxozkr T Uj Aklja Nitrogen connection N₂: 30 bar Oxygen connection O₂: 20 bar

Condition: excellent (used), functionality: fully functional, Year of construction: 2015, laser type: fiber laser, Used laser cutting system with 8 kW fiber laser and LiftMaster Compact (Stopa version) Manufacturer: TRUMPF Model: TruLaser 5040 fiber (L69) Year of manufacture: 2015 Operating hours approx.: 67,000 h, Laser on: 40,100 h TECHNICAL DATA: Maximum material thickness: Mild steel O2: 25 mm, Stainless steel N2: 40 mm, Aluminum N2: 25 mm, Copper O2: 10 mm, Copper N2: 5 mm, Brass N2: 10 mm Position deviation: 0.05 mm Max. position scatter Ps max: 0.03 mm Working area: 4,000 x 2,000 mm Laser power: 8,000 watts STANDARD EQUIPMENT Machine: Tsdpfx Akjy A I Tqjloa Closed machine frame Torque drive combined with linear direct drives Enclosed beam guidance via fiber optic cable (LLK) Cooling unit Machine cooling unit (water-air) Integrated control cabinets with interior lighting Integrated storage cabinet Automatic longitudinal pallet changer 19" touch color screen Longitudinal conveyor belt TruDisk power supply via the machine Work area illumination Positioning laser diode Spray unit PierceLine FocusLine NitroLine PlasmaLine Automatic nozzle cleaning Copper cutting package (includes cutting data) Brass cutting package (includes cutting data) Transport and assembly device SPECIAL EQUIPMENT: Solid-state laser TruDisk 8001 with 1 fiber output Smart Nozzle Automation (includes nozzle changer, automatic nozzle condition monitoring, and smart skip) BrightLine fiber CoolLine (only with BrightLine fiber) DetectLine: precise sheet position detection (incl. automatic focus measurement) Wide transverse conveyor with tipping container (container to the right of the machine) Cleaning brush Integrated camera (Full HD) for process monitoring and single frame transmission to the network (view of the first 2.5 m) Additional 10 m extension of fiber optic cable between laser and machine Smart Collision Prevention (requires smart-collision-prevention plug-in for TruTops) Machine podium version (without steel structure) Storage interface for STOPA large-scale storage systems (SKL or UL) Safety devices for storage integration incl. 2nd light barrier circuit Storage interface (without storage cart) LiftMaster Compact (STOPA version) TRUMPF Laser: Solid-state laser TruDisk 8001 with one fiber output Fiber optic cable as per standard layout Laser cooling unit (water-air) Excitation via pump diodes Laser power control (The TruDisk laser is subject to international export controls. According to EC Dual-Use Regulation 428/2009 (laser covered under 6A005)) Cutting head: Universal cutting unit with fully adaptive lens system Piercing head strategy Protective glass to prevent lens contamination Protective glass condition check ControlLine: height control and sheet outer edge detection Control system: SINUMERIK 840D SL control Simple workshop programming TruTops Laser via network access Quick re-production Integrated TRUMPF technology data Automatic shut-off Programmable cutting gas/pressure selection ContourLine FastLine FlyLine Microweld AdjustLine Teleservice via Internet Data transfer: USB interface RJ-45 network connection Safety: CE marking Light barriers Multi-chamber exhaust system Compact extraction unit Machine enclosure, certified viewing window, door on right Electric roll-up roof This used machine can be inspected under production conditions. All details without guarantee – sale is without any form of warranty or guarantee. Subject to prior sale.

Condition: new, x-travel: 3000y-travel: 2000z-travel: 250performance of pump (flushing): 37 Control: Siemens PLC Touch Screen directly usable DXF files Outlet pressure: max. 5500 bar Abrasive conveyor system for water jet cutting systems - filling weight 350 kg OMAX vacuum sensor for monitoring the abrasive supply to the nozzle Pump pressure control sensor With water jet cutting, water is compressed at a pressure of up to 5500 bar. Depending on the requirements and the workpiece, this is then pressed through a nozzle with a diameter of 0.01 to 0.08 mm. Since water jet technology processes materials without heat input, there are no deformations. By adding an abrasive, water jet cutting enables maximum precision with tolerances of +/- 0.01 mm. Our flexible production allows vertical as well as diagonal cuts. We would be happy to receive your individual CAD data. The water jet technology offers great advantages for industry, trade and individual prototype production. Water cutting technology is also a plus point for the environment, as it works dust- and steam-free and also saves material. Waterjet Cutting: Example Gallery What sounds impressive in theory is even more impressive on the finished object. We have put together a selection of images to demonstrate our waterjet cutting capabilities. Click through the photos in the example gallery and get an impression of what is possible with this modern processing method. Waterjet will also find the right solution for your order! advantages No deformations in the cutting area Cutting without heat input Material saving Tsdpfx Ajhqnl Toklsa High precision: +/- 0.1mm Cutting area: x = 3010 mm; y = 2010mm; Z=250mm Flexible manufacturing Vertical and oblique cuts Adoption of your CAD data formats: DXF, DWG, iges, stp, step, prt, jpt, jam Environmentally friendly, vapor and dust free We cut everything All materials brought into shape aluminum stole Brass Copper & Bronze Other precious metals Glass Granite & Marble tiles composites Promat cuts rubber plastics plexiglass Options: Oil cooler                                                         ¤ 10,725.00 Water filter system                                           ¤ 1,430.00 Sludge suction system                                     ¤ 10,725.00 Professional water treatment system               ¤ 10,725.00 An oil cooler must be present when commissioning!!! So you can work longer than 1 hour.

Condition: excellent (used), functionality: fully functional, Year of construction: 2019, control type: CNC control, laser type: fiber laser, laser power: 10,000 W, table length: 4,000 mm, table width: 2,000 mm, working length: 4,000 mm, working width: 2,000 mm, Equipment: CE marking, dust extraction, emergency stop, fume extraction, safety light barrier, Used Trumpf10kw 5040 4metre x 2metre Trumpf fiber laser for sale Year 2019 Complete with active cut control option Selling without automation 10kw / 10,000 w 4metre x 2metre cutting bed Tjdpfx Aoylax Nekloa

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2009, operating hours: 25,757 h, laser power: 7,000 W, sheet thickness (max.): 30 mm, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 115 mm, TECHNICAL DETAILS Travel range X-axis: 4,000 mm Travel range Y-axis: 2,000 mm Travel range Z-axis: 115 mm Table length: 4,000 mm Table width: 2,000 mm Max. sheet thickness (steel): 30 mm Max. sheet thickness (stainless steel): 30 mm Max. sheet thickness (aluminum): 25 mm MACHINE DETAILS Control: Siemens Sinumerik 840D SL Laser source model: TruFlow Laser power: 7,000 W Operating hours Laser on-time: 56,691 h Beam on-time: 25,757 h EQUIPMENT - PierceLine - FocusLine - NitroLine - PlasmaLine - Cutting head with 250 mm lens - Universal quick-change unit (UTI) with system bus - LensLine with condition monitoring - ControlLine: Height control and sheet edge detection - Automatic nozzle changer - High-speed head - Water cutting head (Cooline) - CO laser TruFlow 7000 with optimized standby mode - Maintenance-free turbo radial blowers - High-frequency excitation Todpfxex S Hmbe Aklsa - Laser control TASC - Laser power regulation - Laser logbook function - CE marking Dismantling and loading can be offered by the seller for an additional charge.

Condition: like new (used), Year of construction: 2022, operating hours: 20 h, functionality: fully functional, machine/vehicle number: 90L1201, Polar Mohr DC-M Punching Machine – As-new condition machine in top shape! Sales price: €69,000 (plus VAT) Ex works: 2325 Himberg near Vienna, Austria Condition: Hardly used – almost as-new Availability: Immediately available Description: For sale is a Polar Mohr DC-M punching machine in excellent condition – barely used and virtually as-new. This machine is ideal for precise punching of labels, tags, and packaging components, excelling in reliability and efficiency in daily production operations. The DC-M is renowned for its user-friendly operation, compact design, and seamless integration into existing production workflows – a true quality product "Made in Germany". Technical highlights: • Precise punching quality with high productivity • Ideal for label production and small formats • Robust construction for long-term use • Compact footprint – also suited to smaller production areas • Operator-friendly interface Viewing by appointment possible. Sale ex works (EXW) 2325 Himberg near Vienna, transport and loading available on request. 👉 Inquire now and secure an almost new Polar Mohr DC-M at an attractive price! Tsdpfx Akewuq Afsloa
