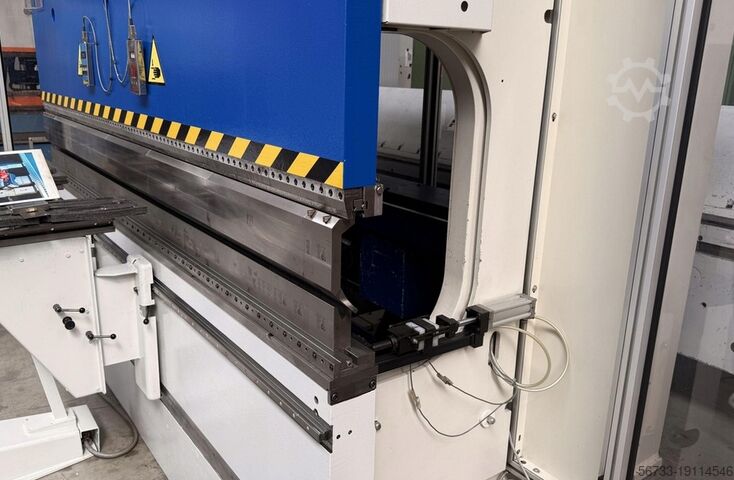

Hydr. Press brake

TRUMPF TrumaBend V130 3000 x 130 to

Condition: not inspected (used), Please see technical details on photo. Njdpfx Agjhvzxzjredb

Condition: used, Year of construction: 1997, pressure 130 t chamfer lenght 3060 mm distance between columns 2690 mm column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec table width 120 mm table height 1050 mm tiltable up to +/- 10.0 mm Number of working hours ca. 31.800 h compressed air 5.0 - 7.0 bar oil volume 250 l operating pressure 340 bar voltage 400 V total power requirement 23.0 KVA weight of the machine ca. 12950 kg range L-W-H 3660 x 2310 x 2900 mm Machine in a well-maintained condition (!!) with only approx. 31.800 operating hours - in checked condition - machine video - Ndsdsxacfmspfx Agrsb ?v=PBV-MDtZnlE Equipment: - CNC electro-hydraulic press brake - DELEM CNC control model DA 65 * swiveling control panel, front left * 2D graphic programming & product display * Tool & program library * USB keyboard and mouse interface - CNC controlled axes: Y1 + Y2 / X1 + X2 / R1 + R2 / Z1 + Z2 / I axis - CNC controlled back stop (X1 + X2 axis) - CNC controlled height adjustment of the back stop (R1 + R2 axis) - CNC controlled adjustment of the stop fingers (Z1 + Z2 axis) - CNC controlled, pneumatic die displacement (I axis) - CNC WILA electro-motoric table crowning - TRUMPF hydraulic upper tool clamping - TRUMPF manuel Lower tool clamp - 1x freely movable 2-hand / foot control - Safety device at the rear (sliding door) - Safety device at the side (swinging door) - Original operating instructions + spare parts list

Condition: new, Year of construction: 2026, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, grinding belt width: 150 mm, grinding belt length: 7,000 mm, height adjustment type: electric, total height: 2,200 mm, total length: 3,550 mm, total width: 2,000 mm, overall weight: 870 kg, grinding length: 1,500 mm, workpiece weight (max.): 80 kg, extraction connection diameter: 180 mm, grinding width: 950 mm, rotational speed (max.): 1,435 rpm, space requirement height: 2,200 mm, space requirement length: 3,550 mm, space requirement width: 2,000 mm, table height adjustment: 500 mm, Equipment: documentation/manual, Long-belt sanding machine MS92-150 3-cornered sanding belt 150x7100 for manual sanding, matting and polishing. For processing steel, stainless steel and brass. The scope of delivery includes - Machine stand with connecting elements - Infinitely variable belt drive - Pneumatic belt tensioning and manual belt tracking regulation - Sanding unit with contact roller - Electric table lift - Flat machine table - Workpiece stop ruler on the machine table - Original equipment sanding belt - Operating instructions + manufacturer's declaration - CE version The stable machine frame in welded steel construction results in very smooth machine operation. The two machine stands are equipped with an offset so that longer parts than the machine table can be sanded. The sanding belt guide via 3 belt deflection rollers results in the largest possible open working area for the operator and therefore good working conditions, especially with hand sanding blocks. The belt is driven by a three-phase motor with a balanced belt drive roller. The belt has adjustable pneumatic belt tension. The dust collection device is dimensioned so that the sanding dust is collected and directed to the extraction nozzle when connected to an appropriate extraction system. The sanding unit is mounted on backlash-free roller guides to ensure effortless operation. The machine table can be easily and quickly adjusted to the correct workpiece height using the electromotive table lift. The table lift guide elements are maintenance-free. For loading, the table can be extended so far that workpieces do not have to be pushed under the sanding belt when loading. The electrical controls for the main functions are arranged in the middle of the machine for ease of use. Machine color: Ndodpfxotwb U Aj Agrjb RAL 9001 cream white and RAL 5003 sapphire blue Switch cabinets and small housing in " light gray " The machine is supplied as standard with an original equipment belt (W x L) 150 x 7100 mm and a contact roller approx. 50° Shore for 150 mm belt width. Additional accessories: 3-axis table with integrated handling device for turning and swiveling the workpieces. The handling device is mounted in the center of the table under the insertion frame. To work with the handling device, the insertion frame is removed from the machine table. The handling device is equipped with four vacuum suction cups to hold the workpieces and consists of: The bearing with the rotary axis, on which a brake disk is mounted at the rear. The swivel device is attached to the front of the rotary axis. This can be locked at 0°, 22.5°, 45°, 67.5° and 90°. An additional locking disk is attached to the swivel head, which is used for fine adjustment of the workpieces to the sanding belt. The rotary and swivel axes are unlocked pneumatically using a foot switch, while the rotary axes are moved manually. Workpiece weight when used as a flat table with the insert frame in place = 80 daN Workpiece weight when using the handling device in relation to the clamping plate = 25 daN or 120 Nm in relation to the center of the rotary axis.

Condition: as good as new (ex-display), Year of construction: 2025, sheet width 1050 mm plate thickness 2.0 mm roll length 1070 mm roll diam. toproll 75.0 mm engine output 1.5 kW weight 325 kg range L-W-H 1530 x 700 x 1160 mm Nedpsxacbusfx Agrjdb Exhibition machine - like NEW not yet in use (!!) Special price on request Equipment: - electro-motor-driven 3-roller round bending machine - asymmetrical roller arrangement - 2x driven rollers using a brake motor - manual folding bearing for quick removal of the workpiece - wire insertion grooves on the bottom and rear rollers - double foot switch for R/L running including emergency stop button - rear roller feed with ratchet lever - electrical safety device

Condition: used, Year of construction: 2022, plate thickness 4.0 mm throat 260 mm distance between roll centers 132 mm stroke 55.0 OW mm tool adaptor Ø 35 mm, 12 mm Nut mm total power requirement 3.0 kW weight of the machine ca. 450 kg. range L-W-H 1600 x 900 x 1200 mm Exhibition machine from 2022 with only approx. 2x operating hours Condition as NEW Special price on request Equipment: - 3x pairs of beading and flanging rollers included in delivery - robust beading machine with motor-driven rollers - hydraulic adjustment of the upper roller, with pressure gauge - Lower shaft with adjustable stop - for the economical production of a wide variety of bead types - high accuracy thanks to precision-mounted shafts - Clearly arranged switching elements - Base frame equipped with storage compartment - powerful drive motor, even under continuous load - mobile foot switch for clockwise and counterclockwise rotation Nodpfx Agsxaazleredb

Year of construction: 1986, condition: ready for operation (used), Working width: 1250mm, max sheet thickness: 3mm, with loading table, vacuum lifter, feed table with rollers, ejector, output table, control panel and manual, inspection is possible, available from March 2024. Njdpfxjq A Un Se Agrjdb

Condition: ready for operation (used), Year of construction: 2000, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1650 mm column arm 400 mm stroke 240 mm Nodpfxexab Ugo Agrsdb dayligth 320 - 560 mm ajustment speed 150 mm/sec working feed 15.0 mm/sec return speed 150 mm/sec back stop - adjustable 5.0 - 1000 mm table width 110 mm work height max. 1050 mm operating pressure max. 297 bar compressed air 4.5 - 6.0 bar oil volume 200 l operating pressure 340 bar total power requirement 7.5 kW weight of the machine ca. 5900 kg range L-W-H 4100 x 2100 x 2750 mm with increased installation height / piston stroke well-maintained condition (!!) - in checked condition - machine video - ?v=ikl6RNZWeiU Equipment: - CNC electro-hydraulic press brake - including CYBELEC CNC control * swiveling control panel at the front right * external screen - CNC axis adjustment: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) * Travel range .. 5.0 - 1,000 mm * Travel speed .. 250 mm/sec. - CNC electro-motorized height adjustment of the back stop (R axis) * Travel range .. 70 - 235 mm * Travel speed .. 100 mm/sec. - CNC electro-motoric adjustment of the stop fingers (Z axes) * Travel range Z1 .. 405 - 1.565 mm * Travel speed .. 1.000 mm/sec. * Travel range Z2 .. 485 - 1.645 mm * Travel speed .. 1.000 mm/sec. - CNC electro-motoric table crowning - CNC pneumatic die displacement (I axis) - EHT pneumatic tool clamping - upper tool - EHT manual tool clamping - lower tool * Tool holder 90.0 mm + 13.0 mm possible - 1x freely movable 2-hand/foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging door) - original operating instructions + circuit diagram etc. * Special accessories included: - Oil cooler for use in continuous operation

Condition: new, Year of construction: 2026, functionality: fully functional, power: 5.5 kW (7.48 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, grinding belt width: 150 mm, grinding belt length: 9,000 mm, height adjustment type: electric, grinding belt speed: 25 mm/s, total height: 2,200 mm, total length: 4,640 mm, total width: 2,650 mm, overall weight: 1,200 kg, grinding length: 2,500 mm, workpiece weight (max.): 80 kg, extraction connection diameter: 180 mm, grinding width: 950 mm, rotational speed (max.): 1,435 rpm, space requirement height: 2,200 mm, space requirement length: 4,640 mm, space requirement width: 2,650 mm, table height adjustment: 500 mm, Equipment: documentation/manual, Long-belt sander M2S92-150 with two sanding belts for manual sanding, matting, and polishing. For processing steel, stainless steel, and brass. Not for aluminum or titanium! Scope of delivery includes: - Machine stand with connecting elements - Belt drive - Pneumatic belt tensioning and manual belt guide - Sanding unit with contact roller, manually movable from belt 1 to belt 2 - Electric table lift - Flat machine table Njdpfx Ajv S Sr Rsgrodb - Workpiece stop on the machine table - Original equipment sanding belts - CE-certified version - Operating instructions + manufacturer's declaration according to Appendix 2 The sturdy machine with its welded steel construction runs very smoothly. The two machine stands are equipped with a crank so that even longer parts can be sanded on the machine. The sanding belt is guided by three belt guide rollers, providing the largest possible working area for the operator and thus ensuring optimal work, especially with hand sanding blocks. The belt is driven by a three-phase motor with a balanced belt drive roller. Each belt has a separately adjustable, pneumatic belt tensioner. This allows for optimal belt tension adjustment for each belt. The dust collection system is designed to effectively capture the resulting sanding dust and direct it to the extraction nozzle when connected to an appropriate extraction system. To ensure effortless operation, the sanding unit is mounted on play-free roller guides. The machine table can be easily and quickly adjusted to the required workpiece height using the electric table lift. The table lift guide elements are maintenance-free. For loading, the table can be extended far enough that workpieces do not have to be pushed under the sanding belt when placed on the table. The electrical controls for the main functions are conveniently located in the center of the machine. Machine color: RAL 9001 cream white and RAL 5003 sapphire blue Control cabinets and small housing in "light gray" The machine is supplied in its basic configuration with two initial equipment belts (W x L) 150 x 9000 mm and a contact roller approximately 50° shore for a belt width of 150 mm. Additional accessories: 3-axis table with integrated handling device for rotating and swiveling the workpieces. The handling device is mounted in the center of the table under the insert frame. To work with the handling device, the insert frame is removed from the machine table. The handling device is equipped with four vacuum suction cups for holding the workpieces and consists of: The bearing with the rotary axis, to which a brake disc is mounted on the rear. The swivel device is attached to the front of the rotary axis. This can be locked at 0°, 22.5°, 45°, 67.5°, and 90°. An additional locking disc is mounted on the swivel head, allowing for fine adjustment of the workpieces to the sanding belt. The rotary and swivel axes are unlocked pneumatically via a foot switch, while the rotary axes are moved manually. Workpiece weight when used as a flat table with an inserted frame = 80 daN. Workpiece weight when using the handling device relative to the clamping plate = 25 daN or 120 Nm relative to the center of the rotary axis.

Condition: new, bending length: 1050sheet thickness: 1upper roll diameter: 56 Technical specifications: - Cast iron body - By manuel or motorised (optional) bending - Opening top roll to side after bending for taking out the material easily - Cone bending device - Movement of the back and bottom rolls up and down manually with hand wheel - Portable control panel in order to control material from required  locations with foot pedal  - In acccordance with CE norms. Ndjdpfx Aod Ab Uyegrjb Options: - Back roll with motor  - Digital readout for displaying position of the backroll - Body cover - Hardened rolls EURO 336,-- We have many references!

Condition: new, functionality: fully functional, Year of construction: 2026, machine/vehicle number: 27042010, TICAB (Trade Industrial Company AB) — a leading manufacturer of road maintenance equipment in Europe — offers you a cost-effective solution for Ndedpfxsvrw Ane Agrob efficient local repair of asphalt concrete surfaces. A portable asphalt recycling plant / recycler RA-800 from TICAB with its own engine and hydraulic drive produces 800 kg of high-quality asphalt mixture for every 20-30 minutes from asphalt scrap, milling, bitumen, crushed stone, sand. It also allows you to warm up the material and work with it within the area of laying or replacing asphalt. Equipment is ideal for emergency road repairs. Technical Specifications: ● Diesel engine with electric starter (10hp). ● Recycler productivity - 1800 - 2500 kg/hour. ● Drum capacity 800 kg (0,6 m3). ● Product heating temperature - 120 – 160 °C. ● Product heating time up to 15-20m (160°C). ● Fuel tank for 100 l (equipped with a fuel level indicator). ● Power of burner 100-130 KW. ● Burner diesel powered by a generator with a voltage stabilization system. ● The recycler drum is equipped with a heating distribution system (on the whole surface). ● Side flaps construction provides light access to servicing drum rollers. ● Control panel with indicators and at least one 220V power outlet on this panel (can be used for charging tools or lighting). ● Control panel, power block equipped with locks protection
