Hydr. CNC press brake

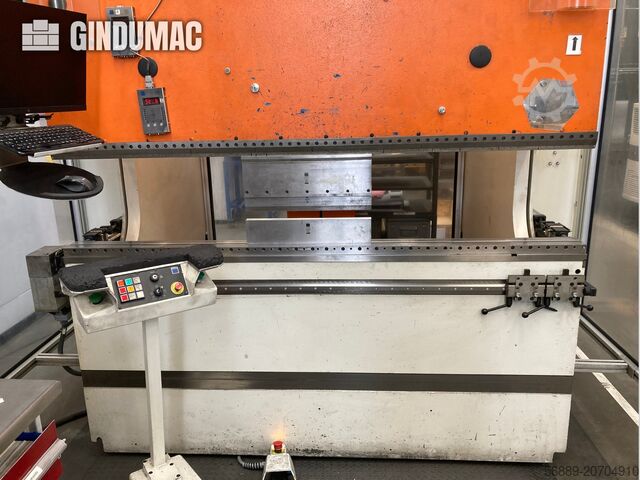

TRUMPF TrumaBend V85

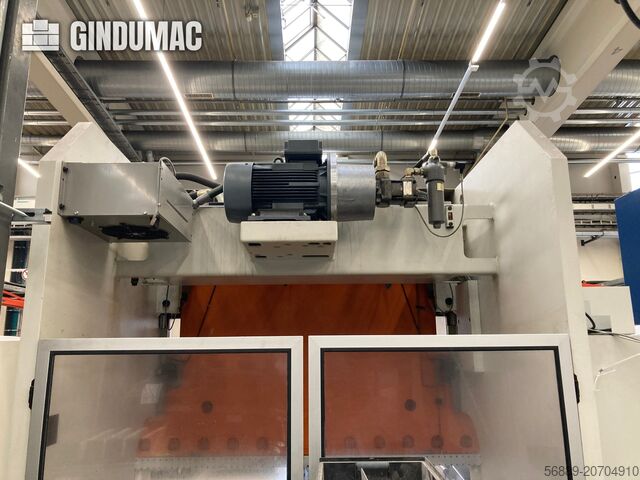

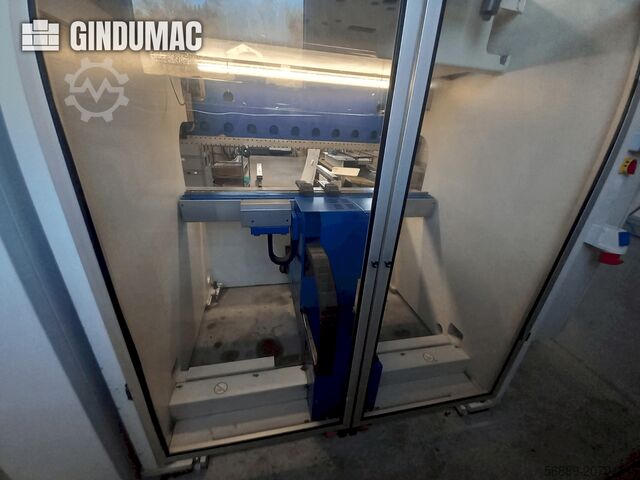

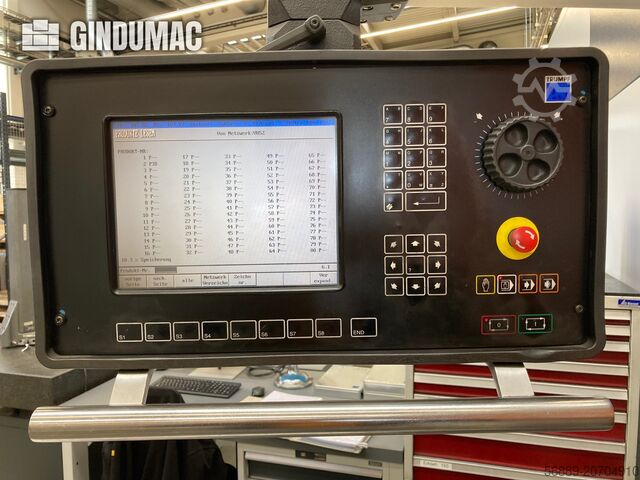

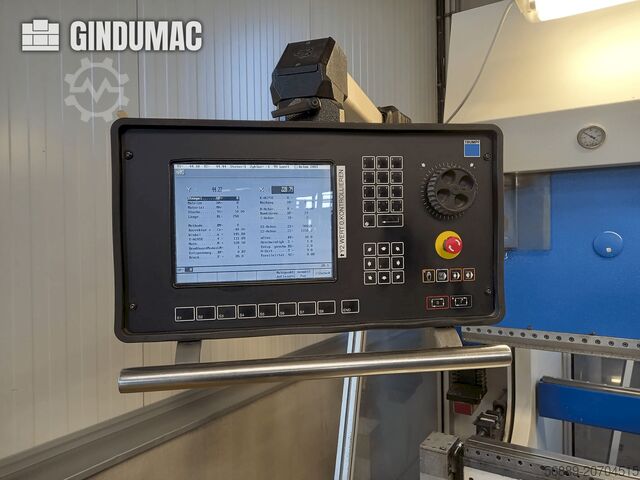

Condition: ready for operation (used), Year of construction: 2002, operating hours: 2,324 h, Control Unit Brand TRUMPF This 6-axis TRUMPF TrumaBend V85 press brake was manufactured in 2002. It features an 850 kN press force, 2050 mm bending length, and a CNC backgauge system for precise control. The machine includes a robust all-steel welded construction and an electro-hydraulic top drive. Consider the opportunity to buy this TRUMPF TrumaBend V85 press brake if you are looking to get high-quality bending capabilities. Contact us for more information about this machine. Fodpfx Ajx D Nyrjbaopr Application Types Bending

Condition: good (used), Year of construction: 1999, machine/vehicle number: 883345, Offer 25513 Fpedpex Exzkofx Abajr Technical Data: - Max. working length: 2050 mm - Distance between uprights: 1750 mm - Max. pressing force: 850 kN - Distance table/ram: 535 mm - Throat depth: 410 mm - Ram stroke: 365 mm - Stroke speeds: - Rapid downstroke speed: 200 mm/sec - Return speed: 135 mm/sec - Pressing downstroke speed: 1 - 11 mm/sec - Total drive power: 13 kVA - Space requirement approx.: W 2700 x H 2900 x D 2100 mm - Weight approx.: 9100 kg Equipped with: - 5-axis CNC control DELEM, DA - Y1 + 2; X; R; Z - Two-hand control panel with foot switch - CNC-controlled crowning system - CNC-controlled backgauge with height adjustment 5 - 860 mm - Hydraulic tool clamping - Pneumatically assisted die table displacement

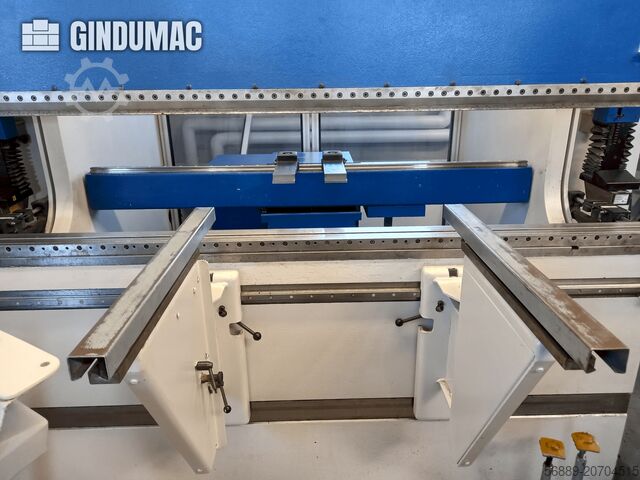

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2000, bending force (max.): 85 t, stroke length: 215 mm, throat depth: 410 mm, distance between stands: 1,750 mm, working length: 2,050 mm, TECHNICAL DETAILS Press force: 85 t Bending length: 2,050 mm Distance between uprights: 1,750 mm Stroke: 215 mm Throat depth: 410 mm MACHINE DETAILS Control: DELEM Dimensions & Weight Machine dimensions (L x W x H): 2,700 x 2,100 x 2,400 mm Weight: 7,900 kg Fodoxxq T Nepfx Abaepr EQUIPMENT Two-hand operation 2 support arms Side safety doors Lasersafe Fissler Wila tool clamping system Die shifting Crowning Tool cabinet

Condition: good (used), functionality: fully functional, Year of construction: 1997, installation height: 535 mm, pressing force: 85 t, Bending length [mm] 2050.00 Pressing force [t] 85 Control Delem DA 69 Operating hours [h] 76807 Standard equipment: - Upper drive concept in two-cylinder design Y1/Y2 - Electro-hydraulic ram drive in proportional valve technology - Ram travel measuring system with spring compensation via glass scales - Modern block hydraulics - Spherical suspension and inclination of the pressure beam - CNC back stop system Fedpfewld R Dox Abajpr - Safe finger adjustment from the front - Self-centering, manual, hardened upper tool holder for vertical tool change - Hardened, manual lower tool holder - Program-controlled lower tool displacement (I-axis) for 2 positions - Flat front cover - Modern protective cover + 6-axis back stop system + Hydraulic upper tool clamping + Hydraulic lower tool clamping

Condition: used, Year of construction: 1998, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1750 mm column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec back stop - adjustable max. 600 mm table width 120 mm work height max. 1050 mm Number of working hours 28.500 h oil volume 200 l operating pressure 340 bar total power requirement 14.0 kVA weight of the machine ca. 9050 kg range L-W-H 2680 x 2100 x 2885 mm with increased installation height / piston stroke very well maintained condition (!!) with only approx. 28.500 operating hours - in checked condition - machine video - ?v=ZuwyPKJSYLw Equipment: - CNC electro-hydraulic press brake - including DELEM CNC control * swiveling control panel at the front left Fpjdpfoxaa Urjx Abaor - CNC controlled axes: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) - CNC electro-motorized height adjustment of the back stop (R axis) - CNC electro-motorized adjustment of the stop fingers (Z axes) - CNC pneumatic die displacement (I axis) - CNC motorized table crowning - WILA electro-hydraulic upper tool clamping - WILA electro-hydraulic Lower tool clamp - 1x freely movable 2-hand / foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging doors) - bending tool storage cabinet (right front, side) - original operating instructions + circuit diagram etc. further technical data: - feed speed X axis .. 500 mm/sec. - feed speed R axis .. 300 mm/sec. - feed speed Z axis .. 1000 mm/sec. - travel range X axis .. max. 600 mm - travel range R axis .. max. 250 mm

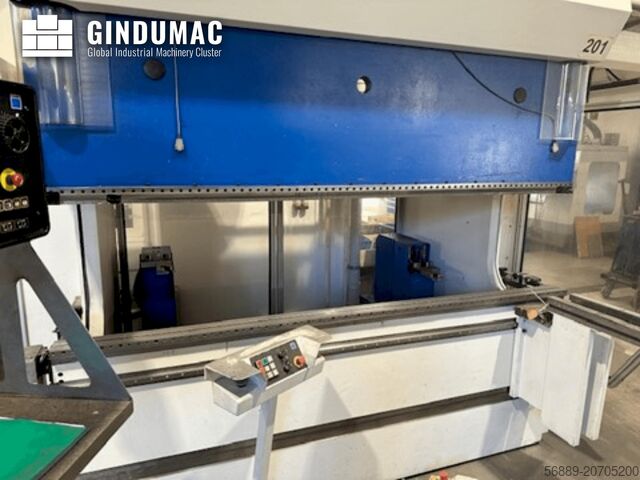

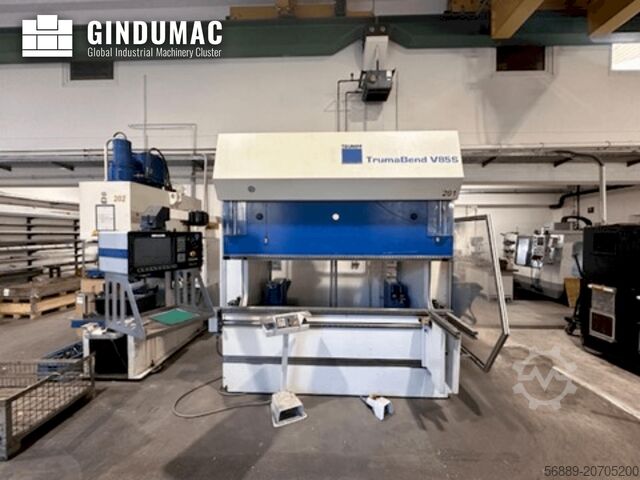

Year of construction: 1998, condition: ready for operation (used), General Data Machine weight 8600 kg Control Unit Model Delem 65 CNC control Main Drive Bending length 2550 mm Fjdjx D N Sujpfx Abaopr Additional Equipment Extended Installation Height and Stroke: Additional 150 mm each 2nd Foot Switch This 6-axis TRUMPF TrumaBend V85S press brake was manufactured in 1998. It features a bending length of 2,550 mm, an 850 kN bending force, and a 6-axis back gauge. The Delem 65 CNC control enhances precision, while the electro-hydraulic twin cylinder drive ensures robust performance. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85S machine we have for sale. Contact us for more information about this machine. Application Types Bending

Condition: used, Year of construction: 2000, Press force: 85 t Bending length: 2050 mm Distance between uprights: 1750 mm Control: DELEM Stroke: 215 mm Fpsdpjxnxwnjfx Abaor Throat depth: 410 mm Weight: 7,900 kg Machine dimensions: 2700x2100x2400 mm Accessories: - Two-hand operation - 2 support arms - Side safety doors - Lasersafe Fissler - Wila tool holder - Die shifting - Crowning - Tool cabinet

Condition: ready for operation (used), Year of construction: 2001, Main Drive Number of axis 5 Additional Equipment Top drive concept in two-cylinder design y1/y2 Electro-hydraulic ram drive with proportional valve technology Ram travel measuring system with spring deflection compensation via glass scales Modern block hydraulics Cnc backgauge system Safe finger adjustment from the front Self-centring, manual, hardened upper tool holder for vertical tool change Hardened, manual lower tool holder Programme-controlled lower tool displacement (i-axis) for 2 positions Modern protective cover This 5-axis TRUMPF TrumaBend V85 press brake was manufactured in 2001. It features an electro-hydraulic ram drive, CNC backgauge system, and a modern protective cover. The machine includes a 4-axis back gauge system and both hydraulic upper and lower tool clamping. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V85 machine we have for sale. Contact us for more information about this machine. Application Types Bending Fedpfx Abox D Nkdsaopr

Condition: used, functionality: fully functional, Year of construction: 2001, Press force 85 t, Bending length 2050 mm, Distance between uprights 1750 mm, Control DELEM, Stroke 215 mm, Throat depth 410 mm, Total power 13 kW, Weight 8,750 kg, Machine dimensions 3190 x 2100 x 2375 mm Fpodpfxew Imq Ro Abaer

Condition: excellent (used), functionality: fully functional, Year of construction: 2001, Pressure: 85 t Bending length: 2050 mm Frame gap: 1750 mm Control: DELEM Stroke: 215 mm Throat depth: 410 mm Total power: 13 kW Weight: 8,750 kg Machine dimensions: 3190 x 2100 x 2375 mm Fpedpfx Abew D Abrsaer
