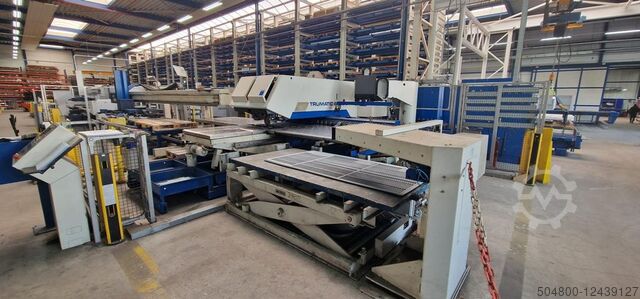

Punch Laser Machine

Trumpf TRUMATIC 6000L

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2008, operating hours: 72,918 h, laser power: 2,700 W, punching force: 22 t, sheet thickness (max.): 6 mm, sheet thickness steel (max.): 8 mm, sheet thickness aluminum (max.): 4 mm, TECHNICAL DETAILS Combined punching/laser operation: 2,585 x 1,650 mm Punching mode: 3,085 x 1,740 mm Laser operation: 3,085 x 1,650 mm Bdodpsw Suwysfx Abmsi Outputs Laser power: 140 - 2,700 W Maximum sheet thickness: 8 mm Cutting capacity for mild steel: 8 mm Cutting capacity for aluminum: 4 mm Cutting capacity for stainless steel: 6 mm Maximum punching force: 220 kN Active hold-down device (programmable in stages): 4.5 - 20 kN Maximum workpiece weight: 230 kg Speeds Maximum positioning speed X-axis: 90 m/min Y-axis: 60 m/min Simultaneous (X and Y): 108 m/min C-axis punching: 60 revolutions/min Thread forming: 180 revolutions/min Punching stroke sequence (E = 1): 900 1/min Marking: 2,800 1/min Tools Linear magazine: 18 tools with 3 clamps Tool change time: 1.5 - 5 s Tool accuracy Position deviation: ±0.10 mm Average position spread: ±0.03 mm Programmable slides for punched and laser parts (max.) Size: 500 x 500 mm TRUMPF CNC control: based on Siemens Sinumerik 840D MACHINE DETAILS Laser switch-on time: 72,918 h Cutting time: 18,536 h Space requirement (width x length): 7,900 x 9,100 mm Height: 2,400 mm Weight: 22,500 kg Laser gas consumption CO2 / N2 / He: 1 / 6 / 13 l/h Connected load: 73 kVA

Condition: excellent (used), Trumpf Here we offer a laser and punching machine. Technical data: Network: 400V/50 Hz Fuse: 3 x 100 A Connection power 65 kVA Working area X x Y without repositioning Combined operation 2585 x 1280 mm Punching operation 2585 x 1370 mm Laser operation 2585 x 1280 mm Power: Laser 2000 W Maximum sheet thickness 8mm Maximum punching force (including 20 kN hold-down device) 220 kN Active hold-down device (programmable in stages) 4.5-20 kN Maximum workpiece weight 200 kg Maximum clearance height In punching operation 35mm 1m laser operation 22mm Speeds: X-axis 90 m/min Y-axis 60 m/min Bdedpom Ak Husfx Abmsi Simultaneous Stroke sequence Punching 900 min Signing 2800 min C-axis Punching 60 revolutions/min Thread forming 330 revolutions/min Tools Tool positions on the linear magazine 19 with 2 clamps Number of tools when using multitool 19 to 190 tools Rotation of all tools 360° Tool change time 1.5-5 s Maximum punching diameter Single stroke 76.2 mm on all tool positions Standard multicut 200mm Maximum bending height 25mm Maximum part size 500 x 500 mm Accuracy: Position deviation ± 0.1 mm Average position spread ±0.03 mm TRUMPF CNC control: Basis: Siemens SINUMERIK 840D Type: TC 6000 L 1300 Loading and dismantling must be carried out by the buyer! Condition: used Scope of delivery: (see picture) (Changes and errors in the technical data, information are subject to change!) We will be happy to answer any further questions you may have over the phone.

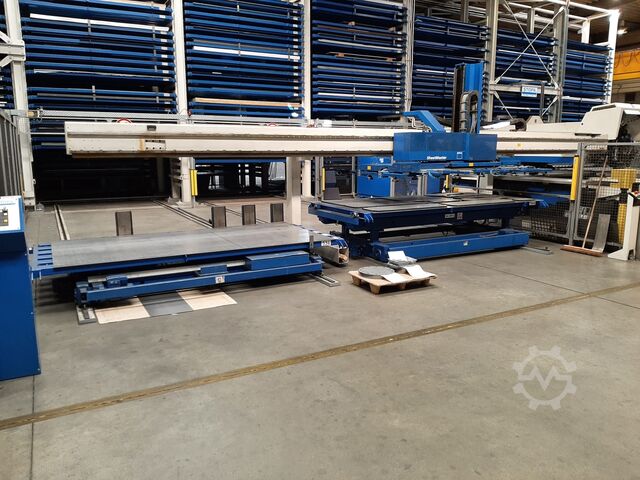

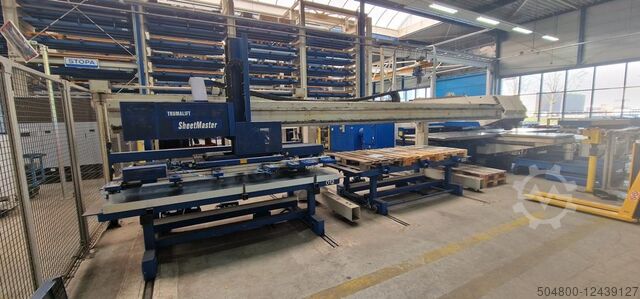

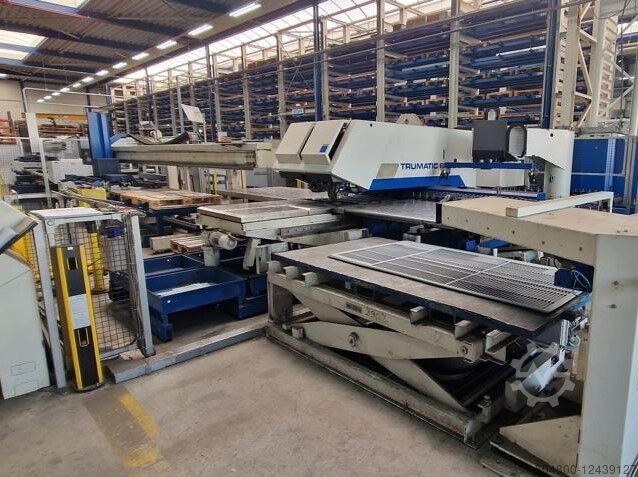

Year of construction: 2006, operating hours: 46,547 h, condition: excellent (used), functionality: fully functional, Laser punch press Trumpf TruMatic 6000 L with TrumaLift SheetMaster, ToolMaster and GripMaster as well as and scissor lift table. SheetMaster: not only loads and unloads the machine, it also sorts the parts the parts reliably ToolMaster: automatically changes the tools quickly, safely and conveniently GripMaster: reliably moves residual grids and strips TECHNICAL DETAILS working area: 2585 x 1280 mm Control: Siemens Sinumerik 840 D laser power: 3200 watt Bjdpfxsn Nxw Do Abmodi sheet thickness mild steel: max. 8 mm sheet thickness stainless steel: max. 8 mm sheet thickness aluminum: max. 4 mm workpiece weight: max. 200 kg Accuracy: +/- 0.1 mm Punching force: 22 t punching diameter: max. 76,2 mm C-axis punching: 330 rpm stroke sequence: 450 - 1000 1/min stroke sequence marking: 2800 1/min MACHINE DETAILS Laser switch-on time: 46,547 h cutting time: 23.580 h length: 7500 mm width: 8100 mm height: 2400 mm Weight: 16000 kg (basic machine) Operating voltage: 400 V / 50 Hz Connected load: 76 kVA

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2005, operating hours: 13,549 h, laser power: 3,200 W, punching force: 22 t, sheet thickness (max.): 8 mm, sheet thickness aluminum (max.): 3 mm, workpiece weight (max.): 200 kg, TECHNICAL DETAILS Punching work area: 2,585 x 1,280 mm Laser working area: 3,085 x 1,370 mm Combined working area: 3,085 x 1,280 mm Control system: Siemens Sinumerik 840 D Laser power: 140 - 3,200 watts Wavelength: 10.6 µm Sheet thickness: 8 mm Cutting capacity mild steel: 8 mm Cutting capacity aluminum: 3 mm Cutting capacity stainless steel: 4 mm Workpiece weight: max. 200 kg Punching force: 220 kN Active hold-down device: 4.5 - 20 kN Linear magazine: 21 tools with 3 clamps Bdsdpfxjvzrb De Abmoi Programmable chute: 500 x 500 mm C-axis punching: 60 rpm C-axis thread forming: 180 rpm Punching stroke sequence: 900 rpm Stroke sequence marking: 2800 1/min Compressed air connection: 7 ± 1 bar Laser gas consumption CO2 / N2 / He: 1 / 6 / 13 l/h MACHINE DETAILS Length: approx. 7.5 m Width: approx. 8.1 m Height: 2.4 m Weight: 16 tons Laser switch-on time: 49,949 h Cutting time: 13,549 h EQUIPMENT - Sturdy C-frame - 2 x clamping claws - Drives: Maintenance-free three-phase servomotors - Programmable hold-down device for repositioning - Sensor-monitored parts chutes 500 x 500 mm for punching and laser station, ejection cylinder on laser chute - 2 x good parts box - HI-LAS high-pressure cutting - Fast processing with SprintLas - ContourLas for producing small holes - Cutting gas pressure setting programmable - Laser cutting head: 5" lens, quick-change device, distance control APC - Lens monitoring sensor system - Additional cutting head with 7.5" lens - Punching head: hydr. mono tool holder, 360° rotation for all tools, automatic tool length compensation, tool spray lubrication, 2 x lubricant containers, punching slug extraction, chip bucket - Safety: multi-beam light barriers, quick shut-off hydraulics, extraction and compact dust protection device against stray radiation on the cutting head - TLF 3200 laser incl. 9" cutting head for stainless steel - AutoLas Plus - MultiTool function - MultiBend function - Thread forming function - Marking/quick beading function - Rolling technology function - Softpunch function - 1 x additional clamping claw - Chip conveyor with tilting container - Brush tables with loading and unloading aid - Blow-out device for small parts - BNC network connection instead of RJ45 connection
