Laser punching machine

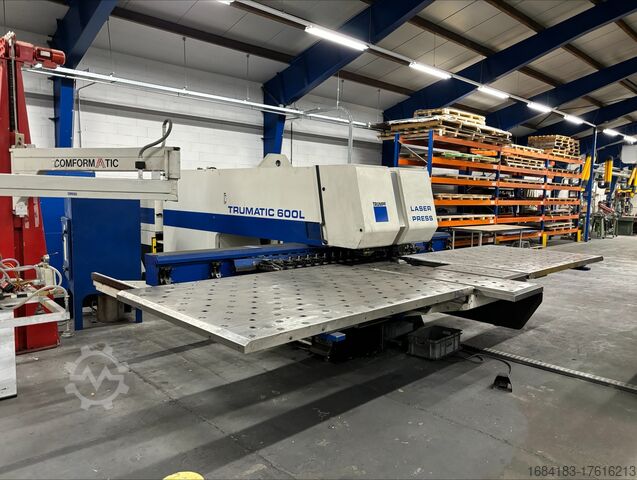

Trumpf Trumatic 600L

Condition: good (used), functionality: fully functional, Year of construction: 1999, laser power: 2,400 W, sheet thickness (max.): 8 mm, sheet thickness stainless steel (max.): 6 mm, sheet thickness aluminum (max.): 4 mm, travel distance X-axis: 3,085 mm, travel distance Y-axis: 1,740 mm, overall weight: 23,000 kg, total length: 9,100 mm, total width: 7,900 mm, total height: 2,400 mm, Equipment: CE marking, documentation/manual, emergency stop, safety light barrier, The machine is in good condition. Ncsdpfx Aasymrn Eeqsn

Year of construction: 1995, condition: ready for operation (used), A laser cutting and punching machine Trumpf with an unknown defect (linear amplifier in order) is available. Press force: 220kN, laser power: 1500W (1.5kW), max. punching diameter: 76mm, max. workpiece dimensions X/Y: 2585mm/1280mm, max. sheet thickness mild steel/stainless steel/aluminum: 8mm/6mm/4mm, max. workpiece weight: 200kg, part dispenser X/Y: 500mm/500mm, magazine positions: 18, machine dimensions X/Y/Z: approx. 8000mm/7500mm/2400mm, weight: approx. 16000kg. On-site inspection is possible. Ncsdewftdgopfx Aaqen

Condition: ready for operation (used), controller manufacturer: Siemens Sinumerik 840D, laser power: 2,400 W, travel distance X-axis: 3,050 mm, travel distance Y-axis: 1,750 mm, total length: 8,400 mm, total width: 7,800 mm, empty load weight: 22,500 kg, De machine is nog steeds functioneel en in gebruik. Uitgerust met: - 3 plaatklemmen - Sheetmaster-lossysteem - GripMaster Njdpfxjygyvqj Aaqecn Workpiece dimensions: 3085 x 1650 mm Type of Laser: Trumpf TLF Max cuttingthickness in steel: 8 mm Loading System: yes, SheetMaster

Condition: used, Year of construction: 1998, MACHINE WAS USED BY THE PREVIOUS OWNER SOLELY AS A PUNCHING MACHINE; THE LASER NEEDS TO BE CHECKED IF REQUIRED! Nodeyar Dgjpfx Aaqjcn Comes with TRUMALIFT SHEETMASTER 1606 TECHNICAL DETAILS Combined Punching/Laser Operation: 2,585 x 1,650 mm Punching Operation: 3,085 x 1,740 mm Laser Operation: 3,085 x 1,650 mm Performance Laser Power: 140 - 2,700 W Maximum Sheet Thickness: 8 mm Cutting Capacity – Mild Steel: 8 mm Cutting Capacity – Aluminum: 4 mm Cutting Capacity – Stainless Steel: 6 mm Maximum Punching Force: 220 kN Active Hold-Down (programmable in stages): 4.5 - 20 kN Maximum Workpiece Weight: 230 kg Speeds Max. Positioning Speed X-axis: 90 m/min Y-axis: 60 m/min Simultaneous (X and Y): 108 m/min C-axis Punching: 60 rpm Thread Forming: 180 rpm Stroke Rate Punching (E = 1): 900 1/min Marking: 2,800 1/min Tools Linear Magazine: 18 tools with 3 clamps Tool Change Time: 1.5 - 5 s Precision Position Deviation: ±0.10 mm Mean Position Scatter: ±0.03 mm Programmable Chutes for Punching and Laser Parts (max.) Size: 500 x 500 mm TRUMPF CNC Control: Siemens Sinumerik 840D (base system)

Condition: used, functionality: fully functional, Year of construction: 2000, We are offering this used TRUMPF TRUMATIC 600L laser cutting machine, year of manufacture 2000. Nsdjx Runwepfx Aaqecn Manufacturer: TRUMPF Model: TRUMATIC 600L Year of manufacture: 2000 Condition: used Category ID: 902 Type ID: 1180 Type: laser cutting machine If you have any questions or would like more information, please feel free to send us a message or call us.

Condition: excellent (used), functionality: fully functional, Year of construction: 2000, Capacities & Axes Ncedpfsxyk D Dex Aaqjn Working Range (X x Y): ≈ 3,080 x 1,650 mm. Max. Sheet Thickness: Up to approx. 8 mm (Mild Steel). Traversing Speeds: X up to 100 m/min; Y up to 60 m/min. Combined Speed: Approx. 100–116 m/min. Accuracy: Positioning accuracy of ±0.10 mm.
