Milling head

Union

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 1110013, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,500 mm, table load: 6,000 kg, spindle diameter: 110 mm, TECHNICAL DETAILS X-axis travel: 2,000 mm Y-axis travel: 1,600 mm Z-axis travel: 1,500 mm Drilling spindle diameter: 110 mm Clamping surface of the table: 1,250 x 1,600 mm Table load capacity: 6,000 kg Hedoylwrtjpfx Afcji MACHINE DETAILS Control: Heidenhain TNC 426M Note: The tools shown in the images are not part of the sale or included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, travel distance X-axis: 2,800 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,200 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 50 rpm, TECHNICAL DETAILS Travel X-axis: 2,800 mm Travel Y-axis: 1,000 mm Travel Z-axis: 1,200 mm Spindle speeds: 50 - 2,000 rpm Spindle torque: 3,000 Nm Spindle taper: SK 50 Feed rate - X / Y / Z axis: 2 - 2,000 mm/min Rapid traverse - X / Y / Z axis: 7,000 mm/min Table clamping surface: 2,000 x 800 mm Rotary table diameter: 800 mm Number of tool magazine stations: 56 Tool diameter (all stations filled): 114 mm Tool diameter (with 2 free positions): 200 mm Max. tool length: 400 mm Max. tool weight: 16 kg Tool change time: approx. 8 - 9 sec Control system: SIEMENS SINUMERIK 850 M MACHINE DETAILS Spindle motor power: 30 kW Dimensions & Weight Dimensions (L x W x H): approx. 6.6 x 3.15 x 2.98 m Machine weight: approx. 25.4 t Hedpfeyl U Thsx Afcei EQUIPMENT Tool presetting device Various tool holders Chip conveyor Internal coolant supply Coolant system with high-pressure pump and filtration unit Electronic handwheel Fixators

Condition: used, Year of construction: 2009, spindle diameter 125 mm x-travel 1.500 mm y-travel 1.250 mm z-travel 1.000 mm w-travel 550 mm table surface area 1.000 x 1.250 mm workpiece weight 6.000 kg quill stroke 550 mm tool taper ISO 50 number of spindle speeds 5-3.700 U/min. max. torque 2012 Nm feed speeds 1-6000 (x-Achse) mm/min feed speeds 1-6000 (y-Achse) mm/min feed speeds 1-6000 (z-Achse) mm/min rapid traverse x/y/z 15/ 15/ 15 m/min Hedpfxswdta Eo Afcji dimensions of the machine ca. 7,51 x 5,07 x 3,33 m 63 kVA Equipment/ Accessories: - CNC control Siemens 840 D - 60 ATC - Coolant system with high-pressure pump 30 l/min.- 20 bar - documentation

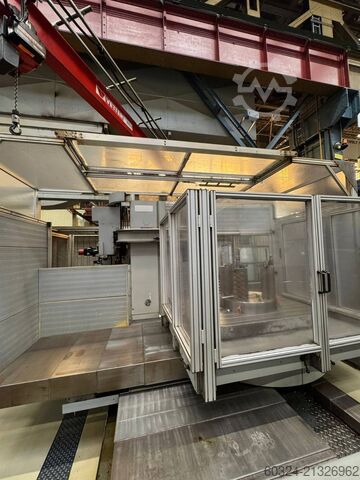

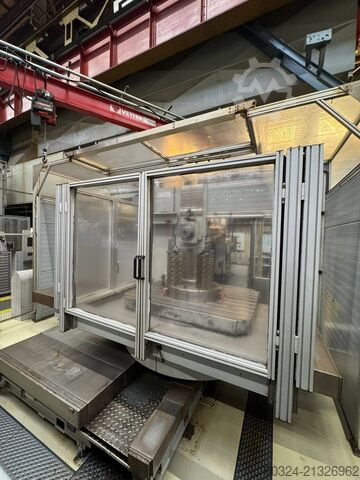

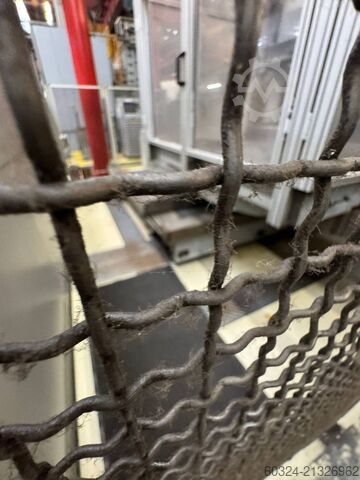

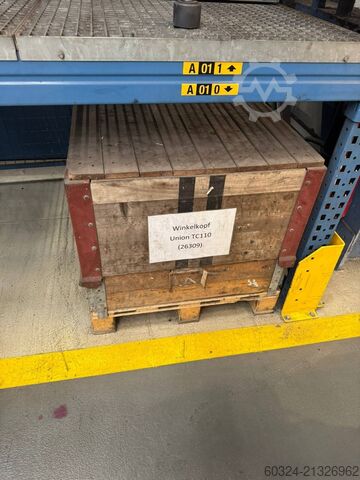

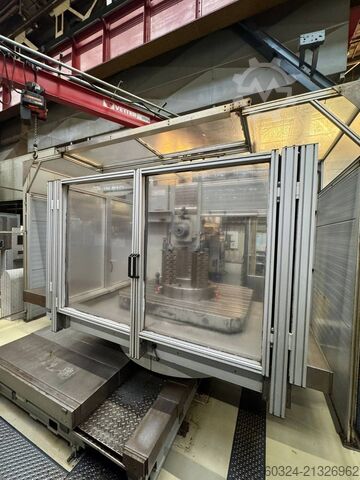

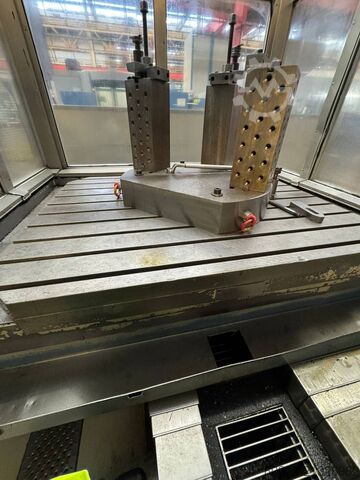

Condition: good (used), Year of construction: 2004, Ref. -No.: 10604 Manufacturer: UNION Type: TC 110 Year of construction: 2004 Type of control: CNC Control: SINUMERIK 840 D Powerline Storage location: Halberstadt Country of origin: Germany X-Travel: 2000 mm Y-Travel: 1250 mm Z-Travel: 1000 mm W-Axis: 550 mm Table Height: 1050 mm Spindle Diameter: 110 mm Number of T-slots: 10 Max. Workpiece Weight: 6000 kg Clamping Area: 1250 mm T - groove width: 22 mm T - slot spacing: 125 mm Tool Taper: ISO 50 Max. Torque: 1639 Nm Feed Speeds X/Y/Z Axis: 6000 mm / min Rapid Traverse X-Axis: 15000 m / min Rapid Travel Y-Axis: 15000 m / min Rapid Traverse Z-Axis: 15000 m / min Feed Capacities X/Y/Z: 16000 x 16000 x 20000 N swivel angle: 360 ° Further information: Includes angle head 0,001° Hsdpfoym Ndwox Afcsi The machine can be viewed under power.

Condition: good (used), Year of construction: 1992, Ref. -No.: 10578 Manufacturer: UNION Type: BFT 130 NC Hjdpjym Nc Hefx Afcei Year of construction: 1992 Type of control: CNC Control: Heidenhain 430 Storage location: Halberstadt Country of origin: Germany X-Travel: 2000 mm Y-Travel: 1600 mm Z-Travel: 1600 mm W-Axis: 600 mm Spindle Diameter: 130 mm W-Travel (Boring Spindle): 900 mm Table Load: 8000 kg Clamping Area: 1800 x 2000 mm T - groove width: 28 mm T - slot spacing: 160 mm Tool Taper: ISO 50 Spindle Turning Speed - Stepless: 1000 RPM Spindle Speed: 10 - 2000 RPM Max. Torque On The Boring Spindle: 3150 Nm Rapid Traverse X-Axis: 2500 m / min Rapid Traverse Z-Axis: 2500 m / min Drive Capacity - Spindle Motor: 15 - 30 kW Borehole Diameter: 800 mm W-axis feed: 2500 mm / min Y-axis feed: 2500 mm / min Table size: 2000 x 1600 mm Rapid adjustments W-axis: 3150 mm/min. Rapid adjustment Y-axis: 5000 mm / min Cross slide movement: 320 mm Torque max. face support: 5300 Nm Tarpaulin diameter max.: 1400 mm Machine length: 6000 mm Machine width: 4000 mm Machine Height: 4000 mm Weight Of The Machine Ca.: 40 t Further information: The machine can be viewed under power by arrangement.

Condition: good (used), Year of construction: 1964, functionality: fully functional, machine/vehicle number: 35870, workpiece weight (max.): 10,000 kg, travel distance X-axis: 4,200 mm, travel distance Z-axis: 4,000 mm, grinding diameter: 1,100 mm, grinding length: 4,000 mm, Naxos Union Crankshaft Grinder. Grinding length 4000mm Hsdpfx Asyl S N Hofcji

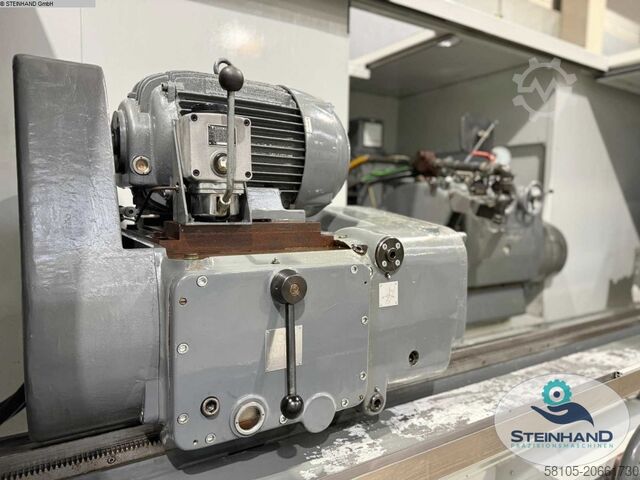

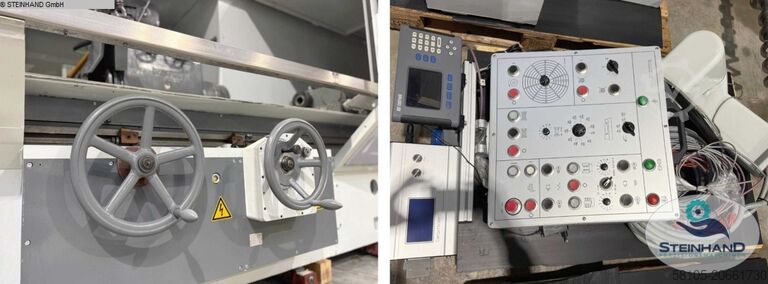

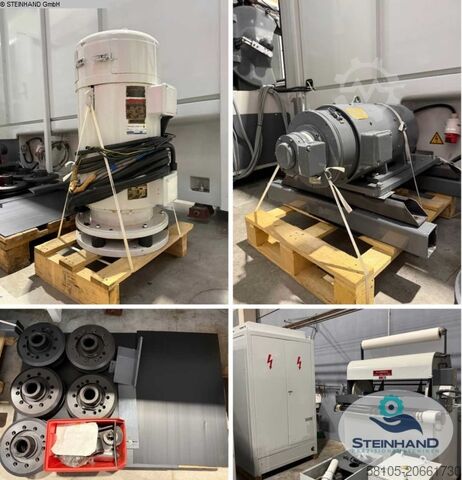

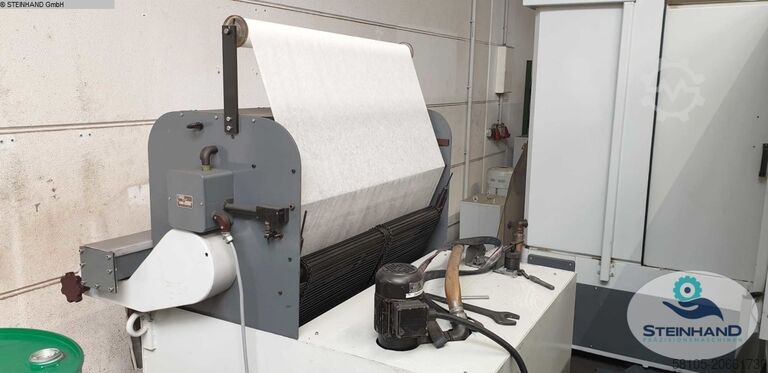

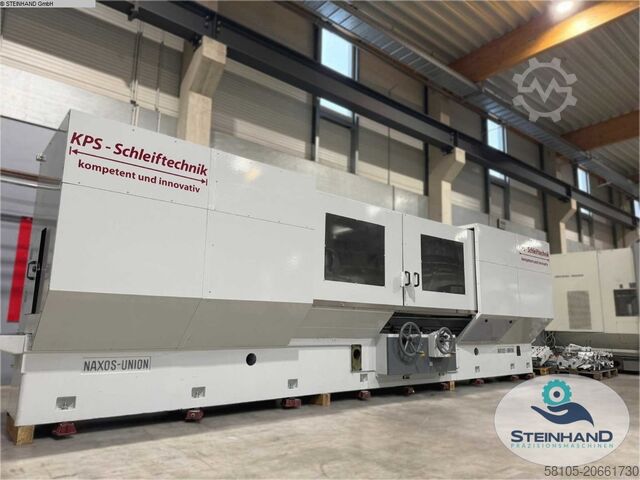

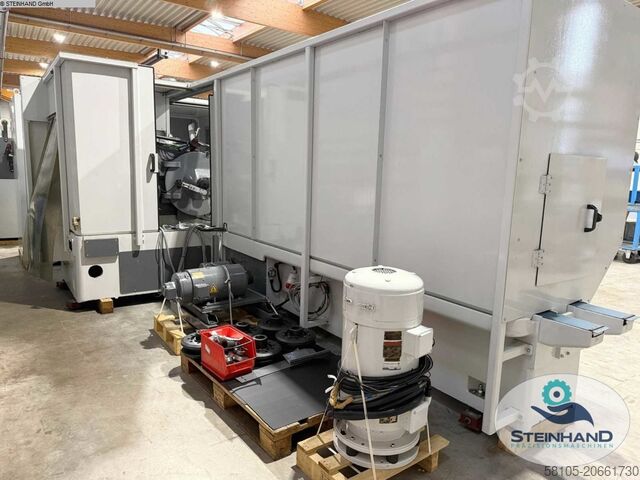

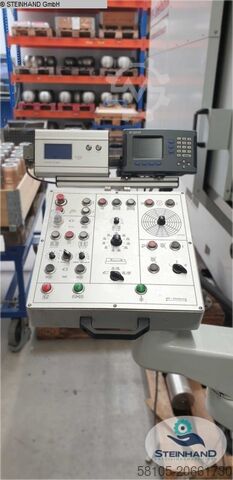

Condition: used, centre distance 2.500 mm Hjdox Avtcopfx Afcei centre height 250 mm grinding wheel diameter 600 mm Total travel of the grinding support 320 mm spindle speeds 50 - 450 mm tool adaptor MK5 tail stock MK Cylindrical Grinding Machine | NAXOS-UNION - W-500 the cylindrical grinding machine was overhauled in 2017 by KPS-Schleiftechnik (RETROFIT – see order confirmation). The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: W-500-2500 | W500 | W 500 | W 500 2500

Year of construction: 1990, condition: ready for operation (used), Two identical thermoforming machines DIXIE-UNION DV 2000 are available. Supply voltage: 380V, frequency: 50Hz, rated current: 20A, version with red CEE three-phase plug (3~). Machine 1 was still in operation until 2025. Machine 2 has not been in use for a longer period and is not complete, as relays were removed for spare parts. An on-site inspection is possible, not under power. Hjdpfeylnz Sox Afcji

Year of construction: 1991, condition: ready for operation (used), Draw-off length: 225-320mm, max. packing width: 260mm, compressed air consumption: 500l/min, length: 5300mm, width: 1100mm, height: 2200mm, without tools. Hedpfxemn S Hge Afcji

Year of construction: 1985, condition: ready for operation (used), Max. draw-off length: 320mm, max. packing width: 260mm, compressed air consumption: 500l/min, length: 5500mm, width: 1200mm, height: 2000mm, without tools. Hedsmn S Hkjpfx Afcei
