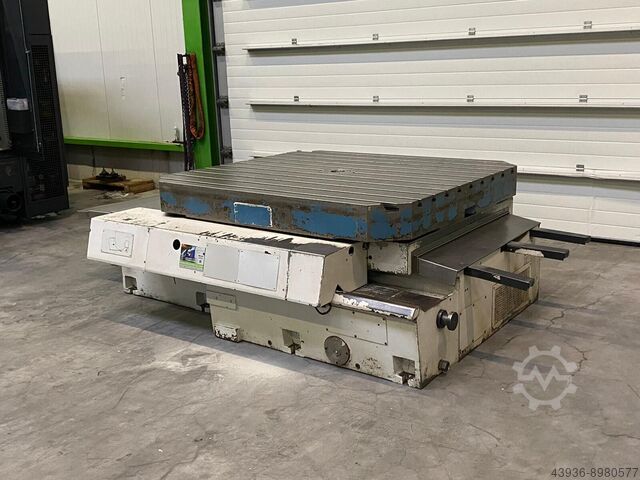

CNC Rotary table 2000 x 1800 x 16 T

UNION Ti 1800

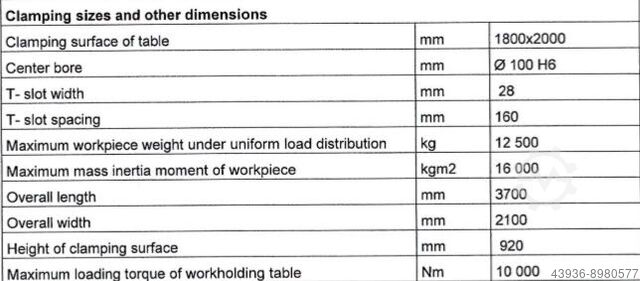

Condition: excellent (used), functionality: fully functional, ROTARY TABLE BORING MILLS Dear Sir or Madam, Thank you for your inquiry and the trust you have placed in our company. We are pleased to submit the following quotation. Used Rotary Table Boring Mill Union – Ti1800 Clamping Sizes and Other Dimensions: Clamping surface of table: mm 1800x2000 Iodpfxeyr Szvs Anwoau Center bore: mm Ø 100 H6 T-slot width: mm 28 T-slot spacing: mm 160 Maximum workpiece weight (with uniform load distribution): kg 12,500 Maximum mass moment of inertia of workpiece: kgm² 16,000 Overall length: mm 3,700 Overall width: mm 2,100 Height of clamping surface: mm 920 Maximum loading torque of workholding table: Nm 10,000

Condition: used, Year of construction: 1982, Technical details: faceplate diameter: 2600 mm turning diameter over support: 2500 mm turning length: 450 mm centre distance: 1600 mm turning diameter over bed: 2900 mm spindle bore: 100 mm revolution per minute: gear steps U/min feed range: Überdrehen 0,12-31,5 Plandrehen 0,12-45 mm/min bed guideways length: 2900 mm max. workpiece weight between centres: 400.000 kgs total power requirement: 45 kW weight of the machine ca.: alle Komponenten zusammen: ca. 29,0 t machine dimensions LxWxH: 5.2 x 5,0 x 3,1 m 3-way measuring system with digital display RSF electronics Control panel Cooling unit for Rittal electric cabinet * Iedpfx Answtctyjweau

Condition: used, table length 2000 mm table width 1800 mm table load 12,5 t Iodpfx Anoyqvbkowjau Travel 1250 mm width of T-slots 28 mm T - slots distance 160 mm total power requirement 6 kW weight of the machine ca. 9,2 t dimensions of the machine ca. 3,7x2,1 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Year of construction: 1980, condition: used, table length 2000 mm table width 1800 mm table load 12,5 t total power requirement 10 kW weight of the machine ca. 7,5 t dimensions of the machine ca. m Table size approx. 2,000 x 1,800 mm Max. weight of workpiece, approx. 12,500 kg Table travel, longitudinal 1,250 mm Table height above floor 920 mm Longitudinal feed 0.63 - 2,000 mm/min Turning feed, with Ø 1,000 mm 1 - 3,150 mm/min Longitudinal quick feed 2,000 mm/min Turning quick feed, with Ø 1,000 mm 3,150 mm/min Weight of machine 7,500 kg External dimensions of machine 3,700 x 2,100 x 920 mm Total electrical load 10 KW - 180 V - 50 Hz Accessories / Special Features Iasdpfx Aet Hwq Rsnweu * Telescopic covers for the guides. * Infinitely variable table feed. * Optical display for setting and reading the longitudinal adjustment. * Optical display for setting and reading the angle. Condition : Satisfactory to good. Machine can be inspected under power. Delivery : Ex stock as inspected Payment : Net, after conclusion of contract Thank you for your interest.

Condition: good (used), Year of construction: 1997, Ref. -No.: 10620 Manufacturer: SKODA Type: W 200 T Year of construction: 1997 Type of control: CNC-Steuerung Control: SIEMENS SINUMERIK 840 Storage location: Halberstadt Country of origin: Germany X-Travel: 16000 mm Y-Travel: 5150 mm Z-Travel: 1600 mm W-Axis: 2100 mm V-axis: 2000 mm B-Axis: 0 - 360 ° Spindle Diameter: 200 mm Table Load: 80.000 kg Tool Taper: SK 60 / SK 50 Iaedjyagidspfx Anwsu Turning Speeds: 1000 RPM Rotary table diameter: 3500 x 3000 mm Further information: Including angle head Machine can be inspected under power.

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 5,000 mm, travel distance Y-axis: 3,000 mm, The machine is fully functional and operational, in very good technical condition. It is equipped with, for example, an angular head, angle plates, tools, etc. It features a Heidenhain 530 control system. Iedoy Udhbjpfx Anweau

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, I am selling this machine. It can be connected and tested under power. Very good condition. X 11,500; Y 3,150; Z 2,000; clamping system M 100. Includes support column, 6 plates sized 6,500 x 1,850 x 400 mm. Iaodpfexwl Tbjx Anwju Rotary table E 20. Heads, etc. This is a complete workstation. Weight approx. 200,000 kg.

Condition: ready for operation (used), Year of construction: 1982, Boring spindle diameter: 130mm, tool holder: SK50, centering: 500mm, travel X/Y/Z: 250mm/160mm/380mm, travel W/U: 1000mm/320mm, feed rate: 2m/min, rapid traverse: 5m/min, max. diameter drilling/facing: 800mm/1400mm, torque boring spindle/facing support: 3100Nm/6150Nm, clamping plate dimensions X/Y/Z: 3500mm/1750mm/350mm, weight: approx. 30000kg, controls: Bosch. Including angle head, extension piece, steep taper tool holder for SK50 (without tools), 4x plate fields with the dimensions 1080mm/2000mm and boring apparatus. Documentation available. An inspection on site is possible. Iaodpfxoyttw Us Anwsu

Condition: used, Year of construction: 1995, functionality: fully functional, Technical data Control system Siemens Sinumerik 840 Dsl Main dimensions and travels Face plate diameter 3,600 mm Rotation diameter (max.) 4,200 mm Workpiece height (max.) 4,800 mm Total height of the machine 8,700 mm Maximum workpiece weight 80,000 kg. Table base Y Horizontal table displacement 2,000 mm Cross beam Vertical adjustment of the cross beam in 100 mm steps 2,800 mm Crossbeam support (right) Horizontal adjustment of support - 1,800 to + 2,200 mm Vertical adjustment of the chisel slide 1,500 mm Cross-section of the chisel slide 240x240 mm Tool positions 20 pcs. Without vertical support (left) Lateral support (right) Vertical adjustment of support 2,800 mm Horizontal displacement of the chisel slide 1,000 mm Cross-section of the chisel slide 240x240 mm Turning diameter max./min. 4500/2500 mm Tool changer Main drive: Power of the main motor 105 kW Speed range of the faceplate 0.4-90 rpm Maximum torque on the faceplate Drilling and routing drive Vertical support: Power of the drive motor 22.5 kW Maximum torque 900 Nm Iasdeu R Imlspfx Anwsu Side support drilling and milling drive: Power of the drive motor 22.5 kW Maximum torque 900 Nm Connection values of the machine Machine connection voltage 380 Volt / 50Hz Control voltage 220V AC / 24V DC Total connected load 150 kVA Required back-up fuse 400 A Equipment and accessories: Operator platform Chip conveyor Cooling lubricant system Tool changer Tool measuring probe RENISHAW

Condition: used, Year of construction: 1964, machine/vehicle number: 64 / 39.9037 / 2, functionality: fully functional, pressing force: 1,200 t, stroke length: 600 mm, table width: 4,500 mm, table length: 2,700 mm, distance table to ram: 1,600 mm, clearance between the columns: 5,200 mm, overall weight: 400,000 kg, Equipment: documentation/manual, Press force: 1,200 t Ram stroke: 600 mm Ram adjustment: 600 mm Strokes: approx. 9 strokes/min Shut height: approx. 1,600 mm Iodpfxoy An H Re Anwjau Drawing device: Blankholder (drawing cushion) force: approx. 225 t Drawing cushion stroke: approx. 200 mm Pneumatic ejector in ram: Force: approx. 95 t Stroke: approx. 150 mm Heavy-duty mechanical eccentric drawing press in robust double-column design by Schuler, engineered for continuous industrial operation in the automotive sector. The machine features a pressing force of 1,200 t and a fixed ram stroke of 600 mm, with an additional ram adjustment of 600 mm. The stroke rate is approx. 9 strokes per minute. The shut height is around 1,600 mm, enabling the use of large-format dies and components. Particularly noteworthy is the large working area with a table size of approx. 4,500 mm, as well as a retractable/movable press table that significantly facilitates setup and die change, making the machine optimally suited for handling heavy tooling. The integrated drawing device (drawing cushion) provides a holding force of approx. 225 t with a stroke of approx. 200 mm, enabling demanding drawing and forming processes, especially common in bodywork manufacturing. In addition, the press is equipped with a pneumatic ejector in the ram (approx. 95 t / 150 mm), supporting automated parts removal processes. The press has not been operated in continuous production at its current location since the 1990s and has only been used for testing purposes.
