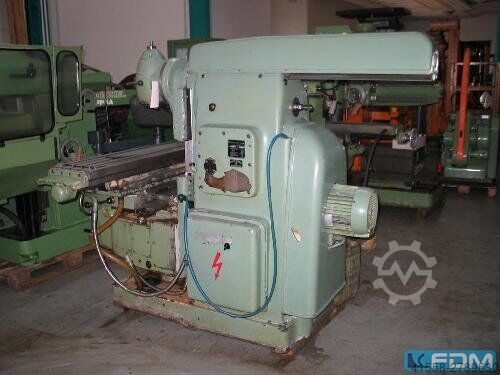

Universal Milling Machine

UZINA HK-UFN

Condition: used, Year of construction: 1973, Weight 3 t x-travel 1000 mm 110 Tjdpfx Agjwzyt Tjcjf milling-head swivable +/- ja

Condition: used, Column Drilling Machine INFRATIREA - ORADEA Type PH - 031 Serial No. Year of manufacture 1975 Drilling capacity 40 mm Spindle taper MK 4 - short quill Throat depth 320 mm Quill stroke 250 mm Todpfx Agetrpifecef Table size 400 x 400 mm Column diameter 160 mm Spindle speed 85 - 1500 rpm, 6-speed gearbox Motor power 2.2 kW Power supply 400 Volt, 50 Hz - Spindle speed adjustable over 6 gear steps - Right and left-hand rotation - Automatic feed 0.10 - 0.16 - 0.25 - 0.4 mm/rev - Swivel drill table - Table height adjustment via hand crank - Clamping surface on machine base - Coolant pump integrated in base Required space L x W x H 1000 x 600 x 2450 mm Weight 700 kg

Condition: used, Year of construction: 1991, Technical details: x-travel: 1050 mm y-travel: 600 mm z-travel: 650 mm range of revolution per miute: 40 - 1720 / 12 step U/min spindle taper: SK 50 spindle head swivable left - right: 90° re/li und 45° = 360° ° distance spindle nose and table: 0 - 600 mm table surface area: 1700 x 470 mm Tedpfx Ageva Hd Rscof feed continuous: X/Y= 15 - 625 + Z= 7,5 - 312 mm rapid traverse Z-axis: 1250 mm/min. rapid traverse:: X/Y: 2500 mm/min. total power requirement: 11,1 kW weight of the machine ca.: 2500 kg machine dimensions LxWxH: ca. 2,45 x 2,0 x 2,85 m Equipment: with Huron universal milling head coolant system control panel machine feet Accessories Machine vice (jaw width 120mm) *

Condition: used, Year of construction: 1970, Technical details: x-travel: 1000 mm y-travel: 320 mm z-travel: 350 mm spindle taper ISO: MK4 / SK50 spindle head swivable left - right: 90 ° Distance rear edge of table to column guideway: min.: 45 / max.: 365 mm throat: 270 mm distance spindle center to table: min. 50 / max. 400 mm range of revolution per miute: 31,5 - 1.600 / 18 step U/min feed:: 25 - 1120 horizontal und 8,3 - 416 vertical mm/min Todpfx Aju Ndgfogcsf rapid traverse : 3000 horizontal / 1000 vertikal m/min clamping surface area: 1340 x 320 mm machine weight approx.: 3000 kg dimension machine xH: 2,2 x 2,8 x 1,7 m Coolant system 2x counter bearing arbor holder Ø 18 / Ø 60 mm and other accessories in the tool cabinet. i.D. *

Condition: good (used), Year of construction: 1968, Stock number: 2908 Manufacturer: CUGIR Romania Year of construction: 1968 Machine number: 3266 Type / Model: FU-1 Travel x-y-z: 700 - 370 - 250 mm Table: 1,250 x 320 mm Speed range: Spindle holder: SK 50 Tjdpfsvc D Apjx Agcef Feed rates: Rapid traverse: Connection: 7.5 kW Accessories/equipment: Condition: good Weight: approx. 2.5 tons Dimensions: 2,000 x 2,000 x 1,700 mm
