Temperature test chamber 335 liters

Vötsch -70°C bis +180°C VTS 7034-5

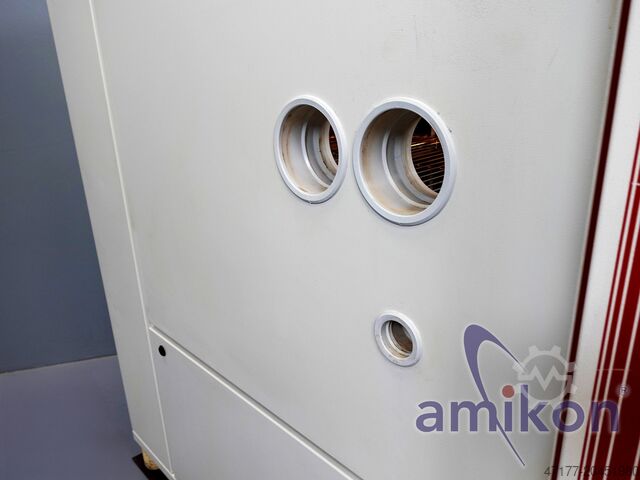

Condition: excellent (used), Type: VCS 7034-5 Climate Test Chamber Water-Cooled Test chamber volume: 335 liters Performance for temperature tests: Temperature range: -70 to +180°C Temperature deviation over time: ±0.1 to ±0.5 K Temperature deviation spatially: ±0.5 to ±2.0 K Temperature gradient: 1 to 4 K Change rate: Cooling: 3.5 K/min Heating: 6.8 K/min Heat compensation at +20°C: 3,000 W / at -20°C: 3,000 W Temperature calibration points: +23°C and +80°C Performance for climate tests: Temperature range: +10 to +95°C Temperature deviation over time: ±0.1 to ±0.3 K Temperature deviation spatially: ±0.5 to ±1.0 K Temperature gradient: 1 to 2 K Humidity range: 10 to 98% Humidity deviation over time: ±1 to ±3% Dew point range: -3 to +94°C Heat compensation: 400 W Climatic calibration points: +23°C / 50% RH and +95°C / 50% RH Test chamber dimensions: Width: 580 mm, Depth: 765 mm, Height: 750 mm External dimensions: Width: 870 mm, Depth: 1595 mm, Height: 1775 mm Feedthroughs: 1 x approx. 50 mm Ø, left side 2 x approx. 125 mm Ø, left side 1 x approx. 125 mm Ø, right side Electrical connection: 3/N/PE AC, 400 V ±10% 50 Hz Rated power: 10 kW Rated current: 21 A Sound pressure level: 64 dB(A) Cooling water consumption: 1.4 m³/h Refrigerant: R404A / R-23 For your security as a buyer, please note the following information: The following points are performed on our offered chambers in advance: 1. Functional check and replacement of necessary components 2. If necessary, new filling with legally compliant refrigerant Iedsxufypopfx Ahujtb 3. Leak test with certificate 4. After successful inspection, the chambers undergo a documented test run. Condition: used Scope of delivery: (see picture) (Specifications and technical data are subject to change and errors!) If you have further questions, we are happy to answer them by phone.

Condition: excellent (used), Weiss temperature test chamber Here we offer a Weiss temperature test chamber. Weiss temperature test chamber water cooled Technical data: Test chamber designation: WT1-600/70 Outer dimensions without hinges and door lock height 1980 mm, width 1085 mm, depth 1655 mm Internal dimensions height 950mm, width 800mm, depth 800mm Test chamber capacity: approx. 600 liters cold / heat operation -70 to 180°C Temperature change per time cooling approx. 2,5 K/min Heating up approx. 4 K/min 3/N/PE AC 400V ±10% 50Hz Rated power: 9.1 kW Rated current: 19 A Permissible test material weight Total load of grate supports 80kg Refrigerant: R 404A +R23 Weight: 600kg Type: WT1-600/70 Iedpjirmg Ajfx Ahuetb For you as a buyer for safety the following information! The following points are carried out on our offered chambers in advance: 1. functional check and exchange of necessary components 2. new filling with legally compliant refrigerant 3. after successful inspection, the chambers are subjected to a test run, which is monitored with calibrated equipment. Condition: used / used Scope of delivery: (See picture) (Changes and errors in the technical data, specifications are reserved!) Further questions we can answer on the phone for you.

Condition: excellent (used), Heraeus Vötsch temperature test chamber Here we offer you a Heraeus Vötsch temperature test chamber. Heraeus Vötsch temperature test chamber water cooled Temperature range -70°C to + 180°C Temperature deviation temporal ± 0.1 to ± 0.5 K Itedoir D U Dopfx Ahuob Temperature deviation in time ± 0.5 to ± 2.0 K Temperature change rate cooling 5.0 K/min Temperature change rate heating 6,5 K/min Heat compensation +20°C 3000 W Thermal compensation -20°C 3000 W Test chamber dimensions: Width 580 mm Depth 765 mm Height 750 mm Outer dimensions: Width 870 mm Depth 1595 mm Height 1775 mm Test chamber volume 335 liters Rated voltage: 3/N/PE AC, 400V ±10 %, 50Hz Rated power: 10 kW Rated current: 21 A Sound level at 1m distance (free field measurement) < 69dB (A) side entry 5,5 cm / 12,5 cm cabinet is water cooled Refrigerant: R 452A and R 23 weight approx. 570 kg Type: VTS 7034-5 For you as a buyer for safety the following information! The following points are carried out on our offered chambers in advance: 1. functional check and exchange of necessary components 2. new filling with legally compliant refrigerant 3. after successful inspection, the chambers are subjected to a test run, which is monitored with calibrated equipment. Condition: used / used Scope of delivery: (See picture) (Changes and errors in the technical data, specifications are reserved!) Further questions we can answer on the phone for you.

Condition: excellent (used), Vötsch Model: VT³ 4150 Vötsch Temperature Test Chamber, Air-Cooled Temperature Testing Temperature Range: -40°C to +180°C Itodpfow Ehutsx Ahujb Rate of Change: Cooling approx. 2.5 K/min Rate of Change: Heating approx. 3.5 K/min External Dimensions (W x D x H): approx. 1390 x 2380 x 1995 mm Test Chamber Dimensions (W x D x H): approx. 1100 x 1475 x 950 mm Rated Voltage: 3/N/PE AC, 400 V ±10%, 50 Hz Rated Power: 11.5 kW Rated Current: 22.0 A Weight: approx. 1020 kg / 1540 liters Refrigerant: R 404A For your safety as a buyer, please note the following information: We perform the following steps on all chambers offered: 1. Functional check and replacement of necessary components 2. If required, refilling with legally compliant refrigerant 3. Leak test with certificate 4. After successful inspection, the chambers undergo a documented trial run. Condition: Used Scope of delivery: (see photo) (Technical data subject to change and errors excepted!) For further questions, feel free to contact us by phone.
