CNC lathe 570 x 2000 mm

VDF Boehringer DUS 560 Ti

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 570 mm, turning length: 2,000 mm, spindle bore: 62 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 3 rpm, workpiece weight (max.): 2,000 kg, Equipment: rotational speed infinitely variable, The VDF 560 DUS are the most popular teach-in lathes from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single parts and small series. This machine is currently on display in our showroom; an on-site inspection is possible! Scope of delivery: Includes drawer cabinet with various tools and Multifix holders. Specifications Manufacturer: VDF Boehringer Model: DUS 560 TI Year: 2005 Condition: Used Stock number: 00164 Maximum turning diameter: 570 mm Maximum turning length: 3000 mm Spindle bore: 62 mm Fpsdowv S Rtepfx Aa Nep Speed (min-max): 3 - 2500 rpm Spindle power: 19 kW Spindle mount: DIN 55 027 Gr. 8 Tool turret: Multifix Turret positions: 2 Tailstock taper: MK5 CNC control brand/type: Heidenhain Manual Plus 4110

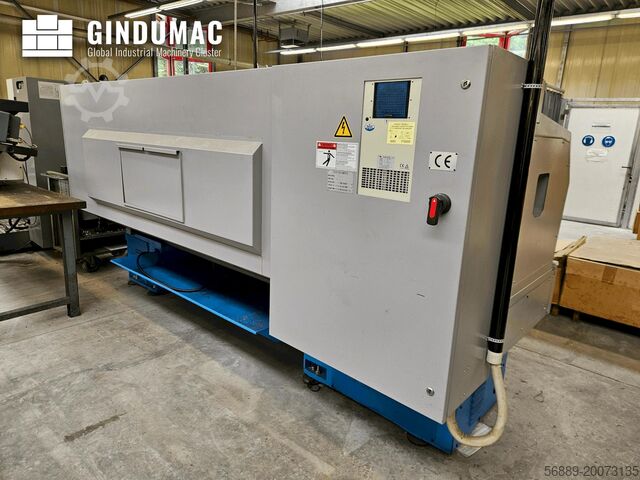

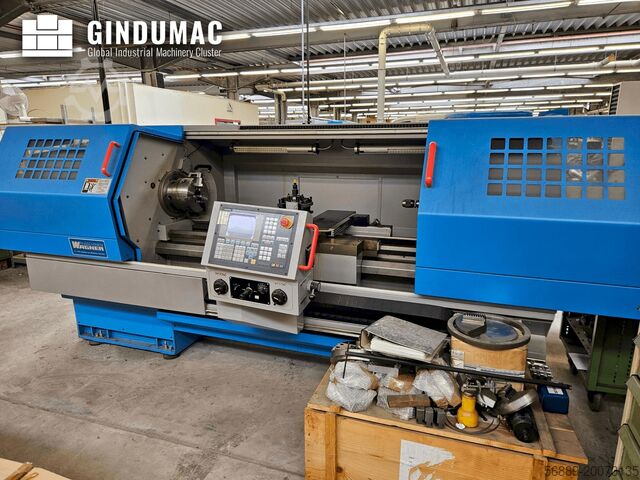

Year of construction: 2012, condition: ready for operation (used), Control Unit Brand SIEMENS Model 802-C Main Drive Number of axis 2 Fsdsxfwztspfx Aa Njpp Additional Equipment Complete electrical equipment 400 V / 50 Hz RS 232 interface Electronic handwheels with increment preselection Mechanical spindle engagement lever Right and left rotation Pilot lever for feed with detent function Rapid traverse override as a push button Movable control panel Constant cutting speed Bed guideways induction-hardened, ground, and Turcite-coated This WAGNER WDE 500 was manufactured in 2012. A robust horizontal turning machine featuring a Siemens 802-C control interface, it includes a three-jaw lathe chuck, quick-change tool post, and manual tailstock. The machine is equipped with a complete coolant system and an enclosure with safety features. If you are looking to get high-quality turning capabilities consider the WAGNER WDE 500 machine we have for sale. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 1999, turning diameter over cross slide: 365 mm, spindle bore: 62 mm, turning length: 2,000 mm, turning diameter: 570 mm, workpiece weight (max.): 2,500 kg, Swing over bed Ø: 570mm Swing over cross slide Ø:365mm Fpjdpfx Aowq I Udoa Nep DBC Turning Length: 2000mm Spindle bore: 62mm Spindle power: 25kW Tailstock spindle Ø: 100Ø Stroke pinole: 190mm Spindle taper: 4Mk Workpiece weight: 2500 Speeds / ranges: 2500Rpm Feed rate X-Axis: 5000mm/min. Feed rate Z-Axis: 10000mm/min. Length: 5200mm Width: 2200mm Height: 2100mm Weight: 5200kg

Condition: used, Year of construction: 2007, turning diameter 0500 mm turning length 1500 mm control 802 C turning dia. over face-slide 280 mm spindle bore 82 mm spindle turning speed range 20- 3000 U/min feeds - longitudinal 0- 5000 mm/min feeds - cross 0- 5000 min Fpedpfx Aajw A Spio Nep rapid traverse longitudinal 5 m/min rapid traverse cross 5 m/min main drive 7,5 kW travel -z axis 1435 mm travel -x axis 295 mm quill stroke 150 mm bed width 350 mm weight of the machine ca. 3 t dimensions of the machine ca. 3,23 x 1,47 x 1,73 m Cycle control Siemens 802 C
