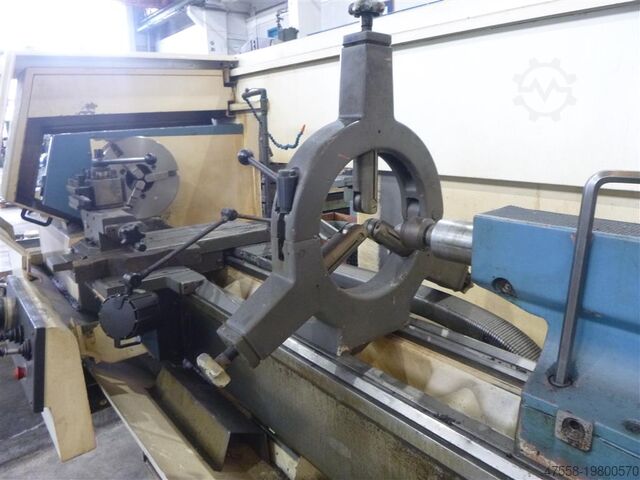

Lathe - cycle controled

VDF BOEHRINGER DUS 560

Condition: ready for operation (used), Year of construction: 2005, turning diameter over cross slide: 570 mm, turning length: 2,000 mm, spindle bore: 62 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 3 rpm, workpiece weight (max.): 2,000 kg, Equipment: rotational speed infinitely variable, The VDF 560 DUS are the most popular teach-in lathes from VDF Boehringer in terms of turning diameter. With a standard chuck size of 315 mm or more, these machines offer optimal machining efficiency for the production of single parts and small series. This machine is currently on display in our showroom; an on-site inspection is possible! Fsdowv S Rtjpfx Aa Njpp Scope of delivery: Includes drawer cabinet with various tools and Multifix holders. Specifications Manufacturer: VDF Boehringer Model: DUS 560 TI Year: 2005 Condition: Used Stock number: 00164 Maximum turning diameter: 570 mm Maximum turning length: 3000 mm Spindle bore: 62 mm Speed (min-max): 3 - 2500 rpm Spindle power: 19 kW Spindle mount: DIN 55 027 Gr. 8 Tool turret: Multifix Turret positions: 2 Tailstock taper: MK5 CNC control brand/type: Heidenhain Manual Plus 4110

Condition: excellent (used), With C-axis With Y-axis With driven tools SIEMENS 840D SL ShopTurn control Turning diameter max 700 mm Turning length -3065 mm Swing Diameter -900 mm Spindle speeds -2'500 rpm C-axis Dividing 0.001° Bar diameter 105mm Top turret tool holders 12 driven positions Y-axis travel 160 mm Tool breakage control system Misc. accessories MARCELS MASCHINEN CH Fpjdpfx Asw S Iq Hja Nep

Condition: used, Year of construction: 2021, turning diameter 560 mm Fpsdpfx Aasw D Hkwe Nop turning length 3000 mm centre height 295 mm control SIEMENS SINUMERIK 840D sl spindle bore 82 mm turning speed range 5 - 2500 U/min quill stroke 190 mm diameter of quill 100 mm tailstock quill taper MT 5 total power requirement 28 kW weight of the machine ca. 6400 kg dimensions of the machine ca. 5550 x 2750 x 2000 mm CNC lathe - cycle controlled

Condition: good (used), Year of construction: 2008, turning diameter over cross slide: 365 mm, turning diameter: 570 mm, spindle bore: 62 mm, Manufacturer: VDF BOEHRINGER Type: DUS 560 Ti Control: SIEMENS 810D Year of manufacture: 2008 Specifications Metric US Standard Turning diameter bed Ø 570 mm Fpsdswp Ifmjpfx Aa Njp Turning diameter slide 365 mm Turning length 2000 mm Spindle bore 62 mm Spindle power 25 kW Quill 100 Ø Quill stroke 190 mm Spindle taper 4 Mk Workpiece weight 2500 Speed 2500 Rpm Feed X - axis 5000 mm/min. Feed Z - axis 10000 mm/min. Dimensions (Estimated) Length 4300 mm Width 2100 mm Height 2100 mm Weight 5800 kg Please note: The information on this page has been obtained by us to the best of our knowledge and, where possible, from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contractual terms. We recommend you verify all important details.

Condition: ready for operation (used), Year of construction: 2020, operating hours: 6,056 h, Control Unit Brand SIEMENS Model 840D General Data Measurements width 3150 Measurements depth 5564 mm Measurements height 2135 mm Machine weight 10000 kg Main Drive Spindle speed range 3600 Fpodswnkdcopfx Aa Nsp Movement X-Axis Rapid Traverse 30 m/min Y-Axis Rapid Traverse 22.5 m/min Z-Axis Rapid Traverse 33 m/min Workpiece Workpiece drm over bed 800 mm Workpiece drm 600 mm Tools Slots in storage 12 This 3-axis horizontal turning machine manufactured in 2020 features a Siemens 840D control and a spindle speed up to 3,600 rpm. It offers a max turning diameter of 600 mm and a length of 2000 mm. Equipped with a chip conveyor, Siemens CELOS control system, and a fume extraction system, it's ideal for complex machining tasks. Consider the opportunity to buy this DMG MORI CTX 2000 horizontal turning machine. Contact us for more information about this machine. Application Types Turning

Condition: good (used), Year of construction: 1999, turning diameter over cross slide: 365 mm, spindle bore: 62 mm, turning length: 2,000 mm, turning diameter: 570 mm, workpiece weight (max.): 2,500 kg, Swing over bed Ø: 570mm Swing over cross slide Ø:365mm DBC Turning Length: 2000mm Fsdpfewq I Udjx Aa Njpp Spindle bore: 62mm Spindle power: 25kW Tailstock spindle Ø: 100Ø Stroke pinole: 190mm Spindle taper: 4Mk Workpiece weight: 2500 Speeds / ranges: 2500Rpm Feed rate X-Axis: 5000mm/min. Feed rate Z-Axis: 10000mm/min. Length: 5200mm Width: 2200mm Height: 2100mm Weight: 5200kg

Condition: like new (used), Year of construction: 2021, operating hours: 1,200 h, functionality: fully functional, turning diameter: 1,100 mm, power: 46 kW (62.54 HP), distance between centers: 2,000 mm, load hours: 1,200 h, A DMT CD1100 lathe with Heidenhain control and only 1200 operating hours is available. The working area includes a swing diameter of approx. 1100 mm over bed and approx. 800 mm over cross-slide. The tool holder is a Multifix D1. The distance between centers is 2000 mm. The main spindle drive is a motor with 46 kW power at 60% duty cycle and features a two-speed gearbox. Tailstock: - Quill diameter: 125 mm - Taper: 6 Mk Fpodpfx Ajxlza Hja Nsp Electrical equipment: - Three-phase current: 400 V, 50 Hz - VDE and EMC directives EN50081-2 / EN50082-2 Delivery: Collection by the buyer Payment: 100% prepayment by bank transfer immediately upon invoicing All details are subject to change and prior sale is reserved. The machine is sold without any warranty claims and remains our property until full payment has been received.

Year of construction: 2018, condition: ready for operation (used), General Data Measurements width 2070 mm Measurements depth 5400 mm Measurements height 2600 mm Machine weight 7800 kg Control Unit Brand SIEMENS Model CELOS with Siemens 840D sl Operate Main Drive Spindle speed range up to 4000 rpm Spindle motor power 22 kW Number of axis 3 Additional Equipment Counter spindle turnMASTER 6 inch, ISM 36, Y-axis / C-axis and spindle brake (hydr.) / Reinforced coolant pump (5 - 20 bar) / Hinged belt chip conveyor / Tool measuring device in the work area (automatic, Ø 315 mm) / 12-station star turret, VDI 40 with quick-change system (TRIFIX) / Tool revolver completely replaced in December 2024 / Machine comes without chuck Turret: Number of tool stations: 12 / Number of driven tool stations: 12 / Max. speed: up to 6000 rpm /Max. power (100% ED): 10 kW Shank diameter according to DIN 69880: 40 mm Off-center turning and milling / Milling of gearing using the hobbing process / Alternating speed technology cycle / Polygon turning (machining of elliptical and polygonal shapes) / Program status control / Gear skiving (technology cycle for gears) / Multi-thread cycle 2.0 (position-oriented threads) / Easy Tool Monitor 2.0 (tool monitoring system) / Energy meter for Siemens 840D sl OP CELOS / Hydraulic hollow clamping device Ø77 mm This 3-axis DMG MORI CTX 2500/1250 Horizontal turning machine was manufactured in 2018. Ideal for complex machining tasks, it combines turning and milling capabilities in one machine. Consider the opportunity to buy this DMG MORI CTX 2500/1250 Horizontal turning machine. Contact us for more information. Fpjdpfx Aew Ul D Nea Nop Application Types Turning

Condition: excellent (used), Year of construction: 2015, operating hours: 7,500 h, functionality: fully functional, Used CNC Lathe DMG Mori CTX beta 2000 TC (Year 2015) This universal Turn & Mill lathe is designed for the complete machining of complex parts, allowing turning and milling operations on a single machine. Fjdpsw Euidefx Aa Nepp General Features Model: DMG Mori CTX beta 2000 TC Year of production: 2015 CNC control: SIEMENS 840 D Working capacity Maximum turning length: 2,000 mm. Maximum turning diameter: 700 mm. X-axis travel: 650 mm. Y-axis travel: ±150 mm. Z-axis travel: 2,050 mm. Main spindle Model: ISM 102. Rotation speed: Up to 4,000 rpm. Maximum torque: 700 Nm. Bar passage: 93 mm (102 mm optional). Counter spindle Model: ISM 76. Function: Allows complete machining on 6 sides of the piece. Rotation speed: Up to 5,000 rpm. Maximum torque: 360 Nm. Milling/Turning spindle Model: compactMASTER. Tool interface: Capto C6 Rotation speed: Up to 12,000 rpm (standard). Maximum torque: 120 Nm. B-axis tilt: ±120°. Tool magazine Type: Chain magazine. Capacity: 48 stations. Tool holder interface: Capto C6. Accessories and features included Monitoring system: Easy tool monitor. Tool presetting: Laser probe produced by Blum. Cooling: High pressure cooling device (8/20 Bar) with paper filter. Long workpiece support: Slide for numerically controlled steady rest (CN Z). Self-centering steady rest SMW SLU X4 (range 20-245 mm). Self-centering chucks: SMW BHD 315/95. SMW BHD 250-78. Chip evacuation: Chip conveyor. Other: Washing gun, differentiated pressure for counter spindle and software cycle for vibration reduction.
