Profile milling machine

Vertongen PENTHO C4 B

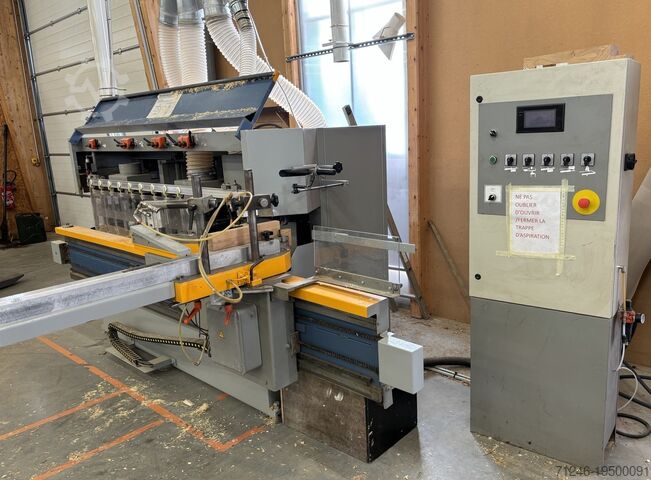

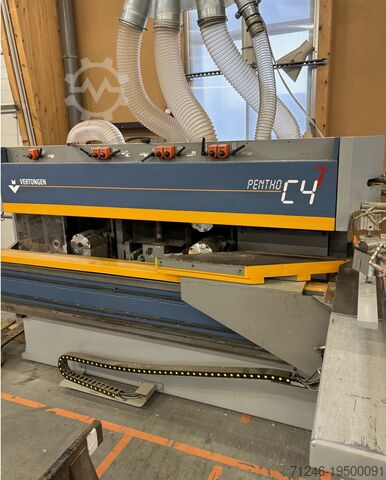

WOODWORKING TENONING MACHINE WITH AUTOMATIC FEED, 4 OPERATIONS
Brand: VERTONGEN Model: PENTHO C 4 B
Serial No.: 081001 Year: 2001
(Photos taken prior to overhaul, functional testing & cleaning)

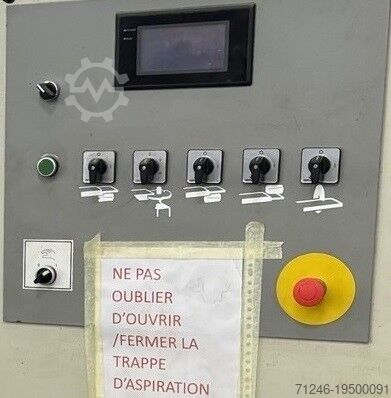

Automatic cycle woodworking tenoner with manual operator group selection and fine adjustment.

MACHINING CAPACITIES:
- Max. wood section (thickness x width): 135x230 mm

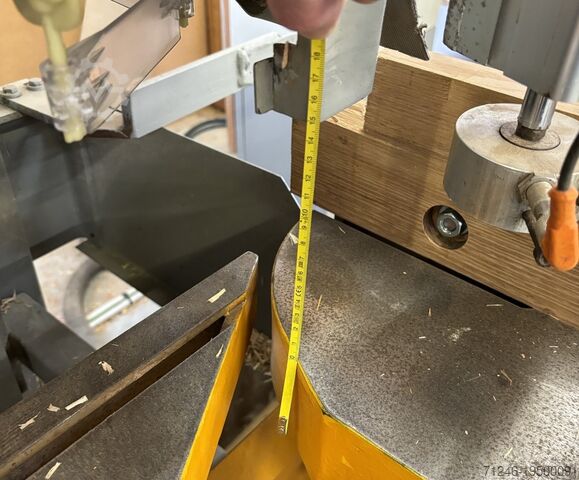

- Max. cutting height: 135 mm

MACHINE CONFIGURATION:
Table:
- Cast iron table 400x600 mm, tiltable up to 60°, positioning by clamping
- 2 pneumatic hold-down clamps for wood clamping
- Extendable metric stop ruler with double stop, anti-splinter profile, and end support

1) Sawing: cross-cutting
- 2.2 kW (3 HP), blade speed 3,000 rpm
- Saw blade Ø400 mm, bore Ø30 mm
- Cutting depth adjustment 140 mm

2) Top and bottom planing cutterheads with carbide knives:
- Cutterhead with W3 carbide knives, Ø160xL140 mm
- Top head 3 kW / bottom head 2.2 kW, rotation speed 4,500 rpm
- Independent manual fine adjustment for withdrawal or positioning:
Top cutterhead axial movement: -40/+35 mm, vertical travel 0-135 mm
Bottom cutterhead axial movement: -40/+10 mm, vertical travel 0-80 mm

3) Spindle moulder:
- Power 5.5 kW, speed 4,000 rpm
- Spindle Ø50 mm, useful length 160 mm
- Vertical travel 150 mm, horizontal travel 130 mm
Csdpewxdb Nefx Abwehc
- Max. tool diameter (tenoning discs) Ø350 mm

4) Shoulder head (cutterhead) for left and right operation:
- Power 2.2 kW (3 HP), speed 4,500 rpm
- W3 carbide knife cutterhead Ø160xL140 mm
- Manual fine adjustment for withdrawal, positioning, and travel

OTHER TECHNICAL FEATURES:
- Main power supply: 3-phase + N + PE, 400V, 50Hz
- Installed power: 15.1 kW (20.5 HP), rated IN 30A
- Counters for manual operational adjustments
- Pneumatic supply: 6 bar working pressure (for hold-downs)
- Dust extraction ports and recommended airflows:
360 (saw) + 2500 (cutterheads) + 1250 (spindle moulder) + 2500 (shoulder head) m³/h
Air velocity 25-30 m/s
Manifold supplied, 1 connection, flanged edge 280 mm.
If shoulder operation is used, provide for branching: 160F/150F/150F flex hoses
- CE marking, automatic retraction of guards, braked motors, padlockable main isolator, emergency stop buttons

Transport dimensions (LxWxH):
3.70 x 1.70 x h.2 m
Weight: 1650 kg

The listing was translated automatically. Translation errors are possible.
