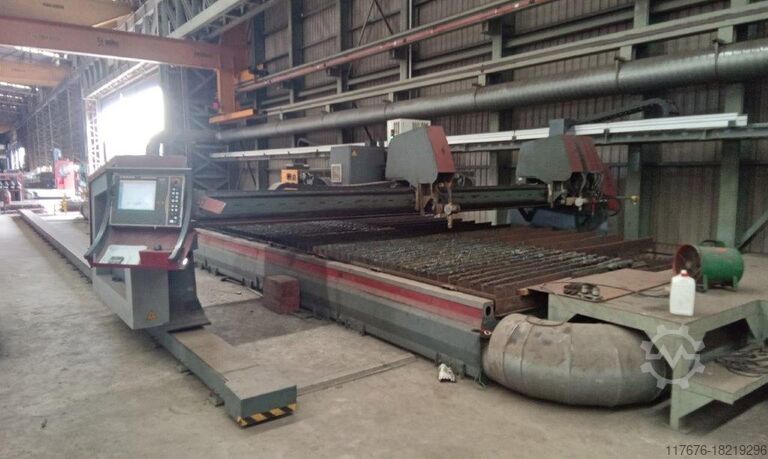

CNC LARGE FORMAT PLASMA CUTTING MACHINE

VOORTMAN V304 18 METRES X 4 METRES

V304 plate processing machine (including 1 gantry beam(s) of 6.500mm and side trucks)
Godpfx Aaevpalaj Iett
◼ This V304 plate processing machine is capable of processing plates up to 3.050mm x 18.000mm for
bevel plasma cutting and marking (needle marker, if attached) and 4.100 x 18.000 mm for oxy-fuel cutting
and marking (needle marker, if attached)
◼ X-rail (21.000mm on both sides of the machine, including double linear guides, helical rack and pinion system
and rubber covering band)
◼ Plasma cutting and extraction table (4.300mm x 18.720mm, 2 channel(s), 1 pcs, suitable for ≥ 350A cutting)
◼ Position 1: Plasma cutting unit Kjellberg SmartFocus400 (1 pcs, automatic gas console, complete with cutting
parameter database)
◼ Plasma 3D bevel unit (1 pcs, including 5 NC-axis, Voortman height control, intelligent torch positioning
system and 3D collision sensor, for x- ,y- , k- and v-weld preparations)
◼ Driven suspension (1 pcs, servo motor driven, including laser pointer)
◼ Dross inhibitor (1 pcs, including 1,2L reservoir)
◼ Arc Glare protection (1 pcs)
◼ Position 2: Plasma cutting unit Kjellberg SmartFocus400 (1 pcs, automatic gas console, complete with cutting
parameter database)
◼ Plasma 3D bevel unit (1 pcs, including 5 NC-axis, Voortman height control, intelligent torch positioning
system and 3D collision sensor, for x- ,y- , k- and v-weld preparations)
◼ Dragged suspension (1 pcs, with automatic addressing)
◼ Dross inhibitor (1 pcs, including 1,2L reservoir)
◼ Arc Glare protection (1 pcs)
◼ Position 3: Oxy-fuel cutting torch 4.0 (1 pcs, automatic gas console, ignition and piercing, complete with cutting
parameter database)
◼ Voortman height control (1 pcs, capacitive height control)
◼ Dragged suspension (1 pcs, with automatic addressing)
◼ Position 4: Oxy-fuel cutting torch 4.0 (1 pcs, automatic gas console, ignition and piercing, complete with cutting
parameter database)
◼ Voortman height control (1 pcs, capacitive height control)
◼ Dragged suspension (1 pcs, with automatic addressing)
◼ Position 5: Oxy-fuel cutting torch 4.0 (1 pcs, automatic gas console, ignition and piercing, complete with cutting
parameter database)
◼ Voortman height control (1 pcs, capacitive height control)
◼ Dragged suspension (1 pcs, with automatic addressing)
◼ Cables high instead of low
◼ Donaldson fume extraction unit DFO 4-48 - 200L (incl. frequency controller)
◼ Air conditioning for switch panel (up to an ambient air temperature of 55°C)
◼ Hardware and software (includes VACAM ‘Machine Edition’, VACAM ‘Office Edition’, VACAD editor software
module, VANEST nesting software, Layout marking software module, online support)
◼ Post processor for SigmaNEST (SigmaNEST is provided by the customer)
◼ Safety devices (safety bumpers, emergency stop cord)
