Horizontalbandsäge

Voortman VB1050

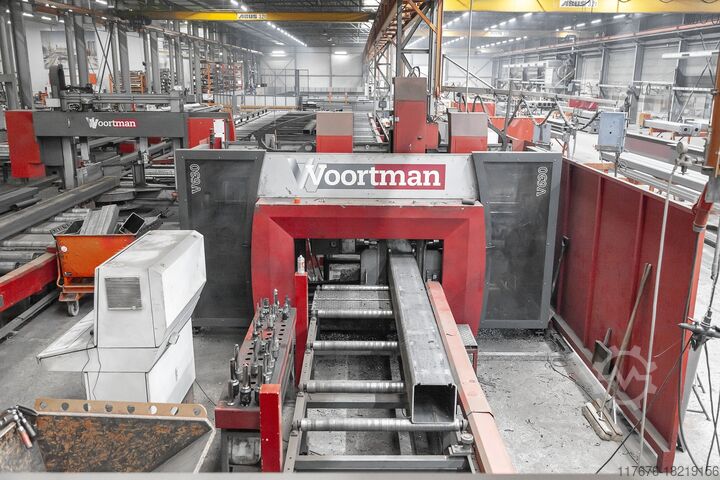

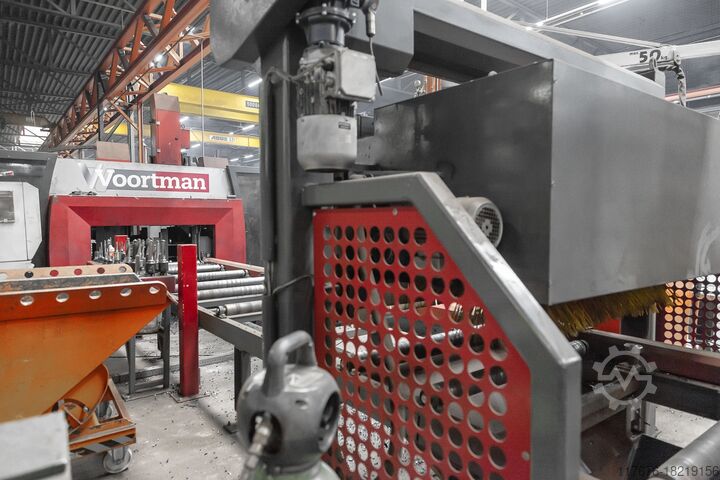

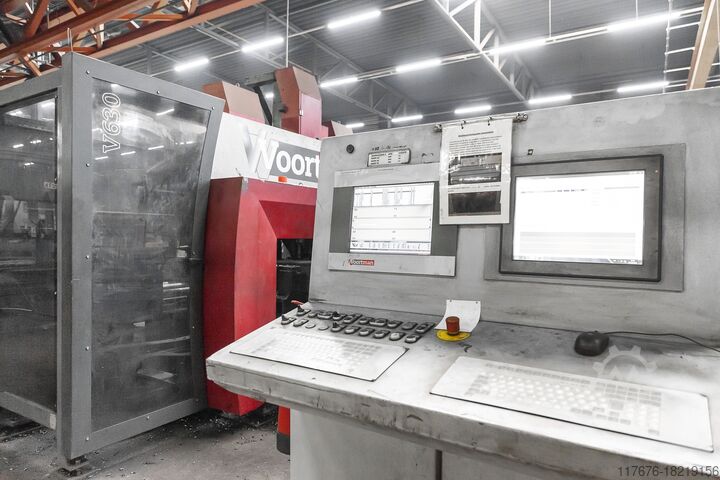

Condition: excellent (used), Year of construction: 2012, Voortman V613 / VB1050 Split System CNC Drilling / Sawing Line – Year 2012. Rotating Spindle. Automatic Tool changer. 24 metres In-Feed to VB1050. 24 metres Out-Feed to V613 CNC Drilling line. 24 metres Out-Feed. Roller Feed. VACAM CNC Control. Short piece removal. Rcjdpfxev U Ea He Aazeh

Condition: good (used), Year of construction: 2007, DRILLING MACHINE Operating range V630/1000M Min. / max. height 10 – 450 mm Min. / max. width 60 – 1.050 mm Max. positioning weight 9.000 kg Number of drilling units 3x Automatic tool changer 3x (3x 5 positions) Height measuring Included Width measuring Included Machine weight 12.000 kg Roller feed measuring system Max. speed 42 m/min Min. infeed length 1.500 mm Drilling unit VD40 Feed and positioning servo-motors with servo-invertors Spindle rpm Stepless 100 – 2.500 rpm (servo-motors) Lubrication Internal by mist of air / oil Holder SK 40 Drill diameter oil-tube-drills 8 – 40 mm Drill diameter carbide drills 13 – 32 mm Thread tapping M8 – M24 Centre point marking possibility Yes, 3 sides SAWING MACHINE Sawing machine VB1050 Capacity (h x w) 0° 500 x 1.130 mm Capacity (h x w) +/- 15° 500 x 1.060 mm Capacity (h x w) +/- 30° 500 x 925 mm Redpfxovpafyo Aazsch Capacity (h x w) +/- 45° 500 x 725 mm Capacity (h x w) +/- 60° 500 x 470 mm Saw band speed stepless 40 – 120 m / min Saw drive motor 7,5 kW Saw band dimensions 9.550 x 54 x 1,6 mm Hydraulic band tension 48.000 N Machine weight +/- 8.500 kg
