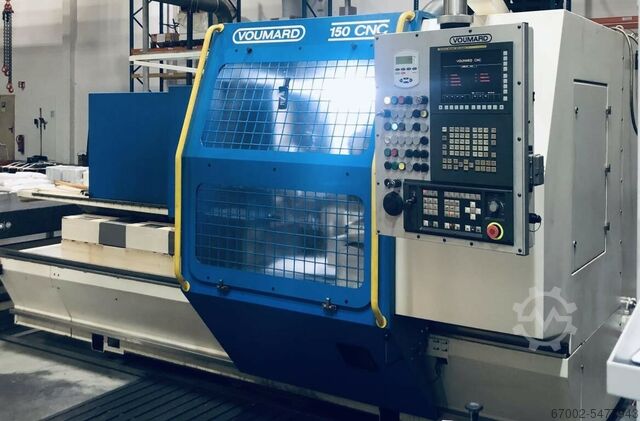

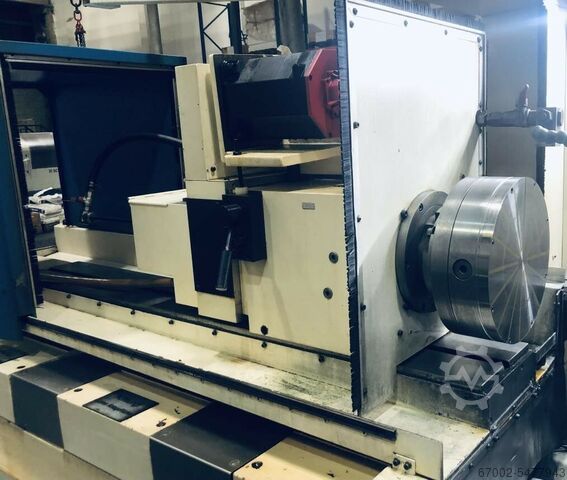

Internal cylindrical grinding machine

Voumard 150 CNC

Condition: good (used), Year of construction: 2014, spindle turning speed range 170 - 18000 U/min weight of the machine ca. 7,5 t dimensions of the machine ca. 5,00 x 4,00 x 2,20 m --> Control conversion (2014) to Siemens Sinumerik 840D Solutionline --> Overhaul of the new control system in 2016 --> Technical data Grinding diameter: 20 - 300 mm --> Oscillation diameter: 350 (500) mm --> Workpiece length: 300 (1300) mm --> Recommended grinding depth up to: 300 mm --> Grinding table stroke Z-axis (total): 650 (950) mm --> Resolution: 0.001 mm --> Rapid traverse: 12 m/min-1 --> Grinding stroke speed: 0 - 9.99 m/min-1 --> Feed rate: 0 - 99.99 m/min-1 Cjdpfxow Intaj Ah Ispw --> Step feed value during reversal: 0 - 0.999 mm --> Grinding table stroke X-axis (total): 150 mm --> Resolution: 0.001 mm / Ø --> Rapid traverse: 5 m/min-1/R --> Grinding stroke speed: 0 - 5 m/min-1/R --> Feed rate: 0 - 99.99 m/min-1/R --> Step feed value during reversal: 0 - 0.999 mm / Ø --> Swivel capability of the workpiece headstock: --> B-axis: -32° (-23°) / +2° --> Resolution: 0.0001° (0.36") --> U-axis stroke (total): 300 mm --> Resolution: 0.001 mm / Ø --> Travel speed: 5 m/min-1 --> Centre height above workpiece table: 200 (300) mm --> Centre height above grinding table: 330 (430) mm --> Workpiece spindle passage: 50 (70) mm --> new in 1988

Condition: used, Year of construction: 2007, x-travel 900 mm y-travel 300 mm z-travel 1000 mm control Siemens Sinumerik 840D max. workpiece diameter 1600 mm max. module 20 mm tip circle diameter 350 mm Milling arbour diameter 375 mm Total closing value 80 kVa weight of the machine ca. 33,5 t dimensions of the machine ca. 10,530 x 6,375 x 4,680 m Feed rate: - X-axis 1 to 3000 mm/min - Y-axis 1 to 3000 mm/min - Z-axis 1 to 4000 mm/min Csdpfxjw Rrb He Ah Iepw Spindle speeds in rpm: - Tool 26 to 265 - Workpiece table 0 to 8 Equipment/accessories: - M 2 motor milling head - Milling mandrels - Oil cooler - Technical documentation

Condition: reconditioned (used), Year of construction: 1998, operating hours: 44,675 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 140 mm, spindle speed (max.): 60,000 rpm, spindle speed (min.): 9,000 rpm, workpiece weight (max.): 800 kg, table width: 860 mm, table load: 1,500 kg, travel distance W-axis: 635 mm, Equipment: documentation/manual, Fully overhauled and in perfect condition as per original specifications and accuracy. 6 Axis X-Y-Z-C-U 7th axis CNC-rotary table with tailstock in option Control: Fanuc 15 MB Grinding Spindle 60S speed 9,000 to 60,000 rpm Hi-Cut system with full enclosure Csdpfx Ahjwb Db Us Iepw CBN Form rotary dressing with Fischer spindle and Dr. Kaiser diamond wheel This machine is under power and can be seen in our facility in Gals, Switzerland Garantee of 6 months Shipment, installation and training can be provided

Condition: used, Year of construction: 2001, table length 600 mm table width 380 mm control FANUC 16i-M longitudinal travel 500 mm cross travel 300 mm Csdpfjwmwwysx Ah Iepw largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. The machine video from the production plant will be shared on request. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: used, Year of construction: 1999, table length 600 mm table width 380 mm control FANUC 16-M longitudinal travel 500 mm cross travel 300 mm largest grinding diameter 230 mm Jig grinding machine | HAUSER - S35-400 The machine is in a well-maintained condition. Cpodew Eyk Hepfx Ah Iew Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: S35400 | S35 400 | S35CNC400 | S35 | S-35 | S 35

Condition: like new (used), Year of construction: 2019, functionality: fully functional, absolutely as good as new condition, 2 external wheels, 1 internal grinding spindle Siemens control controlled B-axis suitable for Capto grinding (out of round) center width 1000 mm Cpjdsyfntzopfx Ah Iew center height 200 mm

Condition: new, functionality: fully functional, IG 482 SD Specifications Motors Grinding Spindle Motor 50HP, 200 - 1180RPM Rotary Table Motor 3HP, 5 - 70RPM Servo Column Motor 5KW Coolant Pump 3/4HP, 45GPM Table Diameter 48" Table Features Thru-spindle vacuum/pressure feed Variable strength 3/4" fine pole electromagnetic chuck Contact a DCM Technical Specialist for custom table & fixturing options Capacity Max Swing Diameter 52" Max Part Height 12" with grinding segments retracted 10-1/2" with a 2A2T wheel Grinding Wheel Options 2A2T Suberabrasive or Conventional Segments 26" diameter Cortland Style Hub & Segment 26" diameter Ask a DCM Technical Specialist about our wide variety of available abrasives Feed System Servo driven Z-axis with precision ballscrew and encoder Feedrate variable from 0.0006 IPM to 0.1000 IPM Servo drive X-axis for precision positioning Cpodpfxoubbqio Ah Isw Electrical Requirements 460V, 50/60Hz, 3 phase Consult DCM Technical Specialist regarding operation on other voltages Dimensions 137" wide, 82" deep, 88" high Weight Machine & Swarf System: 14,500lbs. (estimated) Electrical Box: 1,500lbs. (estimated) IG 482 SD FEATURES • 48” variable speed electromagnetic chuck with auto demag cycle • 50HP grinding spindle motor • Integral coolant filtration & mist collection systems • Easy to operate touchscreen controls • Mitsubishi FX5U PLC • 3 Grinding Modes - Conventional, Incremental and Grind to Height • Regrind feature allows re-running previous grind sequence without reprogramming • Continuous grind – the machine can automatically cycle through grind 1, 2 & 3 • Servo-driven precision control of both Z and X-axis with absolute home positioning • The cross slide X-axis moves with manual pulse generator • Backlash compensation on both axes • Password protection & operator lockout features • SECS/GEM Interfaced to work with 3rd party Scada type software • Password protection and operator lock-out features • Automatic routine maintenance reminders • 120" x 82" Footprint

Condition: excellent (used), Control : Siemens Sinumerik 840D SL Accessories available: - various grinding wheel holders - Lifting pump for cooling lubricant - Various spare parts for machine, machine documents - Magnetic table 2000 x 250 mm incl. clamping hydraulics - Machine hours: 8,000 h (since 2018) - Table dresser: Dittel brand - Grinding head: manually swiveling Machine length 6.6 m Width 2.8 m Height 2.5 m Cpsdpoulghcefx Ah Ijw Weight 14'000 kg Drives Siemens
