Planing Machine

Waldrich 30

Condition: used, Technical details: grinding length: 12000 mm grinding width: 2800 mm workpiece height: 2510 mm max. workpiece weight: 24.000 kg table surface area: 11990 x 2500 mm distance between columns: 2820 mm cross rail adjustment: 2510 mm table feed: 1 - 40 m/min total power requirement: 110 kW weight of the machine ca.: 151 t dimensions of the machine ca.: 32,5 x 9 x 6,73 m .....machine is in top condition for high precision work! with CNC SIEMENS 840 D 1 universal grinding head, 22 kW swivelling of the grinding spindle +/-110° grinding wheel dimension 700 x 130 mm vertical stroke 1000 mm with dressing unit 1 surface grinding head, 30 kW grinding wheel dimension 600 x 150 mm vertical stroke 230 mm Dcjdowc A Snepfx Agdep with dressing unit coolant and filtering unit diverse grinding wheel flanges *

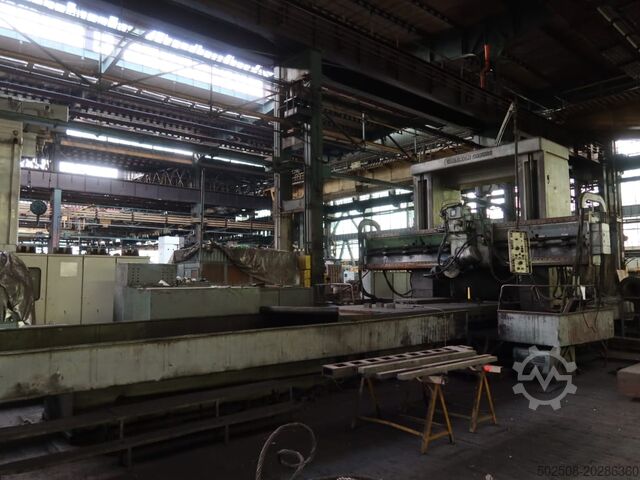

Condition: used, Year of construction: 1967, Waldrich Coburg 30 FS 4040 Slide Grinding Machine Dedpfx Agoxnc R Eedscp Mobile Table Dimension 2,000 x 9,000mm. Traverse Stroke 2,000mm (Cross Travel). Distance Between Columns 2,200 mm. One Reclining Head. Travel head on the Crossrail = approx. 3,500mm (Horizontal Travel). Wheel Dimensions: From 180 mm to 500 mm. Coolant system: Yes. Filtration System: Yes. Wheel speed range: from 1100 to 3200 rpm (maximum 25 m/s). Weight Approx. 100 Tons. Lot includes: Maksas LKV 15/7.5, with a capacity of 2.37 m3/min, motor power of 15 kW (2012). AAG 3AK-2600 Air dryer

Condition: used, grinding length 4000 mm grinding width 1450 mm workpiece height 1250 mm control Siemens 840 D workpiece weight 11000 kg column daylight 1460 mm table surface area 4000 x 1250 mm table feed 1 - 45 m/min cross rail - adjustment 1250 mm total power requirement 40 kW dimensions of the machine ca. 12,3 x 6 x 4,8 m Equipment/Accessories: - 1 universal grinding support, 7.5 kW Swivel range grinding spindle +/- 110° grinding disc dimensions Ø 500 x 60 mm Vertical adjustment 350 mm with puller - 1 peripheral grinding support, 22.5 kW Grinding wheel dimension Ø 600 x 100 mm Vertical adjustment 150 mm Djdswa Dx Dopfx Agdscp with puller - with 6 magnetic plates arranged on the table - seperate clamping table - various grinding wheels and flanges - Technical documentation

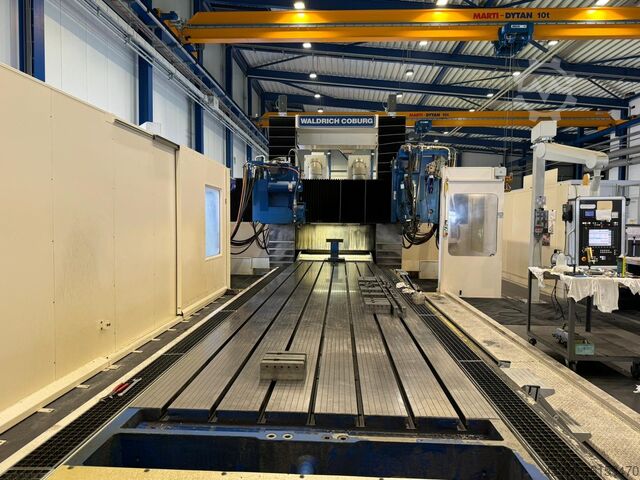

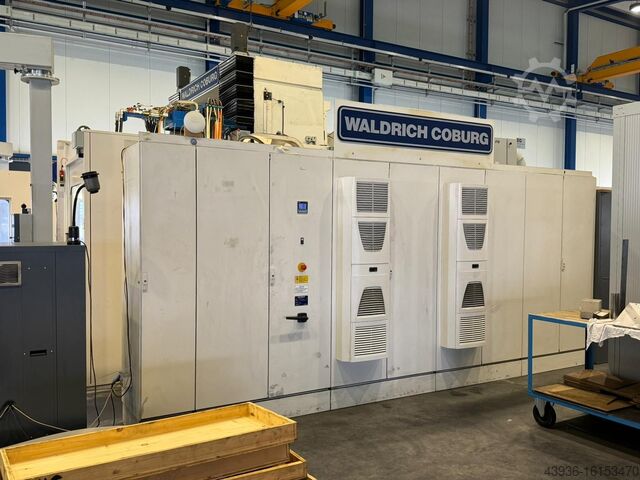

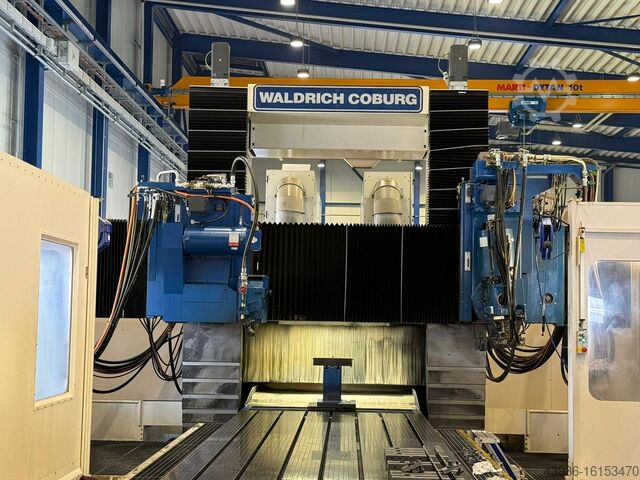

Condition: good (used), Year of construction: 2012, grinding width: 2,000 mm, workpiece weight (max.): 18,000 kg, grinding length: 8,000 mm, Manufacturer: Waldrich Coburg Type: 30-10 S 3640 Control system: SIEMENS 840D Year of construction: 2012 Guideway / Slide way / Surface Grinding Machine Universal grinding head S10 with 110 Degree tilting / 2500 Rpm / 7.5 kW Vertical grinding head S30 with Ø 600 x 150 / 930 Rpm / 22 kW Double SIEMENS 840D Control panel Left & Right side machine KNOLL HL650/4000 Filtration system new 2023 Dcodpfxjtp T N Tj Agdsp Automatic doors (4x) for easy machine / load / clamping acces Hydraulic table drive with 18000 kg work load Rebuild in 2012 for 1.5 Mil EUR Large package flanches and stones Large package spare parts / ballscrews / measuring / protection covers Specifications Metric US Standard X - axis 8825 mm Y - axis 3010 mm Z - axis 2500 mm Table length 8000 mm Table width 1800 mm Table load 18000 Feed X - axis 1 - 45.000 mm/min. Feed Z-axis 100 - 3000 mm/min. Grinding stone dimensions 600 x 150 mm Power output 22 kW Rotational speed 930 rpm Coolant system Knoll 4000 L Feed Y - axis 1 - 700 mm/min. Dimensions (estimate) length 24360 mm width 9550 mm height 7000 mm weight 80200 kg Please note: The information on this page has been obtained from the manufacturer to the best of our knowledge and belief, and where possible, the information is given in good faith but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Condition: used, Technical details: grinding length: 4000 mm grinding width: 1450 mm workpiece height: 1250 mm total power requirement: 40 kW dimensions of the machine ca.: 12,3 x 6 x 4,8 m distance between columns: 1460 mm table surface area: 4000 x 1250 mm max. workpiece weight: 11.000 kg cross rail adjustment: 1250 mm table feed: 1- 45 m/min .....machine is in top condition for high precision work! Dcodpfsway Arox Agdop with CNC SIEMENS 840 D 1 universal grinding head, 7,5 kW swivelling of the grinding spindle +/-110° grinding wheel dimension 500 x 60 mm vertical stroke 350 mm with dressing unit 1 surface grinding head, 22,5 kW grinding wheel dimension 600 x 100 mm vertical stroke 150 mm with dressing unit 6 magnetic plates on the table diverse grinding wheel flanges *

Condition: used, grinding length 12000 mm grinding width 2800 mm workpiece height 2510 mm control Siemens 840 D workpiece weight 24000 kg column daylight 2820 mm table surface area 11990 x 2500 mm table feed 1 - 40 m/min cross rail - adjustment 2510 mm Dcodowa Dxwepfx Agdep total power requirement 110 kW dimensions of the machine ca. 32,5 x 9 x 6,73 m weight of the machine ca. 151 t Equipment/Accessories: - 1 universal grinding support, 22 kW swivel range of grinding spindle +/- 110° grinding wheel dimensions Ø 700 x 130 mm vertical adjustment 1000 mm with puller - 1 peripheral grinding support, 30 kW grinding wheel dimension Ø 600 x 150 mm vertical adjustment 230 mm with puller - Coolant and filter unit - Various grinding wheels and flanges - Technical documentation
