Round-tub vibratory finishing machine, finishing bowl, polishing machine, grinding machine

WALTHER TROWAL CLS-980 SA

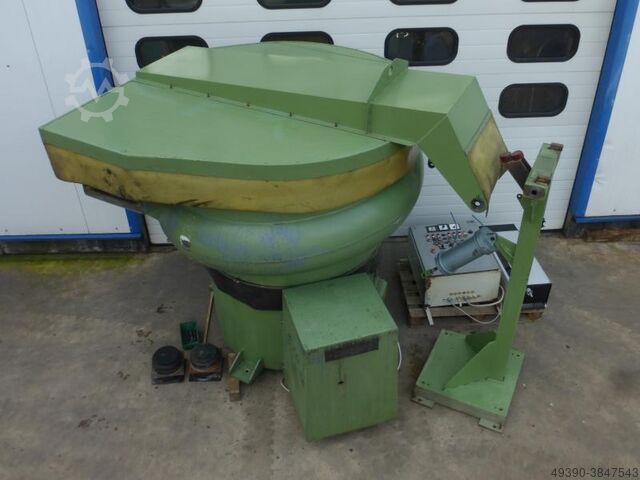

WALTHER TROWAL circular trough vibratory finishing machine, type CLS-980 SA
Serial No. 15.207, Year of manufacture 1972
Trough diameter 1850 mm
Total outer height of trough approx. 1150 mm
Working container / gross volume max. 980 liters
Usable volume approx. 490 liters
Largest possible workpiece diameter approx. 300 mm (measured diagonally)
Screen area 3400 cm2
Fpodpfjdzqn Dsx Aptsi
Speed 1000 to 1700 rpm, stepless
Motor power 22 kW
Mains connection 400 volts, 50 Hz
- Operating time adjustable manually and via timer
- Stepless motor speed adjustment via DANFOSS drive controller, type VLT 3032 (frequency inverter)
- Manually adjustable eccentric balance weights
- Container with rubber lining
- Sound-insulated cover with pneumatic cover opening
- Manual separating flap
- Integrated screen separation device after the separating flap
- Liquid connection
- Material outlet opening 470 x 300 mm

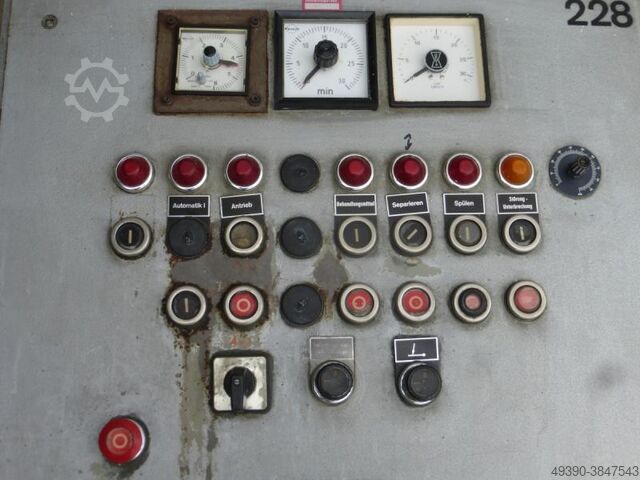

- Control cabinet and drive controller for wall mounting
- Partition cover with perforated screen
- 1 crate of pyramid-shaped grinding media
Space requirement L x W x H 3000 x 3000 x 2550 mm
Transport dimensions L x W x H 2300 x 3000 x 2550 mm
Weight 2500 kg
Good condition

Functional description:
Workpieces and grinding media are set in motion and gently tumbled by the generated vibration.
The constant relative movement between the workpieces and the grinding media causes deburring and surface finishing of the workpieces.

The listing was translated automatically. Translation errors are possible.
