Radial drilling machine MK6, with plate field 8000 x 2100 mm, boring mill, gantry drilling machine,

WEBO HRH 100 / 3000

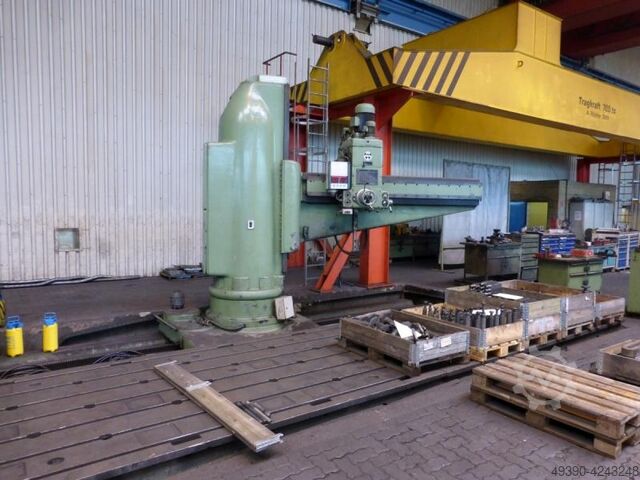

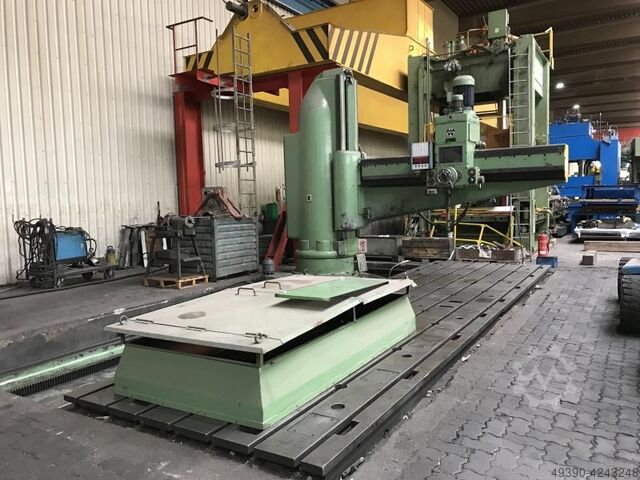

Radial drilling machine with table WEBO type HRH 100 / 3000

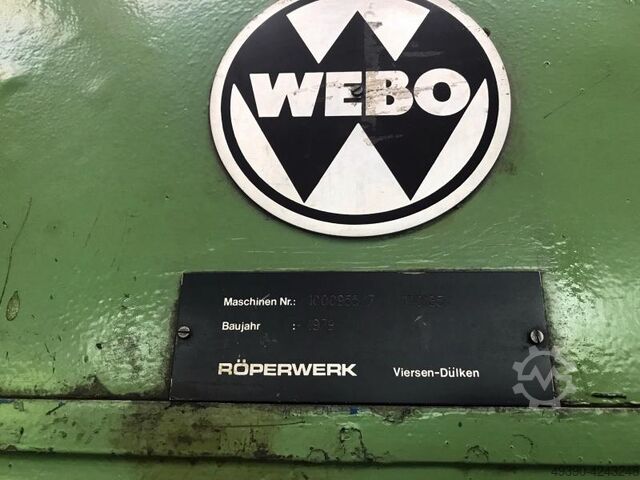

Machine No. 10009555/7 -- 1110185 -- 6046 -- Year of manufacture 1979
Drilling capacity: Ø 100 mm in ST 60 at a feed rate of 0.5 mm/rev.
Nominal overhang: 3000 mm
Maximum overhang: max. 3100 mm
Spindle mount: MK 6
Spindle speed: 22.4 - 1600 rpm, 36 steps
Feed rate: 0.05 - 2.5 mm/rev, 18 steps
Distance spindle - baseplate: 970 - 2335 mm
Quill stroke: 325 mm
Swivel range of the arm: 360°
Traverseable on bed, bed length: 7500 mm
Clamping area of the table: 8000 x 2100 mm
- Electric central clamping device
- Drilling unit on the machine bed, traversable lengthwise by electric motor
- Table consisting of 2 clamping plates with 7 x T-slot, (length 4000 x width 2100 x plate thickness 360 mm)
Space requirement L x W x H: 8000 x 4550 x 4300 mm
Maximum height: 4300 mm
Lasdpfxsfbt Huj Ammsc
Transport height (bed with drilling machine): approx. 3150 mm
Transport weight (bed with drilling machine): approx. 20 tons
Transport dimensions table: L x W x H 4000 x 2100 x 900 mm (2 plates stacked on top of each other)
Transport weight table: approx. 14 tons
Good condition
