Vertical CNC Machine Centres

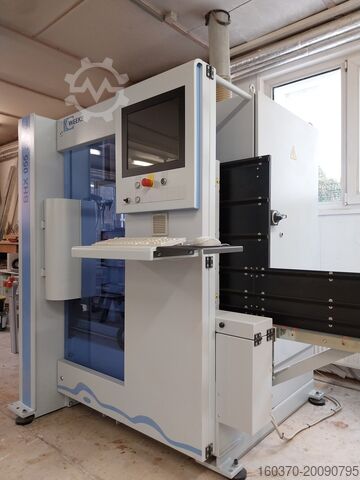

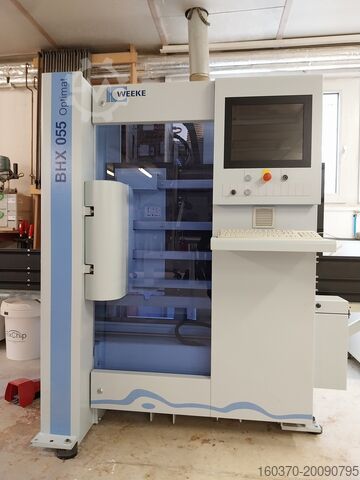

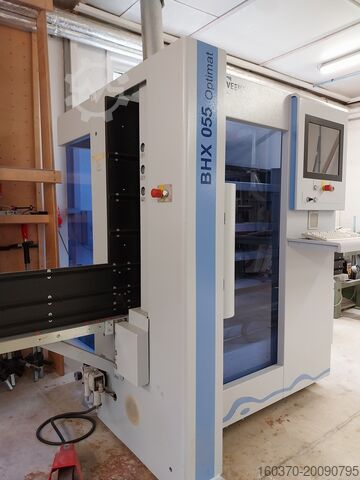

WEEKE BHX 055

Condition: excellent (used), C.N.C. WORKING CENTER 3 axes (X-Y-Z) Vertical position of the panel (workpiece) Movable panel (workpiece), movable working head Numerical Control POWERCONTROL + POWERTOUCH Software woodWOP Safety cabin (enclosure) of the working head No. 1 Workpieces fixing clamps (for the panels introduction in the working area Panels feeding by motorized chain/track Minimum workpieces dimensions (X - Y - Z) mm 200 x 70 x 8 Maximum workpieces dimensions (X - Y - Z) mm 3050 x 850 x 56 Total installed power (Kw) 11,5 (ca.) WORKING GROUPS: Lhedpoyywcvofx Aiqjl No. 1 Drilling head (power Kw 2.3) with vertical spindles - No. 13 Independent vertical boring spindles (V13 High Speed) - No. 6 Independent horizontal boring spindles (4 in X + 2 in Y) No. 1 Circular Grooving Saw (on X axis) dia. (mm) 100 No. 1 Vertical electro-spindle (HKS63) power Kw 5 Automatic Tools Changing System - Tools storage plate (No. 4 folds-positions)

Condition: used, Year of construction: 2013, Numerical control with Biesse Works Advanced Software Air conditioning system for the electrical panel Working range X 3200 Working range Y 900 Working range Z 70 N ° 1 3-axis horizontal electrospindle, Kw 4.5, Iso 30 cone type "BH 17" boring head with 17 spindles arranged as follows: N ° 6 independent spindles for vertical boring in "X" direction N ° 5 independent spindles for vertical boring in "Y" direction N ° 4 spindles for horizontal boring in "X" direction N ° 2 spindles for horizontal boring in "Y" direction N ° 1 integrated blade in X axis Machine weight Kg 1300 Ljdpfx Aoxlghcjiqohl

Condition: ready for operation (used), functionality: fully functional, controller model: POWER PC 85 + WOODWOP 6.0, working width: 850 mm, working height: 60 mm, working length: 3,050 mm, TECHNICAL DETAILS Working dimensions: 3,050 x 850 mm Working height: 12 - 60 mm Drilling Head Vertical spindles X-axis: 8 Vertical spindles Y-axis: 5 Horizontal spindles X-axis: 4 Horizontal spindles Y-axis: 2 Milling Head Axes: 3 Lhjdpfx Aioydmcrjqol Tool change: Automatic Diameter of integrated saw unit: 100 mm MACHINE DETAILS Control: POWER PC 85 + WOODWOP 6.0 (updated in 2023) EQUIPMENT 4-position tool changer

Condition: used, Year of construction: 2018, Vertical CNC boring and machining center Workpiece length 200 - 3,050 mm Workpiece width 70 - 850 mm Workpiece thickness 12 - 60 mm Milling spindle 1 unit Main spindle power 5 kW Max. speed 18,000-24,000 rpm (depending on configuration) Tool interface HSK-F63 or ETP25 Tool changer 4-position magazine Vertical boring spindles 13 Horizontal boring spindles X 4 Horizontal boring spindles Y 2 Nut saw X-direction Control system Homag powerTouch / Power Control PC 86 Software WOODWOP 7.x Total connected power 11.5 kW Lhedpfx Aiezuw Dtoqel Compressed air requirement 7 bar Machine weight approx. 1,580 kg Installation dimensions (L W H) approx. 2,950 1,984 1,895 mm CE marking

Condition: new, Year of construction: 2026, Sawdust extraction HOLZING RLA S 300 8900 m3h extraction capacity ~ 8900 m3/h engine power 7.5 kW rotational speed 3000 rpm rated voltage 400 V, 50 Hz extraction port 300/200 mm Lhjdpfx Aijlkd Spsqel extraction speed 28 m/sec. Number of filters 45 G filter category Polyester filter material Sound level 80 dB without connection / 65 dB when connected through the pipe to the machine Filter area 22 m2 Overall dimensions (length x width x height) 2260/920/2140 mm Weight 274 kg The suction fans are located in the vacuum cabin on the clean side of the air in special sound-absorbing cabins. They have a special blade design, which makes them more efficient and effective and also contributes to electricity savings.

Year of construction: 2009, condition: excellent (used), I sell the throughfeed CNC drilling machine HIRZT Livra/B, Year 2009. Lsdsnxqdwepfx Aiqshl Working width up to 820mm Configuration: 14 + 6 + 2 pcs. drilling units Backfeeding system to return the elements to the operator or move forwards as a throughfeed machine. Total area covered: 2000 x 2000 (+800 +800mm) Total weight: 1350 kg. With full documentation and CE. Very good condition. Available immediately.

Condition: used, Vitap's smart solution for through-hole drilling and grooving with automatic return to the operator. Three controlled axes: - X-axis – continuous workpiece transport via a patented belt system. - Y-axis – drilling head movement, guided by rack and pinion. - Z-axis – drilling, guided by ball screw. The fewer limitations, the greater the progress! With our machine, we do not impose any limits on workpiece length. Simple TPA programming: - You can position the holes individually. - The machining operations are displayed on a virtual workpiece. - If the workpiece dimensions change, the holes can be automatically adjusted. Office software license – Power lies in tranquility. - Perhaps you have better ideas in a quieter environment? This allows you to make better use of the flexible CAD system. - With this license, you can write programs where they are developed and discussed, in the office. Color LCD TFT 19" 5/4 screen USB port for loading programs from any office workstation 3 password-protected access levels (operator, supervisor, assistance) Technical data: - 9 vertical spindles, individually controllable - 2+2 horizontal drilling spindles in X - 1+1 horizontal drilling spindles in Y - 1 grooving saw unit (saw blade diameter 100 mm) - Max. workpiece thickness 50 mm - Max. workpiece weight 50 kg - Max. workpiece size: X unlimited, Y 920 mm, Z 50 mm - Min. workpiece size: X 270 mm, Y 150 mm, Z 10 mm - Workpiece transport speed: 25 m/min - Spindle speed 3,600 rpm - Max. horizontal drilling depth, X and Y axes 30 mm Ljdpfx Aiezutqijqehl - Max. vertical drilling depth 45 mm - Max. vertical tool diameter 35 mm - Max. horizontal tool diameter 12 mm - Motor power 1.7 kW - CE standard

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, WE OFFER AN VERY NICE CONDITION MACHINE WEEKE OPTIMAT BP 140 MACHINE COMES FROM A FIRST OWNER AND ONLY ONE PERSON WORKING ALL TIME ON MACHINE. VERY GOOD CONDITION AND GOOD OPORTUNETEY TO BUY AN VERY NICE MACHINE. MACHINE IS READY TO WORK Lhedpfsvkklgex Aiqsl INCLUDES SAFETY CARPET VACUM PUMP DOCUMENTATION MACHINE IS READY TO WORK WE CAN SHIP MACHINE WORLDWIDE
