Through-feed machining centre

Weeke Optimat BHX 500

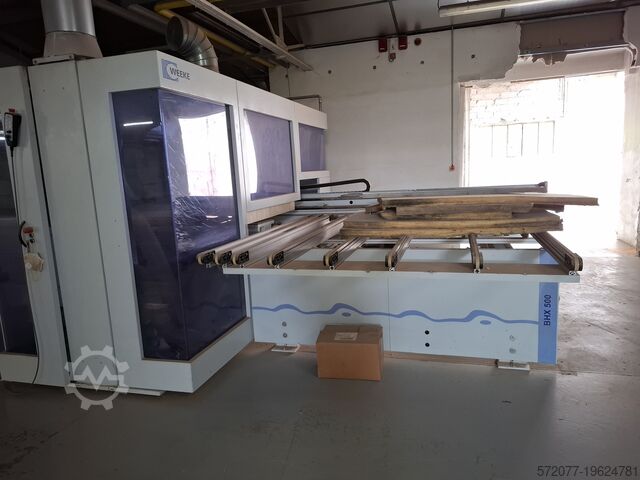

Year of construction: 2011, condition: ready for operation (used), Main Drive Number of axis 3 This 3-axis HOMAG WEEKE OPTIMAT BHX 500 was manufactured in 2011. It features a robust CNC processing center with a working area of 2500 mm by 1300 mm, main electrospindle power of 6 KW, and a maximum panel thickness of 80 mm. It includes 84 drilling spindles and dual milling spindles, each offering 6 KW at 18000 rpm. If you are looking to get high-quality CNC capabilities, consider the HOMAG WEEKE OPTIMAT BHX 500 machine we have for sale. Contact us for more information. Application Types CNC Wood Machining Hfodjx D Nvgepfx Ah Ier

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 0-250-12-2554, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,000 mm, workpiece height (max.): 80 mm, TECHNICAL DETAILS Minimum part dimensions (X, Y, Z): 250 mm x 100 mm x 8 mm Maximum workpiece dimensions (X, Y, Z): 3,000 mm x 1,000 mm x 80 mm Upper vertical working head Number of vertical electrospindles: 1 Vertical electrospindle power: 6 kW Grooving saw (90° to the X-Y axis), diameter: 125 mm Number of vertical drill spindles: 32 Vertical drill spindle power: 2.7 kW Number of horizontal drill spindles: 10 (8 in X + 2 in Y) Lower vertical working head Number of vertical electrospindles: 1 Vertical electrospindle power: 6 kW Grooving saw (90° to the X-Y axis), diameter: 125 mm Number of vertical drill spindles: 32 Vertical drill spindle power: 2.7 kW Number of horizontal drill spindles: 10 (8 in X + 2 in Y) MACHINE DETAILS CNC control: PC 85 Software: woodWOP 6 Electrical data Voltage: 380 V Frequency: 60 Hz Phases: 3 Power: 62 kW Current: 125 A Control voltage: 24 V EQUIPMENT Simultaneous processing of two panels Safety enclosure for the working head No. 2 clamps for fixing and moving the workpiece Loading station with air cushion Discharge of panel(s) via motorized roller conveyor Safety system with perimeter fencing and front safety mats Hfjdpfoxx R Sljx Ah Ior

Year of construction: 2007, condition: excellent (used), Used CNC machining center incl. hedgehog buffer Manufacturer: Weeke Type: Optimat BHX 500 year of construction 2007 Technical data: Workpiece length min. - max. mm 200 - 2500 workpiece width min. - max. mm 70 - 1000 workpiece thickness min. - max. mm 4 - 80 Workpiece stacking max. pcs. 2 Configuration 2V36, 2H8X/2Y, N2 X-Y 90, F2-ETP-6 KW Drilling spindles vertical per side, pcs. 36 Drilling spindles horizontal per side, in X-direction 8 Drilling spindles horizontal per side, in Y-direction 2 Grooving saw X-Y swiveling 90°, per side YES Milling spindle, per side, kW 6 Integrated options - Extension package vertical drilling spindles - Insertion table with automatic workpiece feeding and positioning - Length measurement in the machine - barcode software - Hedgehog buffer (description below) Hfedpfxoiy Di Is Ah Ijr Technical data hedgehog buffer Number of buffer places 30 Workpiece dimensions length 250 - 3000 mm width 100 - 1000 mm Thickness 12 - 80 mm Length over all Approx. 5700 mm Useful width Approx. 2000 mm Takeover height Approx. 950 mm Pick-up height / document height Approx. 1120 mm Pitch Approx. 125 mm
