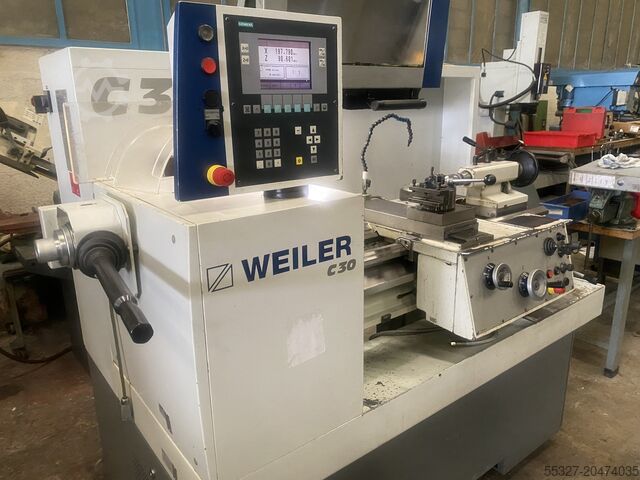

Teach-in lathe

WEILER C30

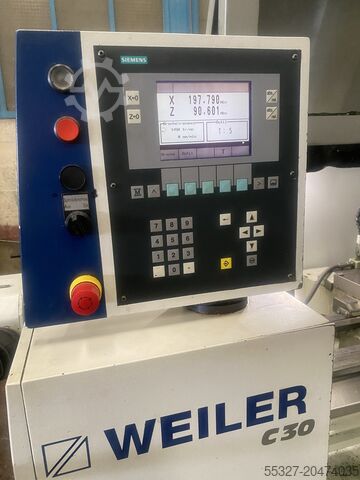

Condition: ready for operation (used), Year of construction: 2004, spindle bore: 41 mm, turning diameter: 330 mm, center width: 750 mm, Siemens control capacity 750X330MM spindle bore 41MM maximum spindle speed 4000 rpm Multifix turret set of Multifix collets and jaws Fgedpfxsxu Igxe Aa Nei

Condition: new, Year of construction: 2022, functionality: fully functional, Kunzmann WF 410M tool milling machine with Heidenhain TNC 128 control. Brand new and CE-compliant! Technical specifications: >> Year of manufacture 2022 Machine no. 411555 >> Milling table clamping area 650 x 375 mm Clamping slots 5 Slot width 14 H 7 Slot spacing 63 mm Maximum load 250 kg >> Speed range 1-4500 rpm >> Feed X, Y, Z axes (infinitely variable) up to max. 5/5/4 m/min >> Travels X/Y/Z: 410/350/450 mm >> Vertical quill and horizontal quill - SK40 >> Hydraulic tightening system >> Weight approx. 2000 kg >> Dimensions approx.: 2 x 2 x 2 m >> Connected load 13 kVA Accessories and equipment: >> Heidenhain TNC 128 control >> Heidenhain HR electronic handwheel 510FS >> Vertical and horizontal hydraulic clamping >> Automatic central lubrication >> Spindle brake >> Technical documentation, spare parts plans, operating instructions >> Machine light >> Minimum quantity lubrication >> Counterholder >> Digital display for spindle stroke >> Oriented spindle stop (tapping without compensating chuck) >> Chip protection cabin >> KT 130 edge finder >> Coolant system >> 200 mm rotary table >> Dividing head with 125 mm three- and four-jaw chuck >> 125 mm hydraulic vise About the machine: Fedev Rppkepfx Aa Nogi Offered is a Kunzmann WF 410M tool milling machine, built in 2022, in new condition with a Heidenhain TNC 128 control. The TNC 128 provides numerous dialog-guided cycles with graphic simulation for fast and easy data entry, e.g.: various drilling cycles, thread cutting, bolt circles, hole pattern, rectangular pockets, rectangular tenons, and multi-pass milling of surfaces. A very easy-to-use control system. The machine also has hydraulic clamping for both vertical and horizontal operation. Converting from vertical to horizontal is very easy by folding away the vertical head. The guideways are regularly lubricated by the central lubrication system. The Kunzmann has been mechanically and electrically tested by us. Take advantage of the opportunity to inspect and try out the Kunzmann on site with power on.

Condition: good (used), Year of construction: 2007, functionality: fully functional, Weiler C30 x 750 precision lathe (2007) Manufacturer: Weiler Type: C30 x 750 Year of manufacture: 2007 Availability: several machines available Condition: very good, used, from training workshop, last maintenance 09/2024 Center width 750mm Fgsdpfxexd Tiws Aa Noi Circulation diameter over bed 330mm Rotation diameter facing slide 160mm Movement of facing slide 180mm Bed width 240mm Turning tool cross-section 20 x 20mm Spindle head according to DIN 55027 size 5 Spindle diameter in front bearing 70mm Spindle bore 40.5mm Inner taper of the main spindle 5mm Drive power 60 %/100 % ED 9/7KW Total speed range 1 - 4,500 rpm Feed force longitudinal 6,000N Planar feed force 3,000N Feed range 0.001 - 10 mm/rev Rapid traverse speed longitudinal/plane 6/3 m/min Metric threads 0.1 - 400mm Inch thread 56 - 1/4 G/inch Module thread 0.125 - 28mm DP thread 224 - 1 Dp Max. Threads 99 Quill diameter 50mm Quill stroke 130mm Inner taper of quill MK3 Length 1750mm Width 1350mm height 1670mm Weight 1300kg Scope of delivery Rota S Plus 200-52 jaw chuck Multifix Machine light Coolant system Machine feet Original documentation Weiler maintenance log 09/2024

Condition: ready for operation (used), Year of construction: 2002, functionality: limited functionality, machine/vehicle number: 081, turning diameter over cross slide: 160 mm, spindle bore: 42 mm, turning length: 750 mm, turning diameter: 330 mm, swing diameter over cross slide: 160 mm, quill stroke: 130 mm, quill diameter: 50 mm, spindle speed (max.): 4,500 rpm, bed width: 240 mm, total length: 1,750 mm, total width: 1,150 mm, total height: 1,650 mm, overall weight: 1,300 kg, Used Weiler C 30 Servo Conventional Precision Lathe Year of manufacture 2002, center distance 750 mm, center height 165 mm, spindle bore 42 mm, dimensions L=approx. 1750 mm, W=approx. 1150 mm, H=approx. 1650 mm, weight approx. 1300 kg, equipped with ball quick-clamping device and various collets, two additional chucks, various tools. Display has minor fault, wear parts should be replaced. The machine can be inspected and functions tested. Wear parts should be replaced. Fsdjxfqyijpfx Aa Njgi

Condition: ready for operation (used), Year of construction: 2007, turning diameter over cross slide: 190 mm, turning length: 700 mm, turning diameter: 340 mm, spindle bore: 50 mm, Emco EMCOMAT-17D Distance between centers: 700 mm Swing diameter over bed: 340 mm Fgodpjxc H Dfjfx Aa Nsi Swing diameter over carriage: 190 mm Spindle bore/pass-through: 50 mm Spindle speeds: 35–3000 rpm Infinitely variable speed adjustment between gear ranges. Equipped with longitudinal and cross feed. 2-axis digital readout on X and Z axes. Multifix quick-change tool post.

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, turning diameter over cross slide: 160 mm, spindle bore: 43 mm, turning length: 750 mm, turning diameter: 330 mm, spindle speed (max.): 4,500 rpm, TECHNICAL DETAILS Fjdpexf Hiaofx Aa Nogi Turning length: 750 mm Turning diameter: 330 mm Diameter over cross slide: 160 mm Spindle bore: 43 mm Maximum spindle speed: 4,500 rpm MACHINE DETAILS Control: Siemens EQUIPMENT Collets Jaws Tool holder

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, spindle bore: 50 mm, EMCO lathe EMCOMAT 17D ex education in very clean condition. Specifications: - year of construction 2006 - turning diameter over the bed 340mm - turning diameter over the cross slide 190mm - distance between centers 700mm - speed 40-3000rpm variable in 4 steps - diameter of main spindle 50mm Accessories: - 3-jaw chuck with inner and outer jaws - 3-axis digital readout - electric diagram - multifix chisel holder with 3 holders - cooling system Fgedpou N Dpmefx Aa Nji - machine illumination - rotating center - bedstop - machine feet
