Lathe - cycle-controlled
Weiler E 35

Year of construction
2004
Condition
Used
Location
Reiden Switzerland
Lathe - cycle-controlled Weiler E 35
Lathe - cycle-controlled Weiler E 35
Lathe - cycle-controlled Weiler E 35
Lathe - cycle-controlled Weiler E 35
Lathe - cycle-controlled Weiler E 35
Lathe - cycle-controlled Weiler E 35
more Images
Weiler E 35
Weiler E 35
Weiler E 35
Weiler E 35
Weiler E 35
Weiler E 35
Show map
Show images
Show map

Machine data

Machine type:
Lathe - cycle-controlled
Manufacturer:
Weiler
Model:
E 35
Year of construction:
2004
Condition:
excellent (used)

Price & Location

Location:
Bodenachermatte 1, 6260 Reiden, Schweiz Switzerland
Call

Details about the offer

Listing ID:
A198-94460
Reference number:
CD-1126
Update:
02.09.2025

Description

Control: with Weiler D2 cycle control

Centre distance: 950 mm
Centre height: 200 mm
Swing diameter over bed: 410 mm
Swing diameter over cross slide: 200 mm
Bed width: 330 mm
Cross slide travel: 230 mm
Top slide travel: 120 mm
Cross slide length: 630 mm
Cross slide width: 195 mm
Bed carriage guide length: 480 mm
Tool cross-section (height/width): 25 x 25 mm

Spindle
Spindle nose according to DIN 55027: Size 6
Front bearing spindle diameter: 90 mm
Spindle bore: 54 mm
Main spindle taper: 6 MT

Main drive
Drive power 60% / 100% duty cycle: 9 / 7.5 kW
Max. spindle torque: 700 Nm
Total speed range: 1 – 3000 rpm
Speed range gear stage I: 1 – 750 rpm
Speed range gear stage II: 4 – 3000 rpm

Feed drive
Three-phase servo drives
Feed range longitudinal and facing: 0 – 20 mm/rev
Feed force longitudinal: 8000 N
Feed force facing: 5000 N
Rapid traverse speed longitudinal/facing: 10 / 5 m/min

Tailstock
Gedsw Ufg Rjpfx Abpekd
Quill diameter: 65 mm
Quill stroke: 120 mm
Quill taper: 4 MT

Thread cutting range
Metric threads: 0.1 – 400 mm
Inch threads: 1/4 - 56 TPI / 1"
Module threads: 0.125 – 28 mm pitch
DP threads: 1 – 224 TPI

Machine dimensions
Total length: 2300 mm
Total width: 1400 mm
Total height: 1700 mm
Machine weight: 2100 kg

Fixed steady rest (option)
Clamping range: 12 – 150 mm

Travelling steady rest (option)
Clamping range: 10 – 160 mm

The listing was translated automatically. Translation errors are possible.

Seller

Registered since: 2009

59 listings online

Trustseal Icon
Call

Send inquiry

Countryus
Germany
Austria
Switzerland
United States
United Kingdom
France
Belgium
Spain
Mexico
Italy
Netherlands
Poland
Russian Federation
Belarus
Ukraine
Estonia
Turkey
New Zealand
Ireland
Czech Republic
Denmark
Finland
Sweden
Norway
Luxembourg
Greece
Lithuania
Latvia
Iceland
Portugal
Brazil
Venezuela
Argentina
Hungary
Slovakia
Romania
Moldova
Slovenia
Serbia
Montenegro
Albania
Croatia
Bulgaria
Macedonia
Bosnia and Herzegovina
Israel
Egypt
Morocco
India
Indonesia
South Korea
Japan
Thailand
Malaysia
Vietnam
China
Taiwan
Iran
Bangladesh
Note: Your inquiry will be forwarded to all sellers in this machine category. This allows you to receive a large number of offers.
The inquiry could not be sent. Please try again later.
Privacy statement

Telephone & Fax

+41 62 54... show
Fax:
These listings may also fit your interest.
Listing
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
Lathe - cycle-controlled WEILER E 35
more images
Germany Aach
7,993 km
Lathe - cycle-controlled
WEILERE 35
Certified Dealer
Call
Condition: reconditioned (used), Year of construction: 1995, CYCLE LATHE WEILER " E 35" With 2 axes Siemens Sinumerik 805 Year of construction: 1995 Spindle bore: 54 mm Gkjdpfxsuzyw Dj Abpsd Center distance: 950 mm Rotation O over bed: 410 mm Speed range: 4 - 3000 rpm With the following accessories: PARAT tool holder with 8 pcs. inserts Chuck guard 3 Jaw chuck 0 200 mm 4 jaw chucks 0 200 mm Fixed lynette 12 - 150 mm Chip collection tray Chip guard with lighting Coolant device 4 pcs. Height-adjustable machine shoes Operating instructions
See details
Listing
Gear Grinding Machine LIEBHERR LCS 282
Gear Grinding Machine LIEBHERR LCS 282
Gear Grinding Machine LIEBHERR LCS 282
more images
Germany Metzingen
7,973 km
Gear Grinding Machine
LIEBHERRLCS 282
Certified Dealer
Call
Condition: used, Year of construction: 1999, max. wheel diameter 280 mm gear width 330 mm max. module 5 min. module 1 Control LIEBHERR CNC total power requirement 28 kW weight of the machine ca. 12 t dimensions of the machine ca. m Gksdpfx Aot Hwu Asbpod
See details
Listing

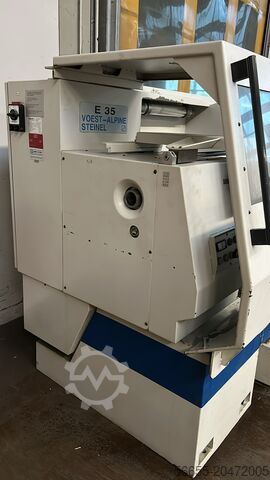

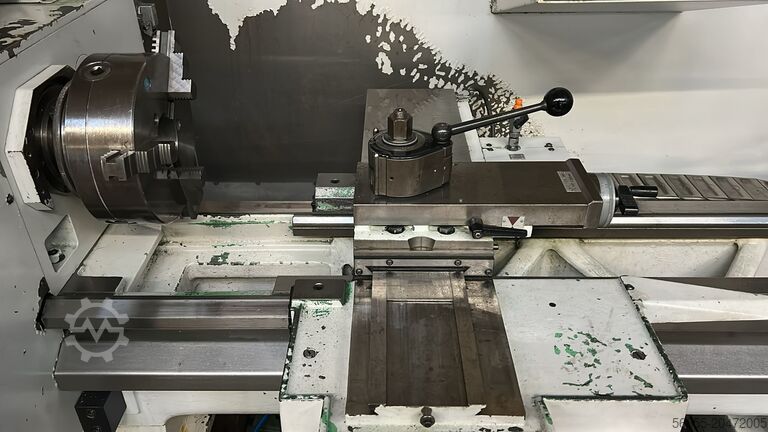

CNC lathe Weiler Voest-Alpine Steinel E35
