Lathe

Weiler

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, spindle bore: 83 mm, turning diameter: 570 mm, swing diameter over cross slide: 340 mm, center height: 280 mm, spindle speed (max.): 2,500 rpm, The machine is designed for heavy-duty turning and series production due to its robust construction! TECHNICAL DETAILS Speed range: 1 – 2,500 rpm Torque: 1,300 – 1,600 Nm Swing diameter over bed: 570 mm Swing diameter over cross slide: 340 mm Center height: 280 mm Distance between centers: 2,000 mm Spindle bore: 83 mm (optional 128 / 165 mm) Number of turret positions: 8 Turret tool holder: VDI 40 shank Tailstock quill diameter: 80 mm Tailstock taper: MK5 MACHINE DETAILS Control system: WEILER SIEMENS 810D Main drive power: 20 / 17 kW (60% / 100% duty cycle) Fpodpjymx N Nefx Ag Tsd Dimensions & Weight Dimensions (L x W x H): 3,850 mm × 1,850 mm × 1,750 mm Machine weight: 4,200 kg

Condition: used, Year of construction: 2002, turning diameter 240 mm turning length 530 mm control Siemens 810 D Powerline Fsdpfoycxibox Ag Tspd swing diameter 560 mm x-travel 207,5 mm z-travel 530 mm turning speeds 6000 U/min 12 Stk. total power requirement --- kW weight of the machine ca. 6,1 t

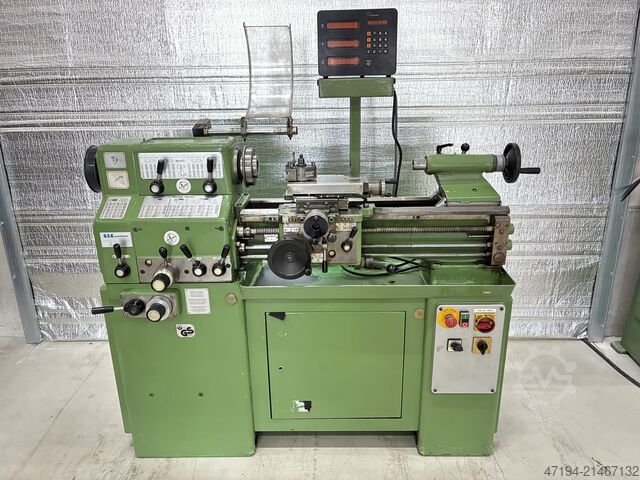

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, turning diameter over cross slide: 280 mm, WEILER MATADOR VS2 Weiler Matador VS2 lathe in very good condition from an educational institution, year of manufacture 1991, original paintwork, with Heidenhain digital readout and accessories. Technical specifications: * Machine number 91-102 * Centre height 140 mm * Distance between centres 500 mm * Speed: 15 / 3550 rpm * Spindle bore 36 mm * Spindle nose DIN 55027 -5 * Tailstock MK 3 * Automatic feed from 0.012 to 0.9 mm/rev * Thread cutting capability: metric, inch, module, and diametral pitch threads * Metric thread pitch from 0.25 to 12 mm * Weight approx. 700 kg Accessories and equipment: * Heidenhain 3-axis digital readout * 3-jaw steel chuck * Motor with brake * Multifix quick-change toolpost with 4 holders * Drill chuck * Rotating centre * Change gears * Electronic spindle protection * Machine manual in German. Fpodpfeytd U Rex Ag Tjd

Condition: ready for operation (used), Year of construction: 1993, functionality: fully functional, turning diameter over cross slide: 320 mm, turning length: 650 mm, spindle bore: 40 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 48 rpm, WEILER PRAKTIKANT 160B Weiler Praktikant 160B lathe in excellent condition, with many accessories. Year of manufacture: 1993. Technical specifications: * Machine year of manufacture: 1993, Machine number: 160 3471 * Centre height: 160 mm * Distance between centres: 650 mm * Speed: 16 steps, 48 / 2500 rpm * Spindle bore: 40 mm * Spindle head: DIN 55027 5 * Tailstock taper: MK 3 * Automatic feed from 0.02 to 0.63 mm/rev * Capable of metric, imperial, module, and diametral pitch threads * Metric thread pitch from 0.25 to 8 mm * Switchable spindle brake * Weight approx. 700 kg Accessories and equipment: * Heidenhain 3-axis digital readout * Several collets * 3-jaw steel chuck Rhom with 2 sets of jaws * 4-jaw chuck * Multifix A with 4 holders * Bed stop * Fixed centre * Change gears * Machine feet * Machine manual in German. Fjdoytd Ukjpfx Ag Tepd

Condition: good (used), Year of construction: 1987, functionality: fully functional, turning diameter over cross slide: 192 mm, turning length: 600 mm, spindle speed (max.): 2,500 rpm, spindle speed (min.): 48 rpm, travel distance X-axis: 150 mm, travel distance Z-axis: 650 mm, total height: 1,245 mm, total length: 1,582 mm, total width: 715 mm, overall weight: 680 kg, Equipment: documentation/manual, Weile Praktikant 160 B fully functional and well-maintained • 3-axis Mitutoyo digital readout (KA-200 Counter) with tool memory • Collet set from Ø1mm to Ø29mm Fpodpfeyr Sctox Ag Tod • Röhm DURO-M 160 3-jaw chuck including soft jaws • Thread holder set from Akon, new, with threading die set • Albrecht drill chucks Ø 0-10mm and Ø1-13mm • Drill bit set Ø0.5-13mm • Various turning tool holders for internal and external machining with 5 Multifix holders type A • Complete documentation

Condition: used, L + Z Lathe WEILER Type Praktikant 800R Machine No. 3315 Year of manufacture: 1984 Center distance: 800 mm Swing over bed: 280 mm Swing over cross slide: 160 mm Center height over bed: 140 mm Center height over cross slide: 80 mm Fpedpfoyr R Dcox Ag Ted Spindle bore: 36 mm Feeds: longitudinal and face Chuck mount: short taper DIN 55027 size 5, 4x M10 Tailstock taper: MK 3 Quill travel: 90 mm Spindle speed: 42 - 2000 rpm Drive power: 1 / 1.6 kW Electrical connection: 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and 8 gearbox steps - 3-jaw scroll chuck RÖHM ZS Ø 160 mm with 1 set of stepped jaws - MULTIFIX quick-change tool post size A with 3 tool holders - Emergency stop - Hinged chuck guard - Operating manual with electrical diagram Required space (L x W x H): 1900 x 700 x 1300 mm Weight: 560 kg Good condition

Condition: ready for operation (used), Year of construction: 1990, operating hours: 51,392 h, total height: 1,700 mm, overall weight: 1,300 kg, This Weiler E30 was manufactured in 1990. A robust horizontal turning machine featuring a spindle bore of 42mm and a swing diameter over bed of 330mm. It supports a wide range of thread cutting, from metric to DP thread, and includes a Multifix holder B. Ideal for detailed and versatile turning operations. Contact us for more information about this machine. Additional equipment • Multifix holder B mounted • Fixed steady rest (option) clamping range: 15-100 mm • Moving steady rest (option) clamping range: 10-85 mm • Collets ranging from 3- mm (increments of 0.5 mm) • Tailstock with an MK3 chuck Machine Benefits Technical Machine Benefits • Drive power 100% / 60% ed: 9/11 kw • Max. Torque on the turning spindle: 180 nm • Total speed range: 1-4500 min⁻¹ • Feed drive: three-phase ac feed drives • Feed range longitudinal: 0-20 mm/rev • Ellganggeschwindghell longitudinal/plan: 10/7. 5/5/3. 5 m/min • Quill diameter: 50 mm • Quill stroke: 110 mm • Inner taper of quill: mk 3 Extra Information Swing diameter over facing slide: 160 mm Bed width: 240 mm Sliding movement of the facing slide: 180 mm Bed slide guide length: 395 mm Turning tool cross-section (height/width): 20 x 20 mm Spindle head according to DIN 55027 Gr. 5 Spindle diameter in the front bearing: 70 mm Inner taper of the main spindle: Mk 5 Workpiece Metric thread range: 0.1 - 400 mm Inch thread range: G/1" 1/4 - 56 Module thread range: mm DP thread range: 1-224 G/" Number of threads max.: 50 Fjdpfx Agoyaimfj Topd Dimensions Machine Depth 1800 mm

Condition: ready for operation (used), Year of construction: 2008, operating hours: 22,491 h, spindle speed (max.): 1,800 rpm, travel distance X-axis: 410 mm, spindle motor power: 37,000 W, total height: 1,930 mm, total width: 2,120 mm, overall weight: 5,500 kg, product length (max.): 4,250 mm, number of axes: 2, Horizontal turning machine manufactured in 2008. This Weiler E70 / 2000 features a swing over bed of 720 mm and a maximum workpiece weight of 2,500 kg. It includes a steady rest, tailstock, and faceplate, providing versatility for various applications. With a spindle speed range of 1 – 1,800 rpm and a robust main drive power of 37 kW, this machine is designed for precision. If you are looking to get high-quality turning capabilities, consider the Weiler E70 / 2000 machine we have for sale. Contact us for further details. • Working range and capacities: • Swing over bed: 720 mm • Swing over cross slide: 430 mm • Center height: 360 mm • Distance between centers: 1,000 / 2,000 / 3,000 / 4,000 / 6,000 mm • Bed width: 480 mm • Max workpiece weight (unsupported): 2,500 kg • Max workpiece weight (with steady rest): 3,800 kg • Spindle and headstock: Fpedpfx Asyn Nxkog Ted • Spindle bore (standard): 106 mm • Spindle bore (options): 128 / 165 / 216 / 262 / 317 mm • Spindle nose: DIN 55027 size 11 • Max torque at spindle: 3,150 Nm • Feeds and movement: • Z-axis rapid traverse: 10,000 mm/min (10 m/min) • X-axis rapid traverse: 5,000 mm/min (5 m/min) • Feed force (Z): 20,000 N • Feed force (X): 10,000 N • Tailstock: • Quill diameter: 115 mm • Quill stroke: 225 mm • Inner taper: MK 6 (Morse Taper) • Threading capabilities: • Metric threads: 0.1–400 mm • Inching threads: 1/4–56 TPI • Module threads: 0.125–28 mm • DP threads: 1–224 DP • Hours: 22,491 h Additional equipment • Steady rest • Tailstock • Faceplate

Condition: ready for operation (used), Year of construction: 2009, spindle speed (max.): 2,500 rpm, total height: 1,785 mm, overall weight: 3,850 kg, number of axes: 2, This Weiler E50 was manufactured in 2009. A robust horizontal turning machine featuring a swing diameter over bed of 570 mm and a spindle bore of 83 mm. It offers a bed width of 350 mm and a turning tool cross-section of 32 x 25 mm. Ideal for precise and efficient turning operations. Contact us for more information about this machine. Machine Benefits Qualitative Machine Benefits • Spindle diameter in the front bearing: 120 mm • Spindle bore: 83 mm • Inner taper of the main spindle: metric 90 • Feed range longitudinal and planar: 0-20 mm/rev • Feed force longitudinal: 10000 n • Feed force planar: 7000 n • Input speed longitudinal/planar: 10/7 m/min or 5/3. 5 m/min • Metric threads: 0. 1-400 mm • Inch threads: 1/4" - 56 g/1" • Module threads: Technical Machine Benefits • Drive power (60% / 100% ed): 20/17 kw • Max. Torque at the turning spindle: 1600 nm • Gear stage i: 1-625 min-¹ • Gear stage ii: 4-2500 min-¹ • Bed width: 350 mm • Quill diameter: 80 mm • Quill stroke: 200 mm • Inner taper of the quill: mk 5 • Turning tool cross-section (height/width): 32 x 25 mm • Spindle head according to din 55027: size 8 Extra Information Machine still under power/ DP threads: 1 - 224/ Fodpfx Agex D Ibbs Tspd Fixed steady rest clamping range: 12-150 mm / 120-270 mm/ Moving steady rest clamping range: 12- mm/ The machine has been working effectively in 1-shift operation since it was purchased/ The chuck incl. hard & several sets of soft jaws and the tailstock can be supplied as accessories/ Any associated tools could be discussed in the event of an order/ The footprint of the machine is 2.8m x 5.2m, the 2.8m already includes 600mm as a workstation/ All manuals are available. Dimensions Machine Depth 3250 mm

Condition: ready for operation (used), Year of construction: 2009, operating hours: 9 h, This horizontal turning machine was manufactured in 2009. A Weiler E 60x1000, it features a spindle bore of 83mm and a swing diameter over bed of 640mm. With a maximum torque of 1400Nm and a speed range up to 2500 rpm, it's ideal for robust turning operations. Recently overhauled, it includes renewed bearings and guideways, ensuring high precision. Consider the opportunity to buy this Weiler E 60x1000 horizontal turning machine. Contact us for more information about this machine. Additional equipment • Tailstock spindle diameter: 100mm / Tailstock spindle travel: 200mm / Internal taper of the tailstock spindle: Mk.5 Machine Benefits Technical Machine Benefits • Distance between centers: 1000mm /center height: 320mm / swing diameter over bed: 640mm / swing diameter over carriage: 405mm • Carriage travel: 380mm / bed saddle guide length: 570mm Fpjdpfx Agsx D Ry Hs Ted • Spindle head according to din 55025, size 8 / spindle bore: 83mm / internal taper of the main spindle: metric 90 • Drive power 60% / 100% duty cycle: 20. 5/17 kw / max. Torque at the spindle: 1400nm / speed range gear stage 1: 0-800 rpm / speed range gear stage 2: 0-2500 rpm • Overhaul measures include hardening and grinding of bed guideways, grinding of tailstock guideways, and overhauling of bed and cross-slide unit. • Replaced and renewed components include sliding surfaces, wedge rails, all wipers, belts, main spindle motor, safety devices, rotary switches, and lubrication system. • Cycle control weiler: 840d/sl1 • Tool holder according to customer requirements: multifix size c or parat size 3 Extra Information Machine overhauled in 2022Cycle controlledOptional: A used 200 mm jaw chuck can be supplied. A Lynette is not included with a 1 m centre distance, but can be purchased from the manufacturer at any time. As stated in your description, we offer customers a choice of two different tool systems: Multifix size C or Parat size 3. These are completely rebuilt, which is why there are no tool holders.
