Lead/traction spindle lathe

Weiler Primus

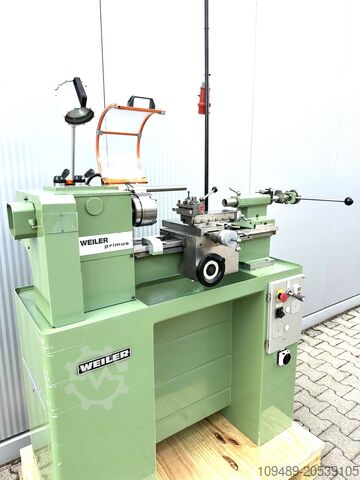

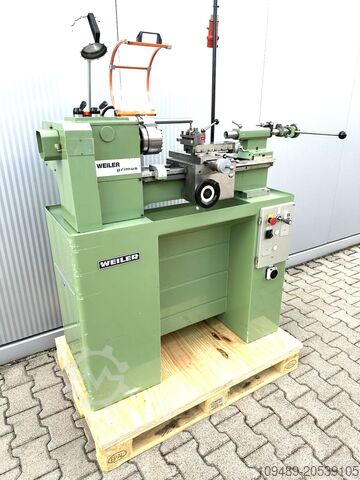

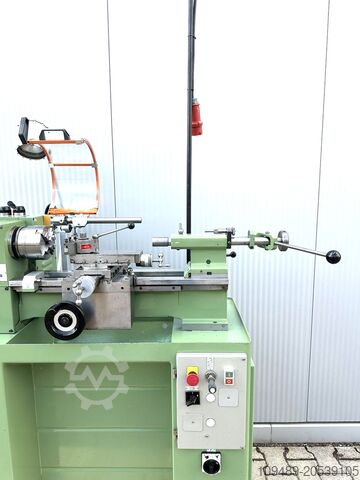

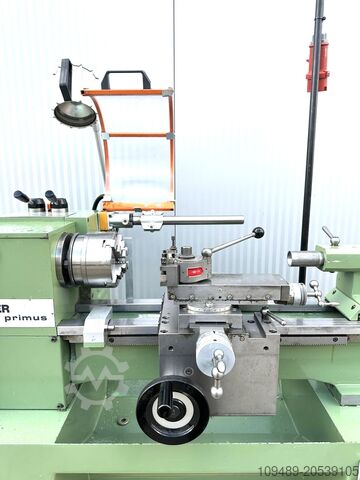

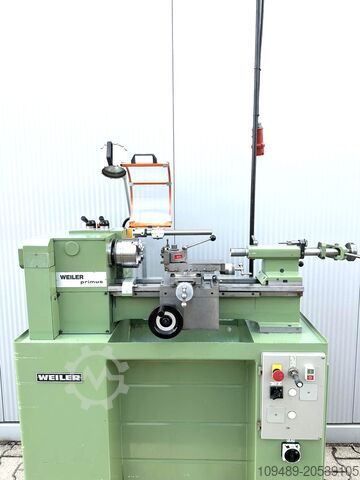

Condition: like new (used), functionality: fully functional, Weiler Primus Lead and Pull Spindle Bench Lathe – Like New Condition!!! Technical Data: >> Year of manufacture approx. 1990, machine no. 4472 >> Center height 120 mm >> Distance between centers 430 mm >> Speed: 60 - 3000 rpm in 18 gear stages >> Spindle bore 23 mm >> Short taper spindle head DIN 55027 >> Tailstock MK 2 Kdjdpjz A Tgqsfx Akwst >> Feeds from 0.03 to 0.15 mm/rev >> Possible threads: Metric, inch, module, and diametral pitch >> Metric thread pitches from 0.25 to 2.5 mm >> Length 1.2 m, height 1.3 m, depth 0.65 m Accessories and equipment: >> 1 three-jaw chuck, 125 mm, like new, with 2 sets of jaws >> Collet chuck with collets from 2 mm to 12 mm, increasing in 1 mm increments >> Mulifix size A with 3 steel holders >> Change gears >> Fixed steady rest >> Faceplate >> Spindle guard >> Operating manual, electrical diagrams, and much more About the machine: A Weiler Primus Lead and Pull Spindle Bench Lathe with a workbench is offered in like-new condition. The machine is, of course, fully functional. All slides run very smoothly and evenly. Even at high speeds, the Weiler runs quietly. This Primus model comes from the German Armed Forces, where it was used very little (almost new). This newer generation of Weiler lathes is very user-friendly and can produce surfaces that are as smooth as if they were ground. Take advantage of the opportunity to inspect this machine on-site and under power to convince yourself of its condition. Digital display available for an extra charge.

Condition: good (used), x-travel 400 mm y-travel 375 mm z-travel 250 mm table-size 205 x 800 mm T-slots 4 x 45 14 H7 speeds 50 - 3150 U/min tool taper 40 ISO quill stroke 50,0 mm Feeds X + Z Axis 5.0 - 1000 mm/min Feeds Y Axis 5.0 - 670 mm/min rapid traverse 2.4 / 1.6 m/min control Heidenhain Kjdpfx Aoxl E Syskwodt total power requirement 5.1 kW weight 950 kg range L-W-H 1860 x 1790 x 1750 mm Machine from a vocational training center In good condition (!!) Equipment: - MAHO universal tool milling/drilling machine - HEIDENHAIN "TNC 135" positioning/path control * 3-axis manual data input control * Programmable by the machine operator * Convenient and easy operation - Electric motor-driven feed rates in all axes (X/Z/Y) * X and Z axis: 5.0 - 1000 mm/min with rapid traverse of 2.4 m/min * Y axis: 5.0 - 670 mm/min with rapid traverse of 1.6 m/min - Tiltable milling head to both sides - Tiltable T-slot universal table - Vertical clamping range - Continuously variable speed adjustment - Manually extendable spindle sleeve - Hardened and ground guideways - Electro-hydraulic tool clamp - Coolant system - Front coolant tank - operating instructions

Condition: used, Year of construction: 1999, turning diameter over bed 280 mm turning diameter over slide rest 150 mm turning length 500 mm center height over bed 140 mm centre distance 500 mm bed width 205 mm spindle bore 40 mm turning speed range - stepless 30 - 4.000 U/min 3-jaw-chuck diameter 140 mm quick change toolholder MULTIFIX Typ A Kdodez Abw Hopfx Akwet drive capacity - spindle motor 4,0 kW taper in tailstock-quill MK 3 dia. of quill 40 mm quill stroke 85 mm voltage 400 V total power requirement 7,5 kW weight of the machine ca. 800 kg dimensions of the machine ca. 1,40 x 0,95 x 1,55 m - Serial-No.: 154 - SIEMENS 3-axis digital display - MULTIFIX quick-change tool holder - rotating centering tip

Condition: excellent (used), functionality: fully functional, Weiler Primus lathe in excellent condition. Can be inspected while powered on. Kdsdpfx Akox Htf Howot Technical data: Center distance: 450 mm Center height: 120 mm Spindle bore: 23 mm Speed: 30 – 3000 rpm Tailstock: MK 2 Drive power: 1.5 kW Weight: 350 kg Dimensions: 1200 x 650 x 1550 mm Price reduced!

Condition: ready for operation (used), Deckel FP 2 NC Universal Milling Machine Universal Milling Machine TNC 320 / 321 Travel distances: x- 300mm | y- 300mm | z- 400mm Ksdpjxfkm Asfx Akwedt Stepless spindle speed 31.5 - 5000 rpm Feed rates 2-4000 mm/min Rapid traverse 4000 mm/min Tool holder SK 40 Quill stroke 80 mm Machine weight 1350 kg You are welcome to arrange an inspection appointment. We can also organise affordable shipping for you! You will receive a proper invoice. For international customers, we can also provide a net invoice. The requirement is a valid VAT ID number. Subject to prior sale. Visit our shop and take a look at our other offers. The specified company names and trademarks are the property of their respective owners and are used for identification and description purposes only. Variations in technical data or errors in the description of the item may occur and are subject to change.

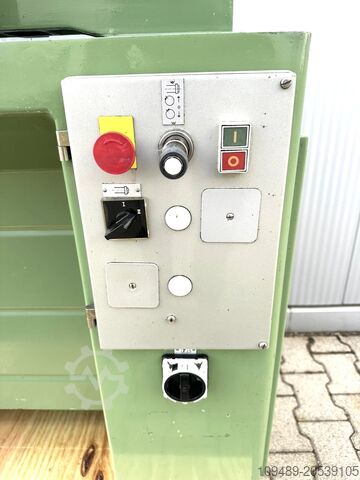

Condition: ready for operation (used), turning length 450 mm turning diameter over bed 245 mm turning diameter over slide rest 135 mm spindle bore 23.0 mm tool adaptor DIN 55021-4 quill: 2 MK quill travel 80.0 mm turning speeds 60 - 3000 U/min bed width 155 mm total power requirement 1.2 / 1.5 kW voltage 380 V weight of the machine ca. 340 kg. range L-W-H 1200 x 650 x 1330 mm from a vocational school (!) Kedpfxszbc Das Akwsdt particularly suitable for precision turned parts The Primus series is the most compact precision sliding headstock and sliding headstock lathe(LZ) from WEILER. It is used in toolmaking, laboratories and training workshops as an absolute machine for precise work in the tightest of spaces. The machine is built for extremely tight tolerances. The hardened and ground machine bed ensures maximum for maximum vibration damping and durability. Features: - Robust lead/traction spindle lathe - 2-axis digital readout "D60-2V" - three-jaw chuck - Folding lathe chuck guard - chuck key - MULTIFIX steel holder with 3x inserts - Sliding tailstock - Control panel, front left - infinitely adjustable feeds for flat and top support - Pole-changing drive motor - machine base frame - Chip guard rear panel - Additional accessories such as collet holder Collets etc. - EMERGENCY OFF button at the front

Condition: ready for operation (used), turning length 450 mm turning diameter over bed 245 mm turning diameter over slide rest 135 mm spindle bore 23.0 mm tool adaptor DIN 55021-4 quill: 2 MK quill travel 80.0 mm turning speeds 60 - 3000 U/min bed width 155 mm total power requirement 1.2 / 1.5 kW voltage 380 V weight of the machine ca. 340 kg. range L-W-H 1200 x 650 x 1330 mm from a vocational school (!) particularly suitable for precision turned parts The Primus series is the most compact precision sliding headstock and sliding headstock lathe (LZ) from WEILER. It is used in toolmaking, laboratories and training workshops as an absolute machine for precise work in the tightest of spaces. The machine is built for extremely tight tolerances. The hardened and ground machine bed ensures maximum for maximum vibration damping and durability. Features: - Robust lead/traction spindle lathe - 2-axis digital readout "D60-2V" - three-jaw chuck - Folding lathe chuck guard Ksdpfxezbc Dtj Akwjdt - chuck key - MULTIFIX steel holder with 3x inserts - Sliding tailstock - Control panel, front left - infinitely adjustable feeds for flat and top support - Pole-changing drive motor - machine base frame - Chip guard rear panel - Additional accessories such as collet holder Collets etc. - EMERGENCY OFF button at the front

Condition: used, Elmag metal lathe, good condition, approx. 1500 mm center distance, approx. 3000 kg Kedpfjvrvmfjx Akwedt Prices subject to change, errors, printing and typesetting errors reserved

Condition: used, Year of construction: 1981, machine/vehicle number: 283, Item No. 26208 Technical Data: - Maximum turning height 120 mm - Maximum turning diameter 450 mm - Maximum swing over bed 250 mm - Spindle bore 23 mm - Spindle mounting with threaded nose DIN 55027 - Taper of tailstock spindle MK 2 - 20 spindle speeds 60 - 3000 rpm - Feeds - longitudinal 0.03 - 3.0 mm - transverse 0.015 - 0.150 mm - Thread pitches 0.25 - 5 mm - Drive 400 V / 1.1 / 1.5 kW - Footprint approx. approx. W 1200 x H 1250 x D 650 mm - Weight approx. approx. 700 kg - Including: Kdodpfx Akjzyl H Hjwot - 3-jaw chuck - Quick-change tool holder - Rotating center - Separate tool cabinet with various accessories

Condition: good (used), Turning diameter 160 mm Turning length 500 mm Swing diameter over bed 400 mm Swing diameter over cross slide 220 mm Main spindle Main spindle bore 51 mm Spindle speed 5,000 rpm Bar diameter 42 mm Chuck diameter 160 mm Number of tool positions 12 Tailstock quill stroke 50 mm Tailstock spindle taper MK3 Travel - x 250 mm Travel - z 550 mm Total power requirement 30 kW Machine weight approx. 4,000 kg Kjdpfxszwpl Is Akwodt

Condition: good (used), Year of construction: 2010, Conventional lathe, center high 254 mm, between centers 1000 mm, bore Ø 80 mm, 12 speed 30 - 2200 rpm, motor 5,5 kw, camlock 6'', dimensions 230x115x165 cm, weight ca. 1750 kgs; equipement: DRO on 2 axis, coolant device, 3-jaws chuck Ø 250 mm, rotating pin, tool post MULTIFIX C with toolholders, steady and following rest Kdedpfx Aetv Iy Eskwst

Year of construction: 1986, condition: used, Weiler Primus lathe year ca.1986, three-jaw chuck , Multifix. Machine in a good condition , By arrangement under power ready for demonstration. Kodpfx Aken Ard Dowjdt

Condition: used, functionality: fully functional, Distance between centers: 450 mm Center height: 120 mm Spindle bore: 23 mm Speed: 30 – 3000 rpm Tailstock: MT 2 Drive power: 1.5 kW Weight: 350 kg Dimensions: 1200 x 650 x 1330 mm Paint finish: Reseda green RAL 6011. Digital display: Available upon request for an additional charge. Accessories: Additional accessories available upon request! Kodpfx Aowcxf Dokwsdt We are also happy to offer this machine completely overhauled!

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, machine/vehicle number: 2025-09/2404095, turning diameter over cross slide: 224 mm, spindle bore: 51 mm, center height: 180 mm, quill diameter: 32 mm, quill travel distance: 100 mm, total length: 1,680 mm, total height: 1,400 mm, TECHNICAL DATA: Centre distance: 1000 mm Centre height: 180 mm Swing diameter over bed: 360 mm Swing diameter over cross slide: 224 mm Swing diameter without gap bridge: 502 mm Gap bridge length: 235 mm Cross slide travel: 170 mm Top slide travel: 95 mm Max. turning tool cross section: 16x16 mm Chuck mounting: D1 - 4 Spindle mounting (lathe spindle): MT 6 Spindle bore: 51 mm Kodpfxoxykafj Akwsdt Spindle speed: 70 - 2000 rpm Number of speed ranges: 8 Longitudinal feeds: (32) 0.052 - 0.392 mm/rev Cross feeds: (32) 0.014 - 0.380 mm/rev Metric thread pitch: (26) 0.4 - 7 mm Metric module threads: (26) 0.4 - 7 mm Inch threads, TPI: (34) 4 - 56 TPI Inch module threads, TPI: (34) 4 - 56 TPI Leadscrew pitch: 4 mm Leadscrew diameter: 32 mm Quill mounting: MT 3 Quill diameter: 32 mm Quill travel: 100 mm Motor power: 1500 W Coolant pump: 40 W Electrical connection: 400/50 V/Hz Total length: 1680 mm Total height: 1400 mm Weight: 520 kg Standard accessories: - RÖHM 3-jaw chuck Ø 200 mm - 4-jaw faceplate chuck Ø 200 mm - Face plate Ø 320 mm - 2 fixed centre points - Live centre MT 3 - Travelling steady - Fixed steady - Quick-change tool post set ME - Thread dial and change gear set - Halogen machine lamp - Emergency stop button / No-voltage release - Chuck guard with safety switch - Machine base / chip tray / splash guard - Tool kit / operating manual / CE

Condition: ready for operation (used), Year of construction: 2018, spindle speed (max.): 4,000 rpm, travel distance X-axis: 150 mm, travel distance Z-axis: 500 mm, spindle motor power: 4,000 W, total height: 1,700 mm, total width: 890 mm, overall weight: 1,050 kg, bar diameter (max.): 43 mm, product length (max.): 1,570 mm, workpiece diameter (max.): 280 mm, number of slots in tool magazine: 4, number of axes: 2, Horizontal turning machine manufactured in 2018. This Weiler PRIMUS VCD features a connected load of 7.5 kVA and operates at a nominal current of 15.5 A. With a machine weight of 1050 kg, it is designed for robust performance. If you are looking to get high-quality turning capabilities, consider the Weiler PRIMUS VCD machine we have for sale. Contact us for further details. • Machine Type: Centre Lathe • Turning Length / Distance Between Centres: 500 mm • Swing Over Bed: 280 mm • Swing Over Cross Slide: 150 mm • Spindle Nose (DIN 55027): Size 5 • Front Bearing Diameter: 70 mm • Spindle Bore: 43 mm • Main Spindle Internal Taper: ME 50 • Drive Power (100% Duty Cycle): 4 kW • Spindle Speed Range: 30 – 4,000 rpm • Number of Feed Rates: 24 • Longitudinal Feed Range: 0.02 – 0.63 mm/rev • Cross Feed Range: 0.006 – 0.20 mm/rev • Metric Thread Range: 0.25 – 8 mm • Inch Thread Range: 80 – 2 TPI • Module Thread Range: 0.25 – 4 Module • Diametral Pitch (DP) Thread Range: 200 – 5 DP • Tailstock Quill Diameter: 40 mm • Tailstock Quill Travel: 85 mm • Tailstock Taper: MT3 • Operating Voltage: 400 V • Control Voltage: DC 24 V • Connected Load: 7.5 kVA • Nominal Current: 15.5 A • Frequency: 50 Hz • Main Fuses: 25 A • Machine Weight: 1,050 kg • Machine Dimensions (L × W × H): 1,570 × 890 × 1,700 mm Additional Equipment • 4-Position Quick-Change Tool Post PARAT Size 1, incl. 1 × WD 1/12 Tool Holder • 2 × WD 1/12 Tool Holders • Lever-Operated Collet Chuck for 173 E Collets • 13 × 173 E Collets, Clamping Range: 3–15 mm (1 mm Increments) • Fixed Steady Rest with Roller Jaws, Capacity: 15–100 mm • Movable Chip Splash Guard with Viewing Window • 8 × Levelling Elements Technical Specification Kdsdpfx Akjzpwh Uowot Counter Spindle No Driven Tools No
