Zerkleinerer

Weima WL 4

Condition: excellent (used), Catalogue number: 7760 TECHNICAL DATA - Loading hopper inlet at the top: 1410x1000mm - Loading hopper inlet at the bottom: 1040x600mm - Discharge outlet for shredded wood (auger outlet): fi 200mm - Rotor working width: 580mm - Main motor: 18.5kW - Pump motor: 0.75kW - Auger motor: 0.75kW Chsdpfx Asxg Dg Sebwoc - Number of knives: 28 pcs - Knife dimensions: 40x40mm - V-Rotor - Screen: 12x15mm - Hydraulic pressing drawer - Electric auto-reverse - Auger discharge dimensions (L/W/H): 4000x910x2400mm - Chipper dimensions (L/W/H): 2100x1300x2250mm - Weight approx.: 1500kg ADVANTAGES – German manufacture – V-Rotor – Auger – DTR technical documentation – Hydraulic pressing drawer, auto-reverse – Unpainted – Used chipper, in perfect condition Net price: 73,900 PLN Net price: 17,390 EUR based on the exchange rate of 4.25 EUR (Prices may change with larger fluctuations)

Condition: excellent (used), Year of construction: 2017, Waste Wood Shredder Manufacturer: Weima Model: WL 4 Year of manufacture: 2017 Chjdpfxexix A Te Abwec Operating hours: approx. 2,684 h Hopper opening: 800 x 600 mm Hopper volume: 0.6 m³ Power: 18.5 kW Screen diameter: 20 mm Number of knives: 14 Feed: Hydraulic Rotor diameter: 252 mm Speed: 90 rpm Weight: 1,300 kg

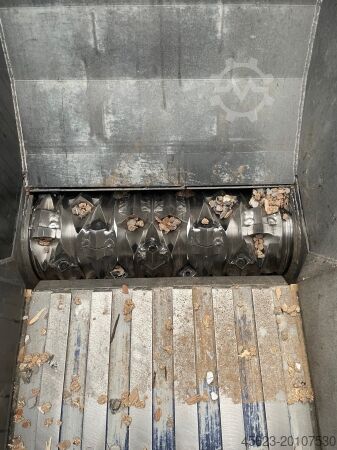

Condition: used, 0 800x600 mm Motor output 18,5 kW 0 0,6 m³ Diameter of the motor 252 mm Dimensions (L/W/H) 1700x1130x1595 mm Weight 1300 kg Number of working hours 1741 h WEIMA shredder WL 4, machine completely checked ----- Note: The machine has been completely checked by us, it is running perfectly, see video. The blade and slide plate have already been replaced by the previous owner. We replaced the V-belt during the inspection. Description: The Weima high-performance shredders with their flexible application options can process all types of wood materials (hardwood, softwood, chipboard, MDF materials, plywood, veneer residues, etc.) into fuel chips and achieve an enormous reduction in the volume of the material in the case of bulky materials. Function: The machine is equipped with a large filling hopper and can be fed using a conveyor belt or by hand. This hopper can be adapted to individual needs and guarantees a continuous and cost-effective material feed without the need for manual assistance. The hydraulically controlled slider feeds the wood waste to be shredded to the cutting area of ??the rotor and is controlled automatically and depending on the load. The internal slider guides are made of highly abrasion-resistant plastic (polyamide) and can be adjusted. The hydraulic cylinders are cardanically suspended to avoid transverse forces on the piston sleeves. The patented and profiled V-rotor made of solid steel has a diameter of 252 mm and works at a rotor speed of 80 - 120 rpm. The concavely ground, aggressive and 4- way rotating knives / cutting crowns are located in milled knife pockets on special knife carriers. This patented system guarantees high throughput, low energy consumption and optimal discharge of the shredded material by reducing the cutting gap between the counter knife and the rotor for the first time. The screen mounted under the rotor determines the chip size (10 - 100 mm). A hydraulically opened screen basket is also available on request. The power is transmitted from the electric motors via V-belts to a strongly dimensioned gear, which is mounted on one side of the rotor on the shaft stub. Technical data WL 4 / 18.5 kW ----- Feed opening: 600 x 800 mm Standard hopper capacity: 0.6 m³ Rotor working width: 600 mm Rotor diameter: 252 mm Power: 18.5 kW Rotor speed: approx. 90 rpm Sieve diameter: 15 mm Paint finish: Weima standard RAL 2002 / 7016 Connection value: 400 V +/- 5% / 50 Hz Weight: approx. 1,300 kg Includes: Electrical control (Moeller / Siemens / Allen-Bradley) Control cabinet (Rittal / Sarell) Codjvvx Dzspfx Abwehc Concavely ground cutting crowns (40 x 40 mm ) Sterntriangular start Vibration-damping foundation V-rotor (patented) with knife pockets milled into the profile (technical information according to the manufacturer - no guarantee!)

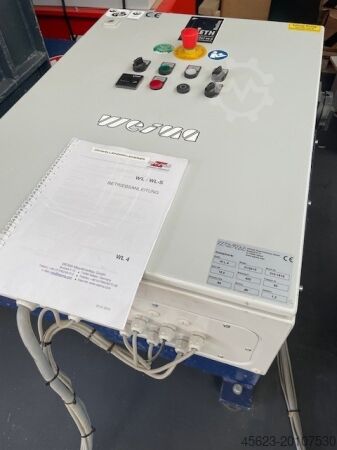

Condition: used, Year of construction: 2025, Special price - exhibition machine Technical specification WL 4 Hopper opening with log spacer 600 x 1,050 mm Hopper content 0.6 m³ Working width of the rotor 600 mm Diameter of the rotor 252 mm Drive power 18.5 kW Rotor speed 80 -120 rpm Number of knives 28 Type and size of knives concave / 40 x 40 mm, cutting reversible crowns Screen perforation 15-20 mm Painting WEIMA Standard RAL 2002 / 7016 Connected load 400 V +/- 5% / 50 Hz Weight approx. 1,300 kg Including: • Control cabinet* (Rittal) including electrical control (Moeller / Siemens) and star-delta start-up • Rubber vibration elements • V - rotor (patented) with knife pockets milled into the profile • Gear limit switch • Slider cycle • Slider half back • Log spacer hopper • 2. Knife series Cjdpfsxbuq Djx Abwehc Storage location: Supplier

Condition: as good as new (ex-display), Year of construction: 2025, Quiet and slow runner WL 4/18,5 kW Cedpfxobtnfto Abwehc Technical data: Hopper opening: 600 x 800 mm Hopper opening with logspacer:600 x 1050 mm hopper capacity: approx. 0,6 m³ Working width of the rotor: 600 mm Diameter of the rotor: 252 mm Number of knives: 28 pieces Knives: 40 x 40 mm concave Sieve perforation: 15/20 mm Included: Control cabinet Electrical control Star-delta start-up Rubber vibrating elements 2nd row of knives Logspacer (free cutting hopper) Top equipment Location: Ex stock Bitburg - immediately available - at a special price

Condition: used, Year of construction: 1991, total length: 1,660 mm, total height: 1,470 mm, total width: 1,100 mm, Empty weight: 1.300 kg - Main motor power [kW]: 18.5 - Rotor width [mm]: 600 - Opening width [mm]: 600 - Opening length [mm]: 800 - Sieve perforation [mm]: 15 - Number of rotating knives [pcs.]: 1 - Year: 1991 - Documentation available: No - Serial number: 500-1014 - Transport dimensions: 1660mm x 1100mm x 1470mm (l x w x h) - Transport weight [kg]: 1300kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT Codowu Uy Iopfx Abwohc VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Glenn Smeets

Condition: used, Year of construction: 1992, functionality: fully functional, fuel type: electric, – German-made – Year of manufacture: 1992 TECHNICAL PARAMETERS: - Feed opening: 600 x 800 mm - Rotor diameter: 175 mm - Rotor length: 600 mm - Total power: 18.5 kW - Number of knives: 14 pcs - Rotating crown cutting knives: 30 x 30 mm - Screen: Ø 15 and 12 mm - AUTOREVERSE - HYDRAULIC DRAWER Chodow Iqbyepfx Abwjc - Height of pressure drawer: 180 mm - Rotor speed: 80–120 rpm - Extraction connection diameter: Ø 200 mm - Dimensions (L/W/H): 200 x 120 x 120 cm - Weight: 1200 kg

Condition: like new (used), Hopper dimensions: 1005 × 600 mm Motor power: 18.5 kW Shaft drive via planetary gearbox Pneumatic pressing drawer Cedpsw Iznkofx Abwshc Year of manufacture: 2013 Shaft length: 600 mm

Condition: as good as new (ex-display), Year of construction: 2025, Quiet and slow runner WL 4/18,5 kW Technical data: Hopper opening: 600 x 800 mm Hopper opening with logspacer: 600 x 1050 mm hopper capacity: approx. 0,6 m³ Working width of the rotor: 600 mm Diameter of the rotor: 252 mm Number of knives: 28 pieces Chjdpfxobunq He Abwoc Knives: 40 x 40 mm concave Sieve perforation: 15/20 mm Included: Control cabinet Electrical control Star-delta start-up Rubber vibrating elements 2nd row of knives Logspacer (free cutting hopper) Location: 54634 Bitburg Immediately available

Condition: used, Year of construction: 1999, functionality: fully functional, fuel type: electric, - German-made - Year of manufacture: 1999 TECHNICAL SPECIFICATIONS: - feed opening: 600 x 800 mm - rotor diameter: 175 mm - rotor length: 600 mm - total power: 18.5 kW Codow H Rn Eopfx Abwshc - number of knives: 14 pcs - reversible cutting knives: 30 mm x 30 mm - screen: Ø 15 and 12 mm - AUTOREVERSE - HYDRAULIC RAM - pressing ram height: 180 mm - rotor speed: 80–120 rpm - extraction nozzle diameter: Ø 200 mm - dimensions (L/W/H): 200 x 120 x 160 cm - weight: 1200 kg
