Planer and moulder

WEINIG Hydromat 25

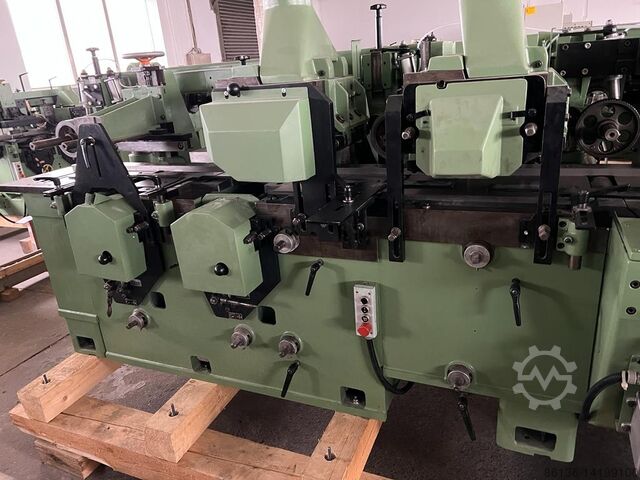

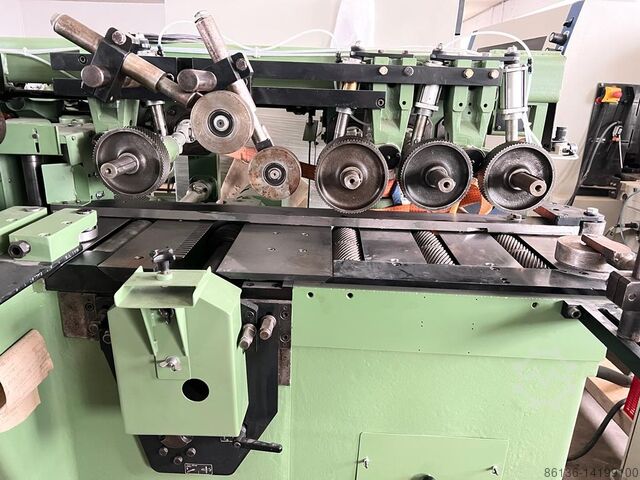

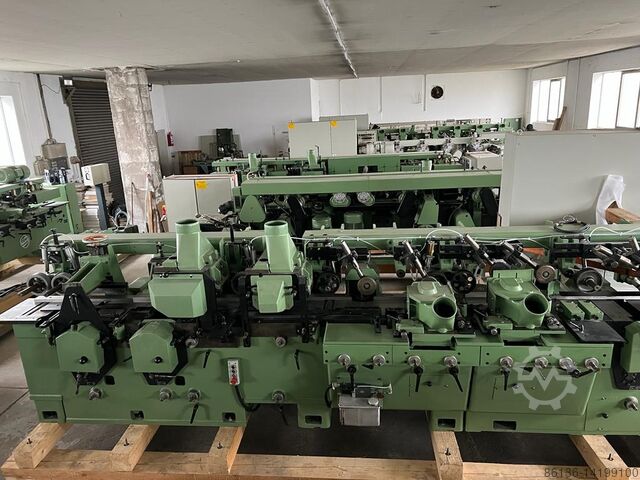

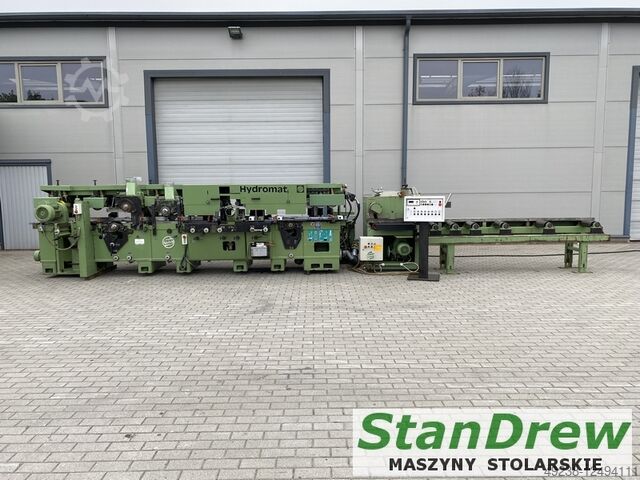

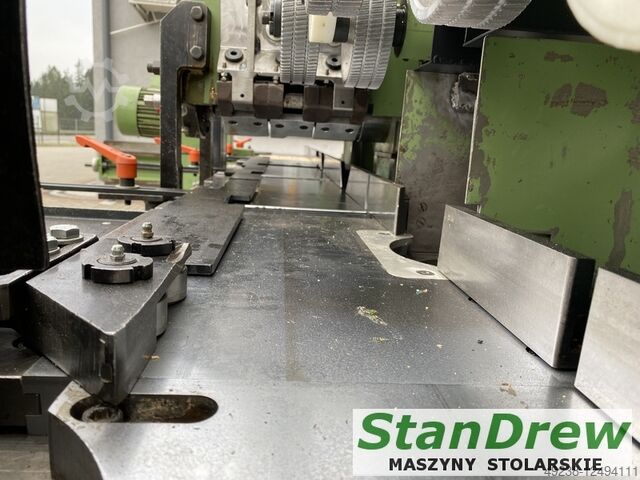

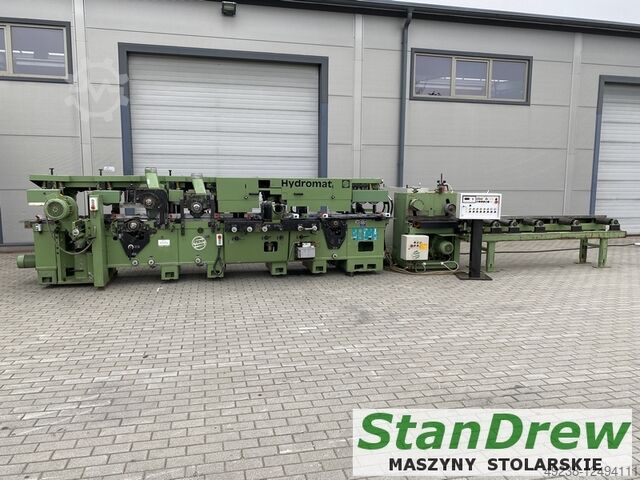

Condition: like new (used), functionality: fully functional, planing height: 190 mm, spindle diameter: 50 mm, planing width: 250 mm, overall weight: 10,000 kg, Weinig Hydromat H25N four-sided planer with 100 m/min feeder - German production - hydraulic feed up to 100 m/min - for wet wood - serving table TECHNICAL PARAMETERS: planing width 250 mm planing height 190 mm spindle diameter 50 mm electric height adjustment 1 lower spindle 15 kW 2 right spindle 7.5 kW 3 left spindle 15 kW 4 right spindle 7.5 kW 5 upper spindle 7.5 kW 6 upper spindle 15 kW 7 lower spindle 7.5 kW Tsdpfxon Slk Ue Ahmjc 8 universal spindle 1800 7.5 kW feed smoothly adjustable up to 100 m/min feed pump motor power 22 kW nine rollers in the table top, three of which are in front of the first head seven upper steel pulling rollers four upper rubber pulling rollers pneumatic pressure jointer on 1-6-7 spindle automatic lubrication of the countertop feeding table 3000 mm speed smoothly adjustable up to 100 m/min two upper pneumatic rollers six lower pulling rollers minimum material length 650 mm Transport dimensions 11000x2400x2000 mm weight 9 tons

Condition: excellent (used), working width: 250 mm, planing height: 140 mm, spindle diameter: 50 mm, planing width: 250 mm, working height: 140 mm, power of feed motor: 30,000 W, spindle speed (max.): 6,000 rpm, height adjustment type: hydraulic, type of input current: three-phase, number of spindles: 9, input frequency: 50 Hz, Weinig Hydromat 25 9 spindles, Working width: 250 mm, working height: 140 mm, spindle diameter: 50 mm, feed: 30 kW / 6 - 100 m/min, Spindle arrangement: 1-bottom (11 kW) - with hydraulic clamping 2-Right (9 kW) 3-left (11 kW) 4-Right (9 kW) 5-Top (15 kW)- with hydraulic clamping 6-Bottom (7.5 kW) - with hydraulic clamping Todpfx Aheq Au Tlomoc 7-Top (7.5 kW) - with hydraulic clamping and straight jointer 8-Top (11 kW) - with hydraulic clamping and straight jointer 9-bottom (11 kW) - with hydraulic clamping and straight jointer 11 driven rollers in the table

Condition: excellent (used), functionality: fully functional, working width 250mm working height 140mm 8 heads 3 toothened rolls in the table before first head heads set: bottom/right/left/right/left/top/top/bottom variable regulated feeder to 100m/min spindles diameter 50mm two side bearings of spindles feeder with cardan spindles speed 6000 rpm pneumatic pressure of feeding rolls Tjdpezxz Hmofx Ahmsc two side heads regulation two axes heads regulation iron cast body

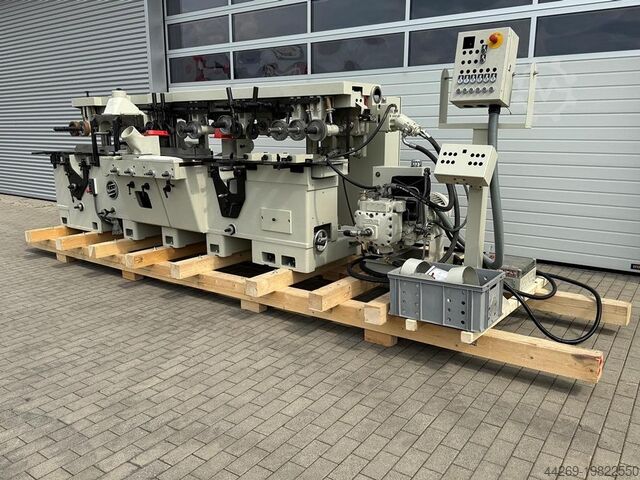

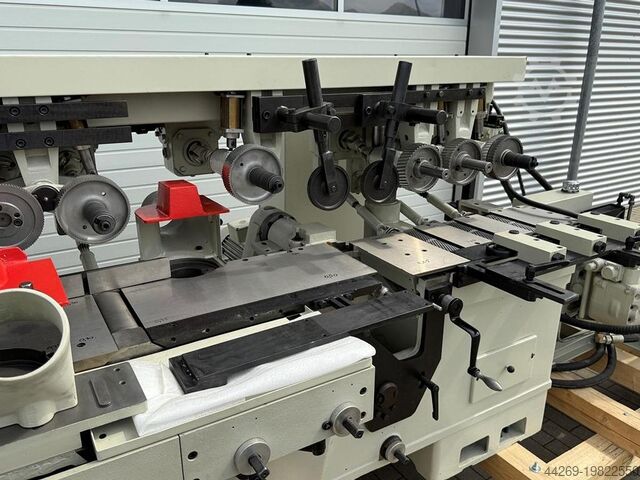

Condition: used, Weinig H25 high-speed automatic planing and moulding machine for four-sided planing and profiling of wet timber (freshly sawn) The photographs show the machine’s current condition. Among other things, a number of original new Weinig parts have been fitted, and the tables and stops have been sanded down and recoated. Further new parts are required to complete the machine. These will be ordered upon receipt of an order, taking the customer’s requirements into account. The control panel is for testing purposes only and is temporary. Technical data: Tsdpfx Ahozrxykemjc - Spindles: 5 - Working width: 250 mm - Working height: 160 mm - Spindle 1: Bottom (7.5 kW) - Spindle 2: Right (11 kW) - Spindle 3: Left (11 kW) - Spindle 4: Top (15 kW) - Spindle 5: Bottom (tba) - Hydraulic feed: 15 kW - Powered table rollers: Yes - Table tops: Resanded and recoated (hardened)

Condition: excellent (used), Planing width 250 mm Planing height 120 mm 1. lower spindle 2. right spindle 3. left spindle 4. right spindle 5. upper spindle 6. lower spindle 7. lower spindle 8. Universal spindle 360* Todpfswlk E Iox Ahmoc - Hydraulic feed 6-60 m/min. - 10x driven table rollers - Spindle diameter 50 mm

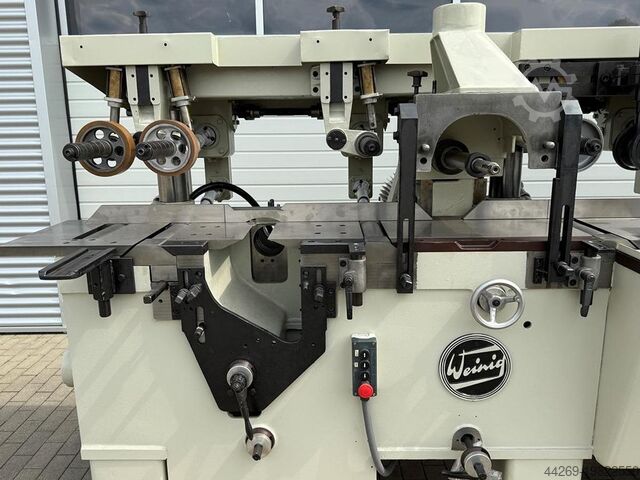

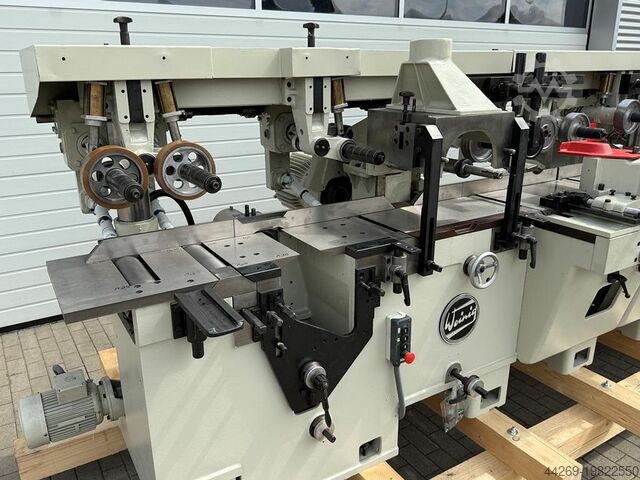

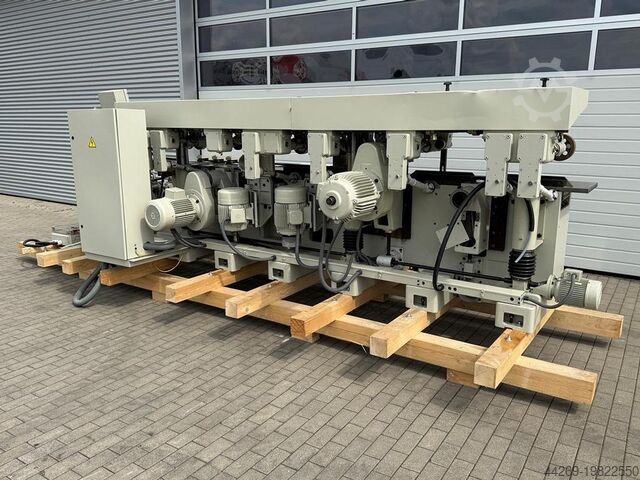

Condition: ready for operation (used), Year of construction: 1981, WEINIG Hydromat H25R, S/N 2603-624, year of manufacture 1981, with walk-in acoustic enclosure KASCHWIG – ALMOST NEW from 2017 • Short infeed table with heavy-duty 6-roller infeed 1st spindle bottom 11.0 kW 2nd spindle right 11.0 kW 3rd spindle left 11.0 kW 4th spindle top 15.0 kW 5th spindle bottom 11.0 kW 6th spindle bottom 11.0 kW • Hydraulic feed 6-60 m/min. • Feed motor 22.0 kW • 4x powered table rollers • Spindle diameter 50 mm Tsdpotkt Tpofx Ahmec • Automatic table lubrication • Spindles 1 + 4 + 5 + 6 with counter-bearings • Spindles 1 + 4 with straight jointer • Feed rollers 170 mm • 4 pcs. hydro planer heads 150 mm • 6 pcs. hydro planer heads 250 mm • Extraction hood above the machine
