Dresser

Weinig

Condition: ready for operation (used), Year of construction: 1996, machine/vehicle number: 123-2001, functionality: fully functional, planing width: 260 mm, rotational speed (max.): 6,000 rpm, number of spindles: 5, planing height: 120 mm, roller diameter: 140 mm, TECHNICAL DETAILS Maximum planing width: 260 mm Maximum planing height: 120 mm Infeed table length: 2,470 mm Number of spindles: 5 Spindle 1 Spindle type: Horizontal spindle Motor power: 5.5 kW Spindle diameter: 120 mm Planing cutter head speed: 6,000 rpm Maximum planing block diameter: 150 mm Spindle 2 Spindle type: Vertical spindle Motor power: 11 kW Spindle diameter: 140 mm Planing cutter head speed: 6,000 rpm Maximum planing block diameter: 160 mm Spindle 3 Spindle type: Vertical spindle Motor power: 11 kW Spindle diameter: 120 mm Planing cutter head speed: 6,000 rpm Maximum planing block diameter: 160 mm Rjdpfszuwrksx Alajcf Spindle 4 Spindle type: Horizontal spindle Motor power: 11 kW Spindle diameter: 120 mm Planing cutter head speed: 6,000 rpm Maximum planing block diameter: 160 mm Spindle 5 Spindle type: Horizontal spindle Motor power: 7.5 kW Spindle diameter: 140 mm Planing cutter head speed: 6,000 rpm Maximum planing block diameter: 160 mm Feed and extraction Diameter of feed rollers: 140 mm Feed motor: 2.2 kW Diameter of extraction nozzle: 140 mm Feed drive: Cardan shaft drive Tool type: Standard Lubrication system: Manual MACHINE DETAILS Electrical data Voltage: 380 V Current draw: 84 A Fuses: 100 A Total power: 39 kW Dimensions & Weight Dimensions (L × W × H): 4,000 × 1,700 × 1,650 mm Dry weight: 2,500 kg Shipping packages: 1 EQUIPMENT Tools for all spindles included Documentation

Condition: used, Year of construction: 2000, Storage location: Nattheim Rjdpfx Aljvwdmwjajcf

Condition: excellent (used), Blade: Z 6 Cutting diameter: 150 mm Bore: 50 mm Length: 150 mm Rodjzxb U Rjpfx Alajcf Clamping: Hydraulic Price per piece.

Condition: excellent (used), Blade: Z 6 Cutting circle diameter: 150 mm Rcsdpszxb U Dsfx Alasf Bore: 50 mm Length: 220 mm Clamping: Hydraulic Price per piece.

Condition: excellent (used), Weinig planing head Bore – 50 Rcodpfx Ajzxb Uwslasf

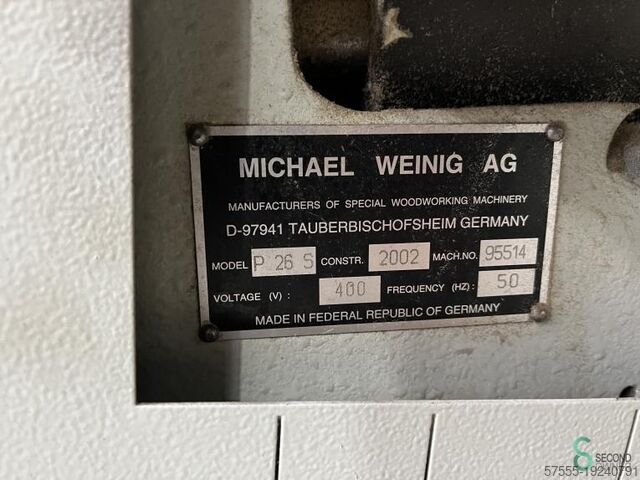

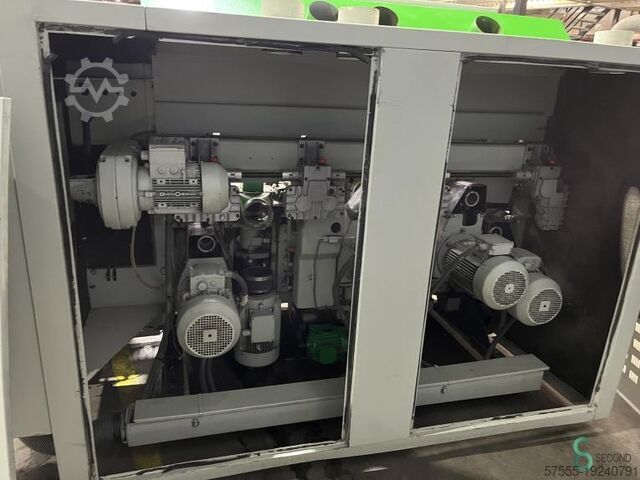

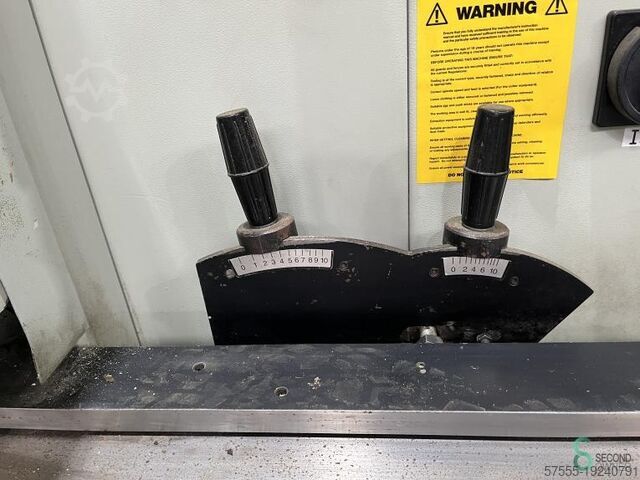

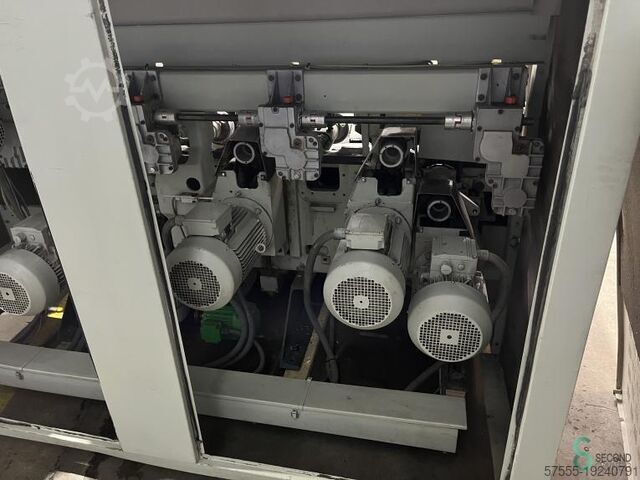

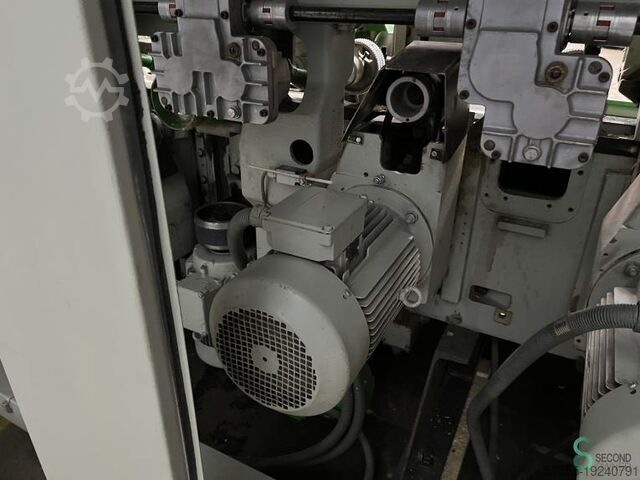

Condition: used, Planer profiling milling machine WEINIG Profimat 26 Super Working width 20 - 230 mm (260) Working height 8 - 120 mm (140) 5 working spindles Ø 40 mm Long infeed table (approx. 2000 mm) Bottom working spindle 4 kW / left + right 7.5 kW / top 5.5 kW / bottom finishing 5.5 kW Pneumatic pressure of feed rollers Cardan feed infinitely variable 5 - 24 m/min Feed roller before jointer Rodpjyi Dw Dofx Alaecf Control - push button operation automatic lubricant pump mechanical digital displays Machine in CE design Year of manufacture 2001 Without machining tools Machine is WORKSHOP OVERHAULED in GOOD CONDITION Machine is connected and ready for demonstration in exhibition center Ex stock Lieboch

Condition: reconditioned (used), Year of construction: 2014, Number of spindles 5 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 5-30 m/min. Control Memory-Funktion Weinig Powermat 600 Compact ----- The machine has been cleaned and fully inspected. Brief Summary: Rsdpfx Ajwzmu Rjlaocf ----- - 5 Spindles - Powerful Motors - Left and top spindles controlled for width and height Detailed Description: ----- Technical Data: Working Width: 20-230 mm Working Height: 10-120 mm Number of Spindles: 5 1st Spindle - Bottom ----- Motor with brake: 7.5 kW Spindle diameter: 40 mm Speed: 6,000 rpm Tool Circle: 125-145 mm Tool Circle for Rebating Cutter: 130-160 mm Axially Travel: 5 mm Rebating Device MarathonCoatine for table insert in front of the 1st lower tool holder Electronic digital display for rotary adjustment 2nd Spindle - Right ----- Motor with brake: 11.0 kW Shared motor with left-hand tool holder Spindle diameter: 40 mm Speed: 6,000 rpm Tool swing diameter 40 mm below table level: 93 - 200 mm Tool swing diameter 55 mm below table level: 93 - 180 mm Tool swing diameter for straight cutter heads max. 163 mm Max. tool diameter behind fence: 180 mm Max. groove depth: 35 mm Axially travel: 55 mm 3rd Spindle - Left ----- Motor with brake: Shared motor with the 2nd spindle Spindle diameter: 40 mm Speed: 6,000 rpm Tool swing diameter 40 mm below table level: 93 - 200 mm Tool swing diameter 55 mm below table level: 93 - 180 mm Tool swing diameter for straight cutter heads max. 163 mm Max. groove depth: 35 mm Axially travel: 55 mm CNC-controlled radial spindle 4th spindle - top ----- Motor with brake: 11.0 kW Spindle diameter: 40 mm Speed: 6,000 rpm Tool swing diameter: 93 - 200 mm Tool swing diameter for straight cutter heads max.: 180 mm Max. groove depth: 35 mm Axially travel: 40 mm CNC-controlled radial spindle Split pressure shoe in front of upper tool holder, adjustable to the tool swing diameter and pivoting away from the tool, spring-loaded. Pressure shoe in front of, and discharge after, the upper spindle with electronic digital displays, integrated into the memory function or the PowerCom 5. Spindle - bottom ----- Motor with brake: 7.5 kW Spindle diameter: 40 mm Speed: 6,000 rpm Tool travel: 93 - 200 mm Max. throat depth: 15 mm Axially travel: 35 mm Feed system ----- Electronic feed, infinitely variable with brake: 4 kW, 5 - 30 m/min Infeed roller in front of the first lower tool, pneumatically controlled up/down. Durofer pointed tooth rollers with depth limiter and self-cleaning. Adjustment travel of the feed rollers relative to the left tool holder, axial 35 mm Machine electrical system ----- Operating voltage 400 V (voltage range 380–420 V), 50 Hz. All spindles IE2 design. Electrical design according to DIN VDE 0113, electrical equipment of industrial machines EN 60204, IEC 204-1. Other electrical regulations are not considered. Machine stand, tables, and ...

Condition: reconditioned (used), Number of spindles 6 St. Working width 230 mm Working height 120 mm Length of the planing table 2500 mm Feed motor 4 kW Feed speed 5-30 m/min. control Memory-Funktion Rcedpfxsuzaa Ss Alaef Weinig Powermat 400 with HSK/Powerlock, axial/radial CNC controlled ----- The machine renovated and functionally checked ! Short summary: ----- 6 spindles with 8,000 rpm 5 x HSK/Powerlock Axial and radial CNC adjustment of the spindles via control CNC - controlled adjustment and positioning of the feed Detailed description: ----- Technical specifications: Working width: 20-230 mm Working height: 8-120 mm Number of spindles: 6 1. Tool holder - below ----- Motor with brake: 5.5 kW Spindle diameter: 40mm Speed: 6,000 rpm Tool flight circle: 93 - 160 mm Axial adjustment range: 5 mm Rebating device MarathonCoatin for table insert in front of 1st lower tool holder 2. Tool holder - PowerLock - right ----- Motor with brake: 11.0 kW Common motor with left tool holder Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle 40 mm below table level: 93 - 200 mm Tool flight circle 55 mm below table level: 93 - 180 mm Tool cutting circle for straight cutter heads max. 163 mm Max. tool diameter behind stop level: 180 mm Max throat depth: 35 mm Axial adjustment range: 55 mm Spindle axially and radially CNC controlled 3. Tool holder - PowerLock - left ----- Motor with brake: Common motor with the 2nd spindle Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle 40 mm below table level: 93 - 200 mm Tool flight circle 55 mm below table level: 93 - 180 mm Tool cutting circle for straight cutter heads max. 163 mm Max throat depth: 35 mm Axial adjustment range: 55 mm Spindle axially and radially CNC controlled 4. Tool holder - PowerLock - above ----- Motor with brake: 7.5 kW Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle: 93 - 200 mm Tool cutting circle for straight cutter heads max.: 180 mm Max throat depth: 35 mm Axial adjustment range: 40 mm Divided pressure shoe in front of the upper tool holder, on tool flight circle adjustable and pivoting away from the tool, spring-loaded. Radial CNC-controlled spindle 5. Tool holder - PowerLock - above ----- Motor with brake: 7.5 kW Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle: 93 - 200 mm Tool cutting circle for straight cutter heads max. : 180 mm Max throat depth: 35 mm Axial adjustment range: 40 mm Divided pressure shoe in front of the upper tool holder, on tool flight circle adjustable and pivoting away from the tool, spring-loaded. Spindle axially and radially CNC controlled 6. Tool holder - PowerLock - below ----- Motor with brake: 7.5 kW Speed ??including high-performance ball bearing: 8,000 rpm Tool flight circle: 93 - 200 mm Max throat depth: 15 mm Axial adjustment range: 35 mm Radial CNC-controlled spindle feed system -----...

Condition: excellent (used), functionality: fully functional, planing height: 230 mm, spindle diameter: 40 mm, planing width: 140 mm, spindle speed (max.): 6,000 rpm, workpiece height (max.): 140 mm, workpiece width (max.): 230 mm, number of spindles: 6, Equipment: motor brake, SCM SUPERSET CLASSIC 230 6 spindles Spindle diameter: 40 mm Spindle arrangement: 1 - Bottom (7.5 kW) 6,000 RPM Rjdpfx Alozw Umweaecf 2 - Right (7.5 kW) 6,000 RPM 3 - Left (7.5 kW) 6,000 RPM 4 - Top (7.5 kW) 6,000 RPM 5 - Top (7.5 kW) 6,000 RPM 6 - Bottom (7.5 kW) 6,000 RPM Feed rate: 5.5 kW / 6 - 36 m/min One driven roller in the table at the outfeed.

Condition: excellent (used), Marinus Machines V&G 400 Series, Rsdpszw Ufmefx Alascf Through Feed End Matching Machine suitable for fixed or random lengths as needed Maximum working length up to 6m, Minimum working length: 500m/m Total Power: Appr: 32kw, Tooling included. 400v 50hZ 20 pieces per minute possible depending on length. PLC Controls. Complete Safety Enclosure.
