Planing spindle

Weinig

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 1.490,14, saw blade diameter: 500 mm, cutting height (max.): 140 mm, cutting width (max.): 350 mm, power: 8 kW (10.88 HP), overall weight: 2,000 kg, TECHNICAL DETAILS Max. saw blade length: 6,100 mm Max. saw blade diameter: 500 mm Saw blade arbor diameter: 35 mm Max. cutting height: 140 mm Max. cutting width: 350 mm Infeed table length: 7,850 mm Outfeed table length: 2,400 mm MACHINE DETAILS Main motor power: 5.5 kW Total power: 8.0 kW Voltage: 400 V Fuse: 25 A Dimensions & Weight Dimensions (L x W x H): 11,250 x 800 x 1,600 mm Weight: 2,000 kg Guedpfxsy Nyd Io Alxsb EQUIPMENT Automatic feed system

Condition: ready for operation (used), Year of construction: 2004, machine/vehicle number: 102848, functionality: fully functional, operating hours: 3,142 h, empty load weight: 5,000 kg, feed rate X-axis: 33 m/min, number of spindles: 7, TECHNICAL DETAILS Number of spindles: 7 Spindle 1 - Spindle type: Bottom - Motor power: 15 kW - Tooling: Yes Spindle 2 - Spindle type: Right - Motor power: 11 kW - Tooling: Yes Spindle 3 - Spindle type: Left - Motor power: 11 kW - Tooling: Yes Spindle 4 - Spindle type: Top - Motor power: 22 kW - Tooling: Yes Spindle 5 - Spindle type: Bottom - Motor power: 15 kW - Tooling: Yes Spindle 6 - Spindle type: Top - Motor power: 30 kW - Tooling: Yes Spindle 7 - Spindle type: Bottom - Motor power: 15 kW Minimum planing width: 20 mm Maximum planing width: 300 mm Minimum planing height: 3 mm Maximum planing height: 160 mm Infeed table length: 1,000 mm Feed roller diameter: 140 mm Extraction nozzle diameter: 160 mm Feed speed: Manual Minimum feed speed: 5 m/min Maximum feed speed: 33 m/min Feed speed regulation: Infinitely variable MACHINE DETAILS Voltage: 400 V Current consumption: 278 A Circuit breaker: 400 A Power: 128 kW Dimensions & weight Dimensions (L x W x H): 5,500 x 2,400 x 2,100 mm Net weight: 5,000 kg Operating hours: 3,142 h EQUIPMENT Driven rollers in the table Powerlock Cutterhead drive: Cardan shaft drive Gjdpsy Nyb Hjfx Alxeub Lubrication system: Automatic

Condition: good (used), Leadermac Speedmac 923 Maximum width 230mm Maximum thickness 160mm Gedpfjxcft Ssx Alxsub 9x spindles 6,000 RPM 4x side heads !!! Bottom 11kW Right 7.5kW Left 11kW Top 15kW outboard bearing Right 11kW Left 11kW Top 15kW outboard bearing Bottom 15 kW outboard bearing Bottom 30 kW outboard bearing Possible to add jointers as needed. CNC position on spindles 3,4,6 and 7. Large quantity of Hydro tooling included!!! 11kW feed motor. 6-70m/min (possible to increase if needed). Automatic lubrication system. Total 137.5kW Possible to supply with moulder infeed and outfeed as needed. Possible to offer tooling if needed.

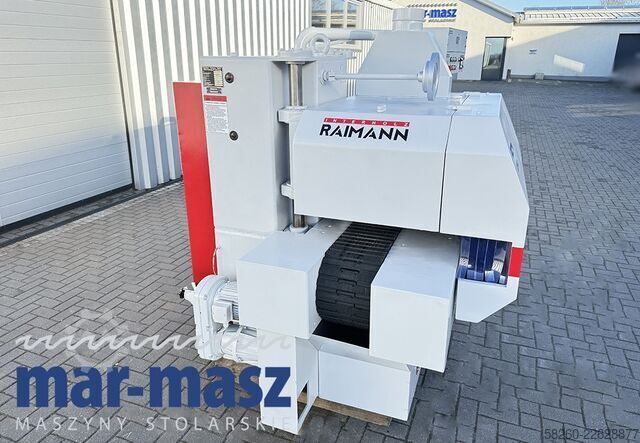

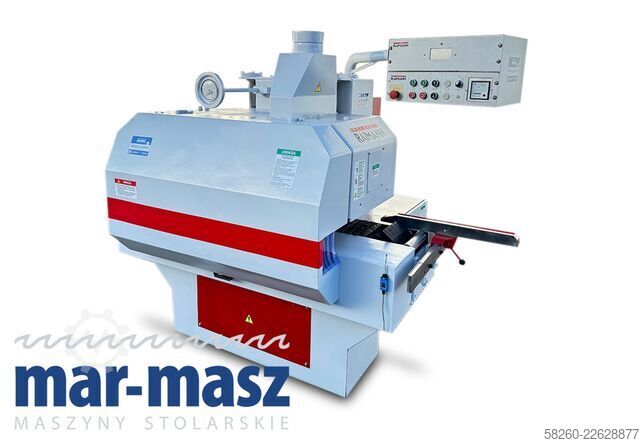

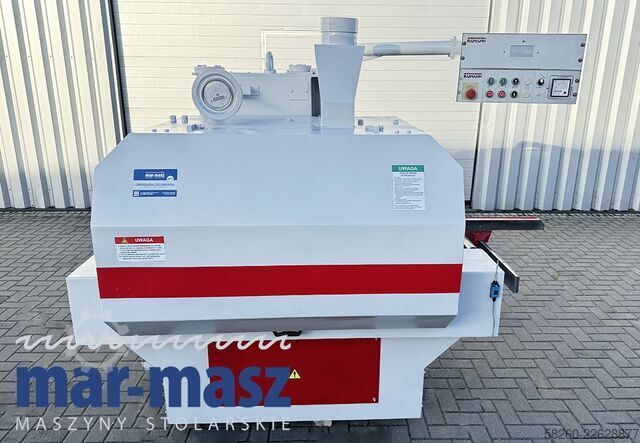

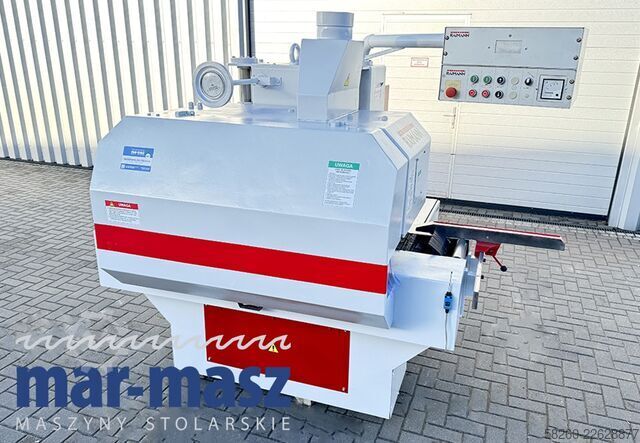

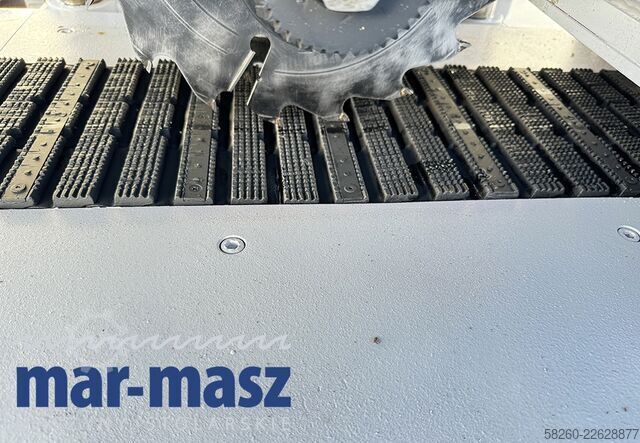

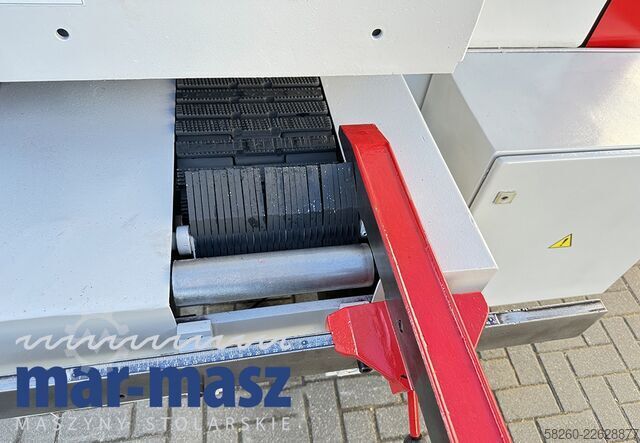

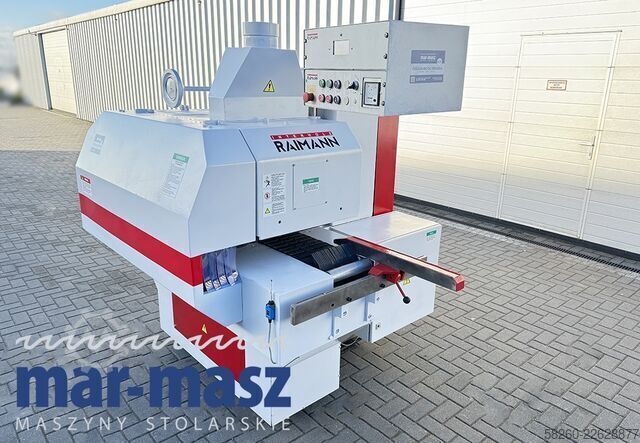

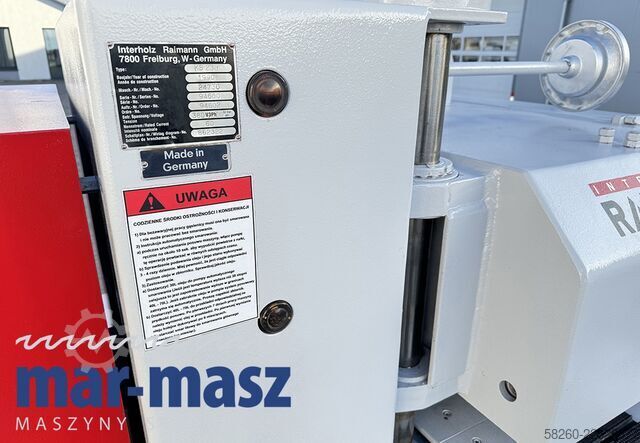

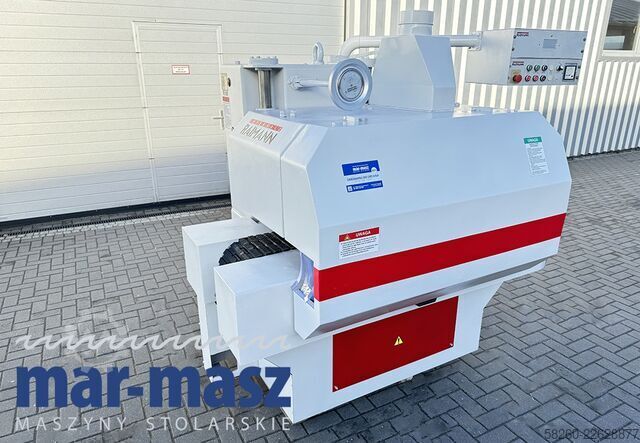

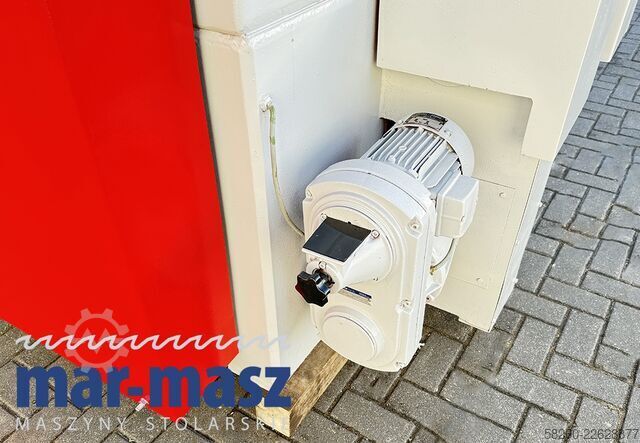

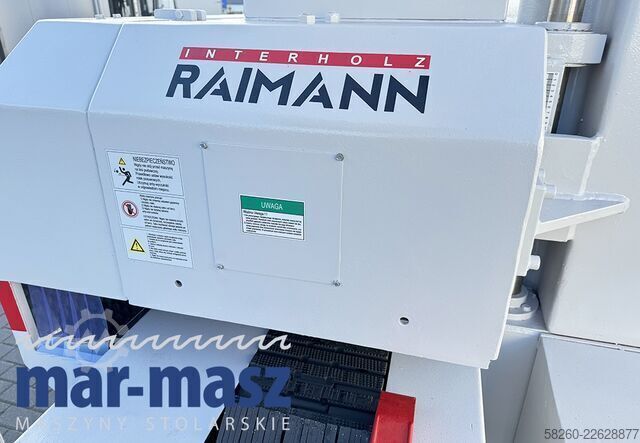

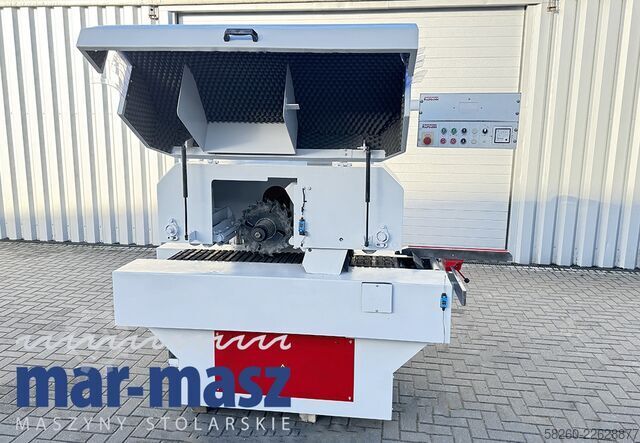

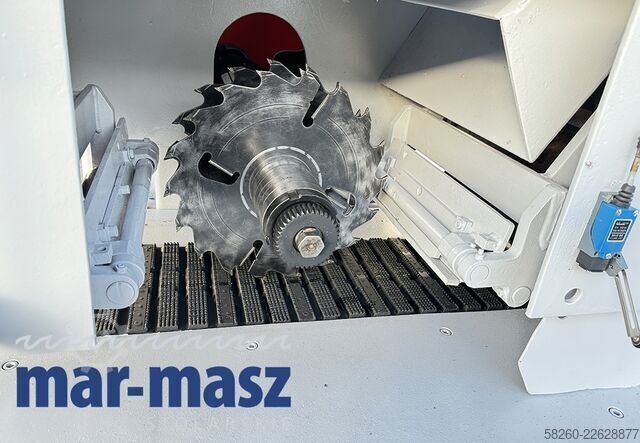

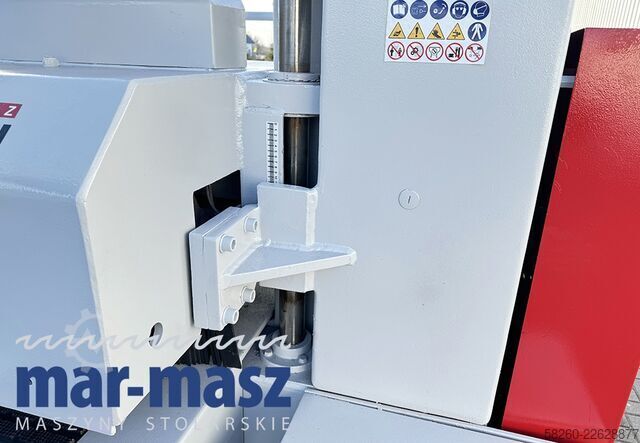

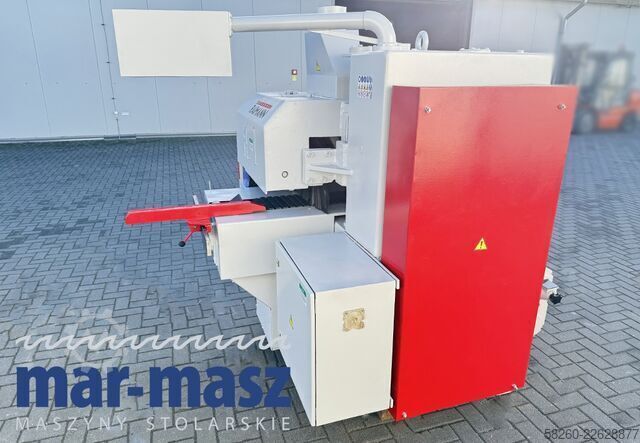

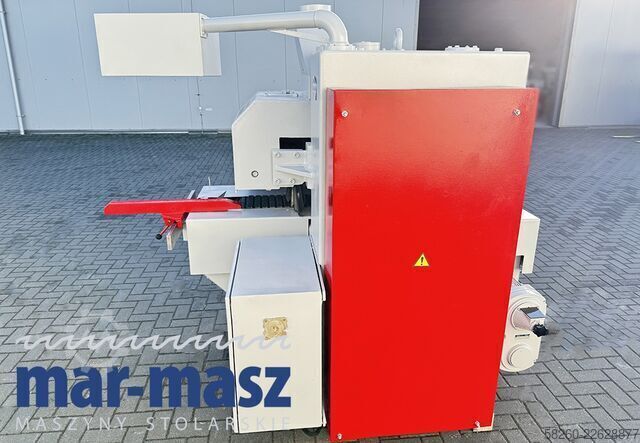

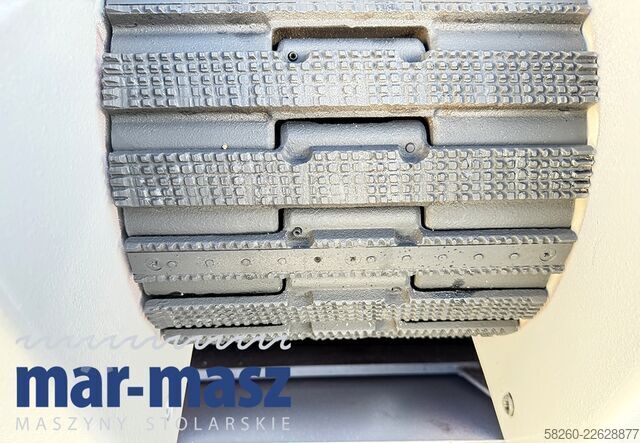

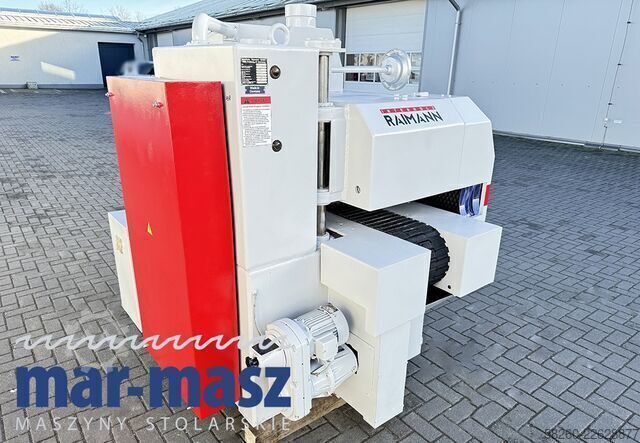

Condition: excellent (used), Catalogue number 7670 TECHNICAL DATA - Track width: 340 mm - Roller width: 400 mm - Max. blade diameter for multi-blade saw: 350 mm - Blade bore diameter: 80 mm - Max. cutting height for edger: 100 mm - Max. cutting height for multi-blade saw: 120 mm - Table width with clearance: 900 mm - Table length: 1780 mm - From above: - Kickback fingers - Pressure roller, sliding, metal - Kickback fingers - Pressure roller, sliding - Saw shaft with blades - Pressure roller, sliding - Sliding pressure shaft, metal - From below: - Guide bar - Kickback fingers - Track - Central lubrication - Stepless feed speed adjustment - Electric lifting of saw shaft 0.75 kW + body 1.1 kW - Feed motor 1.5 kW - Main motor 22 kW - Floating saw movement 0.55 kW - Lasers (not working, require inspection) - Extraction port diameter: 210 mm - Overall dimensions (L/W/H): 2200 x 1450 x 2000 mm - Weight: 1925 kg Gjdey Sn Rnjpfx Alxjub ADVANTAGES – Made in Germany – Shaft with floating blade for edging – Additional sleeve for multi-blade saw included – Used multi-blade saw, in very good condition Net price: 58,900 PLN Net price: 14,030 EUR (based on exchange rate 4.2 EUR) (Prices may change with larger fluctuations)

Condition: excellent (used), working width: 250 mm, planing height: 140 mm, spindle diameter: 50 mm, planing width: 250 mm, working height: 140 mm, power of feed motor: 30,000 W, spindle speed (max.): 6,000 rpm, height adjustment type: hydraulic, type of input current: three-phase, number of spindles: 9, input frequency: 50 Hz, Weinig Hydromat 25 9 spindles, Working width: 250 mm, Gusdpfx Alsq Au Tlsxsb working height: 140 mm, spindle diameter: 50 mm, feed: 30 kW / 6 - 100 m/min, Spindle arrangement: 1-bottom (11 kW) - with hydraulic clamping 2-Right (9 kW) 3-left (11 kW) 4-Right (9 kW) 5-Top (15 kW)- with hydraulic clamping 6-Bottom (7.5 kW) - with hydraulic clamping 7-Top (7.5 kW) - with hydraulic clamping and straight jointer 8-Top (11 kW) - with hydraulic clamping and straight jointer 9-bottom (11 kW) - with hydraulic clamping and straight jointer 11 driven rollers in the table

Condition: used, functionality: fully functional, working width: 240 mm, shaft diameter: 38 mm, Spindle from Weinig Powermat 400. Price per piece Gujdpfx Alju D Nihoxjb

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Unicontrol 12 Consisting of: Cut-off unit (item A), Tenon and slotted spindle (item C), Transfer belt (Pos. I), profiling spindle (Pos L), profiling spindle (Pos. N), Profile shaving unit vertical right (Pos. P) Godsumci Sepfx Alxoub For the production of individual parts and elements in frame-by-frame or serial production. Consisting of a cross processing unit and a longitudinal processing unit connected to a transfer belt. Working width 40-140mm (See pressure ruler left 40 - 140 mm) Working height 40-120mm Workpiece length min. approx. 275 mm + 1 x end profile length Long machining: approx. 220 mm + 2 x end profile length Workpiece length max. 3500 mm The part dimensions depend on the machine equipment, production type and tool assignment. A final definition of the part dimensions is only possible after receipt, inspection and approval of the complete and final layout drawings. Cross machining: Table feed Motor power 0.3 kW (0.4 HP) Pre-set feed speed for cutting, profiling and return 3-25 m/min Vario table with (studio window production possible) The clamping length of all tenoning and slotting spindles can be used without a tool blank. Workpiece clamping by means of a clamping bridge. Operated by a clamping cylinder installed under the table. NC-controlled long fence mounted on the slotting table. Studio window device Swivel angle max. +/- 75° The minimum workpiece length for slanted windows depends on the angle and the width of the wood. Possible part dimensions for slanted window production Angle Max. Min. Working width Workpiece length +/-75° 80 mm 800 mm +/-70° 120 mm 490 mm +/-60° 240 mm 360 mm +/-90° 350 mm 185 mm For angles greater than 60° only counter processing Commission not documented 1)NC automatic angle adjustment for machining angled parts Splinter protection by means of overtravel counter Over the entire spindle length of the tenoning and slotting spindle for 90° machining Manually trackable counter-rail for angled part machining 2) Additional counter-rails

Condition: excellent (used), Number of knives Z2 V2 width 17 mm circle diameter 160 mm material Stahl Gedpfjy Apf Ujx Alxeub WP Bore diameter 40 mm Jointing rebate cutter Weinig type 530 160 for use on the planing spindle of Weinig planing machines.

Condition: used, bore 50 mm length 310 mm Gedpsyz Dftofx Alxoub knife system Centrolock circle diameter 150 mm number of blades 4 Z Two planing heads Weinig type 531 150 01 498 including a batch of untested knives.

Condition: used, dimensions Auf Anfrage weight Auf Anfrage Available Auf Anfrage Various used spare parts or complete units, control systems and control cabinets for Weinig Univar (and others) always available. Godeyz Dfmepfx Alxsub Please contact us. Sample pictures.
