Weinig jointing and rebating cutter

Weinig

Condition: used, Year of construction: 2002, machine/vehicle number: 96.164, functionality: unexamined, overall weight: 3,000 kg, spindle diameter: 40 mm, number of spindles: 6, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Number of spindles: 6 Spindle 1 Spindle type: Bottom Spindle diameter: 40 mm Spindle 2 Spindle type: Right Motor power: 11 kW Spindle diameter: 40 mm Spindle 3 Spindle type: Left Spindle diameter: 40 mm Spindle 4 Spindle type: Top Motor power: 11 kW Spindle diameter: 40 mm Spindle 5 Spindle type: Top Motor power: 7.5 kW Spindle diameter: 40 mm Spindle 6 Spindle type: Bottom Motor power: 7.5 kW Spindle diameter: 40 mm Infeed table length: 945 mm Diameter of feed rollers: 140 mm Conveyor motor: 14 kW Conveyor drive: Cardan shaft drive Tool type: Standard Lubrication system: Manual MACHINE DETAILS Diameter of extraction nozzle: 140 mm Voltage: 400 V Fuse: 63 A Dimensions & Weight Dimensions (L x W x H): 4,100 x 2,100 x 2,400 mm Empty weight: 3,000 kg Transport packages: 1 EQUIPMENT Tools for Spindle 1 Tools for Spindle 2 Tools for Spindle 3 Tools for Spindle 5 Tools for Spindle 6 NOTE Spindle 1 The brake is weak. The counter for the height adjustment is defective. Spindles 2 and 3 – shared motor The brake is defective. The height adjustment of Spindle 2 is very stiff and seized. The counters for the height and width adjustment of Spindle 2 are defective. The counters for the height and width adjustment of Spindle 3 are defective. Spindle 4 The spindle can only be turned with great difficulty; the bearings are defective. The height adjustment is seized. Spindle 5 The counter for the height adjustment is defective. Spindle 6 Hfsdpjz Nir Rjfx Aqgon The width adjustment is seized, and the corresponding counter is defective. The motor emits a humming sound, presumably caused by the brake. Other defects The drive belts for spindles 1 and 6 are in very poor condition. The switch on the front of the machine for adjusting the table height is defective. The pressure reducing valve and the moisture separator need to be repaired or replaced. The lubrication pump is defective and needs to be repaired or replaced. The mechanism for speed regulation is defective and seized. The rubber coupling elements for the height adjustment are defective. Conclusion Due to the defects listed above, the machine could not be put into operation for testing purposes.

Condition: used, total width: 1,500 mm, total height: 2,300 mm, Year of manufacture: 2009 Colour: Grey Empty weight: 3.200 kg Dimensions (LxBxH): 420 x 150 x 230 cm Fourside moulder Weinig Variomat Year of construction 2009 Serial number: 113680 400v, 32kW 64Amp. Min-max working width 20-230mm Min-max working height 8-120mm Max tool diameter vertical spindle 232mm Max tool horizontal spindle (Not on the first) 200mm Input table length 1950mmFeed speed 6-12 m/min Spindle diameter 40mmSpindle speed 6000 U/min Hfedpfjwnhh Ejx Aqgon 1st spindle, bottom: 5.5kW 2nd & 3rd spindle, left & right: 7.5kW 4th spindle, top: 11kW 5th spindle bottom: 5.5kW Please note: 5th spindle does not work Dimensions: 4000x1400xH1350mm weight 2500kg - Details: - └ Description: Problem with 5th-spindle - Year: 2009 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 113680 - Transport dimensions: 4200mm x 1500mm x 2300mm (l x w x h) - Transport weight [kg]: 3200kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

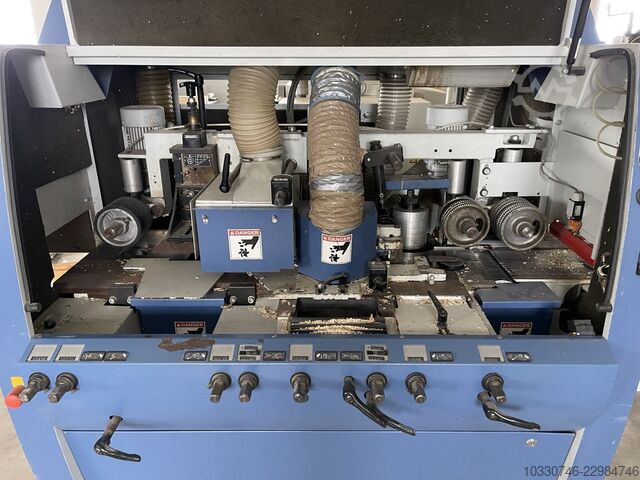

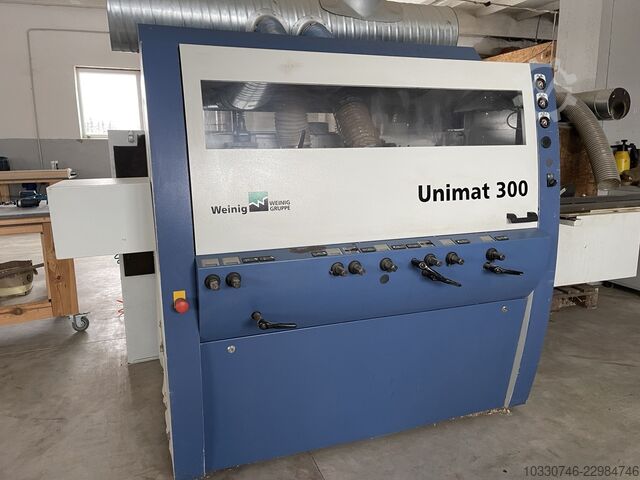

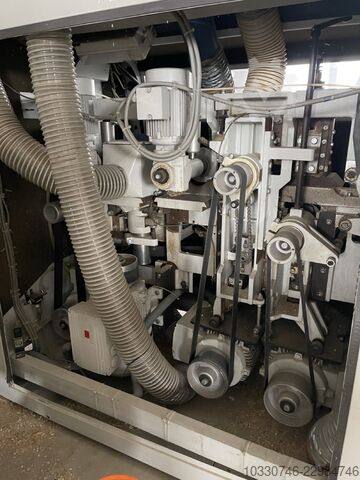

Condition: excellent (used), Year of construction: 2006, functionality: fully functional, working width: 230 mm, planing height: 120 mm, spindle diameter: 40 mm, total width: 1,400 mm, total height: 1,600 mm, total length: 3,700 mm, overall weight: 1,500 kg, spindle speed (max.): 6,000 rpm, type of input current: three-phase, input voltage: 400 V, table length: 2,000 mm, number of spindles: 5, input frequency: 50 Hz, input current: 67 A, For sale: A highly reliable, premium-quality Weinig Unimat 300 four-sided planing and moulding machine in excellent, low-use condition. Manufactured in 2008, this unit represents one of the final production years of this legendary compact series. Perfect for small to medium-sized woodworking shops that demand top-tier precision and rapid setups. Hsdpfx Ajz Srbmsqgjfn Technical Specifications: • Year of Manufacture: 2008 (Low operating hours, well-maintained) • Number of Spindles: 5 • Spindle Arrangement: Bottom – Right – Left – Top – Bottom • Spindle Speed: 6,000 RPM • Spindle Diameter: 40 mm • Feed Speed: 2-stage manual configuration (6 and 12 m/min) • Working Width: 20 mm up to 230 mm • Working Height: 8 mm up to 120 mm • Infeed Table Length: 2,000 mm • Drive System: Heavy-duty Cardan (universal joint) feed drive system for smooth and powerful workpiece traction • Table Features: Hard-chrome plated tables to prevent resin buildup and minimize wear • Enclosure: Full safety and sound-insulation safety hood (CE certified) • Sold together with additional accessories / cutterheads (ready for immediate operation). • Free loading onto transport: The machine is in pristine mechanical and visual condition.

Condition: used, POWERLOCK MOUNTED MILLING HEADS, price €7,500 Two cabinets filled with milling heads for various applications, approximately 45 pieces. Working dimensions in mm: 40 - 1 piece 60 - 12 pieces 80 - 7 pieces 100 - 9 pieces 130 - 3 pieces 140 - 1 piece 150 - 7 pieces 170 - 3 pieces Hfodpfx Ajzxguieqgsn 180 - 2 pieces

Condition: used, The last maintenance carried out by the manufacturer took place in December 2025. The plant is still in operation and can be viewed at any time. Including dismantling and loading; expected to be available from November 2026 Technical data: - Spindles: 4 - Spindle 1: Bottom / 15 kW / 50 mm / 6,000 rpm Hfedpezrx A Eefx Aqgjn - Spindle 2: Right / 15 kW / 50 mm / 6,000 rpm - Spindle 3: Left / 15 kW / 50 mm / 6,000 rpm - Spindle 4: Top / 18.5 kW / 50 mm / 6,000 rpm - Working width: 230 mm - Working height: 160 mm - Feed rate: 11 kW / 60 m/min - Control system: Memory Plus System

Condition: used, A range of second-hand spare parts, as well as complete units, control systems and switchboards for Weinig Unitec (and other brands), are always in stock. Please contact us. Sample images. Hfedpfszuzu Asx Aqgjn

Condition: used, A wide range of second-hand spare parts, as well as complete units, control systems and switchboards for Weinig Univar (and other brands) are always in stock. Please contact us. Sample images. Hodsztv D Nopfx Aqgjfn

Condition: used, Weinig Unicontrol 10 (UC 10) mitre saw system for the manufacture of windows, components and doors. Suitable for frame-by-frame, batch or individual part production, with 2 tenoning and slotting spindles, including an Oertli tool set Units: 1. Cross-cut saw, NC axis, 3 kW, ø 40 mm, 2,800 rpm 2. First tenoning and slotting spindle, NC axis, ø 50 mm, 15 kW, Technical data: Hjdpjztv Diefx Aqgefn - Clamping length: 640 mm (8 x 80) mm

Condition: used, WEINIG UNIVAR 10 automatic rebating machine from a UC-Matic window production line, not in working order. Hfjdpfxeztv A So Aqgjn Technical data: - Year of manufacture: 1997

Condition: used, WEINIG UNITEC 10 tenoning and slotting machine from a UC-Matic window production line, not in working order. Hfodpfxeztv Axo Aqgen
